X5B-500202Faceoff Wireless Deluxe Controller for Nintendo Switch

Faceoff Wireless Deluxe Controller for Nintendo Switch – User Guide and Controller Behavior pg. 1 Faceoff Wireless Deluxe Controller for Nintendo Switch 2-Year Manufacturer’s Warranty: For product issues, contact us instead of returning to the store. Further warranty information inside. User Guide and Controller Behavior 1. Initial Setup First press A/B/X/Y or the D-pad to wake up the controller. In the home screen, select [Controllers] > [Change Grip/Order]. Once on the pairing screen, press and hold the sync button at the top of the controller by the charging port. Hold for 2-3 seconds until the player indicator lights turn solid and you see the controller displayed on the screen. Tip: To unpair hold down the sync button for at least 1 second. 2. Charging the Controller When the controller is low on battery, the “function” button’s LED will blink RED every 30 seconds. Using the included micro-USB, connect the controller to the Nintendo Switch dock. While charging, the “function” button’s LED will breathe RED. When the controller is fully charged, the LED will turn WHITE. 3. Programming the Back Buttons While holding down the “function” button, press the back button you would like to assign a command to.. The “function” button’s LED will start flashing, indicating it’s ready to map. Faceoff Wireless Deluxe Controller for Nintendo Switch – User Guide and Controller Behavior pg. 2 Press the button who’s function you would like to assign to the back button. The “function” button’s LED will flash 3 times, indicating a successfully mapped function. Tip: To disable the back buttons, hold down the “function” button and double tap the back button. They can also be removed completely by sliding the button underneath to release the paddle. 4. Changing the Faceplate and Analog Stick With the unique, interchangeable design of Faceoff TM , you can easily select your favorite faceplate to swap out, and snap in. You can also remove other pieces, like the analog sticks, D-pad, and the gates in the faceplate. To replace an analog stick with the included precision thumb stick, remove the faceplate and pull off the desired stick. When installing the precision thumb stick, make sure the two sides line up with each other before pushing it on. The stick is in position when it sits in the pocket fully and can’t go down any further. Tip: You can get more faceplates and controller pieces to customize your gameplay with our Faceoff Mod Kits. Faceoff Wireless Deluxe Controller for Nintendo Switch – User Guide and Controller Behavior pg. 3 FCC ID:X5B-500202 IC:8814A-500202 Faceoff Wireless Deluxe Controller for Nintendo Switch – User Guide and Controller Behavior pg. 4 Warranty Information Pages (in the 7 languages) English 2-Year Limited Manufacturer’s Warranty • Coverage and Term: PDP warrants that this product will be free from manufacturing defects for two years from the original date of purchase. Manufacturing defects are those defects in materials and/or workmanship, subject to final determination by PDP’s customer service department. This warranty applies only to original purchasers with a valid proof of purchase from an authorized PDP retailer that clearly shows the date of purchase. • Exclusive Remedy and Exclusions: The exclusive remedy for valid claims will be the repair, replacement, or refund of the product. This warranty does not cover defects caused by accidents, improper or abusive use of the product, unauthorized or improper modifications, repairs, or handling. • How to Get Service: Purchasers with product issues should not return the product to the store, but instead contact PDP’s customer service department first. You can contact PDP customer service by phone at 1-800- 331-3844 (US and Canada only), Monday to Friday from 8 AM to 6 PM PST. International customers can contact us by phone at +442036957905. You can always reach us, 24/7, by visiting support.pdp.com and clicking the "Submit a Request" button top right of the page to open a support ticket. Inquiries are typically answered within 24 business hours. • Your Rights Under Applicable Law: This warranty does not affect the legal rights of customers under applicable state, provincial, or national laws governing the sale of consumer goods. • Additional Information for Australian Consumers: PDP products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given to you under our express warranty are in addition to other rights and remedies you have under the Australian Consumer Law and other laws.

DATE : 2020-06-01 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: X5B-500202 Product Name: Faceoff Wireless Deluxe Controller for Nintendo Switch Request for Confidentiality Pu rsuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for whic h you are seeking confidentiality – for example ...) Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Tom Roberts Title: Chief Technical Officer Applicant Company: PERFORMANCE DESIGNED PRODUCTS, LLC.

DATE: 2020-06-01 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with PERFORMANCE DESIGNED PRODUCTS, LLC 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America (Applicant Name and address) <Signature>: Name: Tom Roberts Title: Chief Technical Officer Applicant Company: PERFORMANCE DESIGNED PRODUCTS, LLC.

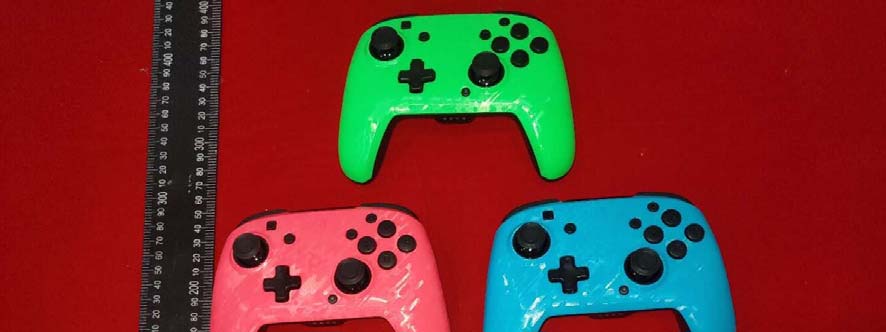

External photo

Label Location Silver Polyester Label Location

Internal photo

FCC ID: X5B-500202 RF EXPOSURE EVALUATION METHOD FCC ID: X5B-500202 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT GFSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -0.910 0.811 CH39 2441 -0.283 0.937 CH78 2480 0.342 1.082 π/4-DQPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -1.514 0.706 CH39 2441 -1.218 0.755 CH78 2480 -0.809 0.830 8DPSK Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 -1.861 0.651 CH39 2441 -1.268 0.747 CH78 2480 -0.702 0.851 Remark: The best case gain of the antenna is 0dBi. 0 dBi logarithmic terms convert to numeric result is nearly 1.00 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID: X5B-500202 BT Te s t Channel [(max. power of channel, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit GFSK CH00 0.811 5 2.402 0.251 3 CH39 0.937 5 2.441 0.293 3 CH78 1.082 5 2.480 0.341 3 π/4-DQPSK CH00 0.706 5 2.402 0.219 3 CH39 0.755 5 2.441 0.236 3 CH78 0.830 5 2.480 0.261 3 8DPSK CH00 0.651 5 2.402 0.202 3 CH39 0.747 5 2.441 0.233 3 CH78 0.851 5 2.480 0.268 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

Report No.: 20EFCB04023 3081 Page 1 of 63 FCC &ISED Radio Test Report FCC ID:X5B-500202 IC:8814A-500202 The report concerns: Original Grant Report Reference No. ................. : 20EFCB04023 3081 Date Sample(s) Received ........... : 2020-04-28 Date of Tested ............................. : 2020-04-28 to 2020-05-13 Date of issue ............................... : 2020-05-11 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : PERFORMANCE DESIGNED PRODUCTS, LLC Address ...................................... : 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Manufacturer............................... : PERFORMANCE DESIGNED PRODUCTS, LLC Equipment................................... : Faceoff Wireless Deluxe Controller for Nintendo Switch Trade Mark ................................. : -- Model ........................................ : 500-202 Ratings ....................................... : I/P: DC 5V By USB Charged DC 3.7V Li-ion Battery Responsible Engineer : Smile Wang Authorized Signatory: King Wang Report No.: 20EFCB04023 3081 Page 2 of 63 Table of Contents Page 1 . TEST REPORT DECLARE 5 2 . SUMMARY OF TEST RESULTS 6 2.1 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 PARAMETERS OF TEST SOFTWARE 11 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 3.5 SUPPORT UNITS 11 3.6 TEST ENVIRONMENT CONDITIONS 12 4 . AC POWER LINE CONDUCTED EMISSIONS TEST 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 13 4.3 MEASUREMENT INSTRUMENTS LIST 13 4.4 TESTSETUP 14 4.5 EUT OPERATING CONDITIONS 14 4.6 TEST RESULTS 15 5 . RADIATED EMISSION TEST 17 5.1 LIMIT 17 5.2 TEST PROCEDURE AND SETTING 18 5.3 MEASUREMENT INSTRUMENTS LIST 19 5.4 TESTSETUP 19 5.5 EUT OPERATING CONDITIONS 20 5.6 TEST RESULTS - 9 KHZ TO 30MHZ 21 5.7 TEST RESULTS- 30 MHZ TO 1000MHZ 22 5.8 TEST RESULTS - ABOVE 1000MHZ(BAND EDGE) 24 5.9 TEST RESULTS - ABOVE 1000MHZ(HARMONIC) 32 6 . NUMBER OF HOPPING FREQUENCY 44 6.1 LIMIT 44 6.2 TEST PROCEDURE AND SETTING 44 6.3 MEASUREMENT INSTRUMENTS LIST 44 6.4 TEST SETUP 44 Report No.: 20EFCB04023 3081 Page 3 of 63 Table of Contents Page 6.5 EUT OPERATION CONDITIONS 44 6.6 TEST RESULTS 45 7 . AVERAGE TIME OF OCCUPANCY 46 7.1 LIMIT 46 7.2 TEST PROCEDURE AND SETTING 46 7.3 MEASUREMENT INSTRUMENTS LIST 46 7.4 TEST SETUP 46 7.5 EUT OPERATION CONDITIONS 46 7.6 TEST RESULTS 47 8 . HOPPING CHANNEL SEPARATION MEASUREMENT 49 8.1 LIMIT 49 8.2 TEST PROCEDURE AND SETTING 49 8.3 MEASUREMENT INSTRUMENTS LIST 49 8.4 TEST SETUP 49 8.5 EUT OPERATION CONDITIONS 49 8.6 TEST RESULTS 50 9 . BANDWIDTH TEST 52 9.1 LIMIT 52 9.2 TEST PROCEDURE AND SETTING 52 9.3 MEASUREMENT INSTRUMENTS LIST 52 9.4 TEST SETUP 52 9.5 EUT OPERATION CONDITIONS 52 9.6 TEST RESULTS 53 10 . MAXIMUM OUTPUT POWER 55 10.1 LIMIT 55 10.2 TEST PROCEDURE AND SETTING 55 10.3 MEASUREMENT INSTRUMENTS LIST 55 10.4 TEST SETUP 55 10.5 EUT OPERATION CONDITIONS 55 10.6 TEST RESULTS 56 11 . CONDUCTED SPURIOUS EMISSION 59 11.1 LIMIT 59 11.2 TEST PROCEDURE AND SETTING 59 11.3 MEASUREMENT INSTRUMENTS LIST 59 Report No.: 20EFCB04023 3081 Page 4 of 63 Table of Contents Page 11.4 TEST SETUP 59 11.5 EUT OPERATION CONDITIONS 59 11.6 TEST RESULTS 60 12 . FREQUENCY STABILITY MEASUREMENT 62 12.1 LIMIT 62 12.2 TEST PROCEDURE 62 12.3 MEASUREMENT INSTRUMENTS LIST 62 12.4 TEST SETUP 62 12.5 EUT OPERATION CONDITIONS 62 12.6 TEST RESULTS 63 Report No.: 20EFCB04023 3081 Page 5 of 63 1. TEST REPORT DECLARE Applicant PERFORMANCE DESIGNED PRODUCTS, LLC Address 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Manufacturer PERFORMANCE DESIGNED PRODUCTS, LLC Address 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Factory PERFORMANCE DESIGNED PRODUCTS, LLC Address 14144 Ventura Blvd, Suite 200 Sherman. Oaks CA 91423 United States Of America Equipment Faceoff Wireless Deluxe Controller for Nintendo Switch Model No. 500-202 Trade Mark -- Standard FCC Part15, Subpart C (15.247) RSS-247 Issue 2, Feb. 2017 RSS-Gen Issue 5, Apr. 2018 ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuanShuoXin Electronic Technology Co., Ltd. and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuanShuoXin Electronic Technology Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. Report No.: 20EFCB04023 3081 Page 6 of 63 2. SUMMARY OF TEST RESULTS The EUT have been tested according to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 RSS-Gen8.8 AC Power Line Conducted Emissions N/A ------ 15.247(d) 15.205(a) 15.209(a) RSS-247 5.5 RSS-Gen 8.9 RSS-Gen 8.10 Radiated Emission PASS ------ 15.247(a)(1)(iii) RSS-247 5.1 (d) Number of Hopping Frequency PASS ------ 15.247(a)(1)(iii) RSS-247 5.1 (d) Average Time Of Occupancy PASS ------ 15.247(a)(1) RSS-247 5.1 (b) Hopping Channel Separation PASS ------ 15.247(a)(1) RSS-247 5.1 (a) RSS-Gen 6.7 Bandwidth PASS ------ 15.247(a)(1) RSS-247 5.1 (b) Maximum Output Power PASS ------ 15.247(d) RSS-247 5.5 Conducted Spurious Emission PASS ------ - RSS-Gen6.11 Frequency Stability PASS ------ 15.203 - Antenna Requirement PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. Report No.: 20EFCB04023 3081 Page 7 of 63 2.1 MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conduction emission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emissio…
