X5B-904002TRock Candy Wireless Mouse

Preliminary User Manual Draft – Not for Mass Production WIRELESS MOUSE ENGLISH Preliminary User Manual Draft – Not for Mass Production FEATURING • High definition optical mouse tracking • 30-ft range 2.4 GHz wireless technology • Multi-device shareable nano USB dongle • Windows/Mac compatible • Easy to use • Plug and play installation • Bright, fun colors • Smooth glide action CONTENTS • 1 Rock Candy Wireless Mouse • 1 USB Dongle • 2 AAA Batteries • 1 Quick Start Guide (QSG) Congratulations on your purchase of the Rock Candy Wireless Mouse! IMPORTANT / CAUTION STATEMENTS ▪ Choking Hazard: Contains small parts that can be a choking hazard for children under 3 years old. ▪ Do not mix different battery types. Risk of explosion may occur. ▪ Do not mix new and old batteries. ▪ Do not immerse this product in liquid. ▪ Do not expose this product in extreme heat. ▪ Do not use this product in extreme humidity. ▪ Keep the batteries and USB dongle out of reach of children. ▪ Modifications to this product could void your warranty and your right to operate this product by the FCC. Preliminary User Manual Draft – Not for Mass Production 1 While pressing down on the battery cover thumb grip mark (see below), slide the battery cover away from the mouse. 2 Insert two AAA alkaline batteries with the polarities as shown in the drawing below. Connecting your mouse Preliminary User Manual Draft – Not for Mass Production 3 Install the battery cover. 4 Install the included USB dongle to any available USB port on your computer. Preliminary User Manual Draft – Not for Mass Production If the mouse is not working, please check for the following possible causes:  Are the batteries installed correctly using the right polarity?  Is the USB dongle connected to your computer and the drivers finished installing?  If there is difficulty opening the battery cover, press down on the thumb grip mark before sliding the cover away from the mouse.  If the computer is in sleep mode, and the mouse does not respond, simply click any mouse button to wake from sleep mode. Depending on the speed of your computer, it may take a few seconds to a few minutes to go from sleep to wake mode. If you still experience problems and further issues arise, please contact PDP Customer Support at www.pdp.com or call toll-free (800) 331-3844 (USA and Canada only). Advanced Power Saving Mode – The Rock Candy Wireless mouse will progress into different levels of power saving modes, extending the life of your batteries. Multi-Device USB Dongle Wireless Connection – The dongle can sync with multiple wireless Rock Candy USB devices (such as the Rock Candy Wireless Keyboard and other Rock Candy Wireless Mouse) by simply following this simple procedure: 1. Disconnect the USB dongle from your computer. 2. After five seconds, reconnect the USB dongle to your computer. 3. Immediately press the left, right, and middle button (which is also the scroll wheel) together simultaneously for five seconds. 4. Your Rock Candy wireless device is now paired with the USB dongle. Troubleshooting Advanced Features Preliminary User Manual Draft – Not for Mass Production Mouse anatomy also entitled to have the goods repaired or replaced if the goods fail to be of acceptable Preliminary User Manual Draft – Not for Mass Production  Clean your mouse only with a dry cloth, preferably microfiber cloth, every other month.  Do not allow this product to get wet.  Do not leave this product near extremely hot objects. 2 year limited warranty. See for www.pdp.com details. © 2014 Performance Designed Products, LLC. Performance Designed Products, PDP, Rock Candy, Pick Your Flavor, Color is Expression, the flavor names and their respective logos are trademarks and/or registered trademarks of Performance Designed Products, LLC. All other trademarks are the property of their respective owners. All rights reserved. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are quality and the failure does not amount to a major failure. Maintaining your mouse Warranty Legal received, including interference that may cause undesired operation. (1) This device may not cause harmful interference, and (2) this device must accept any interference This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: Preliminary User Manual Draft – Not for Mass Production FCC STATEMENTS: CAUTION: Changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate the equipment. The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. INDUSTRY CANA…

Text truncated - open the document above for the full version.

DATE 2014-11-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:___ X5B-904002T_________ Product Name:___ Rock Candy Wireless Mouse _______ _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2014- 11-24 Day of 20 By: Tom roberts Signature Printed Title: Chief Technical Officer On behalf of : Performance Designed Products LLC Telephone: 13232349911

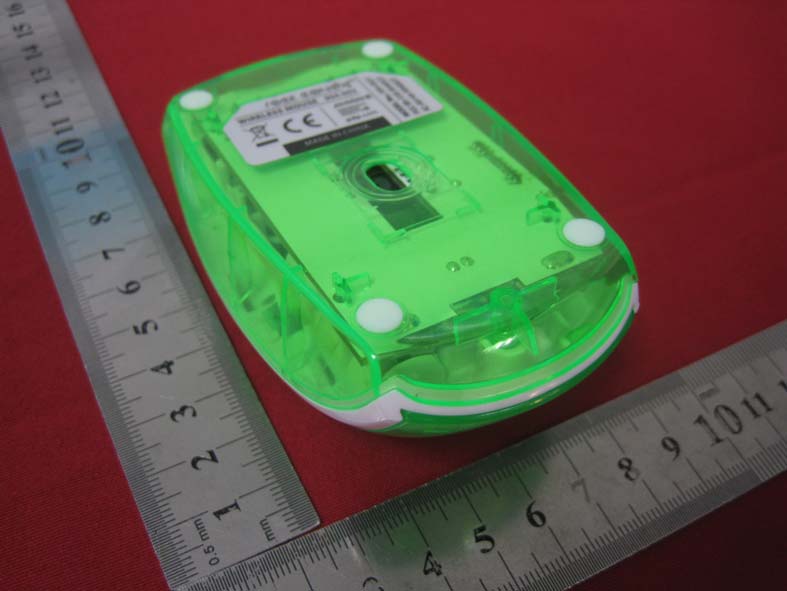

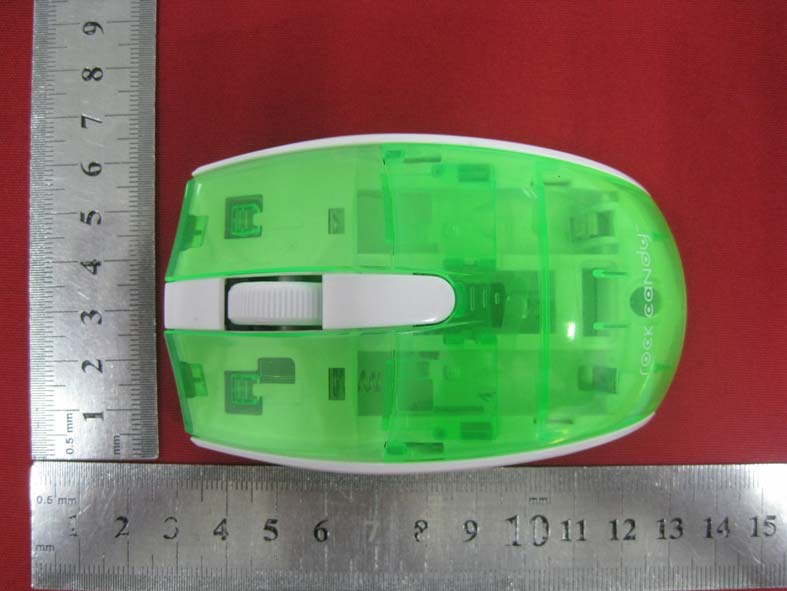

1 of 2 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] External photograph 2 of 2 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected]

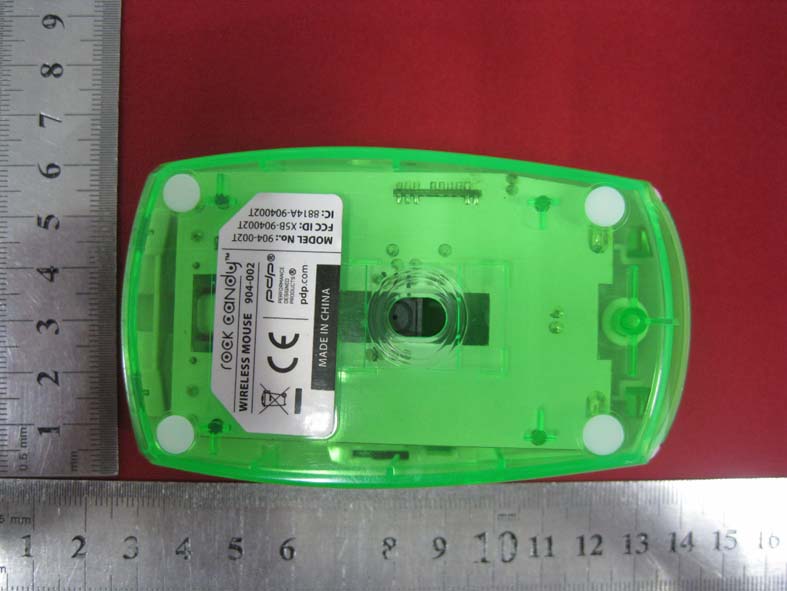

Label Location Label

1 of 3 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] Internal photograph 2 of 3 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] 3 of 3 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected]

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Field strength =92.89dBuV/m @3m Ant gain =0dBi;so Ant numeric gain=0 So pt={ [10 (92.89/20) /10 6 x3] 2 /30}x1000 mW =0.58mW So (0.58mW/5mm)x √2.402GHz =0.1798<3 Then SAR evaluation is not required

Report No.: 14FAB10008 11 1 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] FCC CERTIFICATION TEST REPORT FOR FCC ID: X5B-904002T Report Reference No. ...................... : 14FAB10008 11 Date of issue .................................... : 2014-10-15 Testing Laboratory ........................... : ATT Product Service Co., Ltd. Address ............................................ : No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name.............................. : PERFORMANCE DESIGNED PRODUCTS, LLC Address ............................................ : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Manufacturer.................................... : PERFORMANCE DESIGNED PRODUCTS, LLC Test specification: Test item description........................ : Rock Candy Wireless Mouse Trade Mark....................................... : -- Model/Type reference .................... : 904-002T Ratings ............................................. : 3V dc (Battery AAA * 2Pcs) Responsible Engineer Approved by ˄Rock Huang/ Engineer˅ ˄Tomy Wu /EMC Manager˅ Report No.: 14FAB03040 11 2 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TABLE OF CONTENTS TEST REPORT DECLARE........................................................................................................................ 3 1.Summary of test Standards and results................................................................................................ 4 2 General test information.......................................................................................................................... 5 2.1 ACCREDITATIONS.............................................................................................................................. 5 2.2 Description of EUT................................................................................................................................5 2.3 Accessories of EUT.............................................................................................................................. 5 2.4 Assistant equipment used for test....................................................................................................... 5 2.5 Block diagram of EUT configuration for test...................................................................................... 6 2.6 Test environment conditions................................................................................................................ 6 2.7 Measurement uncertainty.................................................................................................................... 6 3 20dB Bandwidth........................................................................................................................................ 7 3.1 Test equipment...................................................................................................................................... 7 3.2 Block diagram of test setup................................................................................................................. 7 3.3 Applicable Standard.............................................................................................................................. 7 3.4 Test Procedure...................................................................................................................................... 7 3.5 Test Result............................................................................................................................................. 8 3.6 Original test data................................................................................................................................... 8 4 Radiated emission.................................................................................................................................. 10 4.1 Test equipment.................................................................................................................................... 10 4.2 Block diagram of test setup............................................................................................................... 10 4.3 Limit....................................................................................................................................................... 11 4.4 Test Procedure.................................................................................................................................... 13 4.5 Test result............................................................................................................................................. 13 5 Antenna Requirements.......................................................................................................................... 16 5.1 Limit....................................................................................................................................................... 16 5.2 Result.................................................................................................................................................... 16 6 EUT TEST PHOTOS ................................................................................................................................ 17 Report No.: 14FAB10008 11 3 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TEST REPORT DECLARE Applicant : PERFORMANCE DESIGNED PRODUCTS, LLC Address : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Eq…
