X5B-904005TWireless Keyboard

904-005 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA/ FABRIQUÉ EN CHINE/ HECHO EN CHINA WWW.PDP.COM www.pdp.com/support Model No.: 904-005T FCC ID: X5B-904005T IC: 8814A-904005T Rating: 3VDC/5mA Model No.: 904-005R FCC ID: X5B-904005R IC: 8814A-904005R Rating: 5VDC/20mA WIRELESS KEYBOARD AAA AAA AAAAAAAAAAAAAAAA 2 3 1 FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ǂ Reorient or relocate the receiving antenna. ǂ Increase the separation between the equipment and receiver. ǂ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ǂ Consult the dealer or an experienced radio/TV technician for help. IC STATEMENT This device complies with Industry Canada licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.

DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:___ X5B-904005T_________ Product Name:__________ _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Day of 20 By: Tom roberts Signature Printed Title: Chief Technical Officer On behalf of : Performance Designed Products LLC Telephone: 13232349911 2015-05-24 WIRELESS KEYBOARD 2015- 05-24 FCC IDX5B-904005T Product Name WIRELESS KEYBOARD

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distancesİ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)]İ 3.0 for 1-g SAR and İ 7.5 for 10-g extremity SAR, where ǂf(GHz) is the RF channel transmit frequency in GHz ǂ Power and distance are rounded to the nearest mW and mm before calculation ǂThe result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Field strength =99.14dBuV/m @3m Ant gain =2.3dBi;so Ant numeric gain=1.7 So pt={ [10 (99.14/20) /10 6 x3] 2 /30}x1000 mW =2.46mW So (2.46mW/5mm)x Ĝ2.48GHz =0.775<3 Then SAR evaluation is not required x1000/1.7 = 1.45mW So (1.45mW 0.46<3 97.74 97.74 1.049mW 1.05 0.33

External Photos

0.8 cm 9.0 cm 9.9 cm 4.5 cm Label location

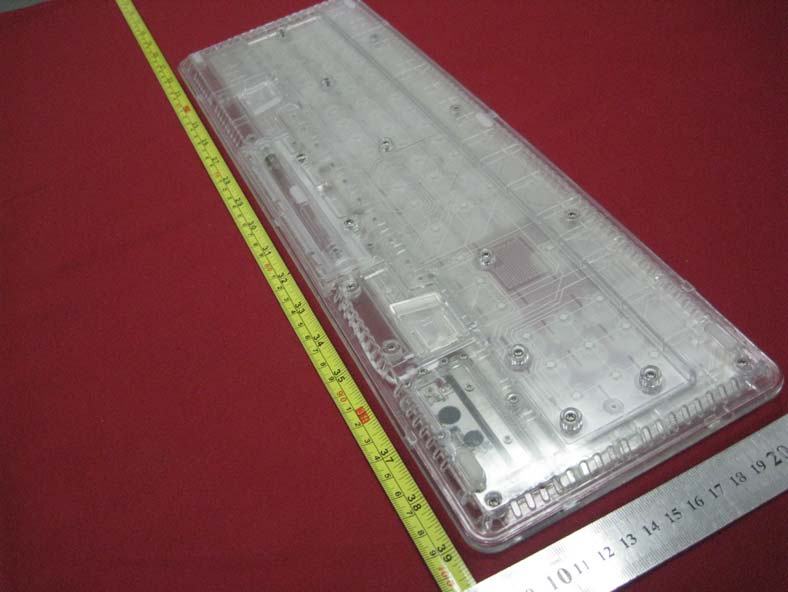

Internal Photos

1. Input Power᧶ DC 3V 2. Frequency Band: 2402MHz ~ 2480MHz 3. RF Output Power : 4. Modulation Type: GFSK 5. Duty Cycle : <10% 6. Antenna Type: PCB Antenna 7. Antenna gain: 2.3 dBi . Number of Channel: 16 2.4G Wireless Keyboard Operating Principle: 2.4G wireless keyboard consists of two parts, the receiver and the keyboard. After install the receiver on the PC and keep the keyboard powe r on, read the EEPROM code value first, and then the keyboard will connect with the receiver successfully. When we touch the button of the keyboard, or when the keyboard is moved, the MCU will receive a group of signal which is sent by the RF. The receiver will communicate with the PC via USB after it receives the signal. U2 mould integrates all the hardware circuits of the MCU and RF. It 3.9dBm ˄ˁ ˔́̇˸́́˴ʳ˗˸̆˶̅˼̃̇˼̂́ˍʳ  ˔́̇˸́́˴ʳ̃˿˴̇˸ʳˠ̂́̂̃̂˿˸ʳ˔́̇˸́́˴ʳ ˔́̇˸́́˴ʳ̃˸˴˾ʳ˺˴˼́ʳ˅ˁˆʳ˷˕˼ʳ ̇̅˸̄̈˸́˶̌ʳ̅˴́˺˸ʳ˅ˁˇ˃˅ˠ ̨̍̑˅ˁˇˋ˃ˠ ̨̍ʳ ˖̂́́˸˶̇ʳ̇̌̃˸ʳ˗˼̅˸˶̇ʳ˖̂́́˸˶̇ʳ  2. Pictureofantenna˄ऩԡ˖PP˅   3. AntennaRadiationPattern Radiationpattern@2.402GHz            Radiationpattern@2.441GHz     Radiationpattern@2.480GHz

Report No.: 15FAB05022 51 1 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] FCC CERTIFICATION TEST REPORT FOR FCC ID: X5B-904005T Report Reference No. ...................... : 15FAB05022 51 Date of issue .................................... : 2015-05-28 Testing Laboratory ........................... : ATT Product Service Co., Ltd. Address ............................................ : No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name.............................. : PERFORMANCE DESIGNED PRODUCTS, LLC Address ............................................ : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Manufacturer.................................... : PERFORMANCE DESIGNED PRODUCTS, LLC Test specification: Test item description........................ : WIRELESS KEYBOARD Trade Mark....................................... : rock candy Model/Type reference .................... : 904-005T Ratings ............................................. : 3V dc (AAA 1.5V*2Pcs) Responsible Engineer Approved by ˄Rock Huang/ Engineer˅ ˄King Wang /EMC Manager˅ Report No.: 15FAB05022 51 2 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TABLE OF CONTENTS TEST REPORT DECLARE......................................................................................................................3 1.SUMMARY OF TEST STANDARDS AND RESULTS..........................................................................4 2 GENERAL TEST INFORMATION ........................................................................................................5 2.1 ACCREDITATIONS ...........................................................................................................................5 2.2 DESCRIPTION OF EUT ....................................................................................................................5 2.3 ACCESSORIES OF EUT...................................................................................................................5 2.4 ASSISTANT EQUIPMENT USED FOR TEST...................................................................................5 2.5 BLOCK DIAGRAM OF EUT CONFIGURATION FOR TEST ............................................................6 2.6 TEST ENVIRONMENT CONDITIONS ..............................................................................................6 2.7 MEASUREMENT UNCERTAINTY ....................................................................................................6 3 20DB BANDWIDTH ..............................................................................................................................7 3.1 TEST EQUIPMENT ...........................................................................................................................7 3.2 BLOCK DIAGRAM OF TEST SETUP................................................................................................7 3.3 APPLICABLE STANDARD ................................................................................................................7 3.4 TEST PROCEDURE..........................................................................................................................7 3.5 TEST RESULT...................................................................................................................................8 3.6 ORIGINAL TEST DATA .....................................................................................................................8 4 RADIATED EMISSION .........................................................................................................................9 4.1 TEST EQUIPMENT .........................................................................................................................10 4.2 BLOCK DIAGRAM OF TEST SETUP..............................................................................................10 4.3 LIMIT ................................................................................................................................................11 4.4 TEST PROCEDURE........................................................................................................................13 4.5 TEST RESULT.................................................................................................................................13 5 ANTENNA REQUIREMENTS.............................................................................................................16 5.1 LIMIT ................................................................................................................................................16 5.2 RESULT ...........................................................................................................................................16 6 EUT TEST PHOTOS ..........................................................................................................................17 Report No.: 15FAB05022 51 3 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TEST REPORT DECLARE Applicant : PERFORMANCE DESIGNED PRODUCTS, LLC Address : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Equipment under Test : WIRELESS KEYBOARD Model No : 904-005T Trade Mark : rock candy Manufacturer : PERFORMANCE DESIGNED PRODUCTS, LLC Address : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Test Standard Used: FCC Rules and Regulations Part 15 Subpart C: 2013 Test procedure used: ANSI C63.10:2009; ANSI C63.4: 2009 FCC Public Notice DA 00-705 …

Text truncated - open the document above for the full version.

Report No.: 15FAB05022 51 17 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] 6 EUT TEST PHOTOS Radiated Measurement Photos (Below 1GHz) Radiated Measurement Photos (Above1GHz)
