X5B-BB6308Wireless Controller for PS3

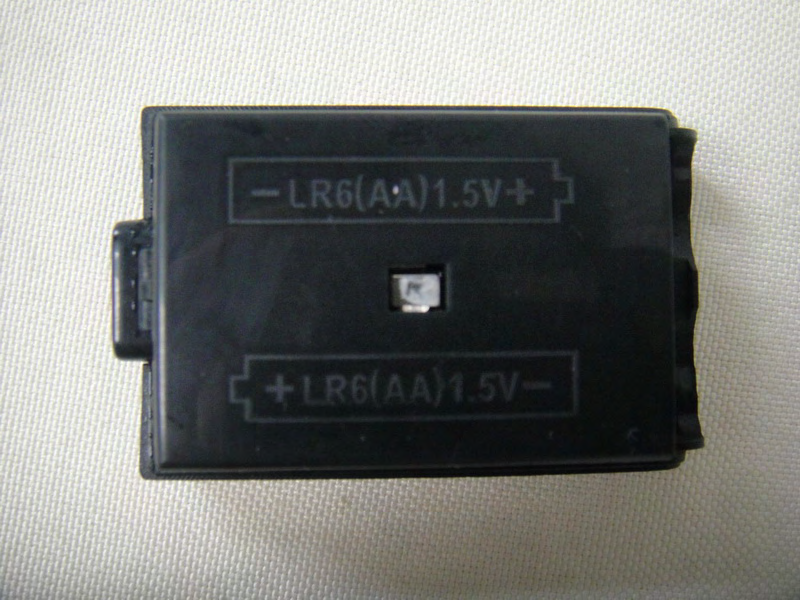

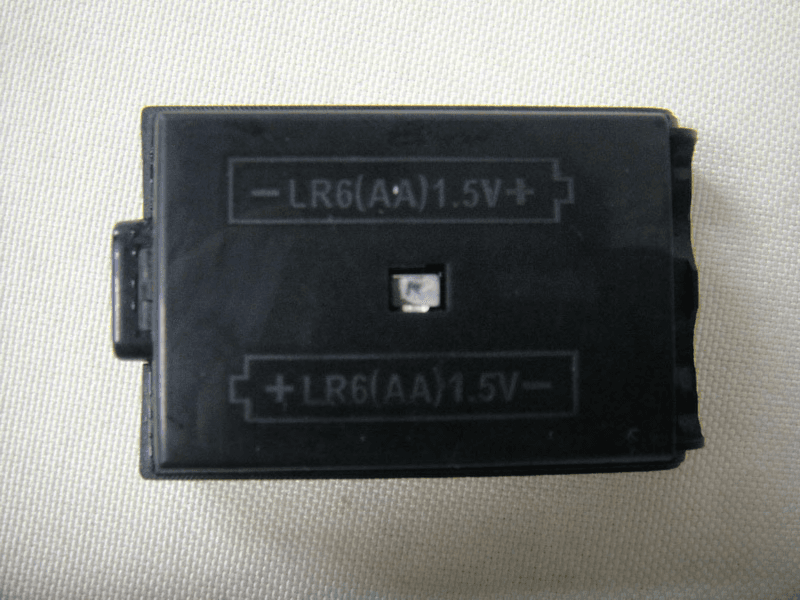

Thank you for purchasing the Game Stop wireless controller for the PLAYSTATION 3 video game system. Contents: 1 Wireless Controller for PS3 1 USB Dongle (found attached to the controller) 1 Manual General: Game Stop wireless controller for the PLAYSTATION 3 console works only with the PS3® gaming console. Do not use it with other USB devices. The dongle doesn't connect with PC Set up: 1) Place 2 (two) AAA size batteries into the battery compartment. (batteries not included) and make sure the power switch is in “OFF” position. 2) Remove the USB receiver that is attached to the bottom of the controller and plug it into one of the free ports of your PLAYSTATION 3 3) USB receiver LED will flash rapidly while looking for positive connection with the controller. USB receiver light will light up solid when the connection is established 4) Place the power switch is in “ON” position 5) Press the “HOME” button, the controller will be automatically assigned a player number. (you can change the controller player number by pressing and holding the HOME button and then changing the player number from the PS3 menu – refer to your console manual for more information 6) The battery of the controller is low when its LED start flashing. Power Save Mode: Controller will go into Power Save Mode after 3 (three) minutes of inactivity. You need to press the START button to turn it back to the ACTIVE mode Important Notice 1. Do not place different types or capacities of battery together. 2. Recommended user age range 12+. 3. Adult supervision is necessary when controller is used by child CAUTION: Changes or modifications to this equipment not expressly approved by the manufacturer could void the users authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC ID for Controller: X5B-BB6308 FCC ID for Dongle: X5B-BB6308A This device complies with Part 15 of the FCC Rules and RSS-210 of the IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © 2010 Performance Designed Products LLC. All rights reserved. PDP and AFTERGLOW™ are trademarks of Performance Designed Products LLC. PlayStation 3® is a registered trademark of Sony Computer Entertainment, Inc. This product is not designed, manufactured, sponsored or endorsed by Sony Computer Entertainment. Please keep this information for future reference.

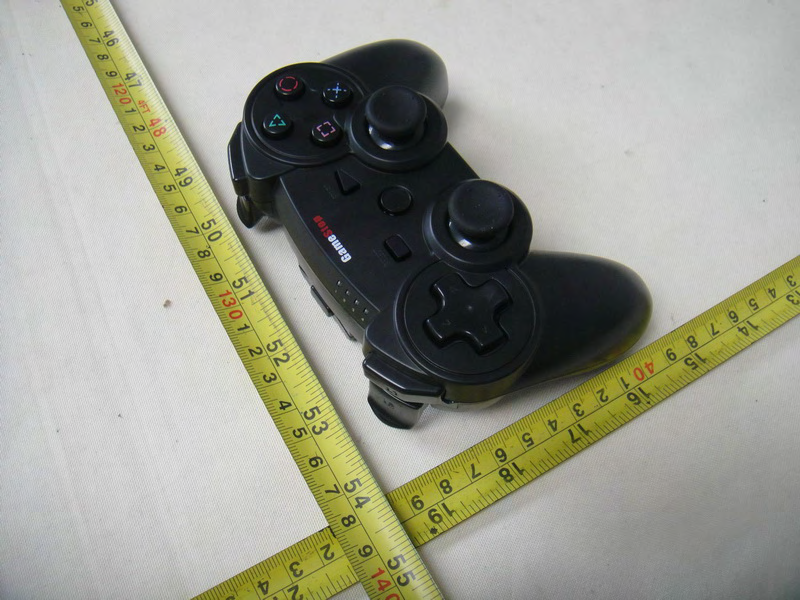

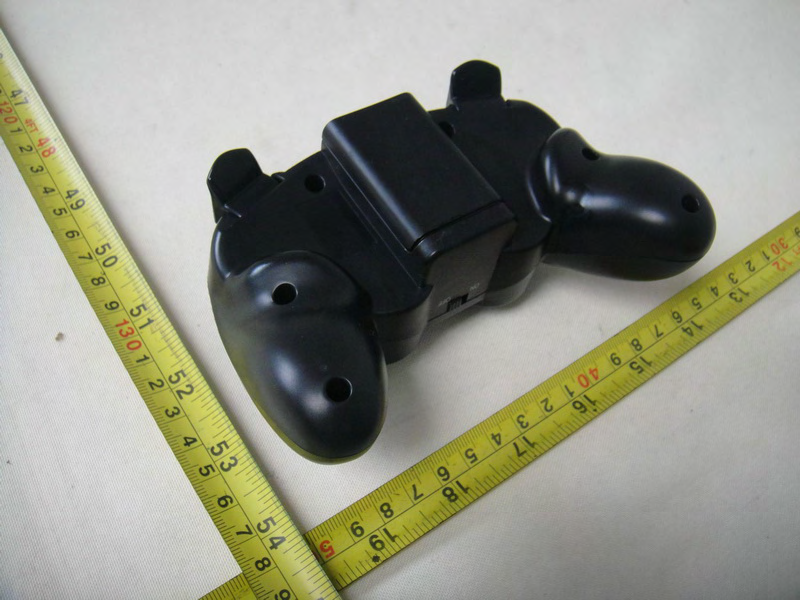

Neutron Engineering Inc. Project No.: 1006C327 Page 2 of 12 Controller Sample 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 2 of 12 Controller Sample 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 3 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 3 of 12 1006C327 1006C327

Wireless Controller for PS3 BB-6308 FCC ID: X5B-BB6308 Made in China

Neutron Engineering Inc. Project No.: 1006C327 Page 4 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 4 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 5 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 5 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 6 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 6 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 7 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 7 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 8 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 8 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 9 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 9 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 10 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 10 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 11 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 11 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 12 of 12 1006C327 1006C327 Neutron Engineering Inc. Project No.: 1006C327 Page 12 of 12 1006C327 1006C327

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 2 of 57 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 3 of 57 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 18 4.2.1 RADIATED EMISSION LIMITS 18 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 19 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BETWEEN30 – 1000 MHZ) 23 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 25 5 . NUMBER OF HOPPING CHANNEL 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 37 5.1.2 TEST PROCEDURE 37 5.1.3 DEVIATION FROM STANDARD 37 5.1.4 TEST SETUP 37 5.1.5 EUT OPERATION CONDITIONS 37 5.1.6 TEST RESULTS 38 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 4 of 57 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 39 6.1 APPLIED PROCEDURES / LIMIT 39 6.1.1 MEASUREMENT INSTRUMENTS LIST 39 6.1.2. TEST PROCEDURES 39 6.1.3. TEST SETUP LAYOUT 39 6.1.4. TEST DEVIATION 39 6.1.5. EUT OPERATION DURING TEST 39 6.1.6. TEST RESULTS 40 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 42 7.1 APPLIED PROCEDURES / LIMIT 42 7.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 42 7.1.2 TEST PROCEDURE 42 7.1.3 DEVIATION FROM STANDARD 42 7.1.4 TEST SETUP 42 7.1.5 EUT OPERATION CONDITIONS 42 7.1.6 TEST RESULTS 43 8 . BANDWIDTH TEST 45 8.1 APPLIED PROCEDURES / LIMIT 45 8.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 45 8.1.2 TEST PROCEDURE 45 8.1.3 DEVIATION FROM STANDARD 45 8.1.4 TEST SETUP 45 8.1.5 EUT OPERATION CONDITIONS 45 8.1.6 TEST RESULTS 46 9 . PEAK OUTPUT POWER TEST 48 9.1 APPLIED PROCEDURES / LIMIT 48 9.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 48 9.1.2 TEST PROCEDURE 48 9.1.3 DEVIATION FROM STANDARD 48 9.1.4 TEST SETUP 48 9.1.5 EUT OPERATION CONDITIONS 48 9.1.6 TEST RESULTS 49 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 51 10.1 APPLIED PROCEDURES / LIMIT 51 10.1.1 MEASUREMENT INSTRUMENTS LIST AND SETTING 51 10.1.2 TEST PROCEDURE 51 10.1.3 DEVIATION FROM STANDARD 51 10.1.4 TEST SETUP 51 10.1.5 EUT OPERATION CONDITIONS 51 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 5 of 57 Table of Contents Page 10.1.6 TEST RESULTS 52 11 . EUT TEST PHOTO 57 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 6 of 57 1. CERTIFICATION E q u i p m e n t : Wireless Controller for PS3 Brand Name : GameStop Model Name : BB-6308 A p p l i c a n t : Performance Designed Products,LLC Date of Test: Jun. 29, 2010 ~ Aug. 31, 2010 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1006C327) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 7 of 57 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(2) 15.247(d) Antenna conducted Spurious EmissionPASS 15.247 (a)(1) Hopping Channel Separation PASS 15.247 (b)(1) Peak Output Power PASS 15.247(d)/15.209 Radiated Spurious Emission PASS 15.247 (a)(1)(iii) Number of Hopping Frequency PASS 15.247 (a)(1)(iii) Dwell Time PASS 15.205 Restricted Bands PASS 15.203 Antenna Requirement PASS 1.1307 1.1310 2.1091 2.1093 RF Exposure Compliance PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) The EUT used new battery. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 8 of 57 2.1 T…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 57 of 57 11. EUT TEST PHOTO Radiated Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1006C327 Page 57 of 57 11. EUT TEST PHOTO Radiated Measurement Photos
