X5B-PL051014TAfterglow Fener PS4/PS3 Wireless Dongle

Headset User ManUal ManUel d’Utilisation dU casqUe- Micro AuriculAres MAnuAl Del usuArio WhAt’s in tHe box englishheADset overview english afterglow Fener™ wireless Headset Micro Usb Play & charge cable optical cable3.5mm aux cable User Manual afterglow wireless Usb t ransmitter 1. on/oFF/MUte bUtton: Press and hold to power on; repeat to power oFF. When on, the button will function as a Mute Button. click once to mute your microphone, and click again to unmute. 2. aUdio Mode bUtton: controls audio modes and manual lighting. 3. booM-less MicroPHone: internal dual microphone design for chat communications. heADset overview english Wireless usB trAnsMitter overview english 1. GaMe volUMe dial: Adjusts game volume level. 2. cHat volUMe dial: Adjusts chat volume level. 3. aFterGlow liGHtinG Mode switcH: choose between Manual lighting mode (set any color manually) or Auto lighting mode (which automat- ically cycles through all colors). the third position turns off the lights while keeping your headset functions active. 4. Universal aUdio line-in : Plug the grey color 3.5mm auxiliary cable into this port and the other end into a sound source (mobile device, tablet, Pc). Microphone, sound and lighting capabilities are supported in Mobile mode. 5. Micro Usb cHarGinG Port: this port enables you to charge your Afterglow Wireless headset while in use. 1. diGital and analoG leds: these lights indicate whether your headset is using digital or analog sound input. 2. diGital aUdio Port: With the Wireless usB transmitter plugged into an active usB port, plug one end of the included optical cable in here, and the other end into your Playstation ® 4 or Playstation ® 3 console. the optical port has priority over the analog port. 3. analoG aUdio Port: With the Wireless usB transmitter plugged into an active usB port, plug one end of the grey 3.5mm aux cable into the analog audio port, and the other end into a mobile device or Pc auxiliary port. this can be used as a secondary input source. set uP: Playstation ® 4 english 1. Plug the Wireless usB transmitter into an active usB port on your Playstation ® 4 console. 2. Plug one end of the included optical cable into the optical audio port in the usB transmitter, and the other end in the optical audio port on the Playstation ® 4. 3. Press and hold the on/oFF button on your headset to power it on. the alternating leD colors of the ear cup will indicate the headset is searching for your usB transmitter. When the headset ear cup and usB transmitter leD turns a solid color, your headset and transmitter are paired and communicating properly. 4. to ensure your Afterglow Wireless headset will retrieve and control game and chat audio on separate channels: go to the Playstation ® 4 menu > sound and screen settings > Audio Output Settings > Output to Headphones > Select “Chat Audio” > Hit “X” to confirm. (Headset will receive the game audio from the optical cable by default. Using this set up, you can control game and chat audio independently.) 6. You can adjust your microphone input levels on the console menu: go to Playstation ® 4 menu >settings > Devices > Audio Devices > Microphone level ** to mute your microphone, press the Mute button located on your left ear cup. You will be alerted that your microphone is muted by a voice prompt. 5. Make sure your volume is turned up. if you want to further increase the volume, you can do so in the Playstation ® 4 menu: go to the Playstation ® 4 menu > settings > Devices > Audio Devices > Volume control set uP: Playstation ® 3 englishset uP: Pc / Mac english 1. Plug the Wireless usB transmitter into an active usB port on your Playstation ® 3 console. 2. Plug one end of the included optical cable into the optical audio port on the usB transmitter, and the other end in the optical audio port on the Playstation ® 3 console. 3. Press and hold the on/oFF button on your headset to power it on. the alternating leD colors of the ear cup will indicate the headset is searching for your usB transmitter. When the headset ear cup and usB transmitter leD turns a solid color, your headset and transmitter are paired and communicating properly. 4. For use with analog sources, plug one end of the included 3.5mm into the analog audio port in the transmitter, and the other end into your tV, cable box or MP3 player. 5. Make sure your headset is recognized by your Playstation ® 3 by checking your console’s sound settings. 6. Adjust the microphone levels in the console’s sound menu. 1. Plug the wireless usB transmitter into an active usB port on your Pc. 2. Plug one end of the grey 3.5mm cable into an aux port in your Pc, and the other end into the 3.5mm analog port in your usB transmitter. *if your Pc has an optical output, you may connect your usB transmitter using the included optical cable instead of the 3.5mm cable. 3. Press and hold the on/oFF button on your headset to power on. the alternating leD colors on the ear cup indicate the headset is searching for your usB transmitter. When the ear cup and transmitter leD turns a solid blue, your headset and transmitter are communicating. ** An alternative connection with your Pc is putting the headset into mobile mode. Follow the mobile connection steps for this set up. note: Microphone function will be supported on Pcs with a single headset jack for audio and microphone. if you have separate inputs for audio and microphone on your Pc, you will need to connect through an apapter. (sold on online retailers) 4. Make sure the Afterglow Wireless headset is chosen as an audio output device on your Pc: right click the small speaker icon in the bottom tool bar > select “Volume options” > select Afterglow Wireless headset under “sound Devices”. You can further adjust the volume on your headset through your Pc through your audio settings indicated by a small speaker. m a tHe aFterGlow wireless Headset inclUdes tHree liGHtinG Modes: ManUal liGHtinG: i n this mode, the Afterglow lights will be set to blue by defa…

Text truncated - open the document above for the full version.

CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 1 AVNERA PROPRIETARY & CONFIDENTIAL | PROVIDED UNDER NDA General Description The AV6301 / 6302 chipset is optimized for building wireless gaming headsets and point to multi-point audio distribution solutions such as rear speakers and subwoofers in home theater systems..The chipset is comprised of two ICs: AV6301 (sender) and AV6302 (client). These devices share the VMI RF Protocol and may be mixed and matched with other VMI chips (AAV6200, V6201, and AV6202). The AV6301 / 02 chipset achieves the goal of enabling a single core design to service multiple game platforms (PC or Console), External Digital Signal Processing (DSP) is also easily supported for all gaming platforms. The chip set provides all functions necessary to complete a bidirectional wireless audio link with high quality voice and music performance. Operation in the worldwide 2.4 GHz spectrum addresses the need for global application. System / Chipset Features 9 Stereo audio path: >93 dB SNR, 20 kHz BW 9 Mono voice path: >70 dB SNR, 6.5 kHz voice 9 Sophisticated audio routing and mixing options to meet demands of multiple gaming headset platforms 9 Over-the-air (OTA) serial interface: >2 kbps, bi-directional, full duplex 9 Works within 3 inches of WIFI Client without impairment to Audio or WIFI throughput 9 Advanced forward error correction coding, error detection, and audio-specific error concealment 9 Diversity antenna support 9 Low and Fixed Latency: <16 ms, 9 Long Range: 15m (non-line-of-site) 9 Auto search/sync/standby/wake- up/shutdown 9 All Voltage Regulators on-chip 9 Interoperability with VMI (AV6201 / 02) Chipset AV6301 The AV6301 is a highly integrated, single-chip, wireless audio sender IC. It integrates the following: a complete 2.4 GHz RF transceiver, PHY & MAC, advanced power management hardware, audio DSP, USB 2.0 transceiver and a full complement of programmable digital interfaces to support a wide range of end-product user-interface requirements, including SPI and TWI interfaces. The device incorporates a complete USB 2.0 transceiver and enumerates as a USB Audio device as well as USB Human Interface Device (HID) without the need for external drivers, enabling true plug & play. Additionally, the device makes available 3 independent I2S interfaces, allowing independent processing of non-USB audio sources. Simultaneous use of the USB and I2S ports is enhanced by additional audio processing capability, allowing for independent control and mixing of the different audio sources. AV6301 Features 9 Advanced Signal Routing Capability 9 USB Port Enumerates as Audio and / or Human interface device (HID) 9 Three available I2S ports 9 Simultaneous operation of USB and I2S ports 9 Expansive Digital I/O Capability 9 20 General Purpose Input / Output Pins 9 Master and Slave SPI and TWI interfaces 9 Pulse Width Modulated (PWM) I/O support 9 Straightforward implementation of external EEPROM, DSP, Audio Codec and Host uC for advanced applications 9 On-Chip One-Time-Programmable (OTP) Memory Applications PC Game Wireless Headset Game Console Wireless Headset I2S based Wireless Audio Wireless Rear Speakers Preliminary Datasheet AV6301 Wireless Audio Sender IC CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 2 AVNERA PROPRIETARY & CONFIDENTIAL | PROVIDED UNDER NDA Packaging The AV6301 is packaged in a 7 x 7 mm, 48 pin QFN and is rated for operation over the commercial temperature range (0 to 70 degrees C) AV6301 Datasheet (Preliminary) revision 0.2 CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 3 AVNERA PROPRIETARY & CONFIDENTIAL | PROVIDED UNDER NDA Revision History Revision Change Summary Release Date 0.1 Preliminary release of datasheet 10/7/11 0.2 Add AV6xxx Selection Grid, Update Audio Routing, Block Diagram, Application Circuit, Pin Out and Pin Description. RF TX Electrical characteristics update. 10/27/11 0.3 Update Selector Grid 11/4/11 0.4 CORRECTION to I2S assignments to GPIO ports (stereo in, stereo out and mono out have all changed).I2S assignments reflected in Applications Diagram. Update of selection grid. 11/15/11 AV6301 Datasheet (Preliminary) revision 0.2 CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 4 AVNERA PROPRIETARY & CONFIDENTIAL | PROVIDED UNDER NDA Table of Contents General Description .............................................................................................................................................................. 1 System / Chipset Features................................................................................................................................................... 1 AV6301................................................................................................................................................................................. 1 AV6301 Features.................................................................................................................................................................. 1 Applications .......................................................................................................................................................................... 1 Packaging ............................................................................................................................................................................. 2 Revision History.................................................................................................................................................................... 3 Table 0-1 AV6xxx Selection Grid .......................................................................................................................................... 6 1 REFERENCE DIAGRAMS .......................................................................................................................................... 7 1.1 Wireless Arbiter Solution Diagram................................................................................................…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Performance Designed Products, LLC Declaration of Authorization We Name: Performance Designed Products, LLC... Address: 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA.  City: Oaks .. Country: United States . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Afterglow Fener PS4/PS3 Wireless Dongle FCC ID: X5B-PL051014T Trademark: pdp, Afterglow on our behalf. Date: 2014/09/15.. City:  Oaks .. Name:  Tom Roberts .. (2) Function:  Chief Technical Officer  Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Performance Designed Products, LLC FCC ID.: X5B-PL051003T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Performance Designed Products, LLC 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Fax: 1-323-234-9922 Federal Communications Commission Sep. 15 , 2014 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (PL-051-003T) Schem Block Diagram: (PL-051-003T) BlkDia Operational Description: (PL-051-003T) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------- Tom Roberts / Chief Technical Officer Performance Designed Products, LLC

Performance Designed Products, LLC 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Fax: 1-323-234-9922 Attestation for FCC Declaration of Conformity FCC ID: X5B-PL051003T Data: Sep. 15, 2014 Please be notified that we, the undersigned, Performance Designed Products, LLC.declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 1480540R-ITUSP01V00 Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, ------------------------------------------------------------ Tom Roberts / Chief Technical Officer Performance Designed Products, LLC Tel : 1-323-234-9911 Fax: 1-323-234-9922 Email: [email protected]

Performance Designed Products, LLC FCC ID.: X5B-PL051014T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Federal Communications Commission Sep. 15 , 2014 Authorization and Evaluation Division ATTESTATION FCC ID: X5B-PL051014T Product: Afterglow Fener PS4/PS3 Wireless Dongle Model: PL-051-014T We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------ Tom Roberts / Chief Technical Officer Performance Designed Products, LLC

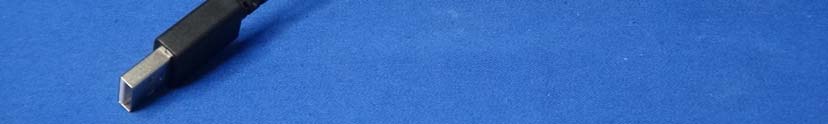

Report No.: 1480539R-RFUSP25V00 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 1480539R-RFUSP25V00 Page : 2 of 7 (3) EUT Photo (4) EUT Photo

Performance Designed Products, LLC FCC ID.: X5B-PL051014T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Performance Designed Products, LLC FCC ID.: X5B-PL051014T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 FCC ID Label

Report No.: 1480539R-RFUSP25V00 Page : 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 1480539R-RFUSP25V00 Page : 4 of 7 (7) EUT Photo (8) EUT Photo Antenna Antenna Report No.: 1480539R-RFUSP25V00 Page : 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 1480539R-RFUSP25V00 Page : 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 1480539R-RFUSP25V00 Page : 7 of 7 (13) EUT Photo

Report No.: 1480539R-RFUSP25V00 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Afterglow Fener PS4/PS3 Wireless Dongle Model No. PL-051-014T FCC ID X5B-PL051014T Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA91423 USA Date of Receipt Aug. 25, 2014 Date of Declaration Sep. 15, 2014 Report No. 1480539R-RFUSP25V00 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1480539R-RFUSP25V00 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No.: 1480539R-RFUSP25V00 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Afterglow Fener PS4/PS3 Wireless Dongle Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 2403.35 – 2479.35MHz Maximum Conducted output power 4.24dBm Antenna gain 3.22dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 2.6546 0.001108 Power density is lower than the limit (1 mW/cm2).

Report No.: 1480539R-RFUSP25V00 Page : 1 of 44 FCC Test Report Product Name Afterglow Fener PS4/PS3 Wireless Dongle Model No PL-051-014T FCC ID. X5B-PL051014T Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA91423 USA Date of Receipt Aug. 25, 2014 Issue Date Sep. 15, 2014 Report No. 1480539R-RFUSP25V00 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of QuieTek Corporation. Report No.: 1480539R-RFUSP25V00 Page : 2 of 44 Test Report Issue Date: Sep. 15, 2014 Report No.: 1480539R-RFUSP25V00 Product Name Afterglow Fener PS4/PS3 Wireless Dongle Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA91423 USA Manufacturer Performance Designed Products, LLC Model No. PL-051-014T EUT Rated Voltage DC 5V (Power by USB) EUT Test Voltage AC 120V/60Hz Trade Name pdp, Afterglow Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.10: 2009, KDB 558074 Test Result Complied Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Benjamin Pan ) Approved By : ( Director / Vincent Lin ) Report No.: 1480539R-RFUSP25V00 Page : 3 of 44 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limit ............................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................17 4.3. Limits ..........................................................................................................................................18 4.4. Test Procedure .............................................................................................................................18 4.5. Uncertainty ..................................................................................................................................18 4.6. Test Result of Radiated Emission................................................................................................19 5. RF antenna conducted test........................................................................................................23 5.1. Test Equipment............................................................................................................................23 5.2. Test Setup ....................................................................................................................................23 5.3. Limits .......................................................................…

Text truncated - open the document above for the full version.

Report No.: 1480539R-RFUSP25V00 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 1480539R-RFUSP25V00 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 1480539R-RFUSP25V00 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
