X5B-PL6385CRYSIS2 Bluetooth Headset

Performance Designed Products, LLC
CRYSIS2 Bluetooth Headset - FCC ID X5B-PL6385 - Performance Designed Products, LLC
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jan 24, 2011
Application Purpose
Original Equipment
Date of Application
Jan 24, 2011
Equipment Note
CRYSIS2 Bluetooth Headset
Frequency Range
2402.00000000 - 2480.00000000
Company
Performance Designed Products, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

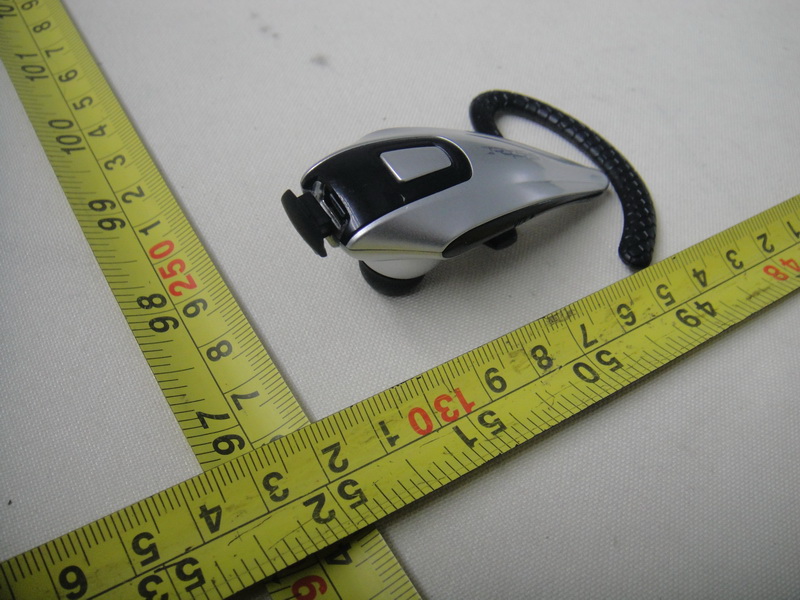

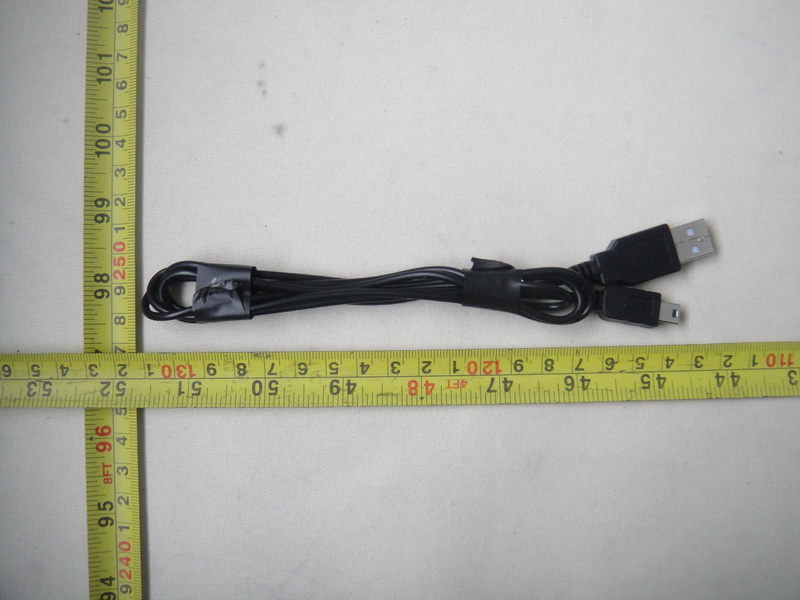

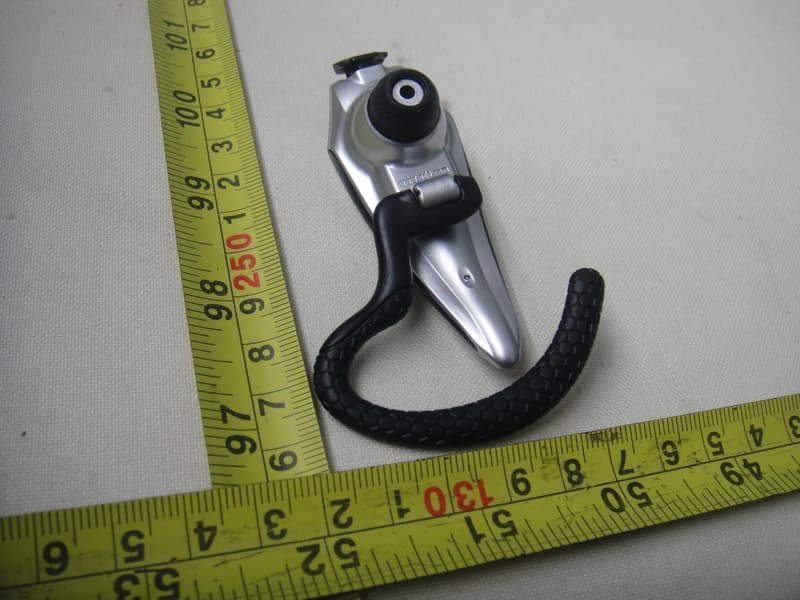

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CRYSIS 2 Bluetooth Headset For PlayStation ® 3 For: PL-6385 Thank you for purchasing the Crysis 2 Bluetooth Headset for Playstation 3®! Contents 1 Crysis 2 Bluetooth Headset for Playstation 3® 1 Power Cord Charging the Battery 1) Open the flap covering the connector port on the Crysis 2 Bluetooth Headset for Playstation 3®. 2) Connect the mini USB end of the power cord to the connector port on the Crysis 2 Bluetooth Headset for Playstation 3. 3) Connect the USB end of the power cord to a USB port on the Playstation 3. 4) When connected to the power cord and charging, the LED on the Crysis 2 Bluetooth Headset for Playstation 3 will light up solid red. 5) When connected to the power cord and fully charged, the LED on the Crysis 2 BluetoothHeadset for Playstation 3 will light up solid blue. Powering the Crysis 2 Bluetooth Headset for Playstation 3® ON and OFF 1) To power ON the Crysis 2 Bluetooth Headset for Playstation 3®, press and hold the power button for about 3 seconds. The LED on the Crysis 2 Bluetooth Headset for Playstation 3 will blink red 3 times. 2) To power OFF the Crysis 2 Bluetooth Headset for Playstation 3®, press and hold the power button for about 3 seconds. The LED on the Crysis 2 Bluetooth Headset for Playstation 3® will blink red 2 times. Pairing the Crysis 2 Bluetooth Headset with the Playstation 3® 1) Power your Playstation 3® OFF for about 10 seconds and then power it back ON. 2) Select Access Settings on the Playstation 3® Settings menu. 3) Select Register Bluetooth Device. 4) Select Manage Bluetooth Device. 5) Select Yes to register a new device, if this is the first time registering a Bluetooth device. 6) Select Start Scanning. 7) Hold down the Power Button on Bluetooth headset for 6 seconds. 8) When prompted for a pass key, enter 0000. 9) For quick disconnection, press the Power Button once to disconnect it from the Playstation 3®, and again to re-connect. Pairing the Crysis 2 Bluetooth Headset with Bluetooth Compatible Device 1) Follow the intructions for the Bluetooth Handheld Device concerning pairing with a Bluetooth Headset. Verify that the Crysis 2 Bluetooth Headset for Playstation 3® is powered ON. When prompted for a pass key, enter 0000. 2) LED indication: Standby unconnecting with mobilephone: red LED will blink once every 3 seconds. Standby connecting with mobilephone: red LED will blink twice every 3 seconds. Talking: red LED will blink twice every 5 seconds. Adjusting the Microphone Input Levels on the Playstation 3® 1) To adjust your microphone input levels on the Playstation 3®, go to the Audio Device Settings Menu on your Playstation 3® and select the Bluetooth Handheld Device. Adjusting the Volume Level on the Crysis 2 Bluetooth Headset with the Playstation 3® 1) To adjust the volume level on the Crysis 2 Bluetooth Headset for Playstation 3®, use the vol + button to increase the sound level, and the vol – button to decrease the sound level. Using the Mute Button on the Crysis 2 Bluetooth Headset 1) To mute the microphone level on the Crysis2 Headset for Playstation 3*, press and hold the vol+button for 3 seconds. To return the microphone level to normal, press and hold the vol+ button for 3 seconds. Adjusting the Earloop on the Crysis 2 Bluetooth Headset 1) If your prefer to wear the Crysis 2 Bluetooth Headset for Playstation 3® on your left ear, gently remove and flip over the earloop 180 degrees. Gently snap the earloop back onto the Crysis 2 Bluetooth Headset for Playstation 3 and rotate it into position. © 2011 Performance Designed Products LLC. All rights reserved. PDP is a trademark of Performance Designed Products LLC. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and are used under license by PDP. All other brand names are trademarks or registered trademarks of their respective owners. PlayStation 3 is a registered trademark of Sony Computer Entertainment, Inc. This product is not designed, manufactured, sponsored or endorsed by Sony. This product is manufactured under license from Crytek GmbH. The computer game Crysis 2 is intellectual property of Crytek GmbH © 2011. Crytek® , Crysis® and certain characters of Crysis 2 are registered trademarks or trademarks or design patents of Crytek GmbH in Germany, USA and other countries. For technical questions please visit www.pdp.com or call: 1-800-331-3844 (USA ONLY) 1840 East 27th Street Vernon, CA 90058 USA CBX II - 382-390 Midsummer Blvd., Milton Keynes, Buckinghamshire MK9 2RG UK Warning: Extended exposure to high volumes when using a headset may result in temporary or permanent hearing loss. CAUTION: Changes or modifications to this equipment not expressly approved by the manufacturer could void the users authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC ID: X5B-PL6385 This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC …
