X5B-PL6422A1Afterglow Wireless Controller for PS3 (Controller)

AFTERGLOW® AP.2 For PlayStation®3 For: PL-6422A Thank you for purchasing the AFTERGLOW® AP.2 Wireless for PlayStation®3! Contents: 1 AFTERGLOW® AP.2 for PlayStation®3. 1 AFTERGLOW® Wireless Link USB Adapter 1 USB Charge Cable 1 Manual Using the AFTERGLOW® AP.2: 1) The AFTERGLOW® AP.2 is designed to work with the Sony PlayStation®3 videogame system. 2) Your new AP.2 Wireless controller features an integrated rechargeable battery pack that should be fully PlayStation®3 when it is powered on. Connect the mini-USB plug to your AP.2 controller. The indicator Wireless Link USB Adapter into one of your PlayStation®3’s USB ports while the system is powered on. Press any button on your AP.2 controller and an automatic pairing will take place. 4) After pairing is complete your AP.2 controller will show it’s controller number designation via one of 4 indicator LEDs. It is now ready to use. Time for some gaming! soon to avoid interruption of play. Changing AFTERGLOW® Modes: AP.2 must be connected to a PlayStation®3 console to function. 2) The AFTERGLOW® button on the AP.2 is located near the controller indicator lights on the controller. 3) The AFTERGLOW® AP.2’s default setting is “ON.” 4) Press the AFTERGLOW® button once to change to “VIBRATION” mode. Lighting occurs in this mode when the AP.2 rumble motors activate. 5) Press the AFTERGLOW® button once more to change to “OFF” mode. No lighting occurs in this mode. 6) Press the AFTERGLOW® button once more to return to “ON” mode. 7 ) Cycle through the three settings as often as you like and enjoy the AFTERGLOW® in your favorite mode! Frequently Asked Questions Can I charge my AP.2 controller before the battery is completely drained? -Yes, you can charge the AP.2 any time you like. You will not damage the battery by charging when the battery still carries a charge. Can I use my AP.2 controller while it is charging via USB? -Yes, you can play with the AP.2 and charge it at the s ame time. Can I use multiple AP.2 controllers with my PlayStation®3? -Yes, you can use up to 4 AP.2 controllers with your PlayStation®3 provided your system has 4 USB ports available. My AP.2 controller will not sync with the PlayStation®3. What can I do? controller and a wireless link should be established. Make sure your PlayStation 3 is powered on and that your AP.2 controller’s battery has a charge. CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that i nterference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Consult the dealer or an experienced radio/TV technician for help. FCC ID for Controller: X5B-PL6422A1 FCC ID for Dongle: X5B-PL6422A2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC for Controller: 8814A-PL6422A1 IC for Dongle: 8814A-PL6422A2 Th is d evice complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. © 2014 Performance Designed Products LLC. All rights reserved. PDP is a trademark, and AFTERGLOW is a registered trademark, of Performance Designed Products LLC. PlayStation®3 is a registered trademark of Sony Computer Entertainment, Inc. This product is not designed, manufactured, sponsored or endorsed by Sony Computer Entertainment. For technical questions please visit www.pdp.com or call: 1-800-331-3844 (USA & Canada only) *please keep this information for future reference 1840 East 27th Street Vernon, CA 90058 USA Siena Court, Broadway, Maidenhead SL6 1NJ “For ages 12+” 2 year limited warranty. See www.pdp.com for details. ® The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Merci d’avoir acheté l’AFTERGLOW MDMD 3! Contenu : 1 AFTERGLOW MD AP.2 pour PlayStation MD 3. MD 1 Câble USB de charge 1 manuel Utilisation de l’AFTERGLOW MD AP.2 : 1) L’AFTERGLOW MD AP 2 est conçu pour être utilisé avec le système de jeux vidéo Sony PlayStation MD 3. chargé avant toute première utilisation. Pour cela, connectez la prise USB large à un port USB alimenté, tel que celui de la PlayStation MD 3 quand elle est en marche. Connectez la miniprise USB à votre manette AP.2. Les témoins DEL de la manette AP.2 clignoteront dès que la charge débutera. 3) Quand la charge est terminée les témoins DEL de l’AP.2 s’éteindront. À ce moment là, insérez l’adaptateur MD dans l’un des ports USB de la PlayStation MD 3 quand le système est en marche. Appuyez sur n’importe quel bouton de la manette AP.2 pour lancer le couplage automatique. témoins DEL. Elle est désormais prête à être utilisée. C’est le moment de jouer! 5) Quand la batterie de l’AP.2 est faible, le témoin DEL clignote rapidement. Il est alors nécessaire de charger la manette dès que possible pour …

Text truncated - open the document above for the full version.

5) Drück die AFTERGLOW®-Taste noch einmal, um in den Modus „AUS“ umzuschalten. In diesem Modus sind die Lichteffekte ausgeschaltet. 6) Drück die AFTERGLOW®-Taste noch einmal, um wieder in den Modus „EIN“ umzuschalten. 7) Du kannst zwischen den einzelnen Modi beliebig umschalten, um den AFTERGLOW® an das jeweilige Spiel anzupassen. Häufige Fragen Kann ich den AP.2-Controller auch schon aufladen, wenn der Akku noch nicht leer ist? - Ja, du kannst den AP.2 jederzeit aufladen. Auch wenn der Akku noch nicht leer ist, geht er dadurch nicht schneller kaputt. Kann ich den AP.2-Controller benutzen, während er über USB aufgeladen wird? - Ja, du kannst den AP.2 gleichzeitig aufladen und ihn zum Spielen benutzen. Kann ich mehrere AP.2-Controller an meine PlayStation®3 anschließen? - Ja, du kannst bis zu vier AP.2- Controller an deine PlayStation®3 anschließen, sofern an der Konsole noch vier USB-Anschlüsse frei sind. Ich bekomme den AP.2-Controller nicht mit der PlayStation®3 synchronisiert. Was muss ich beachten? - Wenn du den AP.2 Wireless-USB-Adapter an die Konsole anschließt, blinkt eine LED am Adapter. Wenn du jetzt ein paar Tasten am AP.2-Controller drückst, sollte die Funkverbindung hergestellt werden. Achte darauf, dass die PlayStation 3 eingeschaltet und der Akku im AP.2-Controller aufgeladen ist. © 2014 Performance Designed Products LLC. Alle Rechte vorbehalten. PDP ist eine Marke und AFTERGLOW ist eine eingetragene Marke von Performance Designed Products LLC. PlayStation®3 ist eine eingetragene Marke von Sony Computer Entertainment, Inc. Dieses Produkt wird bzw. wurde nicht von Sony entworfen, hergestellt, angeboten oder unterstützt. * Bitte zum Nachschlagen aufbewahren 1840 East 27th Street Vernon, CA 90058 USA 2 Jahre eingeschränkte Gewährleistung. Einzelheiten unter www.pdp.com. Grazie per aver acquistato AFTERGLOW® AP.2 Wireless per PlayStation®3! Contenuto: 1 AFTERGLOW® AP.2 per PlayStation®3. 1 adattatore USB link Wireless AFTERGLOW® 1 caco di carica USB 1 Manuale Utilizzo di AFTERGLOW® AP.2: 1) AFTERGLOW® AP.2 è progettato per lavorare con il sistema videogame Sony PlayStation®3. 2) Il nuovo comando AP.2 Wireless è dotato di una batteria ricaricabile integrata che può essere completa mente caricata prima del primo uso. Per farlo, collegare la spina grande USB ad una porta USB alimentata, come la PlayStation®3 quando è accesa. Collegare la mini presa USB al comando AP.2. I LED sull’AP.2 lampeggeranno mentre avviene la ricarica. 3) Quando la carica è completa il LED dell’AP-2 si spegne. A questo punto, inserire l’adattatore USB link wire less AFTERGLOW in una delle porte USB della PlayStation®3 mentre il sistema è acceso. Premere qualsiasi tasto sull’ AP.2 e avrà luogo un’accoppiamento automatico. 4) Dopo il completamento dell’accoppiamento, il comando AP2 mostrerà la sua definizione di numero tramite uno dei 4 LED. Ora è pronto per l’uso. È ora di giocare! 5) Quando la batteria dell’AP.2 funziona lentamente, il LED lampeggerà velocemente. Dovrete caricare presto il comando per evitare l’interruzione del gioco. Modalità di cambio di AFTERGLOW®: 1) AFTERGLOW® AP.2 è caratterizzato da tre (3) modalità di effetti di illuminazione: “ON”, “VIBRAZIONE”, e “OFF.” L’AP. 2 deve essere collegato alla console PlayStation®3 per funzionare. 2) Il tasto AFTERGLOW® sull’AP.2 è posizionato vicino alle luci dell’indicatore del dispositivo di controllo. 3) Le impostazioni predefinite di AFTERGLOW® AP.2 sono “ON” 4) Premere il pulsante AFTERGLOW® per cambiare la modalità “VIBRAZIONE”. In questa modalità le luci lampeggiano quando si attivano i motori rombanti AP.2 5) Premere il pulsante AFTERGLOW® una volta per cambiare la modalità “OFF”. In questa modalità non vi è illuminazione. 6) Premere il pulsante AFTERGLOW® una volta per tornare alla modalità “ON”. 7) Passa tra le tre impostazioni quanto spesso ti pare e goditi AFTERGLOW® nella tua modalità preferita! Domande frequenti Posso caricare il dispositivo di controllo AP2 prima che la batteria sia completamente scarica? -Sì, puoi cari- care l’AP.2 in qualsiasi momento. Non danneggerai la batteria caricandola quando ha ancora un pò di carica. Posso usare il dispositivo di controllo AP2 mentre si carica via USB? -Sì, puoi giocare con l’AP.2 e caricarlo allo stesso tempo. Posso usare dispositivi di controllo AP2 multipli con la PlayStation®3? -Sì puoi usare fino a 4 dispositivi di controllo AP.2 con la PlayStation®3 a patto che il tuo sistema abbia 4 porte USB disponibili. Il mio dispositivo di controllo AP2 non si sincronizza con la PlayStation®3. Che cosa posso fare? -Quando inserisci per la prima volta l’adattatore USB link wireless AP.2 un indicatore luminoso nell’adattatore lampeg- gerà. Premere qualsiasi tasto sull’ AP.2 e si stabilirà un link wireless. Accertati che la PlayStation 3 sia accesa e che la batteria del dispositivo di controllo AP.2 ha la carica. © 2014 Performance Designed Products LLC. Tutti i diritti riservati. AFTERGLOW è un marchio registrato, e PDP è un marchio regis- trato, di Performance Designed Products LLC. Playstation®3 è un marchio registrato, di Sony Computer Entertainment, Inc.Questo prodotto non è progettato, fabbricato, sponsorizzato o approvato da Sony Computer Entertainment. *Si prega di conservare queste informazioni per riferimento futuro. 1840 East 27th Street Vernon, CA 90058 USA 2 anni di garanzia limitata. Vedere www.pdp.com per informazioni. Siena Court, Broadway, Maidenhead SL6 1NJ Siena Court, Broadway, Maidenhead SL6 1NJ Obrigado por adquirir o AFTERGLOW® AP.2 sem fios para a PlayStation®3! Conteúdo: 1 AFTERGLOW® AP.2 para a PlayStation®3. 1 adaptador USB para ligação sem fios AFTERGLOW® 1 cabo de recarga USB 1 manual Utilizar o AFTERGLOW® AP.2: 1) O AFTERGLOW® AP.2 foi concebido para ser utilizado com o sistema de videojogos Sony PlayStation®3. 2) O novo comando sem fios AP.2 possui uma bateria recarregável integrada que deve ser totalmente recar regada antes da primeira utilização. Para tal, ligue a ficha …

Text truncated - open the document above for the full version.

DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:___X5B-PL6422A1____ _____ Product Name:___ Afterglow Wireless Controller for PS3_(Controller)_______ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2014- 08-08 Day of 20 By: Tom roberts Signature Printed Title: Chief Technical Officer On behalf of : Performance Designed Products LLC Telephone: 13232349911

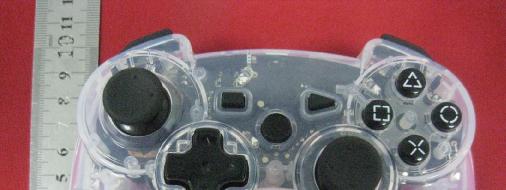

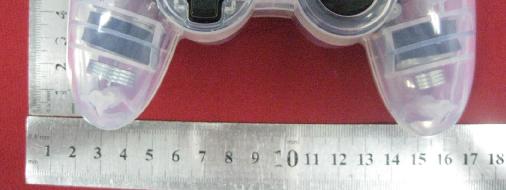

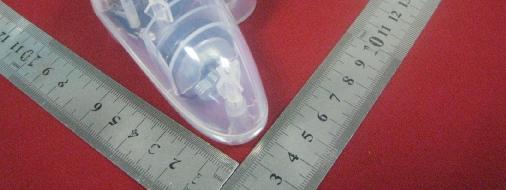

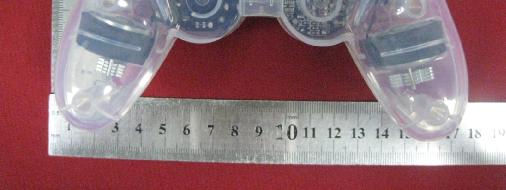

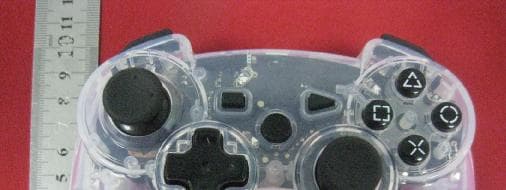

1 of 3 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] External photograph 2 of 3 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected]

Label Location

1 of 2 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] Internal photograph 2 of 2 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected]

RFExposureevaluation Accordingto447498D01GeneralRFExposureGuidancev05 The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzat testseparationdistances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.test separationdistance,mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for 10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbefore calculation Theresultisroundedtoonedecimalplaceforcomparison eirp=ptxgt=(EXd) 2 /30 where: pt=transmitteroutputpowerinwatts, gt=numericgainofthetransmittingantenna(unitless), E=electricfieldstrengthinV/m,---10 ((dBuV/m)/20) /10 6 d=measurementdistanceinmeters(m)---3m Sopt=(EXd) 2 /30xgt Fieldstrength=92.72dBuV/m@3m Antgain=0dBi;soAntnumericgain=0 Sopt={[10 (73.14/20) /10 6 x3] 2 /30}x1000mW=0.5612mW So(0.5612mW/5mm)x√2.440GHz=0.1753<3 ThenSARevaluationisnotrequired

Report No.: 14FAB07013 111 of 19 ATT Product Service Co., Ltd. (CBTLLabof UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777E-mail:[email protected] FCC CERTIFICATION TEST REPORT FOR FCC ID: X5B-PL6422A1 Report Reference No.......................:14FAB07013 11 Date of issue ...................................:2014-07-24 Testing Laboratory...........................:ATT Product Service Co., Ltd. Address...........................................: No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name .............................: PERFORMANCE DESIGNED PRODUCTS, LLC Address...........................................: 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Manufacturer ...................................: PERFORMANCE DESIGNED PRODUCTS, LLC Test specification: Test item description........................: Afterglow Wireless Controller for PS3 (Controller) Trade Mark......................................: N/A Model/Type reference ....................: PL-6422A Ratings............................................: 3.7V d.c (Rechargeable Battery) Responsible EngineerApproved by Rock Huang/ EngineerTomy Wu /EMC Manager Report No.: 14FAB03040 112 of 19 ATT Product Service Co., Ltd. (CBTLLabof UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777E-mail:[email protected] TABLE OF CONTENTS TEST REPORT DECLARE.................................................................................................................................3 1.Summary of test Standards and results.........................................................................................................4 2.General test information...................................................................................................................................5 2.1 ACCREDITATIONS.......................................................................................................................................5 2.2Description of EUT..........................................................................................................................................5 2.3Accessories of EUT........................................................................................................................................5 2.4Assistant equipment used for test.................................................................................................................5 2.5Block diagram of EUT configuration for test................................................................................................6 2.6Test environment conditions..........................................................................................................................6 2.7Measurement uncertainty...............................................................................................................................6 3. 20dB Bandwidth.............................................................................................................................................7 3.1 Test equipment............................................................................................................................................7 3.2 Block diagram of test setup.......................................................................................................................7 3.3 Applicable Standard....................................................................................................................................7 3.4 Test Procedure............................................................................................................................................7 3.5 Test Result...................................................................................................................................................8 3.6 Original test data.........................................................................................................................................8 4. Radiated emission.......................................................................................................................................10 4.1 Test equipment..........................................................................................................................................10 4.2 Block diagram of test setup.....................................................................................................................10 4.3 Limit.............................................................................................................................................................11 4.4 Test Procedure..........................................................................................................................................13 4.5 Test result...................................................................................................................................................13 5. Antenna Requirements...............................................................................................................................16 5.1 Limit.............................................................................................................................................................16 5.2 Result..........................................................................................................................................................16 6.Power Line Conducted Emission..................................................................................................................16 6.1 Test equipment..........................................................................................................................................16 6.2 Block diagram of test setup...........................…

Text truncated - open the document above for the full version.

1 of 2 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] Test setup photograph
