X5B-PL6422BRAfterglow Wireless Controller for PS3 (Dongle)

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. AFTERGLOW® AP.2 For PlayStation®3 Thank you for purchasing the AFTERGLOW® AP.2 Wireless for PlayStation®3! Contents: 1 AFTERGLOW® AP.2 for PlayStation®3. 1 AFTERGLOW® Wireless Link USB Adapter 1 USB Charge Cable 1 Manual Using the AFTERGLOW® AP.2: 1) The AFTERGLOW® AP.2 is designed to work with the Sony PlayStation®3 videogame system. 2) Your new AP.2 Wireless controller features an integrated rechargeable battery pack that should be fully PlayStation®3 when it is powered on. Connect the mini-USB plug to your AP.2 controller. The indicator Wireless Link USB Adapter into one of your PlayStation®3’s USB ports while the system is powered on. Press any button on your AP.2 controller and an automatic pairing will take place. 4) After pairing is complete your AP.2 controller will show it’s controller number designation via one of 4 indicator LEDs. It is now ready to use. Time for some gaming! soon to avoid interruption of play. Changing AFTERGLOW® Modes: AP.2 must be connected to a PlayStation®3 console to function. 2) The AFTERGLOW® button on the AP.2 is located near the controller indicator lights on the controller. 3) The AFTERGLOW® AP.2’s default setting is “ON.” 4) Press the AFTERGLOW® button once to change to “VIBRATION” mode. Lighting occurs in this mode when the AP.2 rumble motors activate. 5) Press the AFTERGLOW® button once more to change to “OFF” mode. No lighting occurs in this mode. 6) Press the AFTERGLOW® button once more to return to “ON” mode. 7) Cycle through the three settings as often as you like and enjoy the AFTERGLOW® in your favorite mode! Frequently Asked Questions Can I charge my AP.2 controller before the battery is completely drained? -Yes, you can charge the AP.2 any time you like. You will not damage the battery by charging when the battery still carries a charge. Can I use my AP.2 controller while it is charging via USB? -Yes, you can play with the AP.2 and charge it at the same t ime. Can I use multiple AP.2 controllers with my PlayStation®3? -Yes, you can use up to 4 AP.2 controllers with your PlayStation®3 provided your system has 4 USB ports available. My AP.2 controller will not sync with the PlayStation®3. What can I do? controller and a wireless link should be established. Make sure your PlayStation 3 is powered on and that your AP.2 controller’s battery has a charge. CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Consult the dealer or an experienced radio/TV technician for help. FCC ID for Controller: X5B-PL6422#5 FCC ID for Dongle: X5B-PL6422#3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC for Controller: 8814A-PL6422#5 IC for Dongle: 8814A-PL6422#3 . Operation is subject to the following two conditions: (1) this device may not cause interference, BOE

UIJT
device must accept any interference, including interference that may cause undesired operation of the device. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. © 2014 Performance Designed Products LLC. All rights reserved. PDP is a trademark, and AFTERGLOW is a registered trademark, of Performance Designed Products LLC. PlayStation®3 is a registered trademark of Sony Computer Entertainment, Inc. This product is not designed, manufactured, sponsored or endorsed by Sony Computer Entertainment. For technical questions please visit www.pdp.com or call: 1-800-331-3844 (USA & Canada only) *please keep this information for future reference 1840 East 27th Street Vernon, CA 90058 USA Siena Court, Broadway, Maidenhead SL6 1NJ “For ages 12+” 2 year limited warranty. See www.pdp.com for details. ® The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Industry Canada’s licence-exempt RSSs. Merci d’avoir acheté l’AFTERGLOW MDMD 3! Contenu : 1 AFTERGLOW MD AP.2 pour PlayStation MD 3. MD 1 Câble USB de charge 1 manuel Utilisation de l’AFTERGLOW MD AP.2 : 1) L’AF T ER G LOW MD AP 2 est conçu pour être utilisé avec le système de jeux vidéo Sony PlayStation MD 3. chargé avant toute première utilisation. Pour cela, connectez la prise USB large à un port USB alimenté, tel que celui de la PlayStation MD 3 quand elle est en marche. Connectez la miniprise USB à votre manette AP.2. Les témoins DEL de la manette AP.2 clignoteront dès que la charge débutera. 3) Quand la charge est terminée les témoins DEL de l’AP.2 s’éteindront. À ce moment là, insérez l’adaptateur MD dans l’un des ports USB de la PlayStation MD 3 quand le système est en marche. Appuyez sur n’importe quel bouton de la manette AP.2 pour lancer le couplage automatique. témoins DEL. Elle est désormais prête à être utilisée. C’est le moment de jouer! 5) Quand la batterie …

Text truncated - open the document above for the full version.

DATE Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_X5B-PL6422BR__ ______ Product Name:_ Afterglow Wireless Controller for PS3 (Dongle)____ _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2014- 1 2-18 Day of 20 By: Tom roberts Signature Printed Title: Chief Technical Officer On behalf of : Performance Designed Products LLC Telephone: 13232349911

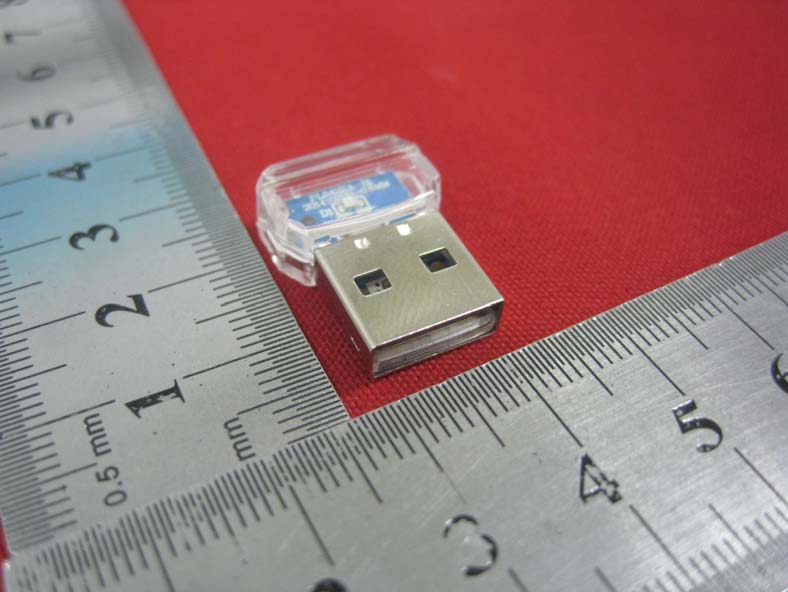

ATT Product Service Co., Ltd. No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] External Photo

Label and Location FCC ID: X5B-PL6422BR IC: 8814A-PL6422BR

Internal Photo ATT Product Service Co., Ltd. No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected]

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distancesİ 5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)] İ 3.0 for 1-g SAR and İ 7.5 for 10-g extremity SAR, where ǂf(GHz) is the RF channel transmit frequency in GHz ǂ Power and distance are rounded to the nearest mW and mm before calculation ǂThe result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Field strength =91.86dBuV/m @3m Ant gain =0dBi;so Ant numeric gain=0 So pt={ [10 (91.86/20) /10 6 x3] 2 /30}x1000 mW =0.46mW So (0.46mW/5mm)x Ĝ2.402GHz =0.1426<3 Then SAR evaluation is not required Ant numeric gain=1

Report No.: 14FAB11015 51 1 of 24 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] FCC CERTIFICATION TEST REPORT FOR FCC ID: X5B-PL6422BR Report Reference No. ...................... : 14FAB11015 51 Date of issue .................................... : 2014-12-03 Testing Laboratory ........................... : ATT Product Service Co., Ltd. Address ............................................ : No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name .............................. : PERFORMANCE DESIGNED PRODUCTS, LLC Address ............................................ : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Manufacturer .................................... : PERFORMANCE DESIGNED PRODUCTS, LLC Test specification: Test item description ........................ : Afterglow Wireless Controller for PS3 (Dongle) Trade Mark ....................................... : -- Model/Type reference .................... : PL-6422BR Ratings ............................................. : 5V d.c via USB port supply Responsible Engineer Approved by ˄Rock Huang/ Engineer˅ ˄Tomy Wu /EMC Manager˅ Report No.: 14FAB11015 51 2 of 24 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TABLE OF CONTENTS TEST REPORT DECLARE ..................................................................................................................... 3 1. Summary of test Standards and results ........................................................................................... 4 2. General test information.................................................................................................................. 5 2.1 ACCREDITATIONS ........................................................................................................................ 5 2.2 Description of EUT .......................................................................................................................... 5 2.3 Accessories of EUT ........................................................................................................................ 5 2.4 Assistant equipment used for test .................................................................................................. 5 2.5 Block diagram of EUT configuration for test ................................................................................... 6 2.6 Test environment conditions ........................................................................................................... 6 2.7 Measurement uncertainty ............................................................................................................... 6 3. 20dB Bandwidth .............................................................................................................................. 7 3.1 Test equipment ............................................................................................................................... 7 3.2 Block diagram of test setup ............................................................................................................ 7 3.3 Applicable Standard ........................................................................................................................ 7 3.4 Test Procedure ............................................................................................................................... 7 3.5 Test Result ...................................................................................................................................... 8 3.6 Original test data ............................................................................................................................. 8 4. Radiated emission ........................................................................................................................ 10 4.1 Test equipment ............................................................................................................................. 10 4.2 Block diagram of test setup .......................................................................................................... 10 4.3 Limit .............................................................................................................................................. 11 4.4 Test Procedure ............................................................................................................................. 13 4.5 Test result ..................................................................................................................................... 13 5. Antenna Requirements ................................................................................................................. 16 5.1 Limit .............................................................................................................................................. 16 5.2 Result ............................................................................................................................................ 16 6. Power Line Conducted Emission .................................................................................................. 16 6.1 Test equipment ............................................................................................................................. 16 6.2 Block diagram of test setup .......................................................................................................... 16 6.3 Power Line Conducted Emission Limits(Class B) ........................................................................ 17 6.4 Test Procedure .....................................................................…
