X5B-PL6432BTRockCandy PS3 Wireless Controller

Thank you for purchasing wireless controller for the PLAYSTATION 3 video game system. Project: RockCandy PS3 Wireless Controller model˖PL-6432BT Contents: 1 Wireless Controller for PS3 1 USB Dongle (found attached to the controller) 1 Manual Set up: 1) Remove the USB receiver that is attached to the bottom of the controller and plug it into one of the free ports of your PLAYSTATION 3 2) USB receiver LED will flash rapidly while looking for positive connection with the controller. USB receiver light will light up solid when the connection is established 3) Place the power switch is in “ON” position 4) Press the “HOME” button, the controller will be automatically assigned a player number. (you can change the controller player number by pressing and holding the HOME button and then changing the player number from the PS3 menu – refer to your console manual for more information 5) The battery of the controller is low when its LED start flashing. Power Save Mode: Controller will go into Power Save Mode after 3 (three) minutes of inactivity. You need to press the START button to turn it back to the ACTIVE mode Important Notice 1. Recommended user age range 14+. 2. Adult supervision is necessary when controller is used by child CAUTION: Changes or modifications to this equipment not expressly approved by the manufacturer could void the users authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Controller FCC ID: X5B-PL6432BT; IC: 8814A-PL6432BT Dongle FCC ID: X5B-PL6432BR; IC: 8814A-PL6423BR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. © 2010 Performance Designed Products LLC. All rights reserved. PDP and AFTERGLOW™ are trademarks of Performance Designed Products LLC. PlayStation 3® is a registered trademark of Sony Computer Entertainment, Inc. This product is not designed, manufactured, sponsored or endorsed by Sony Computer Entertainment. Please keep this information for future reference. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. © 2010 Performance Designed Products LLC. All rights reserved. PDP and AFTERGLOW™ are trademarks of Performance Designed Products LLC. PlayStation 3® is a registered trademark of Sony Computer Entertainment, Inc. This product is not designed, manufactured, sponsored or endorsed by Sony Computer Entertainment. Please keep this information for future reference. This device complies with Industry Canada's licence-exempt RSSs.

DATE :2015-04-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ X5B-PL6432BT __ ______ Product Name:_ RockCandy PS3 Wireless Controller ____ _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2015- 0 4-22 Day of By: Tom roberts Signature Printed Title: Chief Technical Officer On behalf of : Performance Designed Products LLC Telephone: 13232349911

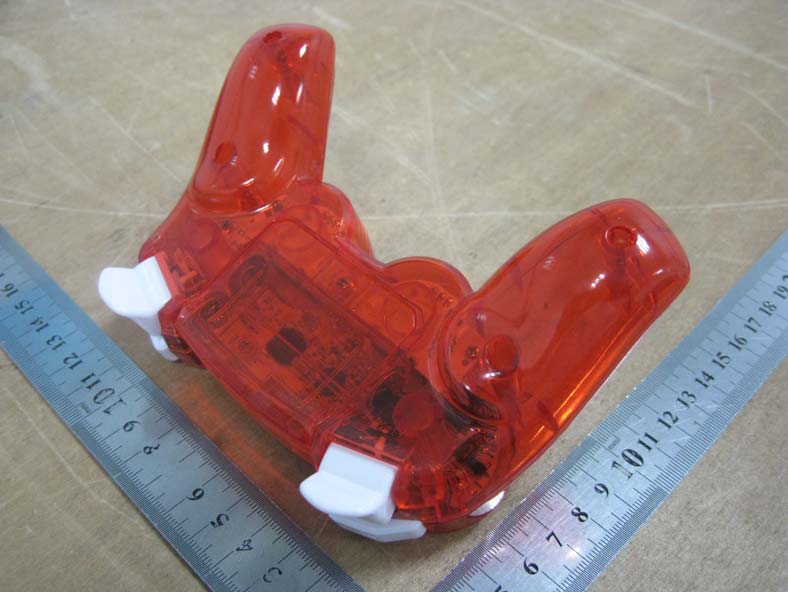

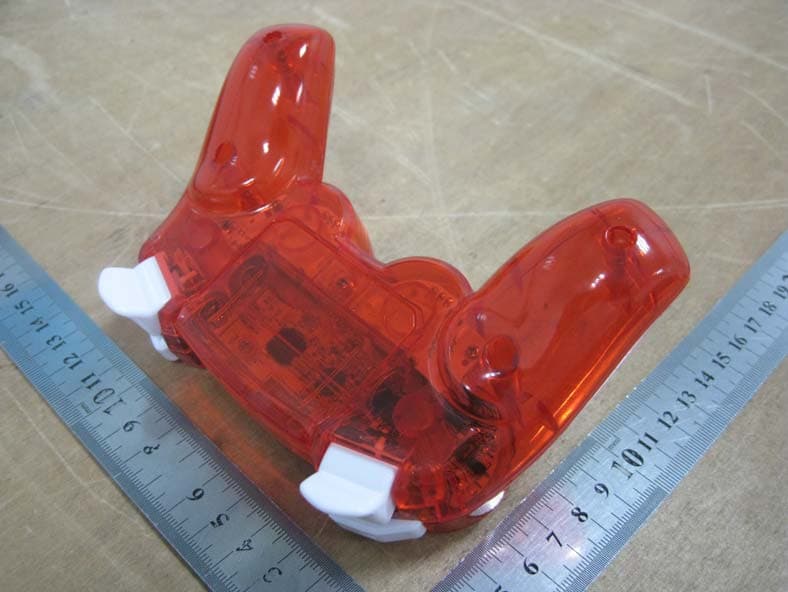

External photo

PL-6432BT XXXXGAC X5B-PL6432BT 8814A-PL6432BT

Internal photo

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distancesİ 5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] g[Ĝf(GHz)]İ 3.0 for 1-g SAR and İ 7.5 for 10-g extremity SAR, where ǂf(GHz) is the RF channel transmit frequency in GHz ǂ Power and distance are rounded to the nearest mW and mm before calculation ǂThe result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Field strength =98.84dBuV/m @3m Ant gain =-0.26dBi;so Ant numeric gain=9.974 So pt={ [10 (98.84/20) /10 6 x3] 2 /30}x1000 mW =2.297mW So (2.297mW/5mm)x Ĝ2.475GHz =0.7213<3 Then SAR evaluation is not required 0.942 30X0.942}x1000 mW =2.438mW So (2.438mW/5mm)x Ĝ2.475GHz =0.77<3

Report No.: 15FAB03037 11 1 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] FCC CERTIFICATION TEST REPORT FOR FCC ID: X5B-PL6432BT Report Reference No. ...................... : 15FAB03037 11 Date of issue.................................... : 2015-04-16 Testing Laboratory ........................... : ATT Product Service Co., Ltd. Address ............................................ : No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Applicant’s name.............................. : PERFORMANCE DESIGNED PRODUCTS, LLC Address ............................................ : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Manufacturer.................................... : PERFORMANCE DESIGNED PRODUCTS, LLC Test specification: Test item description........................ : RockCandy PS3 Wireless Controller Trade Mark....................................... : -- Model/Type reference .................... : PL-6432BT Ratings ............................................. : DC 3V (battery AA * 2Pcs) Responsible Engineer Approved by （Rock Huang/ Engineer） （King Wang /EMC Manager） Report No.: 13FAB03037 11 2 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TABLE OF CONTENTS TEST REPORT DECLARE........................................................................................................................ 3 1.SUMMARY OF TEST STANDARDS AND RESULTS........................................................................ 4 2.GENERAL TEST INFORMATION......................................................................................................... 5 2.1 ACCREDITATIONS.............................................................................................................................. 5 2.2DESCRIPTION OF EUT........................................................................................................................ 5 2.3ACCESSORIES OF EUT...................................................................................................................... 5 2.4ASSISTANT EQUIPMENT USED FOR TEST................................................................................... 5 2.5BLOCK DIAGRAM OF EUT CONFIGURATION FOR TEST.......................................................... 6 2.6TEST ENVIRONMENT CONDITIONS................................................................................................ 6 2.7MEASUREMENT UNCERTAINTY...................................................................................................... 6 3. 20DB BANDWIDTH.............................................................................................................................. 7 3.1 TEST EQUIPMENT............................................................................................................................ 7 3.2 BLOCK DIAGRAM OF TEST SETUP............................................................................................. 7 3.3 APPLICABLE STANDARD............................................................................................................... 7 3.4 TEST PROCEDURE.......................................................................................................................... 7 3.5 TEST RESULT.................................................................................................................................... 8 3.6 ORIGINAL TEST DATA..................................................................................................................... 8 4. RADIATED EMISSION...................................................................................................................... 10 4.1 TEST EQUIPMENT.......................................................................................................................... 10 4.2 BLOCK DIAGRAM OF TEST SETUP........................................................................................... 10 4.3 LIMIT.................................................................................................................................................. 12 4.4 TEST PROCEDURE........................................................................................................................ 13 4.5 TEST RESULT.................................................................................................................................. 13 5. ANTENNA REQUIREMENTS........................................................................................................... 16 5.1 LIMIT.................................................................................................................................................. 16 5.2 RESULT............................................................................................................................................. 16 7.EUT TEST PHOTO................................................................................................................................17 Report No.: 15FAB03037 11 3 of 20 ATT Product Service Co., Ltd. (CBTL Lab of UL/Demko) No. 3, ChangLianShan Industrial Park, ChangAn Town, DongGuan City, GuangDong, China. Phone: 86-769-8509 8000; Fax: 86-769-8509 8777 E-mail:[email protected] TEST REPORT DECLARE Applicant : PERFORMANCE DESIGNED PRODUCTS, LLC Address : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Equipment under Test : RockCandy PS3 Wireless Controller Model No : PL-6432BT Trade Mark : -- Manufacturer : PERFORMANCE DESIGNED PRODUCTS, LLC Address : 14144 Ventura Blvd,Suite 200,Sherman Oaks,CA 91423 U.S.A Test Standard Used: FCC Rules and Regulations Part 15 Subpart C: 2013 Test procedure used: ANSI C63.10:2013;…

Text truncated - open the document above for the full version.

Setup photo
