X5B-PL9215TAfterglow 5.1 surround sound wireless transmitter

Performance Designed Products, LLC FCC ID.: X5B-PL9215T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Federal Communications Commission Sep. 30 , 2013 Authorization and Evaluation Division ATTESTATION FCC ID: X5B-PL9215T Product: Afterglow 5.1 surround sound wireless transmitter Model: PL-9214T, PL-9215T We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------ Tom Roberts / Chief Technical Officer Performance Designed Products, LLC

Performance Designed Products, LLC FCC ID.: X5B-PL9215T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Performance Designed Products, LLC 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Fax: 1-323-234-9922 Federal Communications Commission Sep. 30 , 2013 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (PL-9214T) Schem Block Diagram: (PL-9214T) BlkDia Operational Description: (PL-9214T) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------------- Tom Roberts / Chief Technical Officer Performance Designed Products, LLC

Performance Designed Products, LLC 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 Fax: 1-323-234-9922 Attestation for FCC Declaration of Conformity FCC ID: X5B-PL9215T Data: Sep. 30, 2013 Please be notified that we, the undersigned, Performance Designed Products, LLC.declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 138249R- ITUSP02V02 Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, ------------------------------------------------------------ Tom Roberts / Chief Technical Officer Performance Designed Products, LLC Tel : 1-323-234-9911 Fax: 1-323-234-9922 Email: [email protected]

RF_160, Issue 02 Performance Designed Products, LLC Declaration of Authorization We Name: Performance Designed Products, LLC... Address: 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA.  City: Oaks .. Country: United States . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Afterglow 5.1 surround sound wireless transmitter FCC ID: X5B-PL9215T Trademark: pdp on our behalf. Date: 2013/09/30.. City:  Oaks .. Name:  Tom Roberts .. (2) Function:  Chief Technical Officer  Signature:  Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

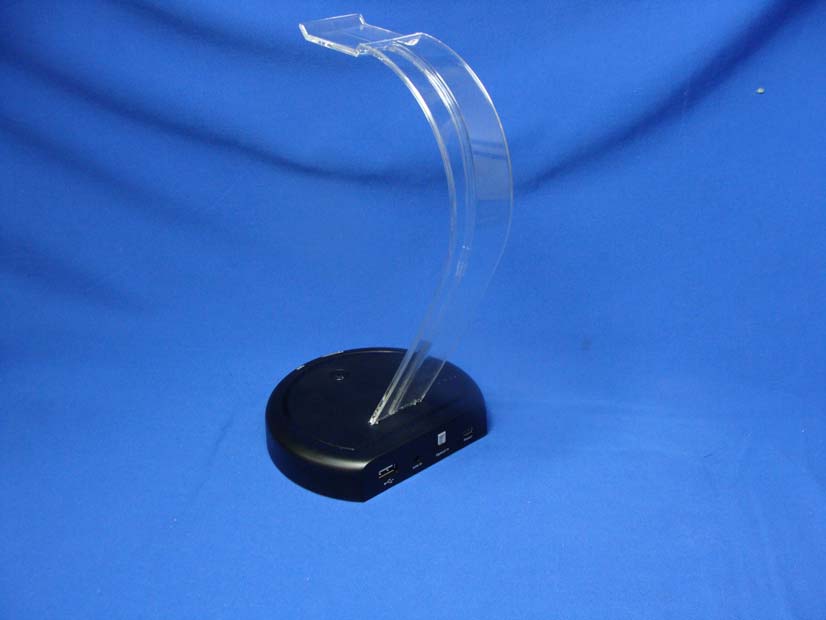

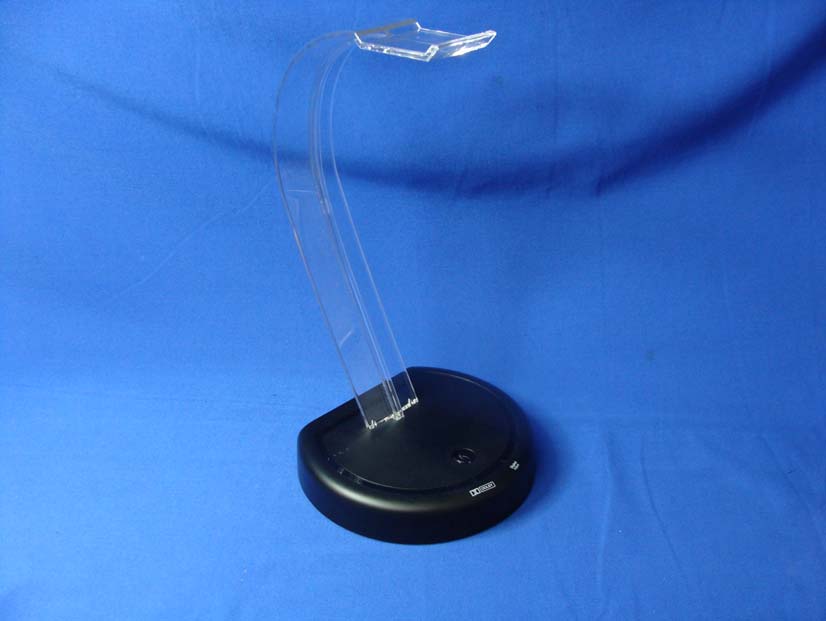

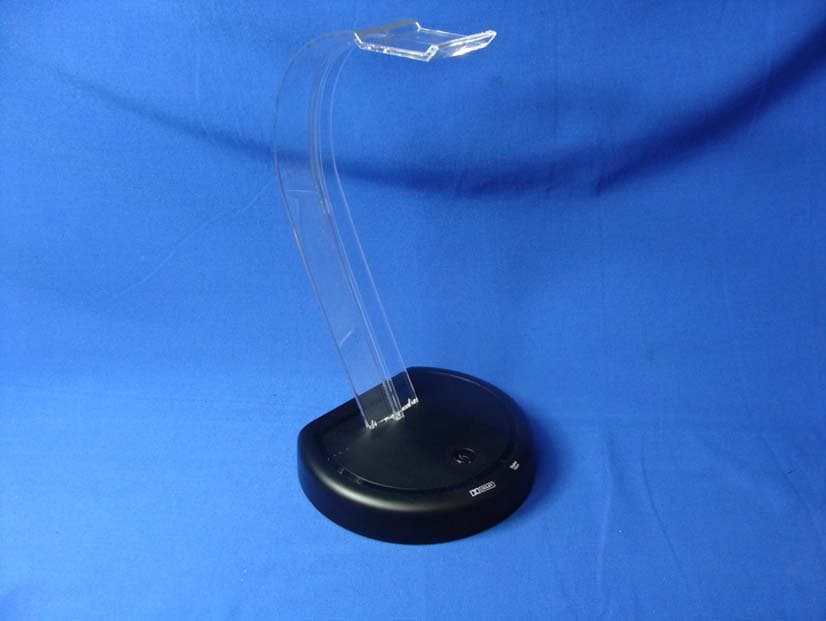

Report No.: 138250R-RFUSP42V01 Page : 1 of 8 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 138250R-RFUSP42V01 Page : 2 of 8 (3) EUT Photo (4) EUT Photo

Performance Designed Products, LLC FCC ID.: X5B-PL9215T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 FCC ID Label

Performance Designed Products, LLC FCC ID.: X5B-PL9215T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : 1-323-234-9911 The FCC ID Label will be placed on the equipment as shown in the photograph below.

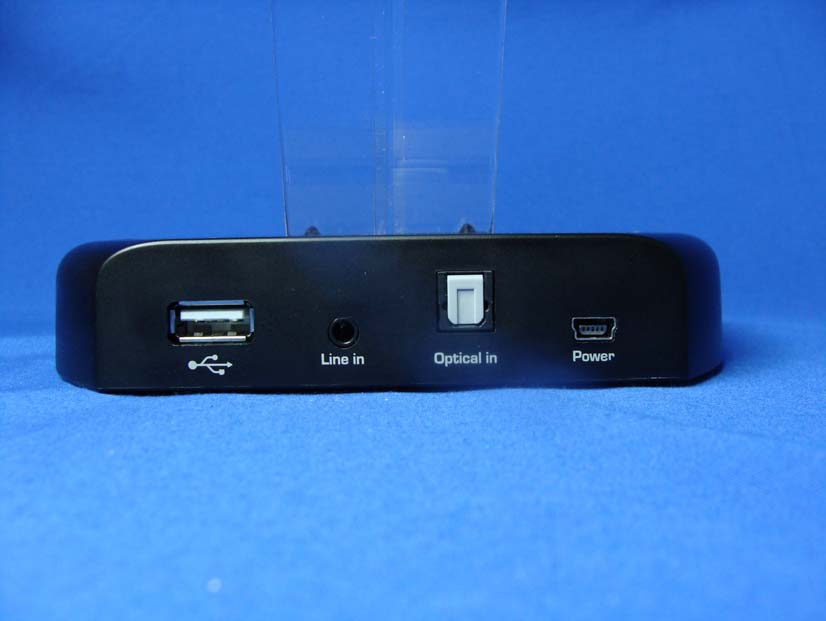

Report No.: 138250R-RFUSP42V01 Page : 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 138250R-RFUSP42V01 Page : 4 of 8 (7) EUT Photo (8) EUT Photo AntennaAntenna RF Chip Report No.: 138250R-RFUSP42V01 Page : 5 of 8 (9) EUT Photo (10) EUT Photo (RF Chip) Report No.: 138250R-RFUSP42V01 Page : 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 138250R-RFUSP42V01 Page : 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 138250R-RFUSP42V01 Page : 8 of 8 (15) EUT Photo (16) EUT Photo

Report No.: 138250R-RFUSP42V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name Afterglow 5.1 surround sound wireless transmitter Model No. PL-9214T, PL-9215T FCC ID X5B-PL9215T Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Date of Receipt Aug. 13, 2013 Date of DeclarationSep. 18, 2013 Report No. 138250R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No.: 138250R-RFUSP42V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No.: 138250R-RFUSP42V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : Afterglow 5.1 surround sound wireless transmitter Test Item : RF Exposure Evaluation Test Site : No.3 OATS Output Power Into Antenna & RF Exposure Evaluation Distance_20cm (4.45dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 01 2403.35 1.7219 0.000954 19 2439.35 1.5205 0.000843 38 2477.35 1.3243 0.000734 The RF exposure at 20 cm is below limit.

Report No. 138250R-RFUSP42V01 Page : 1 of 53 FCC Test Report Product Name Afterglow 5.1 surround sound wireless transmitter Model No PL-9214T, PL-9215T FCC ID. X5B-PL9215T Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Date of Receipt Aug. 13, 2013 Issue Date Sep. 18, 2013 Report No. 138250R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Report No. 138250R-RFUSP42V01 Page : 2 of 53 Test Report Certification Issue Date: Sep. 18, 2013 Report No.: 138250R-RFUSP42V01 Product Name Afterglow 5.1 surround sound wireless transmitter Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Manufacturer Performance Designed Products, LLC Model No. PL-9214T, PL-9215T EUT Rated Voltage DC 5V (Power by USB) EUT Test Voltage AC 120V/60Hz Trade Name pdp Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009, FCC KDB 558074 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by TAF or any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Andy Lin ) Approved By : ( Manager / Vincent Lin ) Report No. 138250R-RFUSP42V01 Page : 3 of 53 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limit ............................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................16 4.1. Test Equipment............................................................................................................................16 4.2. Test Setup ....................................................................................................................................17 4.3. Limits ..........................................................................................................................................18 4.4. Test Procedure .............................................................................................................................18 4.5. Uncertainty ..................................................................................................................................18 4.6. Test Result of Radiated Emission................................................................................................19 5. RF antenna conducted test........................................................................................................23 5.1. Test Equipment............................................................................................................................23 5.2. Test Setup .........................................................................…

Text truncated - open the document above for the full version.

Report No.: 138250R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 138250R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 138250R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
