X5B-PL9929TAfterglow Universal/ XBOX360/ PS3 Wireless Dongle

Model: PL-9929R, PL3771R,PL6471R (for Headset) PL-9929T,PL3771T,PL6471T (for Dongle)

Class B: FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. Labeling requirements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under portable exposure conditions. (antennas are less than 20 cm of a person's body). Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils portables. (les antennes sont moins de 20 cm du corps d'une personne).

Performance Designed Products, LLC FCC ID.: X5B-PL9929T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : (323) 234-9911 Federal Communications Commission Aug. 01 , 2012 Authorization and Evaluation Division ATTESTATION FCC ID: X5B-PL9929T Product: Afterglow Universal/ XBOX360/ PS3 Wireless Dongle Model: PL-9929T, PL3771T, PL6471T We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ------------------------------------------------ Tom Roberts / Chief Technical Officer Performance Designed Products, LLC

Performance Designed Products, LLC FCC ID.: X5B-PL9929T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : (323) 234-9911 Performance Designed Products, LLC 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : (323) 234-9911 Fax: 886-2-2269-1137 Federal Communications Commission Aug. 01 , 2012 Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics: (PL-9929T, PL3771T, PL6471T) Schem Block Diagram: (PL-9929T, PL3771T, PL6471T) BlkDia Operational Description: (PL-9929T, PL3771T, PL6471T) OPDes The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ---------------------------------------------------- Tom Roberts / Chief Technical Officer Performance Designed Products, LLC

Performance Designed Products, LLC 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA TEL No: +86 755 2778 7416 FAX No.: +86 755 2778 7426 Attestation for FCC Declaration of Conformity FCC ID: X5B-PL9929T Data: Aug. 16, 2012 Please be notified that we, the undersigned, Performance Designed Products, LLC declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 126402R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,Taipei City 114,Taiwan,R.O.C. which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, ------------------------------------------------------- Tom Roberts / Chief Technical Officer Performance Designed Products, LLC Tel: +86 755 2778 7416 Fax: +86 755 2778 7426 Email: [email protected]

RF_160, Issue 02 Performance Designed Products, LLC Declaration of Authorization We Name: Performance Designed Products, LLC..  .  Address: 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA.  City: Oaks  .  .  Country: United States  . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Afterglow Universal/ XBOX360/ PS3 Wireless Dongle Type designation: PL-9929T, PL3771T, PL6471T Trademark: pdp on our behalf. Date:  2012/08/01  .. City:  Oaks  .. Name:  Tom Roberts  .. (2) Function:  Chief Technical Officer  Signature:   Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

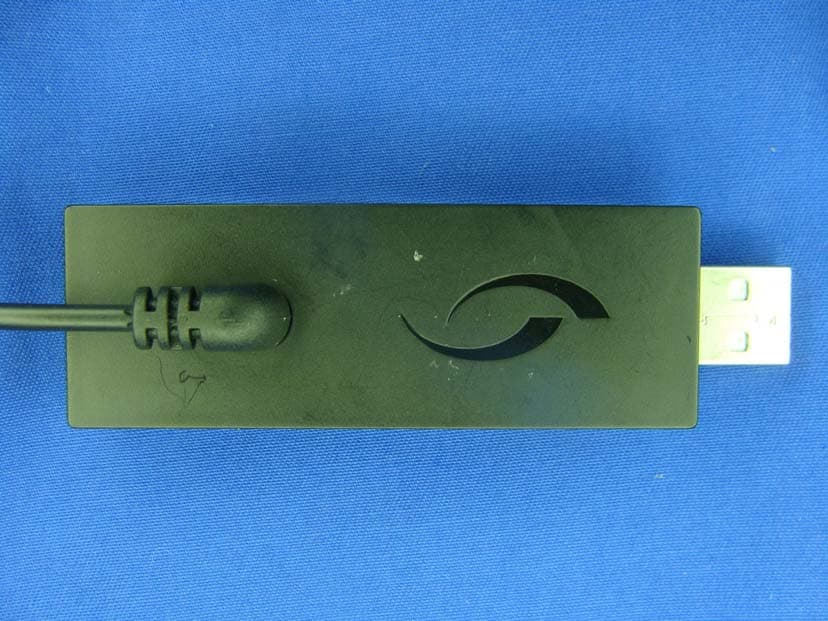

Report No.: 126402R-RFUSP42V01 Page : 1 of 7 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 126402R-RFUSP42V01 Page : 2 of 7 (3) EUT Photo (4) EUT Photo

Performance Designed Products, LLC FCC ID.: X5B-PL9929T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : +86 755 2778 7416 FCC ID Label

Performance Designed Products, LLC FCC ID.: X5B-PL9929T 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Tel : +86 755 2778 7416 The FCC ID and Doc Label will be placed on the equipment as shown in the photograph below.

Report No.: 126402R-RFUSP42V01 Page : 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 126402R-RFUSP42V01 Page : 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 126402R-RFUSP42V01 Page : 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 126402R-RFUSP42V01 Page : 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 126402R-RFUSP42V01 Page : 7 of 7 (13) EUT Photo (14) EUT Photo

RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the max peak output power (EIRP) is 7.21dBm, which is equal to 5.26 mW, Lower that low threshold (60/f GHz) mW = 25 mW (f=2.4GHz), d <20 cm general population category. The SAR/MPE measurement is not necessary.

Report No. 126402R-RFUSP42V01 Page : 1 of 49 Test Report Product Name Afterglow Universal/ XBOX360/ PS3 Wireless Dongle Model No PL-9929T, PL3771T, PL6471T FCC ID. X5B-PL9929T Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Date of Receipt June 22, 2012 Issue Date July 31, 2012 Report No. 126402R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 126402R-RFUSP42V01 Page : 2 of 49 Test Report Certification Issue Date: July 31, 2012 Report No.: 126402R-RFUSP42V01 Product Name Afterglow Universal/ XBOX360/ PS3 Wireless Dongle Applicant Performance Designed Products, LLC Address 14144 Ventura Blvd., Suite 200 Sherman Oaks, CA 91423 USA Manufacturer Performance Designed Products, LLC Model No. PL-9929T, PL3771T, PL6471T EUT Rated Voltage DC 5V (Power by USB) EUT Test Voltage AC 120V/60Hz Trade Name pdp Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Genie Chang ) Tested By : ( Engineer / Henk Huang ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 126402R-RFUSP42V01 Page : 3 of 49 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description .................................................................................................. 7 1.3. Tested System Details .................................................................................................... 8 1.4. Configuration of Tested System...................................................................................... 8 1.5. EUT Exercise Software .................................................................................................. 9 1.6. Test Facility...................................................................................................................10 2. Conducted Emission.................................................................................................. 11 2.1. Test Equipment............................................................................................................. 11 2.2. Test Setup .................................................................................................................... 11 2.3. Limits ............................................................................................................................ 12 2.4. Test Procedure ............................................................................................................. 12 2.5. Uncertainty ................................................................................................................... 12 2.6. Test Result of Conducted Emission.............................................................................. 13 3. Peak Power Output .................................................................................................... 15 3.1. Test Equipment............................................................................................................. 15 3.2. Test Setup .................................................................................................................... 15 3.3. Limit .............................................................................................................................. 15 3.4. Test Procedure ............................................................................................................. 15 3.5. Test Result of Peak Power Output ............................................................................... 16 4. Radiated Emission ..................................................................................................... 17 4.1. Test Equipment............................................................................................................. 17 4.2. Test Setup .................................................................................................................... 18 4.3. Limits ............................................................................................................................ 19 4.4. Test Procedure ............................................................................................................. 19 4.5. Uncertainty ................................................................................................................... 19 4.6. Test Result of Radiated Emission................................................................................. 20 5. RF antenna conducted test ....................................................................................... 24 5.1. Test Equipment............................................................................................................. 24 5.2. Test Setup .................................................................................................................... 24 5.3. Limits ............................................................................................................................ 24 5.4. Test Procedure ............................................................................................................. 25 5.5. Uncertainty .......................................…

Text truncated - open the document above for the full version.

Report No.: 126402R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 126402R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 126402R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
