X5SBG-100Bluetooth Timer Remote Control

Pixel Enterprise Limited

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 07, 2014
Application Purpose: Original Equipment
Date of Application: Jun 07, 2014
Equipment Note: Bluetooth Timer Remote Control
Frequency Range: 2402.00000000 - 2480.00000000
Company: Pixel Enterprise Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

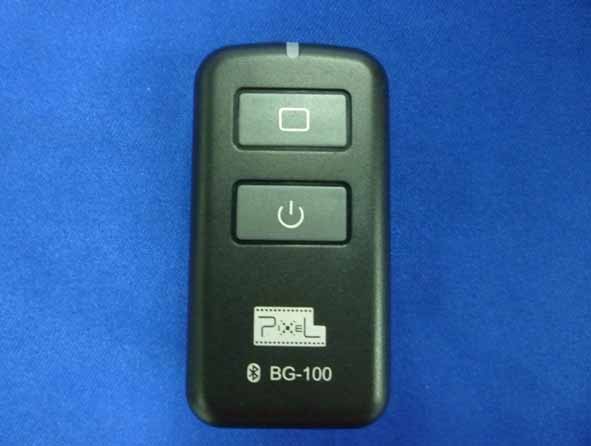

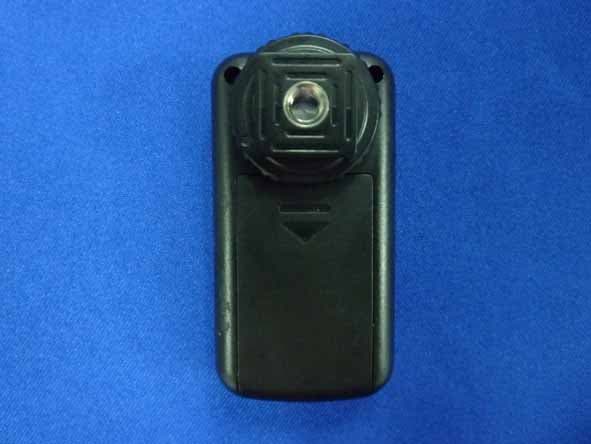

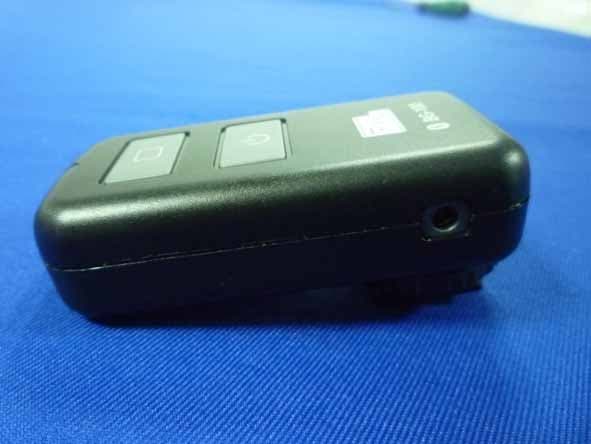

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID :X5SBG-100 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14136 Page 1 of 7 Photos of the EUT Bluetooth Timer Remote Control Model No.: BG-100 FCC ID. : X5SBG-100 Report Number ： ACS-F14136 Date of Test ： Apr.13~18, 2014 Date of Report ： Apr.22, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID :X5SBG-100 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14136 Page 2 of 7 Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID :X5SBG-100 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14136 Page 3 of 7 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

Internal Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID :X5SBG-100 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14136 Page 4 of 7 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID :X5SBG-100 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14136 Page 5 of 7 Figure 7 Component side of the PCB Figure 8 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID :X5SBG-100 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14136 Page 6 of 7 Figure 9 Component side of the PCB Figure 10 Component side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID :X5SBG-100 Audix Technology (Shenzhen) Co., ltd.. Report No. ACS-F14136 Page 7 of 7 Figure 11 Component side of the PCB

RF Exposure Info

Product Name：Bluetooth Timer Remote Control Model Number: BG-100 FCCID: X5SBG-100 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2.402MHz -7.25 dBm(0.1884 mW) output power] (0.1884mW /5mm) ·[√2.402(GHz)]= 0.05840 <3.0 for 1-g SAR Then SAR evaluation is not required

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: X5SBG-100 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14136 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Pixel Enterprise Limited Bluetooth Timer Remote Control Model No.: BG-100 FCC ID: X5SBG-100 Prepared for : Pixel Enterprise Limited Rm 1228, 12/F, one Grand Tower, 639 Nathan Road, Mong K, Hongkong. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F14136 Date of Test ： Apr.13~18, 2014 Date of Report ： Apr.22, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: X5SBG-100 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14136 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. Block Diagram of connection between EUT and simulators ............................................... 2-2 2.4. Test information ................................................................................................................... 2-2 2.5. Test Facility .......................................................................................................................... 2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. RADIATED EMISSION MEASUREMENT ................................................................ 3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-2 3.3. Radiated Emission Limit Standard: FCC 15.209 ................................................................. 3-3 3.4. EUT Configuration on Test .................................................................................................. 3-3 3.5. Operating Condition of EUT ................................................................................................ 3-3 3.6. Test Procedure ...................................................................................................................... 3-3 3.7. Radiated Emission Test Results ........................................................................................... 3-4 4. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Limit ..................................................................................................................................... 4-1 4.3. Test Procedure ...................................................................................................................... 4-1 4.4. Test result ............................................................................................................................. 4-1 5. 6dB BANDWIDTH TEST ............................................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test Results .......................................................................................................................... 5-1 6. MAXIMUM PEAK OUTPUT POWER TEST ............................................................. 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Procedure ...................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. BAND EDGE COMPLIANCE TEST ............................................................................ 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Produce ......................................................................................................................... 7-1 7.4. Test Results .......................................................................................................................... 7-1 8. POWER SPECTRAL DENSITY TEST ........................................................................ 8-1 8.1. Test Equipment .................................................................................................................... 8-1 8.2. Limit .......................................…

Text truncated - open the document above for the full version.

Test Setup Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: X5SBG-100 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14136 10-1 10. HOTOGRAPH OF TEST 10.1.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID: X5SBG-100 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14136 10-2 Above 1000MHz
