X68CRSCANNERComputed Radiography Scanner

User Manual human Computed Radiography Scanner Rev 0.0.9 February 2010 Part No. : CR-FPM-01-001 ©Copyright 2010 by 3D Imaging & Simulations Corp. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of 3D Imaging & Simulations Corp. Terms denoted by the trademark symbol ( TM or ®) used in this publication are trademarks or service marks registered in the United States or other countries. FireCR, VetCR, Quantor and QuantorVet are registered trademarks of 3D Imaging & Simulations Corp. User Manual FireCR Contact 49-3, Moonpyung-Dong, Daedeok-Gu Daejeon, Korea Tel : 82-42-931-2100 Fax : 82-42-931-2299 Website : www.3-disc.com E-mail : [email protected] 2 User Manual FireCR The device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. NOTE : This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception. Which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 3 User Manual FireCR Warnings and Used Symbols To ensure the safety of patients, staff and other persons, any changes to software and hardware delivered by 3D Imaging & Simulations Corp. may only be made with prior written permission from 3D Imaging & Simulations Corp. Please read the respective manuals of the connected software, such as acquisition and diagnostic software, before starting to use the FireCR system. The following symbols will be used throughout this manual: DANGER The functionality of the system can be destroyed in the case of incorrect use. If unauthorized changes have been made to delivered system and accessories, the warranty by 3D Imaging & Simulations Corp. becomes void. 3D Imaging & Simulations Corp. will not accept any responsibility or liability for the proper functioning oh the product in such a case. WARNING The functionality of the system can be limited in the case of incorrect use. Hints that require special attention. NOTE Notes represent information that is important to know but which do not affect the functionality of the system. PRACTICAL HINT A hint on how the work flow could be made easier within the system. 4 User Manual FireCR General Safety Guidelines All the safety and operating instructions should be read carefully before this device is operated. This device has been designed and tested to meet strict safety requirements applicable to medical equipment, and has been supplied in a safe condition. To ensure personnel and patient safety, the device shall be operated and serviced in compliance with all procedures, warnings and precautions during all phases of operation and service of this device. Failure to comply to with safety guidelines may result in injury to service personnel, operator, or patient. 3D Imaging & Simulations Corp. assumes no liability for failure to comply. If this device is not used as specified, the protection provided by the device could be impaired. This device must be used in a normal condition only. Installation, service and operation of this device should only be undertaken by qualified trained personnel. The operator should study instructions and precautions carefully before starting to use the device listed here and throughout the manual. There are no user serviceable parts inside this device. The device should only be opened and serviced by qualified service personnel. Failure to heed this warning may result in injury to service personnel or damage to equipment, and void any and all warranties. If there is a service problem, please contact 3D Imaging & Simulations Corp. or authorized dealer. Do not spill liquids on the device, and never operate the device in a wet environment. Keep the device from radiators and heat sources. Use the device only with accessories supplied with this device. This device is intended to be grounded. Plug power cord into properly grounded electrical outlets. This cord is equipped with three-prong plugs to help ensure proper grounding. This device contains static sensitive components. Proper static handling procedures and equipment must be used when servicing this device. 5 User Manual FireCR Do not look inside of the device. If any of the following conditions occur, unplug the device from the electrical outlet and contact authorized service personnel. z The power cord or power adapter is damaged. z An object has fallen into the device. z The device has been exposed to water. z The device has been dropped or damaged. z The device does not operate correctly when the operating instructions are followed. Intended Use This device is a Computed Radiography System and intended for use in producing digital X-Ray images for general radiography purposes. It comprises of scanner, cassette with reusable imaging plate and workstation software. It scans X-Ray exposed image plate and produces X- Ray image in digital form. Then, digital image is transferred to worksta…

Text truncated - open the document above for the full version.

[ Block diagram ]

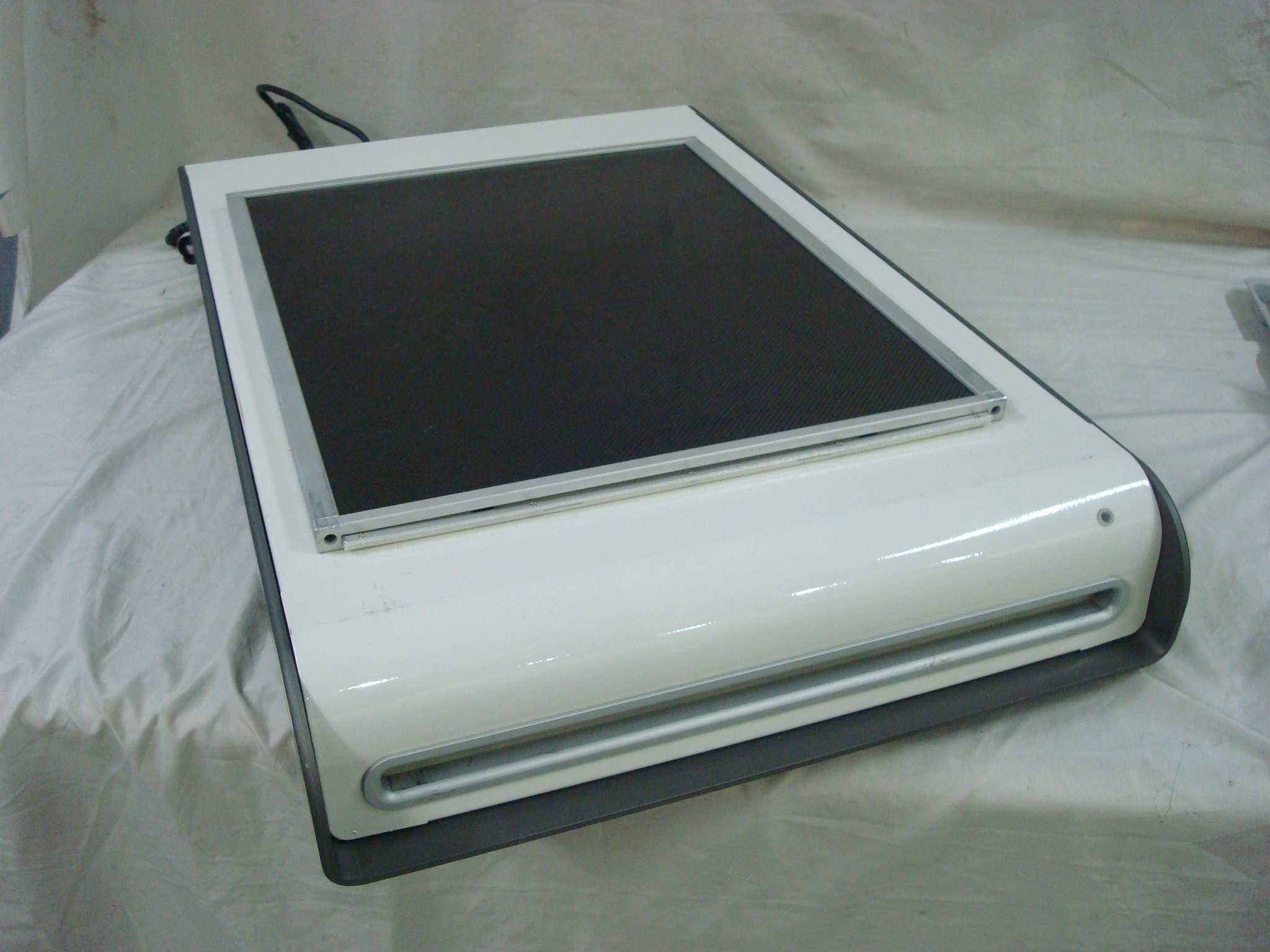

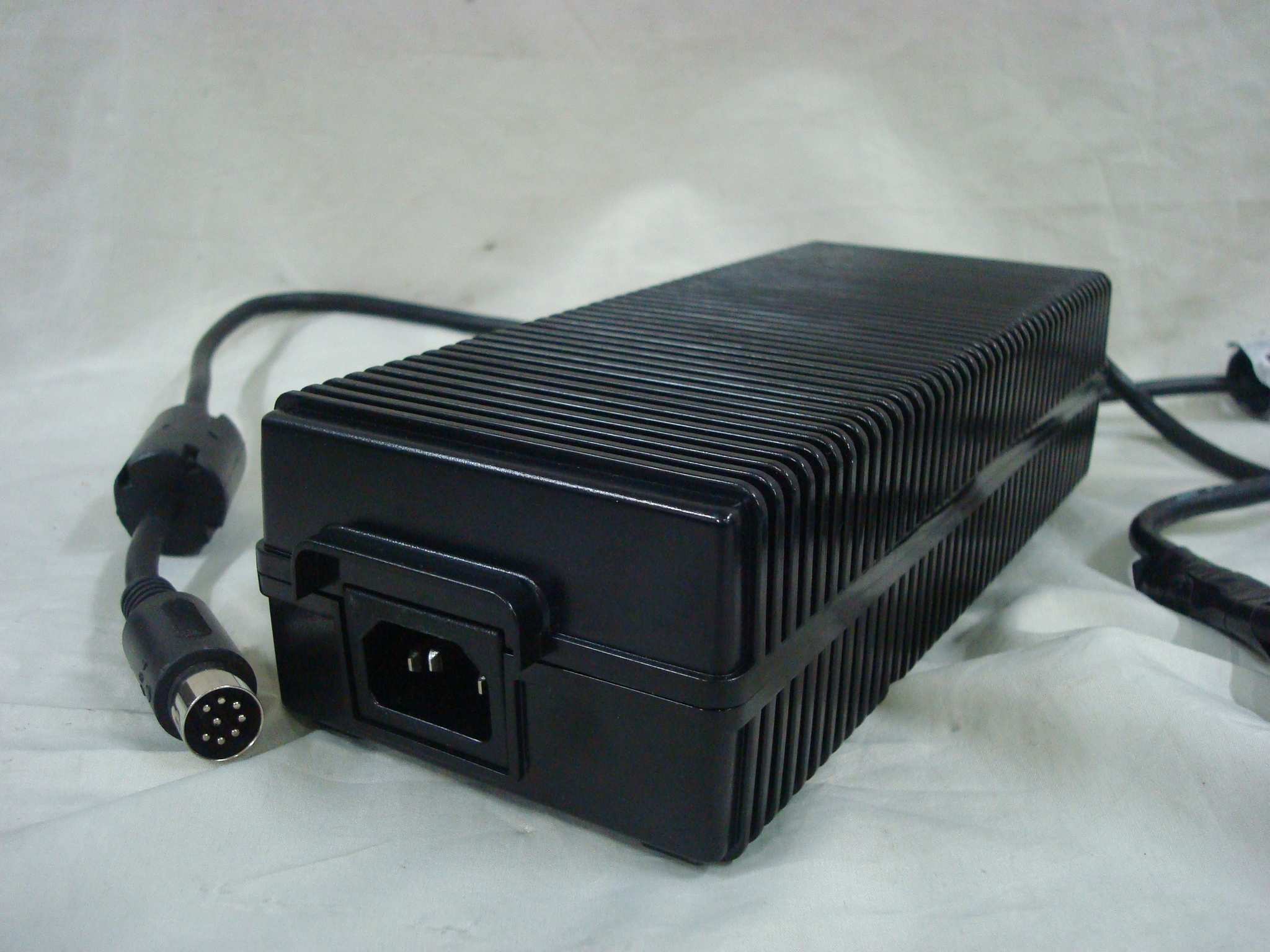

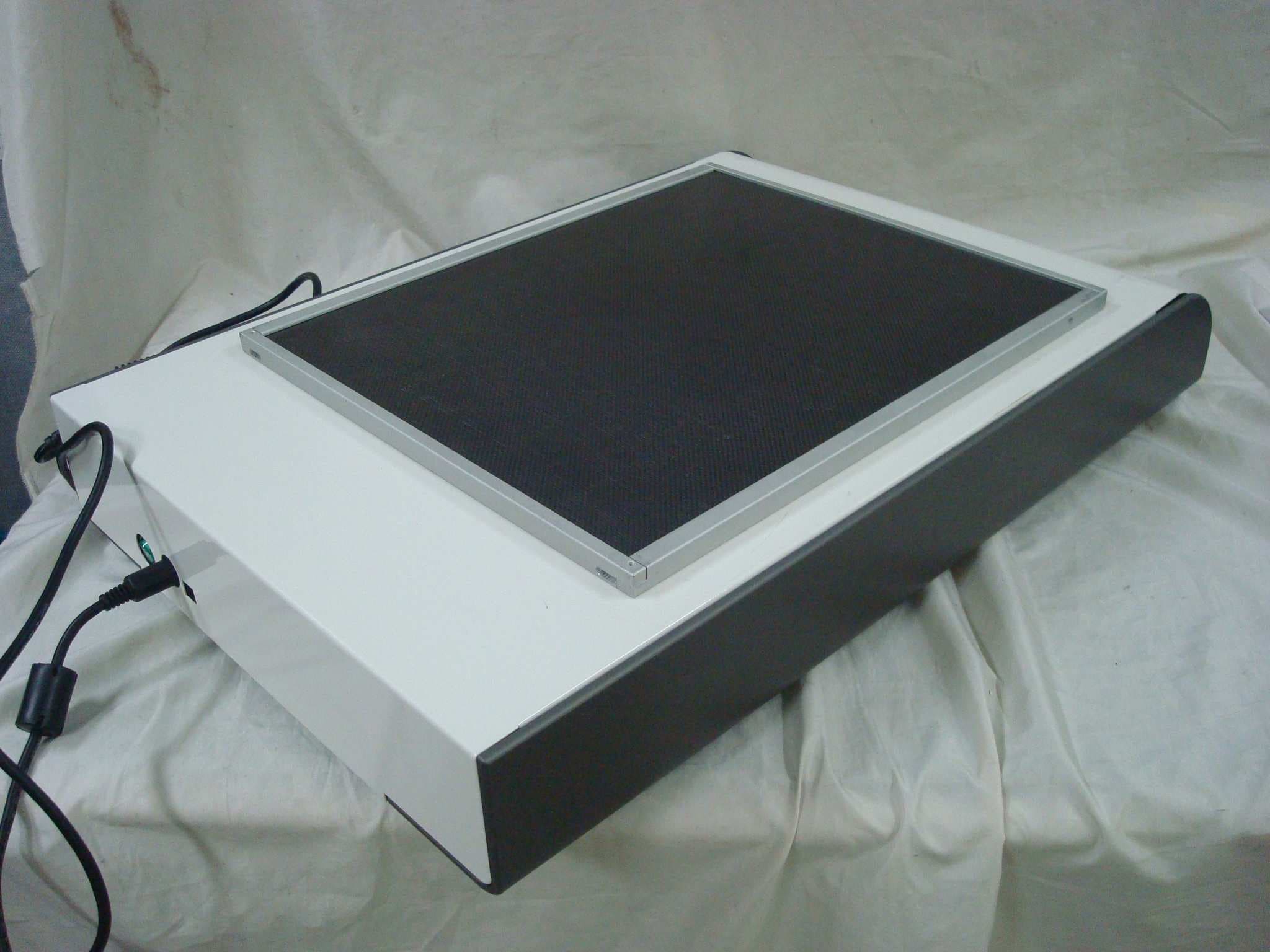

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 UL Korea, Ltd www.ulk.co.kr Project: 10CA05635 File: TC8389 Report 10CA05635-FCC Date: March 10, 2010 Model: FireCR (Basic) and VetCR External Photos For Computed Radiography Scanner 3D Imaging & Simulations Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Copyright    2005 Underwriters Laboratories Inc. 33rdFl. Gangnam finance Center, 737 Yeoksam-Dong, Kangnam-Gu, Seoul, 135-984, Korea Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 2 of 4 Front view Rear view Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 3 of 4 A.C. to D.C. adapter A.C. to D.C. adapter label Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 4 of 4 USB Cable

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 UL Korea, Ltd www.ulk.co.kr Project: 10CA05635 File: TC8389 Report 10CA05635-FCC Date: March 10, 2010 Model: FireCR (Basic) and VetCR Label and Label location For Computed Radiography Scanner 3D Imaging & Simulations Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Copyright    2005 Underwriters Laboratories Inc. 33rdFl. Gangnam finance Center, 737 Yeoksam-Dong, Kangnam-Gu, Seoul, 135-984, Korea Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 2 of 3 1. EQUIPMENT MARKING PLATE Label for FireCR Label for VetCR Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 3 of 3 Label Location for FireCR Label Location VetCR

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 UL Korea, Ltd www.ulk.co.kr Project: 10CA05635 File: TC8389 Report 10CA05635-FCC Date: March 10, 2010 Model: FireCR (Basic) and VetCR Internal Photos For Computed Radiography Scanner 3D Imaging & Simulations Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Copyright    2005 Underwriters Laboratories Inc. 33rdFl. Gangnam finance Center, 737 Yeoksam-Dong, Kangnam-Gu, Seoul, 135-984, Korea Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 2 of 5 Inside 1 Main board front Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 3 of 5 Main board rear Main board front Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 4 of 5 Sub board front Sub board rear Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 5 of 5 Power switch board front Power switch board rear

1. Block Diagram (1) Base Board: Base board is a controller of peripherals. It controls peripherals upon command of core board. (2) Peripheral: This is peripherals for image acquisition. It consists of “Eraser” which erases residual images in imaging plate, “Step Motor and Photo Interrupters” which moves stage, “Laser, Swing Mirror and DC Motor” which are required to radiate laser onto imaging plate, “Edge Switch and DC Motor” which assures proper insertion of the cassette, and “Indicator” which displays the status of the system. (3) Base Board Image Data Controller (Core Board): This parts controls peripherals for image acquisition. And it delivers amplified digitized signal to PC via USB. (4) Image Sensor (PMT): This Photomultiplier Tube receives the signal through scanning of imaging plate, and it sends signal to analog readout circuit. (5) Power Adapter: It supplies power to all modules of the system which are required for operation.

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 UL Korea, Ltd www.ulk.co.kr Project: 10CA05635 File: TC8389 Report 10CA05635-FCC Date: March 10, 2010 Model: FireCR (Basic) and VetCR FCC Certification Report For Computed Radiography Scanner 3D Imaging & Simulations Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Copyright    2005 Underwriters Laboratories Inc. 33rdFl. Gangnam finance Center, 737 Yeoksam-Dong, Kangnam-Gu, Seoul, 135-984, Korea Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 2 of 21 TEST REPORT DETAILS Test report No: 10CA05635-FCC Tests Performed By: UL Korea Ltd. 33 rd FL. Gangnam Finance Center, 737 Yeoksam-dong, Kangnam-ku, Seoul, 135-984, Korea Test site: ESTECH 97-1, Hoeok-Ri,Majang-Myun,Icheon-City, kyonggi-do, Korea Registration No: 100749 The test facility was deemed to have the environment and capabilities necessary to perform the tests included in the test package Applicant: 3D Imaging & Simulation Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Manufacturer: 3D Imaging & Simulation Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Factory: 3D Imaging & Simulation Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Applicant Contact: Jungkook, Kim Title: General Manager Phone: +82-42-931-2100 E-mail: [email protected] Product Type: Computed Radiography Scanner Trademark: Model Number: FireCR (Basic) and VetCR FCC ID: X68CRSCANNER Product standards FCC Part 15 Subpart B Class B Sample Serial Number: None (Proto type) Sample Receive Date: March 2, 2010 Testing Start Date: March 2, 2010 Date Testing Complete: March 10, 2010 Overall Results: PASS UL Korea Ltd. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical componens. UL Korea Ltd. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from UL Korea Ltd. issued reports. Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 3 of 21 TEST SUMMARY TEST RESULT Requirement – Test Reference standards Verdict A.C. Power line Conducted Emission Test Complied Radiated Emission Test 47CFR Part 15.107(a) / 47CFR Part 15.109(g) Complied The tests listed in the Summary of Testing section of this report have been performed and the results recorded by UL Korea, Ltd. in accordance with the procedures stated in each test requirement and specification. The applicant determined the list of tests performed were applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. The equipment under test has Met the technical requirements Not met the technical requirements Tested by Sung Hoon, Baek, Project Engineer Reviewed by Jeawoon, Choi, Senior Project Engineer Conformity Assessment Services - 3014ASEO Conformity Assessment Services – 3014ASEO UL Korea Ltd. UL Korea Ltd. March 10, 2010 March 11, 2010 Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 4 of 21 REPORT DIRECTORY TEST SUMMARY -----------------------------------------------------------------------------------------------------------------------------3 1. EQUIPMENT UNDER TEST (EUT) ---------------------------------------------------------------------------------------------------5 1.1 REPORT REVISION HISTORY ............................................................................................................................. 5 1.2 EQUIPMENT DESCRIPTION ................................................................................................................................ 5 1.3 DETAILS OF TEST EQUIPMENT (EUT) ............................................................................................................. 5 1.4 EQUIPMENT SPECIFICATION ............................................................................................................................ 5 1.5 TECHNICAL DESCRIPTIONS AND DOCUMENTS: ......................................................................................... 6 1.6 EQUIPMENT MARKING PLATE .......................................................................................................................... 6 1.7 EQUIPMENT USED DURING TEST ..................................................................................................................... 7 1.8 EUT INPUT/OUTPUT PORTS ................................................................................................................................ 8 1.9 EUT INTERNAL OPERATING FREQUENCIES ................................................................................................. 8 1.10 POWER INTERFACE .............................................................................................................................................. 8 2.0 TEST CONDITION --------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

UL Korea, Ltd A not-for-profit organization dedicated 33 rd FL, Gangnam Finance Center, 737 to public safety and committed to Yeoksam-dong, Gangnam-gu, Seoul quality service for over 100 years 135-984 Korea Tel: +82.2.2009.9000, Fax:+82.2.2009.9405 UL Korea, Ltd www.ulk.co.kr Project: 10CA05635 File: TC8389 Report 10CA05635-FCC Date: March 10, 2010 Model: FireCR (Basic) and VetCR Test setup Photo For Computed Radiography Scanner 3D Imaging & Simulations Corp. 49-3, Moonpyung-Dong, Daedeok-Gu, Daejeon, Korea Copyright    2005 Underwriters Laboratories Inc. 33rdFl. Gangnam finance Center, 737 Yeoksam-Dong, Kangnam-Gu, Seoul, 135-984, Korea Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 2 of 3 Figure 1. Conducted Emission Test Setup Project Number: 10CA05635 File Number TC8389 Test Report No: 10CA05635-FCC Model Number: FireCR Date of Issue: March 10, 2010 UL Korea Ltd. FCC Certificate Test for 3D Imaging & Simulation Corp. FCC ID: X68CRSCANNER 3 of 3 Figure 2, Photo of Radiated emission test setup
