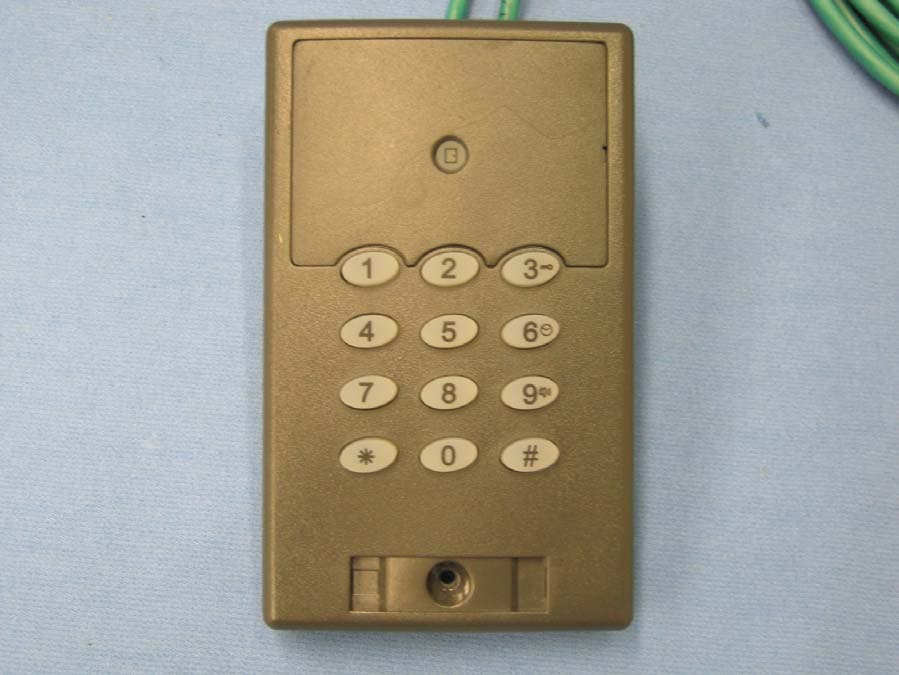

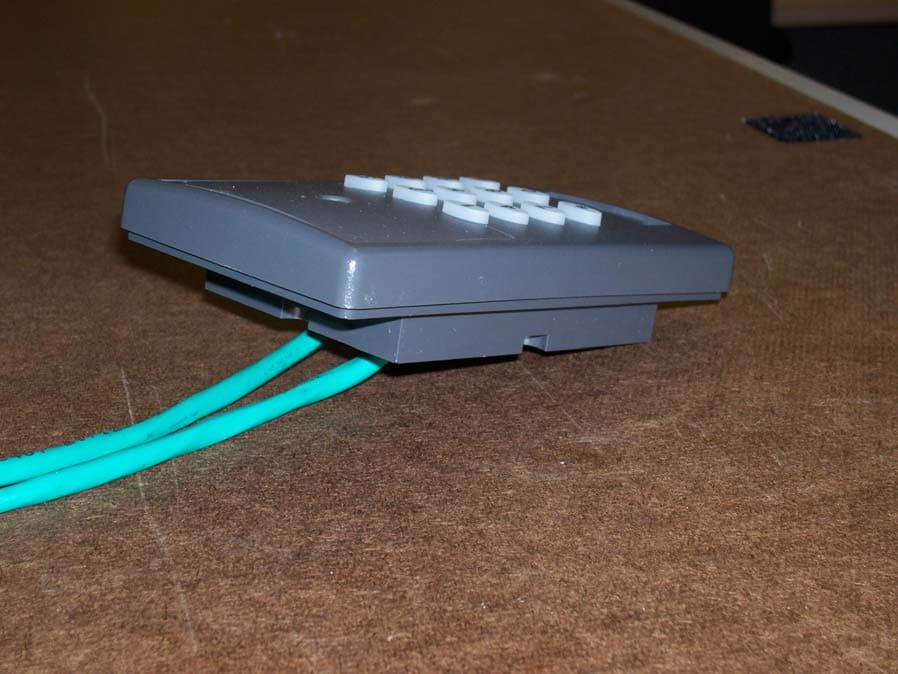

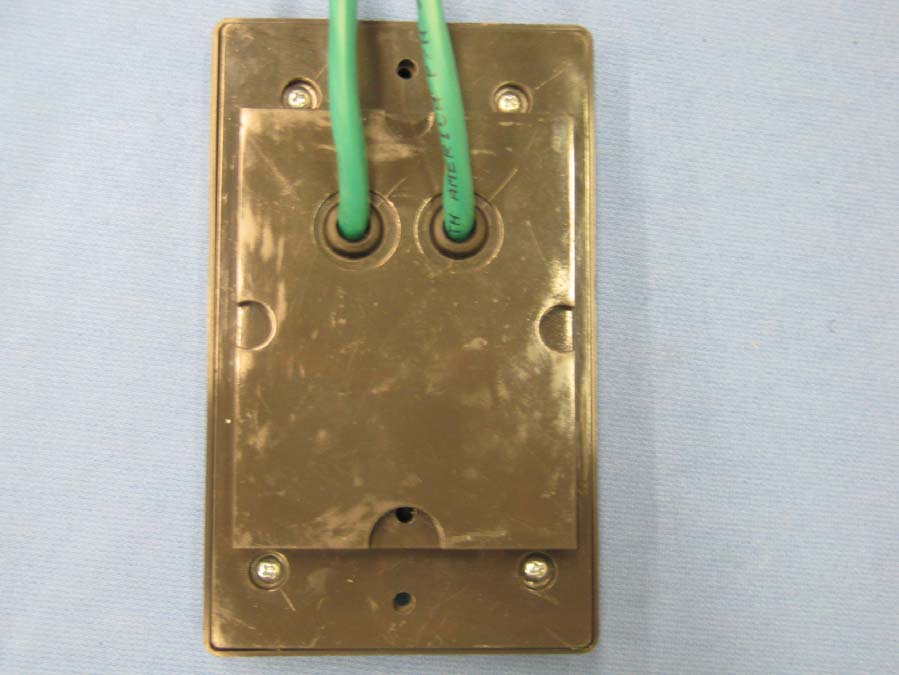

X78SP2MGProx II Switchplate Reader Keypad

22-0369v1.8 G-PROX / G-PROX II INSTALLATION REFERENCE CSG Security Corp / Sécurité CSG Corp Page 1 of 3 GUARDALL 5201 Explorer Drive, Mississauga, Ont., Canada. L4W-4H1 [email protected] +1 905.206.8434 | support@ guardall.com +1 905.206.8436 | Fax: +1 905.629.4970 www.guardall.com | +1 877.249.9993 These instructions provide a quick reference for installing the G-Prox II™ family of intelligent (jumper-free) proximity readers, and the G-Prox series I (HID™- compatible readers). These units are weather-resistant, and the G-Prox II™ readers are auto-programmable using special programming cards. These readers can be used with any type of door controller that supports standard Wiegand readers (with 12 V DC output). The arming station is supported by Monitor ISM/AFx systems. Cards : G-Prox II readers = G-Prox cards; G-Prox series I = HID comp. prox. cards. Switch-plate Reader 111-82x4 Mullion Reader 111-8289 Switch-plate Keypad 111- 82x0 (Arming) Mullion Reader Keypad 111-8267(Arming) Switch-plate Reader Keypad 111-82x1 (Weigand) 111-82x3 (Matrix) Mullion Reader Keypad 111-8266 (Wiegand) Poducts Mullion Part Numbers: 111-8266, 111-8267, 111-8289. White Grey Black GProx I 111-8220 111-8240 111-8310 GProx I 111-8221 111-8241 111-8311 GProx I 111-8223 111-8243 111-8313 GProx I 111-8224 111-8244 111-8314 GProx II 111-8270 111-8280 111-8290 GProx II 111-8271 111-8281 111-8291 GProx II 111-8273 111-8283 111-8293 GProx II 111-8274 111-8284 111-8294 System Cabling Reference Recommended reader cabling is 24 AWG, shielded. (max 150 m / 500 feet). For reliable operation at max. distance, reader cabling must be less than 27 pf per foot. Number of Conductors Needed: Typically 6 conductors. Will need one or two more wires for external buzzer control (if supported). Check the wiring tables to verify the number of conductors. Note: A G-Prox II™ reader with Matrix-style keypad requires a second cable with the same specifications (8 conductors needed). Max. length: up to 150 m / 500 feet. These can be used with a door controller that supports a Wiegand reader with matrix keypad. !!! Do's & Don’ts !!! Notice: Do all wiring with the door controller powered down, or ensure the +12V is never connected without the 0V/Gnd first. • Static can destroy electronic components! Always take proper precautions when handling or transporting devices. • Remove power before servicing readers or other electronic components. • Always conform to local fire and building regulations (if unsure, find out). Specifications • Environment: -35 to 66° C (-31 to 151° F), 5-95% relative humidity (non-condensing) at 25° C (77° F). Weather resistant. • Power: 12 V DC (or 13.8 V) regulated, @100 mA (typical); • Data Output: Standard Wiegand; Cable Routing • Be sure to distance all cables from sources of electromagnetic interference (motors, fluorescent lights, etc.). Grounding • Ground the reader cable shield only at the door controller earth ground. G-Prox Series I DIP Switches G-Prox series I readers have DIP switches accessible from the back. (Set switches only when powered down.) (9 = factory default) Switch 1 ON = High Volume 9 OFF = Low Volume Switch 2 ON = Buzzer (+) trigger OFF = Buzzer Gnd trigger 9 Switch 3 ON = Pull Up on Data Lines OFF = No Pull Up 9 Switch 4 ON = No Beep on key press OFF = Beep on key press 9 Switch 5 ON = No Beep on Card Read OFF = Beep on Card Read 9 Switch 6 ON = No Flash on Card Read OFF = Flash on Card Read 9 Switch 7 ON = Red if both LED lines on OFF = Green if both lines on 9 Switch 8 ON = Dual LED Mode OFF = Single LED Mode 9 G-Prox II Programming These intelligent (jumper-free) readers are auto-programmable using special cards. Supported features include: • Operation of the door state LED; • How a 'card read' will be indicated; • The type of circuit to be used with the reader buzzer (active high vs. Gnd.); • Whether cards must be encoded with a specific lock code. For details on the programming cards, refer to "G-Prox II Programming" (pg. 2), plus the on-line help or User's Guide for the G-Prox Desktop Programming Station. Defaults: LED: Bi-colour; Keypress beep: Yes; Lock Code: 1 (card default); Buzz: Ground trigger; Card Read: LED & Beep. Cabling P/Ns: FT4 FT6 Module Bus (shielded) Preferred (24 AWG): 120-3401 120-3405 ULC (22 AWG): 120-3408 120-3409 Note: Max. distance may be reduced with the ULC cable. Reader cable (24 AWG shielded): 6 Conductors: 120-3402 120-3406 10 Conductors: 120-3403 120-3407 Note: ULC requires 22 AWG shielded cable. Power (18 AWG): 120-3400 120-3404 I/O (quad): 120-3410 120-3411 22-0369v1.8 G-PROX / G-PROX II INSTALLATION REFERENCE CSG Security Corp / Sécurité CSG Corp Page 2 of 3 GUARDALL 5201 Explorer Drive, Mississauga, Ont., Canada. L4W-4H1 [email protected] +1 905.206.8434 | support@ guardall.com +1 905.206.8436 | Fax: +1 905.629.4970 www.guardall.com | +1 877.249.9993 Reader Mounting: Standard readers can be surface mounted, or flush mounted. Flush Mount : Use the rear cover only as a template to mark the cut-out (L- shaped notches). Surface Mount : Use the rear cover for mounting onto the wall. The reader mounts onto the rear cover using the two self-tapping screws provided. Do NOT over tighten mounting screws. 6.5 cm 8.5 cm 2 3 9/16 11/32 Note: When selecting a mounting height, consider physically-challenged persons as well. Reader Wiring: Refer to the tables below when connecting your specific reader: Standard Reader and Arming Station Wiring: Notice: Do all wiring with the door controller powered down, or ensure the +12V is never connected without the 0V/Gnd first. Signal (Connect to) G-Prox II Reader G-Prox II Arming Station G-Prox Series I Reader (no keypad or matrix) G-Prox Series I w/ Wieg . keypad (rdr or Arm. Stn.) Your Wire Colour (Reader Extension Cable) Power (+V) Red Red Red Red Signal Gnd / 0V Black Black Black Black, Brown Data 0 Green Green Green Green Data 1 White White White White Red LED Brown Yellow Brown Blue Green LED Orange Orange Orange Orange Bu…
