X7OEM101Remote control

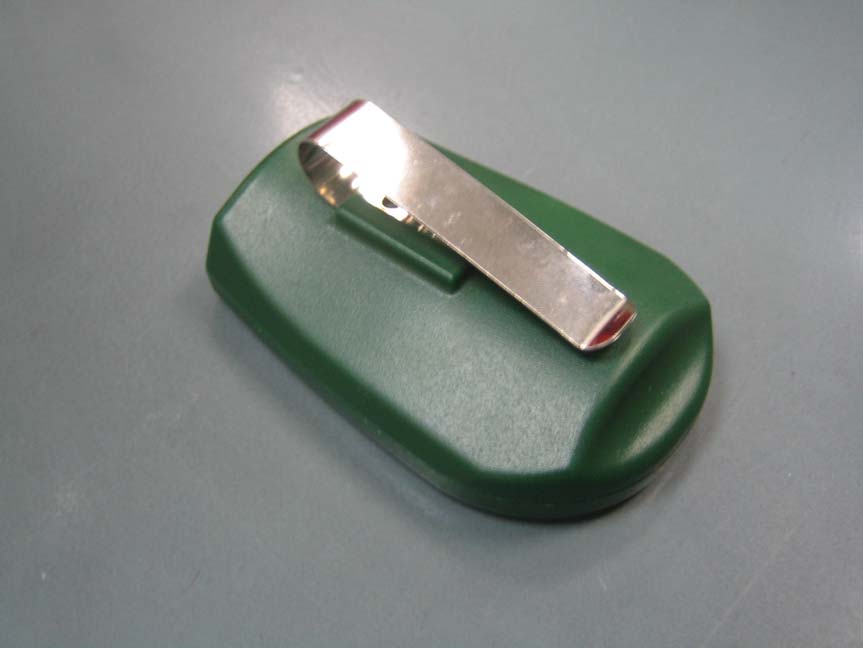

Remote Control Model : EM-101 / EM-103 / RE-100 / RE-101 1. INTRODUCTION The transmitter allows you to operate the receiver. It is a visor mount type transmitter to allow to access easily. 2. LEARN TRANSMITTER TO THE RECEIVER UNIT In order for the transmitter to communicate with the receiver properly, the transmitter must be programmed to the receiver. Follow the brief instructions below or refer to the detail instructions from the User’s Instructions to program the transmitter to the receiver. To program the transmitter to the receiver unit: 1. Connect the receiver unit to 24VDC. 2. Press and hold the ‘Learn’ button in the receiver. The ‘ON’ LED will begin to flash. 3. Press the button on the transmitter for 1 second and release. 4. If a connection has been made, the ‘ON’ LED on the receiver will stop flashing. 3. OPERATION Press the button for 1 second and release, this will activate the “learned” receiver. 4. BATTERY The remote transmitter operates on a 3-volt lithium battery that is installed at the factory. The battery does not need to be replaced if used under normal condition. Recommendation: Test your transmitter periodically to ensure that the battery is working. 5. WARRANTY If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase is required. 6. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. 7. CUSTOMER SERVICE If you would like to order Skylink’s products or have difficulty getting them to work, please : 1. visit our FAQ section at www.skylinkhome.com, or 2. email us at [email protected], or 3. call our toll free at 1-800-304-1187 from Monday to Friday, 9am to 5pm EST. Fax (800) 286-1320. SKYLINK TECHNOLOGIES INC., 17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3 Email: [email protected] Website: http://www.skylinkhome.com © 2010 Skylink Group

CPL CAPITAL PROSPECT LTD. MODEL: EM-101 LABEL DIAGRAM DATE : MAY 7, 2010 PAGE : 1 OF 1 PROPRIETARY INFORMATION SIZE = 35X20mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any inter- ference received, including interference that may cause undesired operation. FCC ID: X7OEM101 IC: 8860A-EM101 MANARAS-OPERA MADE IN CHINA MODEL:EM-101 CPL CAPITAL PROSPECT LTD. MODEL: EM-103 LABEL DIAGRAM DATE : MAY 7, 2010 PAGE : 1 OF 1 PROPRIETARY INFORMATION SIZE = 35X20mm This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any inter- ference received, including interference that may cause undesired operation. FCC ID: X7OEM101 IC: 8860A-EM101 MANARAS-OPERA MADE IN CHINA MODEL:EM-103

FCC Test Report E4064143901KYS1 Type / Model Name: EM-101,EM-103 Product Description: Remote control Applicant: 9141-0720 Quebec Inc. DBA MANARAS/OPERA FCC ID: X7OEM101 FCC ID:X7OEM101 File No. E4064143901KYS1, page 2 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 FCC -- T E S T R E P O R T Test Report No. : E4064143901KYS1 May 14, 2010 ______________________________________________________________________________________________ Date of issue This report supercedes the pervious report, E406414390KY, dated May 04, 2010. Type / Model Name : EM-101, EM-103 Product Description : Remote control Applicant : 9141-0720 Quebec Inc. DBA MANARAS/OPERA Address : 136 Oneida Drive, POINTE-CLAIRE, Quebec, H9R 1A8 Canada Test Result according to the standards listed in clause 1 test standards: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID:X7OEM101 File No. E4064143901KYS1, page 3 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 Contents 1 TEST STANDARDS 4 2 SUMMARY 5 3 EQUIPMENT UNDER TEST 6 3.1 PHOTO DOCUMENTATION OF THE EUT 6 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 5 TEST CONDITIONS AND RESULTS 9 5.1 AVERAGE FACTOR 9 5.2 RADIATED EMISSION 12 5.3 BANDWIDTH 14 5.4 PROVISION OF MOMENTARY OPERATION 15 6 USED TEST EQUIPMENT AND ACCESSORIES 16 FCC ID:X7OEM101 File No. E4064143901KYS1, page 4 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 1 TEST STANDARDS The tests were performed according to following standards: FCC Part 15, July 10, 2008 Federal Communications Commission, Part 15 – Radio Frequency Device ANSI C63.4:2003 Method of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ID:X7OEM101 File No. E4064143901KYS1, page 5 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 2 SUMMARY GENERAL REMARKS: Model: EM-101 is identical to EM-103 except no. of keys. The model: EM-101and EM-103 have one key and three keys respectively. The EM-103 is selected as representative model for testing. FINAL ASSESSMENT: The equipment under test fulfils the technical requirement cited in section 15.231 of FCC Part 15 Date of receipt of test sample : March 19, 2010 Testing commenced on : March 19, 2010 Testing concluded on : April 05, 2010 Reviewed by: Prepared by: Wilson Loke Senior Manager Kidd Yang Engineer FCC ID:X7OEM101 File No. E4064143901KYS1, page 6 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT EM-103 Front View Back View FCC ID:X7OEM101 File No. E4064143901KYS1, page 7 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 3.2 Power supply system utilised Power supply voltage: 3VDC (CR2032 lithium battery) 3.3 Short description of the Equipment under Test (EuT) The Equipment under test (EUT) is a 390MHz transmitter. The main function of the EUT is acted as a remote control to operate difference receiver modules. When the buttons are pressed, the transmitter will transmit the signal by Pulsed Code Modulation to the corresponding receiver module to control the difference function in the receiver. The EUT is powered by one 3VDC lithium battery. Number of tested samples: One Serial number: Not Labelled Dimensions: L: 8.5cm W: 5.5cm H: 3.0cm EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Operation mode 1: Transimitting mode - Operation mode 2: N/A - Operation mode 3: N/A EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - None Model : - Model : - Model : - Model : - Model : - Model : FCC ID:X7OEM101 File No. E4064143901KYS1, page 8 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 4 TEST ENVIRONMENT 4.1 Address of the test laboratory emitel (Shenzhen) Limited Building 2, 171 Meihua Road, Futian District, Shenzhen, 518049 China FCC Registration No.: 746887 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to ISO 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. FCC ID:X7OEM101 File No. E4064143901KYS1, page 9 of 16 emitel (Shenzhen) Limited, Building 2, 171 Meihua Road, Futian District, Shenzhen, P.R.China 518049 F10_25_Rev5_0 Freigabe: 15.03.2006 5 TEST CONDITIONS AND RESULTS 5.1 Average…
