X7OKEYLESSO42Wireless keypad

EYLESSO42 Congratulations on your purchase of the Wireless keypad Model KEYLESSO42. The keypad works with the Manaras® receivers. In this package, you will find a wireless keypad with 1.5V AAA battery and screws. The keypad transmitter can operate up to 4 receiver units, that also means one keypad transmitter can operate up to 4 garage door openers. Same PIN will be used for all doors. The factory default password is [0 0 0 0]. To operate door 1, you will enter [0 0 0 0][#][1] To operate door 2, you will enter [0 0 0 0][#][2] To operate door 3, you will enter [0 0 0 0][#][3] To operate door 4, you will enter [0 0 0 0][#][4] To program the keypad transmitter into the receiver, you must decide which door you need to operate. If you only have one receiver, we suggest you to use door 1. i.e. [0 0 0 0][#][1]. Follow the instructions below to program the keypad transmitter. Follow the instructions below to change the PIN. To change your PIN: 1. Enter the current PIN, (factory default PIN 0 0 0 0), press * . 2. Enter new 4 to 6 digit PIN, press * . 3. Enter new PIN again, press * . For example, if you are changing the PIN number from 0000 to 123456, enter the following sequence, 0000, *, 123456, * , 123456, * . If confirmed, the balcklit LED flashes and the unit emits a long beep. One 1.5 volt AAA type battery (included). It is time to change the battery when the backlight no longer appears. The Wireless kepad is approved by the FCC and it complies with FCC MODEL K User Manual Brand name:Manaras FCC ID:X7OKEYLESSO42 IC:8860A-KEYLESSO42 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible of compliance could void the user’s authority to operate the equipment. WARRANTY If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase and a Return Authorization Number are required. CUSTOMER SERVICE Manaras/Opera 136 Oneida Drive, POINTE-CLAIRE, Quebec, Canada H9R 1A8 Tel:1-514-426-1332 Fax: 1-514-426-4330 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

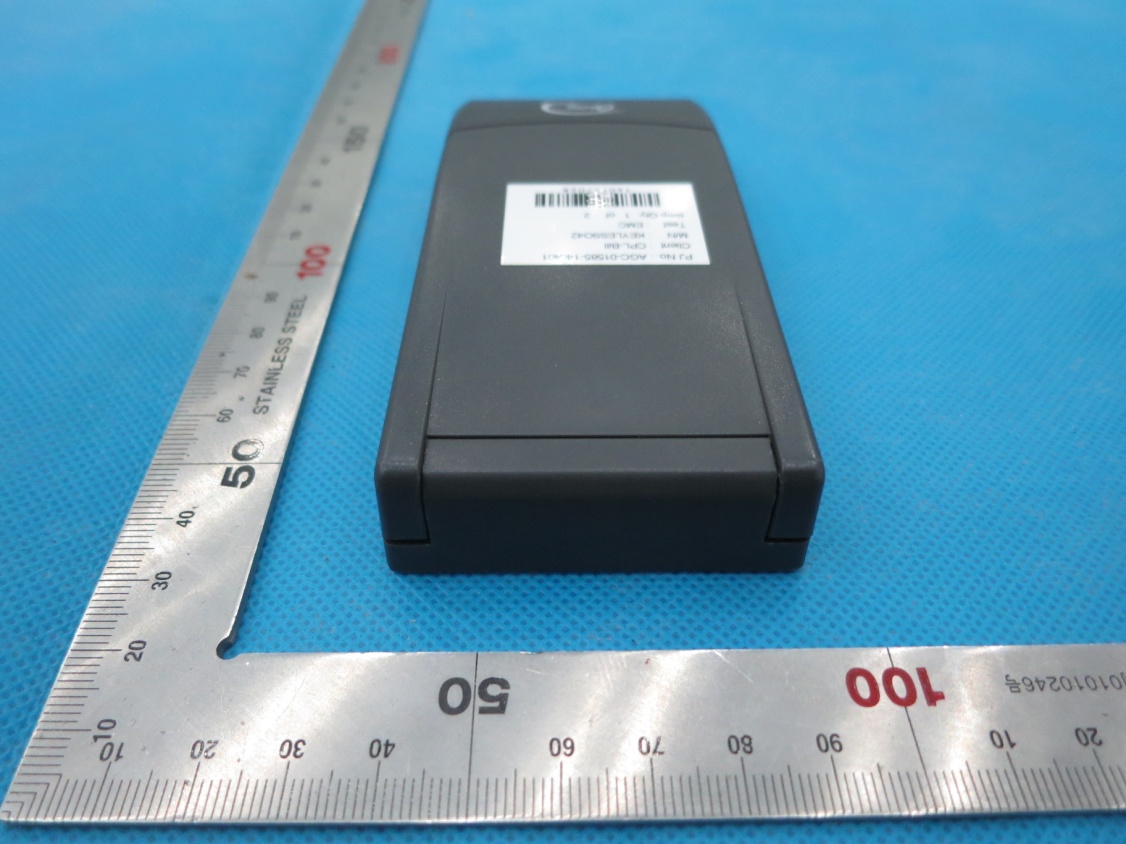

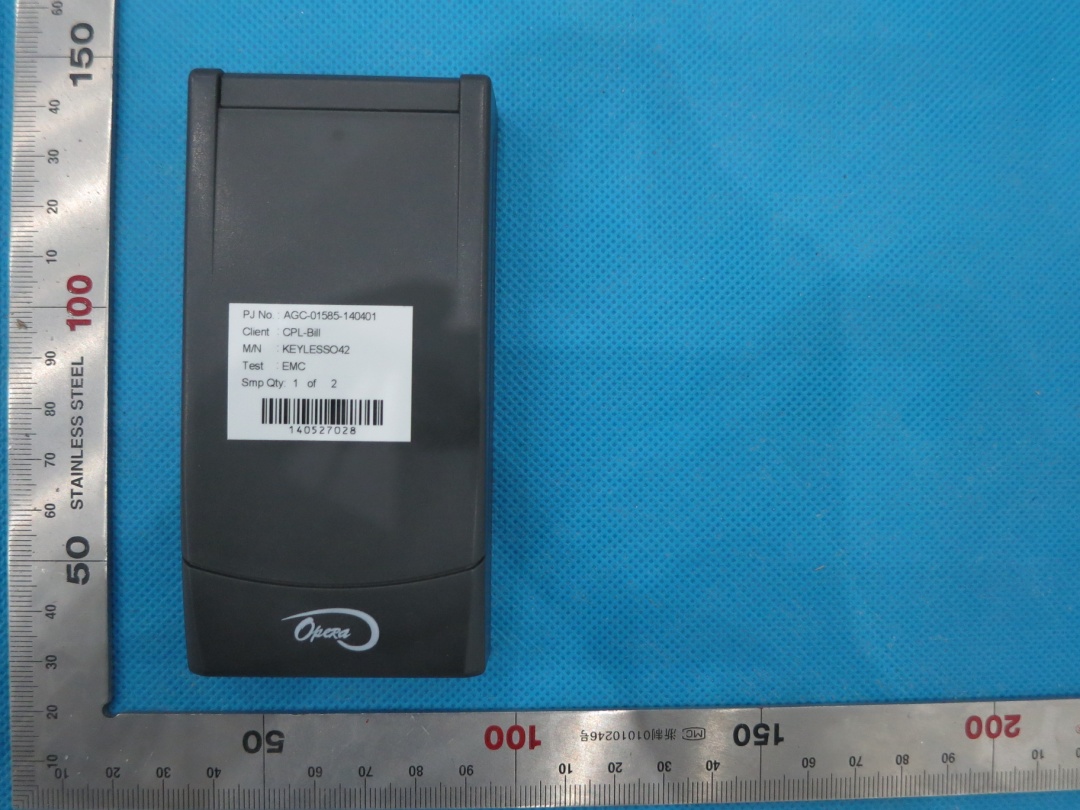

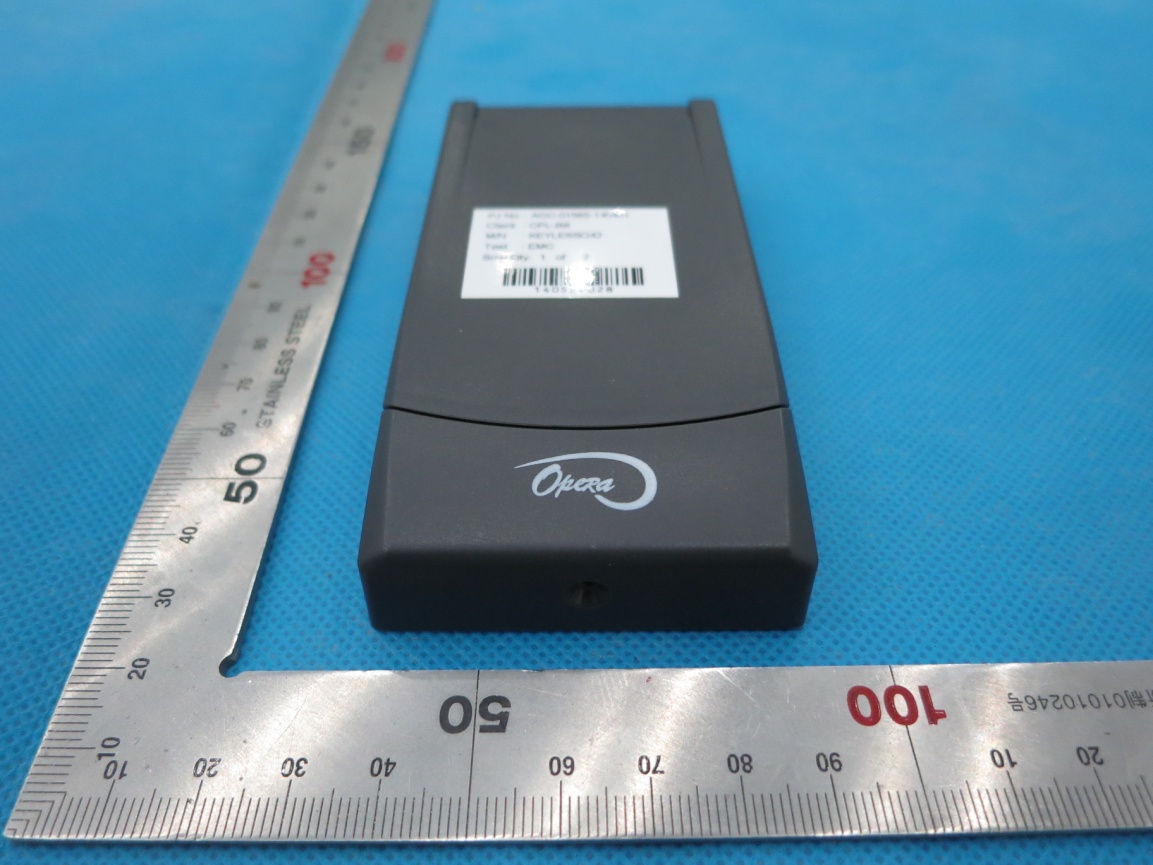

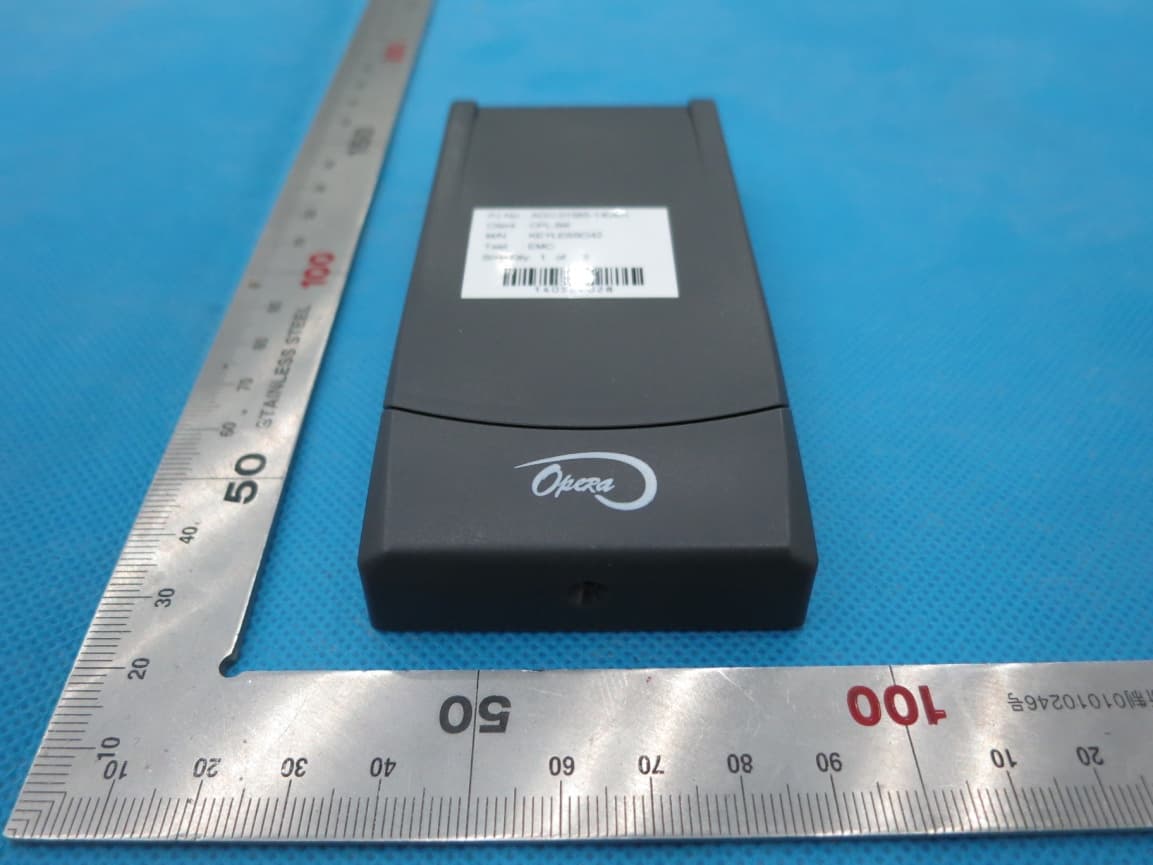

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID/IC Label Location Wireless keypad Model name:KEYLESSO42 Brand name: Manaras FCC ID: X7OKEYLESSO42 IC:8860A-KEYLESSO42 Opera

Internal Photos INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 Antenna INTERNAL VIEW OF EUT-6

FCC ID APPLI PROD U BRAND MODE CLIEN DATE O STAND REPOR A CAUTI This re test lab D CATION P U UCT DESIG D NAME EL NAME T OF ISSUE DARD(S) RT VERSIO Attestat ION: eport shall boratory an FC Rep URPOSE GNATION ON tion of G not be repr nd shall no C Te port No.: : X7OK : Origi : Wire : Mana : KEYL : 9l4I‐ : Jun.2 : FCC P : V1.0 Global C roduced ex t be quoted est R AGC0158 KEYLESSO4 inal Equipm eless keypa aras/Opera LESSO42 ‐0120 Queb 22, 2014 Part 15 Rul Complia xcept in full d out of con Rep 85140401 42 ment d a bec Inc. DBA les ance (Sh l without th ntext. Report port 1FE03 A MANARA henzhen he written No.: AGC015 t AS/OPERA n) Co., L permission 585140401F Page 1 o Ltd n of the FE03 of 31 Report No.: AGC01585140401FE03 Page 2 of 31 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Jun.22, 2014Valid Original Report Report No.: AGC01585140401FE03 Page 3 of 31 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................... 5 2.3. TEST METHODOLOGY ................................................................................................................ 5 2.4. SPECIAL ACCESSORIES ............................................................................................................ 5 2.5. EQUIPMENT MODIFICATIONS ................................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 6 5.1. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 6 5.2. SUMMARY OF TEST RESULTS .................................................................................................. 6 6. TEST FACILITY .................................................................................................................... 7 7. ANTENNA REQUIREMENT ................................................................................................. 8 8. PROVISION FOR MOMENTARY OPERATION ................................................................... 9 8.1 MEASUREMENT PROCEDURE ................................................................................................... 9 8.2 TEST SETUP ................................................................................................................................. 9 8.3 TEST RESULT ............................................................................................................................. 10 9. AVERAGE FACTOR ........................................................................................................... 11 9.1 MEASUREMENT PROCEDURE ................................................................................................. 11 9.2 TEST SETUP ............................................................................................................................... 11 9.3 TEST RESULT ............................................................................................................................. 12 10. RADIATED EMISSION ..................................................................................................... 15 10.1. MEASUREMENT PROCEDURE .............................................................................................. 15 10.2. TEST SETUP ............................................................................................................................ 17 10.3. TEST RESULT .......................................................................................................................... 18 11. BANDWIDTH .................................................................................................................... 22 11.1. MEASUREMENT PROCEDURE .............................................................................................. 22 11.2. TEST SETUP ............................................................................................................................ 22 11.3. TEST RESULT .......................................................................................................................... 23 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 24 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 25 1 A A M A P B T D D C R W T e t h th . VERIFIC Applicant Address Manufacture Address Product Des Brand Name Test Model Date of test Deviation Condition of Report Temp We hereby ce The above eq valuation, te he procedur his report is CATION OF er signation e f Test Samp plate ertify that: quipment wa est procedur es given in A in complian F CONFOR 9l4I-0 136 O Capita 1303, Wirele Mana KEYL Jun.10 None ple Norm AGCR as tested by res, and equ ANSI C63.4 ce with radi a Prepar Chec k Authori z RMITY 0120 Quebec Oneida Drive al Prospect , B1k B, Ver ess keypad aras/Opera LESSO42 0~ Jun.22,2 al RT-US-BR/R y Attestation uipment con (2003) and ated emissio red By ked By zed By c Inc. DBA M e, POINTE-C Ltd. ristrong Ind C 2014 RF (2013-03 of Global C figurations s the energy on limits of F Freddie Kidd Y Solger Z MANARAS/O CLAIRE, Qu Center, 36 A 3-01) Compliance ( shown in thi emitted by t FCC Rules P Duan an…
