X8Q-MMX-362322High Performance Broadband Wireless System

Copyright © 2004-2011 by InfiNet Wireless 1 Revision date: 6 February 2012 OS Version: v1.83 InfiNet Wireless R5000 Technical User Manual Copyright © 2004-2011 by InfiNet Wireless 2 Legal Rights © Copyright 2011 InfiNet Wireless. All rights reserved. The information contained in this document is originated by, proprietary, confidential and owned by InfiNet Wireless. No part of this document should be disclosed, reproduced or distributed without the express written permission of InfiNet Wireless Ltd. InfiNet Wireless Ltd. reserves the right to change the information contained in this document without prior notice. No part of this document may be considered as a part of any contract or warranty. Statement of Conditions The information contained in this manual is subject to change without notice. InfiNet Wireless Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual or equipment supplied with it. Disclaimer The software is sold on an "AS IS" basis. InfiNet Wireless, its affiliates or its licensors make no warranties, whatsoever, whether express or implied, with respect to the software and the accompanying documentation. Infinet Wireless specifically disclaims all implied warranties of merchantability and fitness for a particular purpose and non-infringement with respect to the software. Units of product (including all the software) delivered to purchaser hereunder are not fault_ tolerant and are not designed, manufactured or intended for use or resale in applications where the failure, malfunction or inaccuracy of products carries a risk of death or bodily injury or severe physical or environmental damage (“high risk activities”). High risk activities may include, but are not limited to, use as part of on-line control systems in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, life support machines, weapons systems or other applications representing a similar degree of potential hazard. Infinet wireless specifically disclaims any express or implied warranty of fitness for high risk activities. InfiNet Wireless hereby declares that R5000-Om, R5000-Mm, R5000-Sm and R5000-Lm are in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC. The declaration of conformity may be consulted at http://www.infinetwireless.com/products-technologies/type-approval-certificates/DoC_RTTE.pdf. Indication of the countries InfiNet Wireless equipment has no geographical limitations for selling and can be supplied to any country of the world. Limitation of Liability Infinet Wireless shall not be liable to the purchaser or to any third party, for any loss of profits, loss of use, interruption of business or for any indirect, special, incidental, punitive or consequential damages of any kind, whether arising under breach of contract, tort (including negligence), strict liability or otherwise and whether based on this agreement or otherwise, even if advised of the possibility of such damages. To the extent permitted by applicable law, in no event shall the liability for damages hereunder of Infinet Wireless or its employees or agents exceed the purchase price paid for the product by purchaser, nor shall the aggregate liability for damages to all parties regarding any product exceed the purchase price paid for that product by that party (except in the case of a breach of a party’s confidentiality obligations). International Regulatory Information This equipment has been tested and found to comply with the limits for a Class B digital device Copyright © 2004-2011 by InfiNet Wireless 3 Hereby, InfiNet Wireless declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Important statements Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated outdoor with a minimum distance of 2 meters between the radiator and the human body. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. R5000-Mmx/36.300.2x200.2x22 and R5000-Smc/36.300.2x200.2x22 are designed to operate in point-to- point only. R5000-Mmxb/36.300.2x200.2x14 is designed to operate in point-to-multipoint. The above mentioned units can only be used with integrated antennas supplied as a part of the unit. InfiNet Wireless R5000 Technical User Manual Copyright © 2004-2011 by InfiNet Wireless i Table of contents I. GETTING STARTED .......................................................................................................... 4 1. Scope of document ............................................................................................................. 4 Getting started ................................................................................................................ 4 Hardware description ....................................................................................................... 4 Installation procedure .....................................…

Text truncated - open the document above for the full version.

ж簀п笀п 簀崀崀㄀⸀⸀簀㄀崀㬀崀簀⨀㨀Ⰰц✀簀笀㄀Ⰰ ⨀⸀a/c㨀㄀⸀笀␀Ё т尀✀ a/c Р в ь簀е㄀ a/cвБ㬀в 紀紀е 㠀гов㨀a/c ап㘀 тй一崀геa/cеэ⨀ Ассезэ 㘀о㨀препу ЁеБгшагу 㜀Ⰰ(ᄀ) 尀(ᄀ) a/cп嬀簀簀чa/cе簀 йа崀та 簀ⴀa/cп簀簀е㘀 (ᄀ)(ᄀ)(ᄀ) 崀х一㄀ег сБа п簀з 㔀簀гее簀Ⰰ a/cа 簀 a/cе笀㄀а у嬀т㄀㄀㜀 йа簀簀а РЁ㨀 €Ф崀尀Р崀оЁштa/cАa/c开簀ту вБошг㔀т гов тн嬀 мооБ崀ⴀ к㔀 ⴀ簀a/c崀пх一㌀㘀⸀㌀ ⸀(ᄀ)х(ᄀ) 㤀⸀(ᄀ)х(ᄀ)(ᄀ) гсс 崀п х㠀оⴀммхⴀз㘀(ᄀ)з(ᄀ)(ᄀ) ㄀о 尀гa/cБогп a/c簀 ㄀㤀a/cау €опсегп㨀 ㄀Бa/cз 崀е㄀㄀ег 㔀егуе㔀 а㔀 ап о⌀簀с簀а簀 гечшеэ㄀ 笀ог соп笀崀㘀еп㄀簀аa/ca/c㄀у цп㘀ег зес簀a/cопз о⸀㐀㔀㜀 ап㘀 ⸀㐀㔀㤀 о笀 €Ё☀ 㐀㜀⸀ 尀Аa/cе Бауе гечшез㄀е㘀㄀Ба㄀㄀Бе a/cп㄀егпа簀 рБо㄀оз гечшa/cге㘀 то Бе зцБп簀㄀㄀е㘀 ш簀㄀Б a/c㄀✀㨀簀з арр簀a/cса㄀a/cоп Бе ш簀тББе崀㘀 嬀гогп ршБ簀簀с геу簀ец㨀 嬀ог а регa/cо㘀 о笀 ㄀㠀 㘀ауз а嬀a/cег 㤀гап㄀ 簀з a/cззце ⸀ ㄀Бе 㘀осцгпеп㄀ соп㄀аa/cпз ㄀Бе a/cп笀огпа㄀簀оп аБоц笀 笀Бе рго㘀шс㄀Ⰰ тлБa/cсБ ше сопзa/c㘀ег 簀о Бе ргоргa/cе㄀агуⰀ соп笀崀㘀еп㄀a/cаa/cⰀ ап㘀 а сцз㄀оп 㘀ез簀㌀п ап㘀 о簀Бегшa/cзеⰀ шоц㄀㘀 по㄀ ге簀еазе ㄀о ㄀Бе 㤀епегаa/c ршБ簀a/cс⸀ 㔀簀псе ㄀Бa/cз ез簀㌀п a/cз а баэ簀з 笀гоп ш紀тa/cсБ 笀ц㄀цге ㄀есБпо簀о㌀a/cса簀 рго㘀шс㄀з ш簀a/c簀 еуо崀уеⰀ ше 簀ее簀 ㄀Ба㄀ ㄀Б崀з a/cп嬀огпа㄀a/cоп шоц簀㘀 бе о笀 Бепе笀簀т ㄀о 簀a/cз сопре㄀簀㄀огзⰀ ап㘀 ㄀Ба㄀ 簀Бе 㘀a/cзс簀оэцге о⌀ 簀Бе a/cпa/cоггпа㄀a/cоп a/cп ㄀嬀езе 㘀осцпеп㄀з шоц㄀㘀 㤀簀ме ошг согпре笀a/c㄀ог㔀 ап цп笀а簀г а㘀мап簀а㤀е a/cп ㄀Бе паг嬀㰀е㄀⸀ Р崀еаэе соп㄀ас簀 пе 簀簀 ㄀紀теге a/cз апу a/cпa/cогпа㄀a/cоп уош пау пее㘀⸀ 㔀a/cпсеге簀уⰀ Ап㘀геу ⠀оупом сто

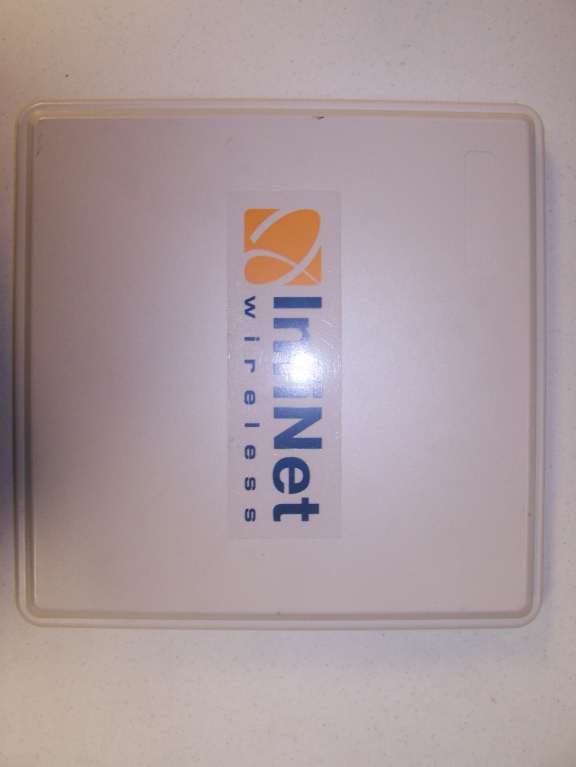

Photograph 1. 22 dBi Panel Front Photograph 2. 22 dBi Panel Rear

FCC ID X8Q‐MMX‐362322 Label Location Label

 MA-WA36-DP21IF 3           ! " #$ %   Frequency range 3.3 - 3.8 GHz GAIN : H-Port V-Port 22 dBi 22 dBi VSWR, max. 1.7 : 1 Polarization Linear, Vertical & Horizontal 3 dB Beam-Width, H-Plane, typ. 12 3 dB Beam-Width, E-Plane, typ. 12 Side Lobes, min. ETSI TS3 Cross Polarization, min. ETSI TS3 Front to Back Ratio, min. ETSI TS3 Port to Port Isolation,typ. -35 dB Input power, max 10 Watt Input Impedance 50 Ohm Lightning Protection DC Grounded    Dimensions (HxWxD) 370 x 370 x 40mm Connector 2 x SMA Female Right Angle Weight 2.1 Kg Mounting Studs Provision for Infinet Radio Radome UV Protected Polycarbonate Back Plane Aluminum protected through chemical passivation.      Operating Temperature Range - 55C to + 65C Vibration According to IEC 60721-3-4 Wind Load 200 Km/h (Survival) Flammability UL94 Water Proofing IP-67 Humidity ETS 300 019-1-4,EN 302 085 (Annex A.1.1) Salt Fog According to IEC 68-2-11 Service Life >10 years Specifications subject to change without notice

RF Exposure Requirements RF Exposure Requirements: §90.1335, §1.1307(b), 2.1091, 2.1093: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1307: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 3650–3675 MHz; highest conducted power = 16.88 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 22 dBi. Equation from page 18 of OET 65, Edition 97-01 EUT with 22dBi Antenna S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (48.75 mW) G = Numeric Antenna Gain (158.49) R = √((48.75 * 158.49)/(4**1))= 24.803 cm

Electromagnetic Compatibility Requirements RF Exposure Requirements RF Exposure Requirements: §90.1335, §1.1307(b), 2.1091, 2.1093: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1307: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 3650–3675 MHz; highest conducted power = 16.88 dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximumantenna gain = 22 dBi # of antenna elements = 2 Antenna array gain = 22+10log(2) = 25.01 dBi Equation from page 18 of OET 65, Edition 97-01 EUT with 22dBi Antenna S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (48.75 mW) G = Antenna Gain (316.98) R = Separation Distance between Antenna and User (cm) R = √((48.75 * 316.98)/(4**1))= 35.08 cm

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 3162 BELICK STREET ! SANTA CLARA, CA 95054 ! PHONE (408) 748-3585 ! FAX (510) 489-6372 13301 MCCALLEN PASS ! AUSTIN, TX 78753 ! PHONE (512) 287-2500 ! FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory July 6, 2012 Infinet Malta Ltd. 222 Merchants St. Valletta, Malta VLT1170 Dear Andrey Koynov, Enclosed is the EMC test report for compliance testing of the Infinet Malta Ltd., R5000- Mmx/36.300.2x200.2x22, tested to the requirements of Title 47 of the Code of Federal Regulations (CFR), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and Part 90 Subpart Z for Land Mobile Radio Services, RSS-197 Issue 1, February 2010 for Wireless Broadband Access Equipment Operating in the Band 3650 – 3675 MHz. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Infinet Malta Ltd.\EMC33284C-FCC90Z Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. This letter of transmittal is not a part of the attached report MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 3162 BELICK STREET ! SANTA CLARA, CA 95054 ! PHONE (408) 748-3585 ! FAX (510) 489-6372 13301 MCCALLEN PASS ! AUSTIN, TX 78753 ! PHONE (512) 287-2500 ! FAX (512) 287-2513 DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Infinet Malta Ltd. Model R5000-Mmx/36.300.2x200.2x22 Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & Title 47 of the CFR, Part 90, Subpart Z for Private Land Mobile Radio Services and RSS-197, Issue 1, February 2010 MET Report: EMC33284C-FCC90Z Rev. 2 July 6, 2012 Prepared For: Infinet Malta Ltd. 222 Merchants St. Valletta, Malta VLT1170 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Infinet Malta Ltd. Cover Page R5000-Mmx/36.300.2x200.2x22 CFR Title 47 Part 90 Subpart Z, RSS-197& Part 15 Subpart B, ICES-003 MET Report: EMC33284C-FCC90Z Rev. 2 © 2012, MET Laboratories, Inc. Page ii of viii DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Infinet Malta Ltd. Model R5000-Mmx/36.300.2x200.2x22 Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & Title 47 of the CFR, Part 90, Subpart Z for Private Land Mobile Radio Services and RSS-197, Issue 1, February 2010 MET Report: EMC33284C-FCC90Z Rev. 2 Jeff Pratt Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 90, Subpart Z and Part 15, Subpart B of the FCC Rules and Industry Canada standards ICES- 003, Issue 4 February 2004, RSS-197, Issue 1, Feb. 2010 under normal use and maintenance. Shawn McMillen, Wireless Lab Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Infinet Malta Ltd. Report Status R5000-Mmx/36.300.2x200.2x22 CFR Title 47 Part 90 Subpart Z, RSS-197 & Part 15 Subpart B, ICES-003 MET Report: EMC33284C-FCC90Z Rev. 2 © 2012, MET Laboratories, Inc. Page iii of viii DOC-EMC700 7/9/04 Report Status Sheet Revision Report Date Reason for Revision  February 22, 2012 Initial Issue. 1 March 30, 2012 Revised to reflect additional reference. 2 July 6, 2012 Revised to reflect engineer corrections. Electromagnetic Compatibility Infinet Malta Ltd. Table of Contents R5000-Mmx/36.300.2x200.2x22 CFR Title 47 Part 90 Subpart Z, RSS-197 & Part 15 Subpart B, ICES-003 MET Report: EMC33284C-FCC90Z Rev. 2 © 2012, MET Laboratories, Inc. Page iv of viii DOC-EMC700 7/9/04 Table of Contents 1. Executive Summary .................................................................................................................................................... 1 1.1. Testing Summary ................................................................................................................................................... 2 2. Equipment Configuration........................................................................................................................................... 3 2.1. Overview ................................................................................................................................................................ 4 2.2. Test Site ................................................................................................................................................................. 5 2.3. Description of Test Sample .................................................................................................................................... 5 2.4. Equipment Configuration ............................................................................................…

Text truncated - open the document above for the full version.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 3162 BELICK STREET ! SANTA CLARA, CA 95054 ! PHONE (408) 748-3585 ! FAX (510) 489-6372 13301 MCCALLEN PASS ! AUSTIN, TX 78753 ! PHONE (512) 287-2500 ! FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory August 7, 2012 Infinet Malta Ltd. 222 Merchants St. Valletta, Malta VLT1170 Dear Andrey Koynov, Enclosed is the EMC test report for compliance testing of the Infinet Malta Ltd., R5000- Mmx/36.300.2x200.2x22, tested to the requirements of Title 47 of the Code of Federal Regulations (CFR), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class A Digital Device and Part 90 Subpart Z for Land Mobile Radio Services, RSS-197 Issue 1, February 2010 for Wireless Broadband Access Equipment Operating in the Band 3650 – 3675 MHz. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Infinet Malta Ltd.\EMC33284C-FCC90Z Rev. 3) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. This letter of transmittal is not a part of the attached report MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 3162 BELICK STREET ! SANTA CLARA, CA 95054 ! PHONE (408) 748-3585 ! FAX (510) 489-6372 13301 MCCALLEN PASS ! AUSTIN, TX 78753 ! PHONE (512) 287-2500 ! FAX (512) 287-2513 DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Infinet Malta Ltd. Model R5000-Mmx/36.300.2x200.2x22 Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & Title 47 of the CFR, Part 90, Subpart Z for Private Land Mobile Radio Services and RSS-197, Issue 1, February 2010 MET Report: EMC33284C-FCC90Z Rev. 3 August 7, 2012 Prepared For: Infinet Malta Ltd. 222 Merchants St. Valletta, Malta VLT1170 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Infinet Malta Ltd. Cover Page R5000-Mmx/36.300.2x200.2x22 CFR Title 47 Part 90 Subpart Z, RSS-197& Part 15 Subpart B, ICES-003 MET Report: EMC33284C-FCC90Z Rev. 3 © 2012, MET Laboratories, Inc. Page ii of viii DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the Infinet Malta Ltd. Model R5000-Mmx/36.300.2x200.2x22 Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & Title 47 of the CFR, Part 90, Subpart Z for Private Land Mobile Radio Services and RSS-197, Issue 1, February 2010 MET Report: EMC33284C-FCC90Z Rev. 3 Jeff Pratt Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 90, Subpart Z and Part 15, Subpart B of the FCC Rules and Industry Canada standards ICES- 003, Issue 4 February 2004, RSS-197, Issue 1, Feb. 2010 under normal use and maintenance. Shawn McMillen, Wireless Lab Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Infinet Malta Ltd. Report Status R5000-Mmx/36.300.2x200.2x22 CFR Title 47 Part 90 Subpart Z, RSS-197 & Part 15 Subpart B, ICES-003 MET Report: EMC33284C-FCC90Z Rev. 3 © 2012, MET Laboratories, Inc. Page iii of viii DOC-EMC700 7/9/04 Report Status Sheet Revision Report Date Reason for Revision  February 22, 2012 Initial Issue. 1 March 30, 2012 Revised to reflect additional reference. 2 July 6, 2012 Revised to reflect engineer corrections. 3 August 7, 2012 Revised to correct MPE calculation. Electromagnetic Compatibility Infinet Malta Ltd. Table of Contents R5000-Mmx/36.300.2x200.2x22 CFR Title 47 Part 90 Subpart Z, RSS-197 & Part 15 Subpart B, ICES-003 MET Report: EMC33284C-FCC90Z Rev. 3 © 2012, MET Laboratories, Inc. Page iv of viii DOC-EMC700 7/9/04 Table of Contents 1. Executive Summary .................................................................................................................................................... 1 1.1. Testing Summary ................................................................................................................................................... 2 2. Equipment Configuration........................................................................................................................................... 3 2.1. Overview ................................................................................................................................................................ 4 2.2. Test Site ................................................................................................................................................................. 5 2.3. Description of Test Sample .................................................................................................................................... 5 2.4. Equipment Configuration ...................................…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Radiated Emission Limits, Test Setup Photograph 3. Conducted Emissions, 15.207(a), Test Setup
