XAVVW340CDMA EV-DO Rev.A Mini Wi-Fi Hotspot

1.Product Overview 1 USER MANUAL V.1.5E CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series Table of Contents Technical Specification 03 1. Product Overview Package Contents 05 System Requirements 05 Features 06 Hardware Overview 07 2. Installation 09 3. Configuration Web-based Configuration 11 Basic Setup Connection Setting 11 Status 12 Advanced Setup IP Setup 13 Wireless Setup 15 Traffic Control 22 Security 25 Utility 29 4. Administrator 37 5. Status 39 6. Troubleshooting 43 1.Product Overview 3 Standards IEEE 802.11g IEEE 802.11b Wireless Signal Rates 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 11Mbps 9Mbps 6Mbps 5.5Mbps 2Mbps 1Mbps Security 64/128-bit WEP WPA-PSK WPA-PSK2 Frequency Range 2.4GHz to 2.483GHz CDMA Frequency Range VW310 Rx: 463 ~ 468MHz Tx: 453 ~ 458MHz VW340 Rx: 859.64 ~ 893.37MHz Tx: 824.64 ~ 848.37MHz Rx: 1930 ~ 1989.95MHz Tx: 1850 ~ 1909.95MHz Channel Bandwidth CDMA 1.23MHz AC Adaptor AC 110~240V, 50~60Hz DC 5.0V / 2.0A LEDs Power Signal 1x/EVDO WAN WLAN CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 4 Operating temperature -20 °C ~ +60 °C Storage temperature -30 °C ~ +70 °C Humidity 5 ~ 95% Dimension 115(W)x64(D)x14.5(H)mm Operating time Working time: 2Hrs Standby time: 3Hrs 1.Product Overview 5 Package Contents ○ 1 Main set ○ 2 AC adaptor ○ 3 User manual System Requirements • At least one computer with an installed wireless network interface card or adaptor • TCP/IP networking protocol installed on each computer • Internet browser CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 6 Features ◆Faster Wireless Networking The VW300 provides up to 54Mbps wireless connection with other 802.11g wireless clients. ◆Compatible with 802.11b Devices The VW300 is still fully compatible with the IEEE 802.11b standards, so it can connect with existing 802.11b PCI, USB and Cardbus adaptors. ◆Advanced Firewall feature The Web-based user interface displays a number of advanced network management features including: Filter Scheduling – These filters can be scheduled to be active on certain days or for a duration of hours or minutes. Parental Controls – Easily applied content filtering based on MAC Address, and/or URL. Secure Multiple/Concurrent Sessions – The VW300 can pass through VPN sessions. It supports multiple and concurrent IPSec and PPTP sessions, so users behind the VW300 can surely access corporate network. *Maximum wireless signal rate derived from IEEE Standard specification. Actual data throughput will vary. CDMA Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range. 1.Product Overview 7 Hardware Overview CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 8 ○ 1 Power Activity Description OFF Power is not supplied to the route r Solid Blue Power is supplied to the router with either Adaptor or Battery (Full charged) Solid Violet Power is supplied to the router with half batter y Solid Red Power is supplied to the router with low batter y Blinking Blue Charging the batter y Blinking Red Error with charging battery (bad battery, etc) ○ 2 Signal Activity Description OFF No 1x or E V-DO signal Solid Blue Strongest level Solid Violet Medium level Solid Red Low level ○ 3 1x/EV-DO Activity Description OFF Router is connected to 1 x Solid Blue Router is connected to EV-DO ○ 4 WAN ActivityDescription OFFRouter is disconnected Solid BlueRouter is connected to WAN ○ 5 WLAN ActivityDescription OFFNo Wi-Fi is used Solid BlueWi-Fi is activated Blinking Blue Active data passed through Wi-Fi ○ 6 Connector ○ 7 micro SD slot for file sharing ○ 8 USB (Mini-B) slot for battery charging ○ 9 External antenna port ○ 10 Antenna ○ 11 ON/OFF Button 2.Installation 9 Wireless Installation Considerations The VW300 wireless router let your network using a wireless connection from virtually anywhere within the operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF noise in your home or business. 1. Router should be placed at the position with good CDMA signal. 2. Keep the number of walls and ceilings between the VW300 and other network devices to a minimum-each wall or ceiling can reduce your adaptor’s range from 1~30 meters. Position your devices so that the number of walls or ceilings is minimized. 3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal. 4. Keep your product away (at least 1~2 meters) from electrical devices or appliances that generate RF noise. CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 10 5. If you are using 2.4GHz cordless phones or X – 10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use 3.Configuration 11 Web-based Configuration Please open a web-browser and enter the IP address of the router (192.168.200.1) You will see the Router’s login page in your browser window. Enter login password and press “Login” button to log in. ** Note: The Router ships with no password entered. In the login screen, leave the password blank and click the “Login” button to log in. Basic setup □ ▶ Connection Setting [Internet Setting] Basic setting Enter your PPP user name, password and Dial (Provided by operator. Default…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Vertex Wireless Co., Ltd. 5F, Dongnam B/D, 8-8 Sunae-Dong, Bundang-Gu, Seongnam-City, Kyunggi-Do, Korea Date: October 27, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Vertex Wireless Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CDMA EV-DO Rev.A Mini Wi-Fi Hotspot FCC ID: XAVVW340 We affirm that between SIEMIC and Vertex Wireless Co., Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, ---------------------------------------------- Brian Lee / Manager Vertex Wireless Co., Ltd.

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Vertex Wireless Co., Ltd. 5F, Dongnam B/D, 8-8 Sunae-Dong, Bundang-Gu, Seongnam-City, Kyunggi-Do, Korea Date: October 27, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID : XAVVW340 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Vertex Wireless Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Vertex Wireless Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure 4 Schematics SHORT-TERM CONFIDENTIAL 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, ---------------------------------------------- Brian Lee / Manager Vertex Wireless Co., Ltd.

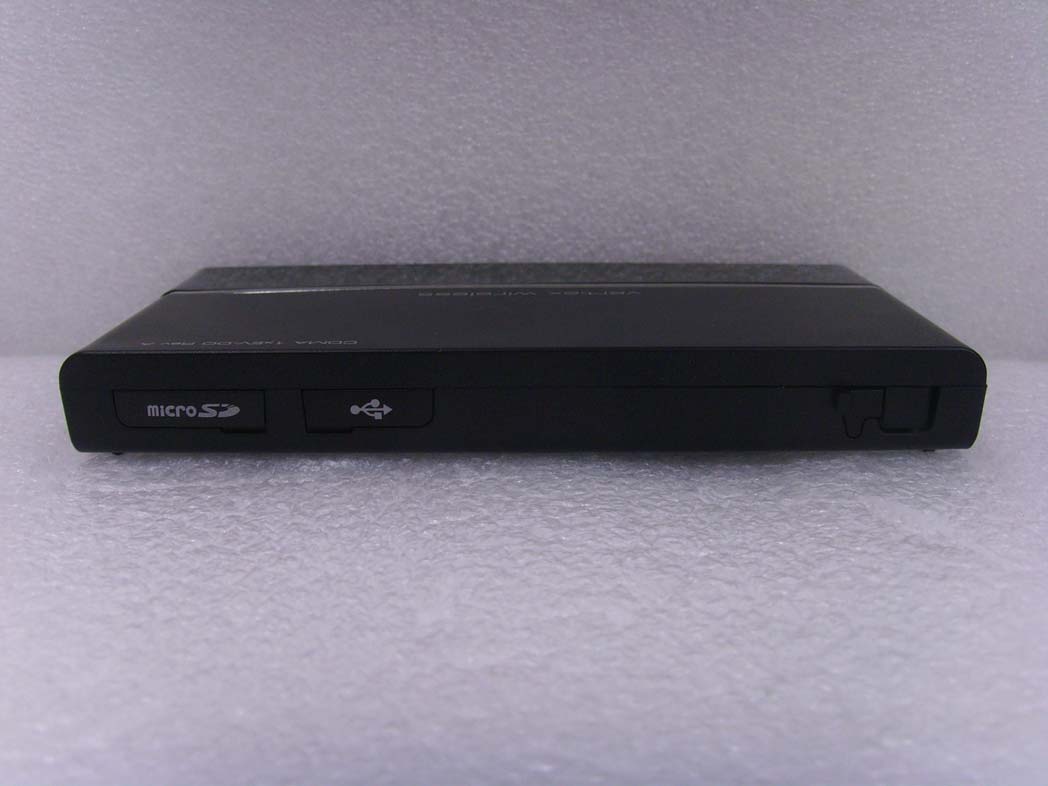

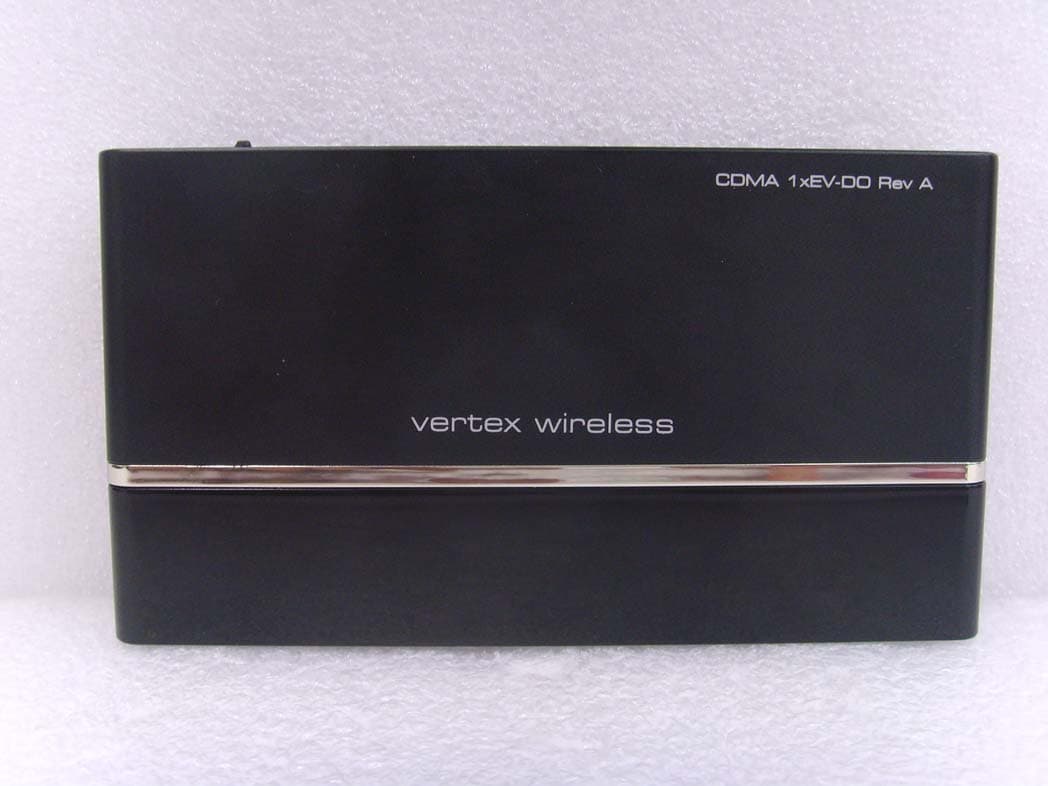

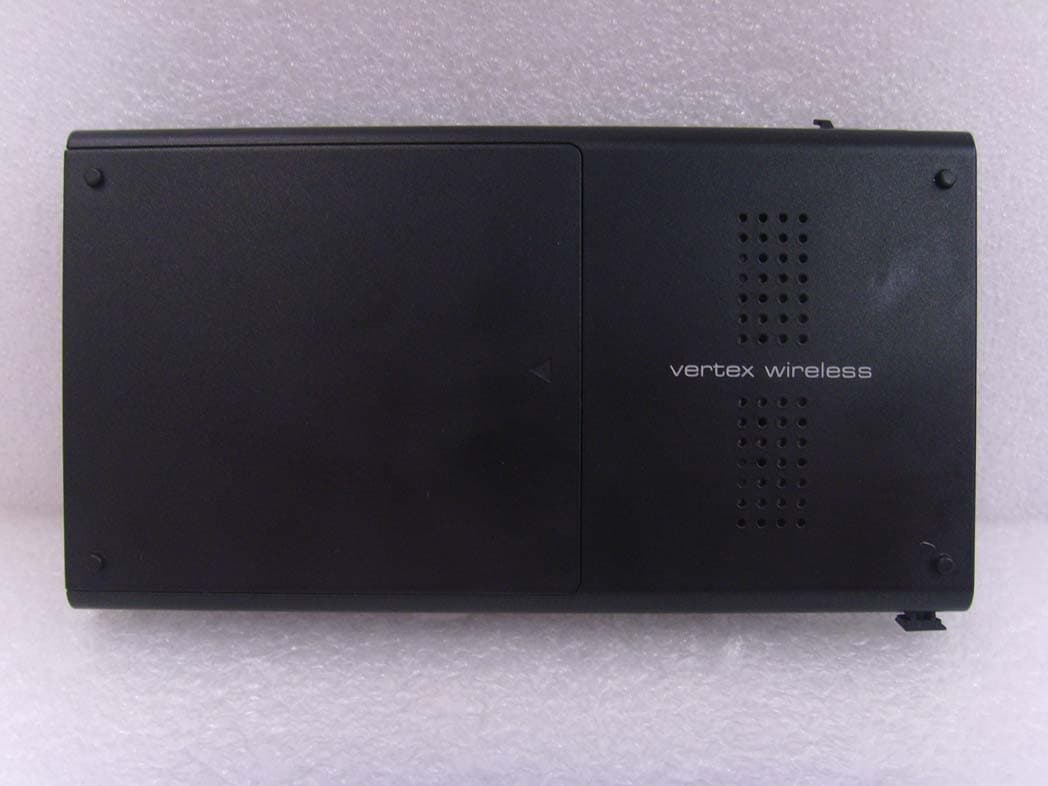

FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 11 EXTERNAL PHOTOGRAPHS FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ９ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １０ of 11 ■ EXTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １１ of 11 ■ EXTERNAL PHOTO

30mm 28mm The FCC Label will be visible at the time of purchase. CDMA 1xEV-DO Rev.A Mini Wi-Fi Hotspot CAUTION: USE SPECIFIED ADAPTOR ONLY MADE IN KOREA ID : XAVVW340 MAC 00254E0000B4 ESN 707A7258 Model : VW340 Serial No. : VF000105A CDMA 1xEV-DO Rev.A Mini Wi-Fi Hotspot CAUTION: USE SPECIFIED ADAPTOR ONLY MADE IN KOREA ID : XAVVW340 MAC 00254E0000B4ESN 707A7258Model : VW340 Serial No. : VF000105A

FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 8 INTERNAL PHOTOGRAPHS FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 8 ■ INTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 8 ■ INTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 8 ■ INTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 8 ■ INTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 8 ■ INTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 8 ■ INTERNAL PHOTO FCC ID: XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 8 ■ INTERNAL PHOTO

FCC ID:XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 3 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID:XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 3 2-1. CDMA BAND Max Peak output Power at antenna input terminal (dBm) 23.480 Max Peak output Power at antenna input terminal (mW) 222.844 Prediction distance (cm) 30.000 Prediction frequency (MHz) 848.310 Antenna Gain(typical) (dBi) 1.920 Antenna Gain(numeric) 1.556 Power density at prediction frequency (mW/cm²) 0.03066 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.566 2-2. PCS BAND Max Peak output Power at antenna input terminal (dBm) 23.490 Max Peak output Power at antenna input terminal (mW) 223.35722 Prediction distance (cm) 30.000 Prediction frequency (MHz) 1851.25 Antenna Gain(typical) (dBi) 1.92 Antenna Gain(numeric) 1.55597 Power density at prediction frequency (mW/cm²) 0.03073 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 FCC ID:XAVVW340 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 3 2-3. WLAN BAND Max Peak output Power at antenna input terminal (dBm) 12.33 Max Peak output Power at antenna input terminal (mW) 17.10015 Prediction distance (cm) 30.000 Prediction frequency (MHz) 2412.0 Antenna Gain(typical) (dBi) 1.830 Antenna Gain(numeric) 1.52405 Power density at prediction frequency (mW/cm²) 0.00518 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 3. RESULTS The power density level at 30 cm is 0.03066 mW/cm², which is below the uncontrolled exposure limit of 0.566 mW/cm² at 848.310 MHz for CDMA band. The power density level at 30 cm is 0.03073 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 1851.25 MHz for PCS band. The power density level at 30 cm is 0.00518 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 2412 MHz for WLAN band 4. Multiple radio MPE Factor WLAN and 850 MHz CDMA (0.00518/1.0000) + (0.03066/0.566)= 0.01518 + 0.05416 =0.06934 WLAN and 1900 MHz CDMA (0.00518/1.0000) + (0.03073/1.0000) = 0.00518+0.03073 = 0.03591

FCC ID: XAVVW340 Report No.: HCTE1010FE30 Date: October 21, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 27 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 1.1 Product description 3 1.2 Related submittal(s)/Grant(s) 3 1.3 Tested system details 4 1.4 Cable description 5 1.5 Noise suppression parts on cable. (I/O cable) 5 1.6 Test methodology 6 1.7 Test facility 6 1.8 Frequency Range of Radiated Measurements 6 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of tested system 7 3. PRELIMINARY TEST 3.1 Conducted Emission test 8 3.2 Radiated Emission test 8 4. CONDUCTED AND RADIATED EMISSION TESTS SUMMARY 4.1 Conducted Emission test 9 4.2 Radiated Emission test 19 4.3 Test setup photos 21 5. FIELD STRENGTH CALCULATION 25 6. TEST EQUIPMENT 26 7. CONCLUSION 27 FCC ID: XAVVW340 Report No.: HCTE1010FE30 Date: October 21, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 27 1. GENERAL INFORMATION 1.1 Product Description Equipment Under Test (E.U.T) is CDMA EV-DO Rev.A Mini Wi-Fi Hotspot, Model: VW340 manufactured by Vertex Wireless Co., Ltd. Its basic purpose is used for communications. Model VW340 FCC ID XAVVW340 E.U.T Type CDMA EV-DO Rev.A Mini Wi-Fi Hotspot TX Frequency 824.70 ㎒ to 848.31 ㎒ (CDMA 835) 1 851.25 ㎒ to 1 908.75 ㎒ (CDMA 1 900) RX Frequency 869.70 ㎒ to 893.31 ㎒ (CDMA 835) 1 931.25 ㎒ to 1 988.75 ㎒ (CDMA 1 900) 1.2 Related Submittal(s) / Grant(s) Original submittal only. FCC ID: XAVVW340 Report No.: HCTE1010FE30 Date: October 21, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 27 1.3 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Manufacturer Model Number/ Serial Number FCC ID / DoC Connected To CDMA EV-DO Rev.A Mini Wi-Fi Hotspot Vertex Wireless VW340 XAVVW340 - Travel adaptor BT Telecom BT-TA7B BT006B000602 - E.U.T Notebook PC SAMSUNG NT-R519 DoC E.U.T Notebook PC adaptor Notebook PC adaptor DELTA ADP-60ZH D AD-6019R - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 compatible DoC Notebook PC FCC ID: XAVVW340 Report No.: HCTE1010FE30 Date: October 21, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 27 1.4 Cable Description * The marked "(D)" means the data cable and "(P)" means the power cable. 1.5 Noise Suppression Parts on Cable (I/O Cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location DC in N - Y E.U.T End CDMA EV-DO Rev.A Mini Wi-Fi Hotspot USB data N - Y Both End Notebook PC USB (Mouse) Y Notebook PC End Y Notebook PC End Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) DC in N - (P)1.8 CDMA EV-DO Rev.A Mini Wi-Fi Hotspot USB data - N (D)0.8 Notebook PC USB (Mouse) - Y (D)1.8 FCC ID: XAVVW340 Report No.: HCTE1010FE30 Date: October 21, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 6 of 27 1.6 Test Methodology Both Conducted and Radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 3 m 1.7 Test Facility The 10 m semi anechoic chamber used to collect the radiated data is located at the 105-1, Jangam-Ri, Majang-Myeon, Icheon-Si, Kyoungki-Do, 467-701, South Korea, and the conducted measurement facility used to measure the conducted data are located at San 136-1, Ami-Ri Bubal-Eup, Icheon-Si, Kyoungki-Do, 467-701, South Korea. Those measurement facilities are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facilities was submitted to the Commission and accepted dated Sep. 03, 2010 (Registration Number: 90661) 1.8 Frequency Range of Radiated Measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a Radiated Emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower FCC ID: XAVVW340 Report No.: HCTE1010FE30 Date: October 21, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 7 of 27 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of Test System Power Line Conducted test : E.U.T was connected to LISN via Notebook PC adaptor. Preliminary Power Line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. Radiated Emission test : Preliminary Radiated Emission tests were performed by using the procedure in ANSI C63.4/2003 8.3.1.1 to determine the worst operating condition. Final Radiated Emission tests were performed at 3 m semi anechoic chamber [Configuration of Tested System] Power Line: 110VAC Non-Conductive Table E.U.T Notebook PC adaptor Mouse Notebook PC FCC ID: XAVVW340 Report No.: HCTE1010FE30 Date: October 21, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 8 of 27 3. PRELIMINARY TEST 3.1 Conducted Emission Test During preliminary tests, the following operating mode was investigated: Operation Mode The Worst Operating Condition Idle (835…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1011FR04 Test Dates: November 02, 2010 EUT Type: CDMA EV-DO Rev.A Mini Wi-Fi Hotspot FCC ID: XAVVW340 Page ２ of 42 Version TEST REPORT NO. DATE DESCRIPTION HCTR1011FR04 November 02, 2010 First Approval Report FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1011FR04 Test Dates: November 02, 2010 EUT Type: CDMA EV-DO Rev.A Mini Wi-Fi Hotspot FCC ID: XAVVW340 Page ３ of 42 Table of Contents 1. GENERAL INFORMATION ..........................................................................................................................４ 2. INTRODUCTION ..........................................................................................................................................５ 2.1. EUT DESCRIPTION...........................................................................................................................５ 2.2. MEASURING INSTRUMENT CALIBRATION ...................................................................................５ 2.3. TEST FACILITY .................................................................................................................................５ 3. DESCRIPTION OF TESTS ..........................................................................................................................６ 3.1 EFFECTIVE RADIATED POWER/EQUIVALENT ISOTROPIC RADIATED POWER.......................６ 3.2 PEAK- TO- AVERAGE RATIO ...........................................................................................................７ 3.2 OCCUPIED BANDWIDTH..................................................................................................................８ 3.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...........................................９ 3.4 RADIATED SPURIOUS AND HARMONIC EMISSIONS ...............................................................１０ 3.5 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................１１ 4. LIST OF TEST EQUIPMENT ...................................................................................................................１２ 5. SUMMARY OF TEST RESULTS .............................................................................................................１３ 6. SAMPLE CALCULATION ........................................................................................................................１４ 7. TEST DATA ..............................................................................................................................................１５ 7.1 CONDUCTED OUTPUT POWER ...................................................................................................１５ 7.2 PEAK-TO-AVERAGE RATIO .........................................................................................................１５ 7.3 OCCUPIED BANDWIDTH ..............................................................................................................１６ 7.4 CONDUCTED SPURIOUS EMISSIONS ........................................................................................１６ 7.4.1 BAND EDGE......................................................................................................................... １６ 7.5 EFFECTIVE RADIATED POWER OUTPUT(CDMA) .....................................................................１７ 7.6 EQUIVALENT ISOTROPIC RADIATED POWER (E.I.R.P.) (PCS CDMA) ...................................１８ 7.7 RADIATED SPURIOUS EMISSIONS .............................................................................................１９ 7.7.1 RADIATED APURIOUS EMISSIONS(RTAP on CDMA EVDO Rev.0 Mode) ....................１９ 7.7.2 RADIATED SPURIOUS EMISSIONS(RTAP on PCS EVDO Rev.0 Mode) ........................２０ 7.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................２１ 7.8.1 FREQUENCY STABILITY(CDMA).......................................................................................２１ 7.8.2 FREQUENCY STABILITY(PCS CDMA) ..............................................................................２２ 8. TEST PLOTS............................................................................................................................................２３ FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1011FR04 Test Dates: November 02, 2010 EUT Type: CDMA EV-DO Rev.A Mini Wi-Fi Hotspot FCC ID: XAVVW340 Page ４ of 42 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: Vertex Wireless Co., Ltd. Address: 5F, Dongnam B/D, 8-8 Sunae-Dong, Bundang-Gu, Seongnam-City, Kyunggi-Do, Korea FCC ID: XAVVW340 Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §22, §24, §2 EUT Type: CDMA EV-DO Rev.A Mini Wi-Fi Hotspot FCC Model(s): VW340 Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1 851.25 — 1 908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1 931.25 — 1 988.75 MHz (PCS CDMA) Max. RF Output Power: 0.350 W ERP CDMA (25.44 dBm) / 0.764 W EIRP PCS CDMA (28.83 dBm) / 0.409 W ERP CDMA EVDO (26.12 dBm) / 0.895 W EIRP PCS EVDO (29.52 dBm) Emission Designator(s): 1M29F9W (CDMA), 1M29F9W (PCS CDMA), 1M28F9W (CDMA EVDO), 1M29F9W (PCS CDMA EVDO) Antenna Specification Manufacturer: RadiAnt Antenna type: Rod Antenna Peak Gain: 1.92 dBi Date(s) of Tests: October 25, 2010 ~ October 28, 2010 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1011FR04 Test Dates: November 02, 2010 EUT Type: CDMA EV-DO Rev.A Mini Wi-Fi Hotspot FCC ID: XAVVW340 Page ５ of 42 2. INTRODUCTION 2.1. EUT DESCRIPTION The VW340 CDMA EV-DO Rev.A Mini Wi-Fi Hotspot consists of Cellular CDMA, PCS CDMA and 1xEVDO Rev.0, 1xEVDO Rev.A 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.3. TEST FACILITY The SA…

Text truncated - open the document above for the full version.

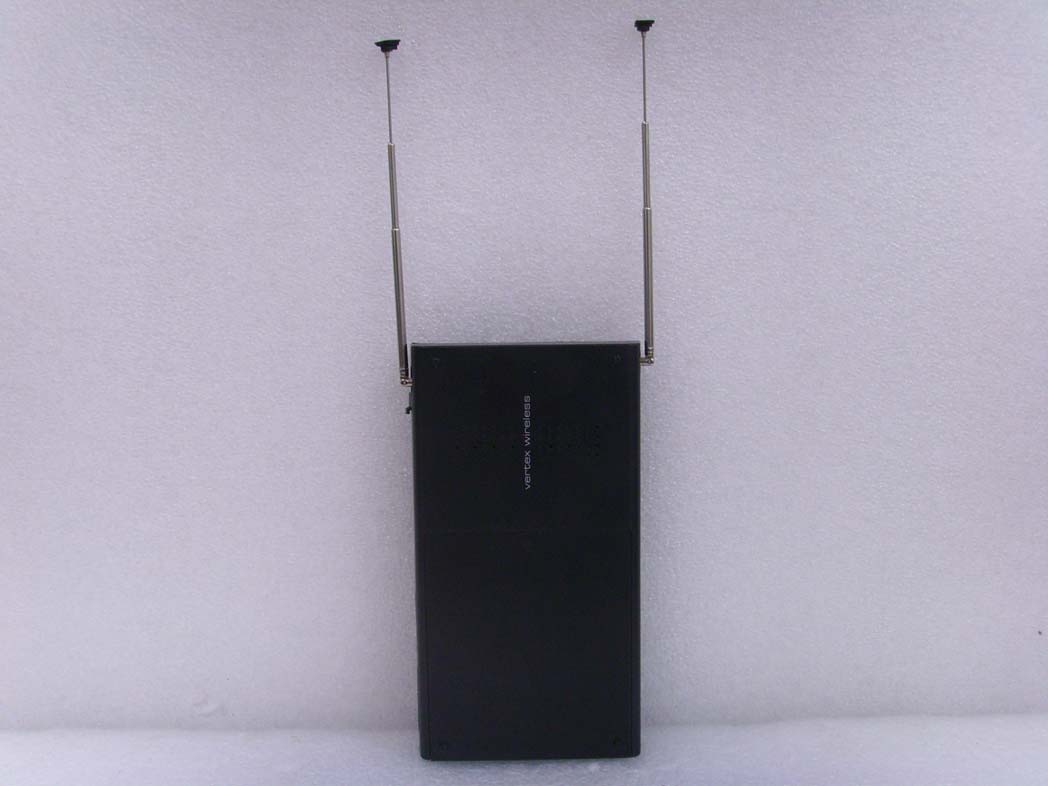

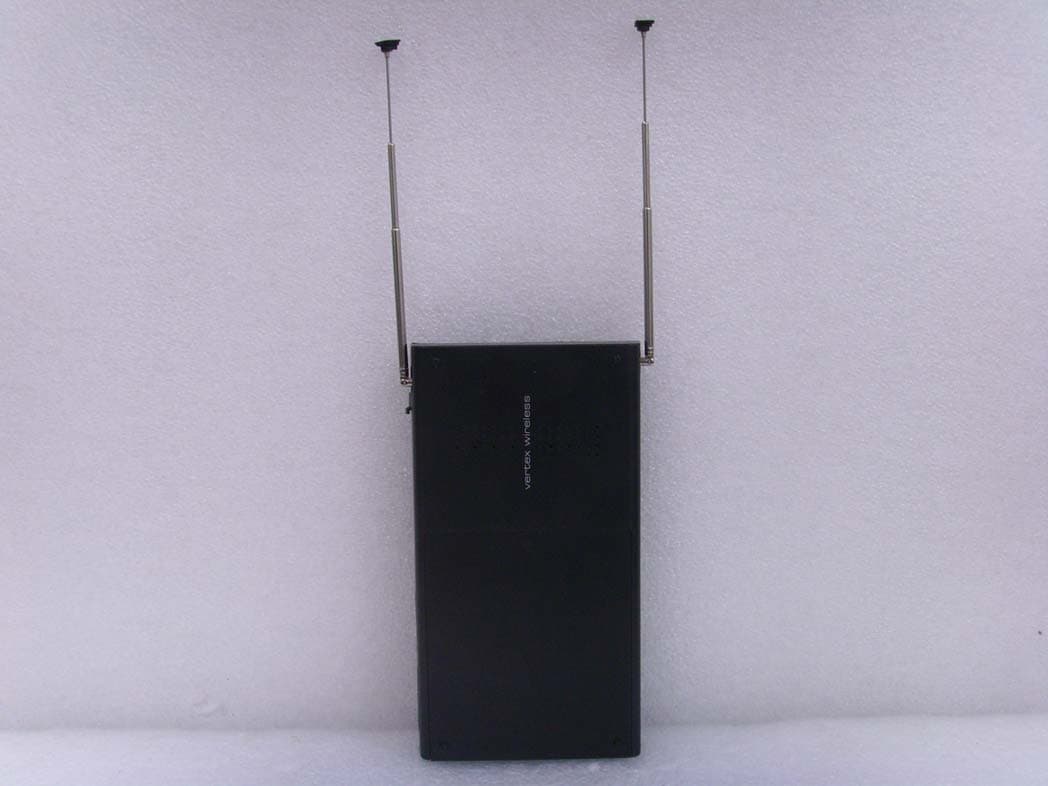

Report No.: HCTR1011FR04 FCC ID: XAVVW340 DATE: November 02, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 9 TEST SETUP PHOTOGRAPHS MEID Number: A00000016703A5 Report No.: HCTR1011FR04 FCC ID: XAVVW340 DATE: November 02, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 9 ■ Test Setup Photo Report No.: HCTR1011FR04 FCC ID: XAVVW340 DATE: November 02, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 9 ■ Test Setup Photo Report No.: HCTR1011FR04 FCC ID: XAVVW340 DATE: November 02, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 9 ■ Test Setup Photo Report No.: HCTR1011FR04 FCC ID: XAVVW340 DATE: November 02, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 9 ■ Test Setup…

Text truncated - open the document above for the full version.
