XAVVW450GSM/GPRS Terminal

1 | page V.1.4E 2 | page 3 | page 1. INSTALLATION GUIDE 1.1. FRONT, SIDE AND REAR VIEW OF VW450 07 1.2. CHECKING THE COMPONENTS 08 1.3. SIM CARD INSTALLATION 09 1.4. BATTERY INSTALLATION 10 1.5. INSTALLATION OF THE ANTENNA AND LOCATION OF THE EQUIPMENT FOR VOICE SERVICE 11 1.6. DESKTOP INSTALLATION 13 1.7. WALL MOUNTING 14 2. GETTING TO KNOW VW450 2.1. LED STATUS INDICATOR 15 3. BASIC OPERATIONS 3.1. MAKING CALLS 17 3.2. RECEIVING CALLS 17 4. BASIC SETTINGS 4.1. RECEIVER VOLUME 18 4.2. DIAL DELAY TIME 18 4.3. SPEED DIAL ENTRY 18 4.4. TIME AND DATE 18 4.5. CID FORMAT 19 4.6. BAND SELECTION 19 4.7. EQUIPMENT LOCK 19 4.8. PIN LOCK 20 4.9. POLARITY REVERSE 20 4.10. LOOP CURRENT DISCONNECT 21 4.11. DTMF TONE GENERATION 21 4 | page 4.12. AUTOMATIC PIN ENTERING 21 4.13. FACTORY RESET 21 4.14. VOICEMAIL INDICATION 21 5. SUPPLEMENTARY SERVICE FEATURES 5.1. CALL FORWARDING 22 5.2. CALL BARRING 23 5.3. CALL WAITING 25 5.4. SIM SECURITY CODES 26 5.5. CALLER ID 26 6. DATA SERVICE FEATURES 27 7. FAX SERVICE FEATURE 7.1. ANALOG FAX 27 7.2. DIGITAL FAX 28 8. GENERAL INFORMATION 8.1. SPECIFICATIONS 29 8.2. ADDITIONAL SAFETY INFORMATION 30 8.3. GUARANTEE 32 8.4. TROUBLESHOOTING 33 9. CONFORMANCE STATEMENTS APPENDIX A 33 5 | page Welcome to your VW450 VW450 is a Fixed Wireless Terminal designed to provide be tter wireless connectivity between wire telephone and GSM 850/900/1800/1900 band network with high sensitivity to rece ive signal and large transmitting power to expand extensively the effective coverage of GSM service. Main function & features - SIMPLE TO INSTALL AND EASY TO MAINTAIN - COMPATIBLE TO MOST TELEPHONES, PBX - BATTERY BACK UP DURING AC POWER OUTAGES - PROVIDE REVERSAL POLARITY SIGNAL FOR METERING - ADJUSTABLE RECEIVER VOLUME - 3 LED DISPLAY (SIGNAL/MODE/POWER) - 10 SPEED DIALS - CALLER ID DISPLAY - NETWORK BAND SELECTION - CALL WAITING/FORWARDING/BARRING - CONFERENCE CALL - DATA COMMUNICATION (INTERNET OVER CSD/GPRS, DIGITAL FAX) - ANALOG FAX (VW450) 6 | page For your safety Here is important information for safe and efficient operation. Please read this information before using your VW450. For optimal performance, install this indoors. When specially used in an outdoor area, it may not work in below 0 °C or over 50 °C . Install VW450 on hard, flat surface for proper ventilation. Avoid using VW450 in high temperature or near a source of fire or gas. Avoid storing VW450 in cold areas. Do not expose VW450 to moisture or dust. Do not use VW450 in the hospital. It will interfere with medical electronic equipments such as a peace maker. Do not use harsh chemicals, c leaning solvents to cl ean VW450. And wipe with a soft, clean, dry cloth to clean it. Do not knock, drop, and shake VW450 to avoid breaking the case. Use only the supplied or approved replacements Do not use VW450 with a car battery. Do not touch the antenna when VW450 is being used. Do not use VW450 with a damaged antenna. Have your antenna replaced by a qualified technician immediately. Use only the provided antenna. Do not use the provided antenna for any other purpose. Use only the provided adapter. Do not use the provided adapter for any other purpose If VW450 fails to work for any reason, do not attempt to disassemble. 7 | page 1. Installation guide 1.1. Front, Side and Rear View of VW450 8 | page 1.2. Checking the components Check to make sure that you have all the parts shown below after opening the package. If any piece is missing or broken, please call your agent or customer service. 1. MAIN UNIT 2. USER MANUAL 3. LI-ION BACKUP BATTERY 4. DC POWER ADAPTER 5. CABLE FOR GPRS CONNECTION (VW450): OPTIONAL ACCESSORY 6. ANTENNA AND THE CABLE WITH THEIR SUPPORT (Y OU SHOULD COUPLE THE ANTENNA IN THEIR SUPPORT) 9 | page 1.3. SIM card installation 1. Disconnect the power supply. 2. Open battery cover on the bottom side of the VW450. 3. Disconnect the DC power cable to VW450 4. Take out the battery pack in the right position between the hold bars 5. Insert the SIM card into the socket as shown in the picture. * Note: Make sure the SIM card is aligned prope rly with the directional arrow on the holder. 6. Connect the DC power cable to VW450. 7. Insert the battery pack in the right position between the hold bars. 8. Close the battery cover. 9. Connect the power supply to VW450. 10 | page 1.4. Battery installation 1. Disconnect the power supply. 2. Open battery cover on the bottom side of VW450. 3. Connect the DC power cable to VW450. 4. Close the battery cover. 5. Connect the power supply to VW450. 11 | page 1.5. Installation of the antenna and location of the equipment for voice service Before you select a localization to place VW450, you should re ad the section for their Security in the first part of this manual. You can place it in a plane area just as the floor, the walls or the desk or table. 1. It connects the antenna at the VW450 (previously it should couple the antenna in their support, make sure of making the one it couples in a complete way, verify that the antenna mo is slack) and locate her it more far possible of the terminal. If the antenna is located near the VW450 noise she/he will take place during the communication, avoid it! * Notices: make sure of pressing the antenna completely to their connector in the terminal. 2. Using the marked port as “Phone “connects the VW450 to the central PBX, or to the system of tariff of the booth or a similar telephone. If their Terminal is model VW450 and you will use similar fax, connect the fax machine to the port “Fax ". 3. Connect the adapter to the Terminal. Use the connector "DC Input." 4. Connect the adapter DC in an appropriate energy plug. 5. Turn on the terminal. Use the switch “On/Off ". 6. Checks the power of the signal GSM, verify the state of the led “Signal“(check the section 2.1). To improve the signal reception, move the antenna and verify the state of the led “Signal". Avoids leaving the antenna in a location in which the led illuminates red or be shut down 7. The …

Text truncated - open the document above for the full version.

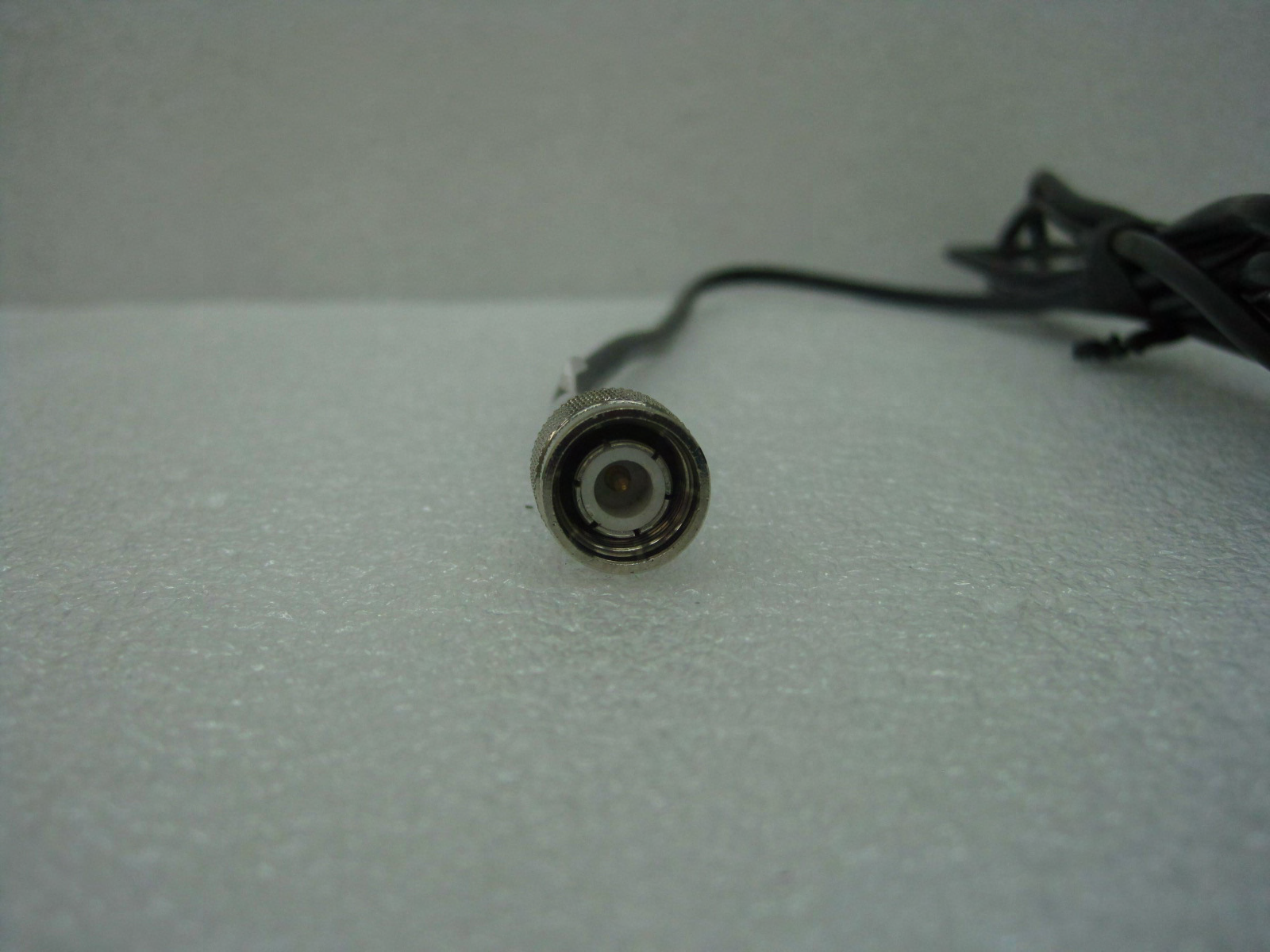

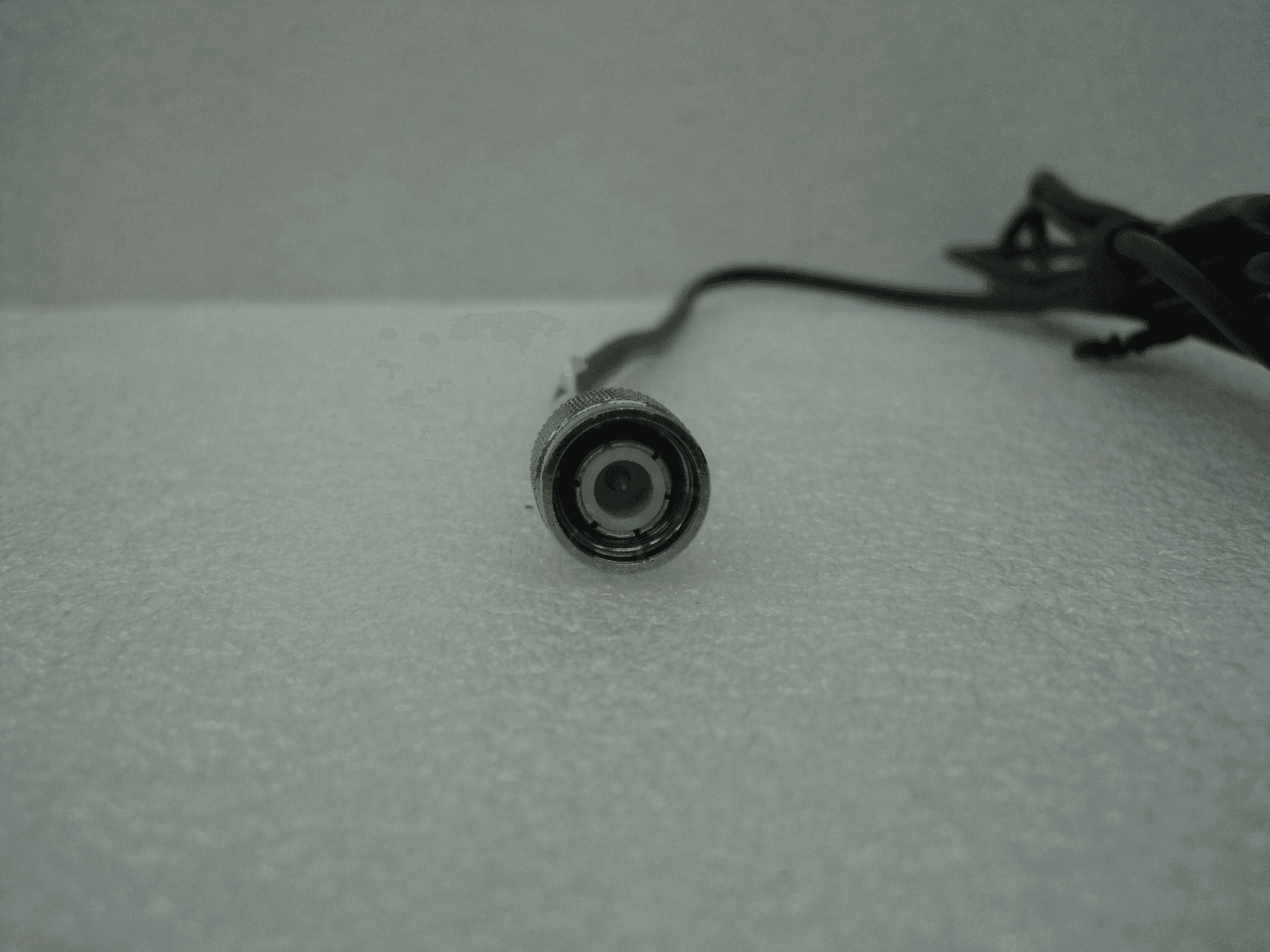

FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 10 EXTERNAL PHOTOGRAPHS FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ８ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ９ of 10 ■ EXTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １０ of 10 ■ EXTERNAL PHOTO

FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 7 INTERNAL PHOTOGRAPHS FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 7 ■ INTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 7 ■ INTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 7 ■ INTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 7 ■ INTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 7 ■ INTERNAL PHOTO FCC ID: XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ７ of 7 ■ INTERNAL PHOTO

FCC ID:XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 3 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna FCC ID:XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 3 2-1. GSM850 BAND Max Peak output Power at antenna input terminal (dBm) 32.65 Max Peak output Power at antenna input terminal (mW) 1840.772 Prediction distance (cm) 100.000 Prediction frequency (MHz) 848.800 Antenna Gain(typical) (dBi) 3.500 Antenna Gain(numeric) 2.239 Power density at prediction frequency (mW/cm²) 0.03279 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.566 2-2. GSM1900 BAND Max Peak output Power at antenna input terminal (dBm) 29.9 Max Peak output Power at antenna input terminal (mW) 977.23722 Prediction distance (cm) 100.000 Prediction frequency (MHz) 1850.2 Antenna Gain(typical) (dBi) 3.100 Antenna Gain(numeric) 1.81000 Power density at prediction frequency (mW/cm²) 0.01408 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 FCC ID:XAVVW450 HCT CO., LTD SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8565 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 3 3. RESULTS The power density level at 100 cm is 0.03279 mW/cm², which is below the uncontrolled exposure limit of 0.566 mW/cm² at 848.800 MHz for GSM850 band. The power density level at 100 cm is 0.01408 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm² at 1850.2 MHz for GSM1900 band.

Model: VW450 Report No.: HCTE1007FE05 Date: July 13, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 19 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 1.1 Product description 3 1.2 Related submittal(s)/Grant(s) 3 1.3 Tested system details 4 1.4 Cable description 5 1.5 Noise suppression parts on cable. (I/O cable) 5 1.6 Test methodology 6 1.7 Test facility 6 1.8 Frequency Range of Radiated Measurements 6 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of tested system 7 3. PRELIMINARY TEST 3.1 Conducted Emission test 8 3.2 Radiated Emission test 8 4. CONDUCTED AND RADIATED EMISSION TESTS SUMMARY 4.1 Conducted Emission test 9 4.2 Radiated Emission test 14 4.3 Test setup photos 15 5. FIELD STRENGTH CALCULATION 17 6. TEST EQUIPMENT 18 7. CONCLUSION 19 Model: VW450 Report No.: HCTE1007FE05 Date: July 13, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 19 1. GENERAL INFORMATION 1.1 Product Description Equipment Under Test (E.U.T) is GSM/GPRS Terminal, Model: VW450 manufactured by Vertex Wireless Co., Ltd. Its basic purpose is used for communications. Model VW450 FCC ID XAVVW450 E.U.T Type GSM/GPRS Terminal TX Frequency 824.20 ㎒ to 848.80 ㎒ (GSM 850) 1 850.20 ㎒ to 1 909.80 ㎒ (GSM 1 900) RX Frequency 869.20 ㎒ to 893.80 ㎒ (GSM 850) 1 930.20 ㎒ to 1 989.80 ㎒ (GSM 1 900) 1.2 Related Submittal(s) / Grant(s) Original submittal only. Model: VW450 Report No.: HCTE1007FE05 Date: July 13, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 19 1.3 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Manufacturer Model Number/ Part Number FCC ID / DoC Connected To GSM/GPRS Terminal Vertex Wireless VW450 XAVVW450 - Travel adaptor BT Telecom BT-TA7B - E.U.T Notebook PC SAMSUNG NT-R519 - E.U.T Notebook PC adaptor Notebook PC adaptor DELTA AD-9019S - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 compatible DoC Notebook PC Telephone LG SRITHAI Electronics GS-460F - E.U.T Termination 75Ω - - - E.U.T Model: VW450 Report No.: HCTE1007FE05 Date: July 13, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 19 1.4 Cable Description * The marked "(D)" means the data cable and "(P)" means the power cable. 1.5 Noise Suppression Parts on Cable. (I/O cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location DC in N - Y E.U.T End USB data N - N Notebook PC End TEL N - N - GSM/GPRS Terminal Term. N - N - Notebook PC USB (Mouse) Y Notebook PC End Y Notebook PC End Antenna - N - Y E.U.T End Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) DC in N - (P)1.5 USB data N Y (D)1.2 TEL - N (D)2.0 GSM/GPRS Terminal Term. - N (D)2.0 Notebook PC USB (Mouse) - Y (D)1.8 Antenna - - N (D)2.0 Model: VW450 Report No.: HCTE1007FE05 Date: July 13, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 6 of 19 1.6 Test Methodology Both Conducted and Radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 3 m 1.7 Test Facility The open area test site and conducted measurement facility used to collect the radiated data are located at the 254-1, Maekok-ri, Hobup-myun, Ichon-si, Kyoungki-do, 467-701, KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated June 10, 2009. (Registration Number: 90661) 1.8 Frequency Range of Radiated Measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a Radiated Emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower Model: VW450 Report No.: HCTE1007FE05 Date: July 13, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 7 of 19 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of Test System Power Line Conducted test : E.U.T was connected to LISN via Notebook PC adaptor. Preliminary Power Line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. Radiated Emission test : Preliminary Radiated Emission tests were performed by using the procedure in ANSI C63.4/2003 8.3.1.1 to determine the worst operating condition. Final Radiated Emission tests were performed at 3 m open area test site. [Configuration of Tested System] Power Line: 110VAC Non-Conductive Table Telephone Mouse TANotebook PC E.U.T Antenna Model: VW450 Report No.: HCTE1007FE05 Date: July 13, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 8 of 19 3. PRELIMINARY TEST 3.1 Conducted Emission Test During preliminary tests, the following operating mode was investigated: Operation Mode The Worst Operating Condition Idle (850, 1 900) Data Transfer ○ 3. 2 Radiated Emission Test During preliminary tests, the following operating mode was investigated: Operation Mode The Wor…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR08 Date of Issue: July 13, 2010 EUT Type: GSM/GPRS Terminal FCC ID: XAVVW450 Page 2 of 37 Version TEST REPORT NO. DATE DESCRIPTION HCTR1007FR08 July 13, 2010 First Approval Report FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR08 Date of Issue: July 13, 2010 EUT Type: GSM/GPRS Terminal FCC ID: XAVVW450 Page 3 of 37 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................... 5 2.1. EUT DESCRIPTION............................................................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5 2.3. TEST FACILITY .................................................................................................................................. 5 3. DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 EFFECTIVE RADIATED POWER/EQUIVALENT ISOTROPIC RADIATED POWER........................ 6 3.2 PEAK- TO- AVERAGE RATIO ............................................................................................................ 7 3.3 OCCUPIED BANDWIDTH................................................................................................................... 8 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL............................................ 9 3.5 RADIATED SPURIOUS AND HARMONIC EMISSIONS .................................................................. 10 3.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE .......................................11 4. LIST OF TEST EQUIPMENT ...................................................................................................................... 12 5. SUMMARY OF TEST RESULTS ................................................................................................................ 13 6. SAMPLE CALCULATION ........................................................................................................................... 14 7. TEST DATA ................................................................................................................................................. 15 7.1 CONDUCTED OUTPUT POWER ......................................................................................................15 7.2 PEAK-TO-AVERAGE RATIO ............................................................................................................ 15 7.3 OCCUPIED BANDWIDTH ................................................................................................................. 16 7.4 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 16 7.4.1 BAND EDGE............................................................................................................................ 16 7.5 EFFECTIVE RADIATED POWER OUTPUT (E.R.P)(GSM850) ........................................................ 17 7.6 EQUIVALENT ISOTROPIC RADIATED POWER (E.I.R.P.) (GSM1900 ) ........................................ 18 7.7 RADIATED SPURIOUS EMISSIONS ................................................................................................19 7.7.1 RADIATED SPURIOUS EMISSIONS (GSM850 Mode) ......................................................... 19 7.7.2 RADIATED SPURIOUS EMISSIONS (GSM1900 Mode) ....................................................... 20 7.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 21 7.8.1 FREQUENCY STABILITY (GSM850) ..................................................................................... 21 7.8.2 FREQUENCY STABILITY (GSM1900) ................................................................................... 22 8. TEST PLOTS............................................................................................................................................... 23 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR08 Date of Issue: July 13, 2010 EUT Type: GSM/GPRS Terminal FCC ID: XAVVW450 Page 4 of 37 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: Vertex Wireless Co., Ltd. Address: 5F, Dongnam B/D, 8-8 Sunae-Dong, Bundang-Gu, Seongnam-City, Kyunggi-Do, Korea Contact Person: Name: Brian Jun Phone #: TEL :+82-31-702-4901 / FAX : +82-31-702-4567 FCC ID: XAVVW450 Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §22, §24, §2 EUT Type: GSM/GPRS Terminal Model(s): VW450 Tx Frequency: 824.20 - 848.80 MHz (GSM850) 1 850.20 – 1 909.80 MHz (GSM1900) Rx Frequency: 869.20 - 893.80 MHz (GSM850) 1 930.20 – 1 989.80 MHz (GSM1900) Max. RF Output Power: 1.469 W ERP GSM850 ( 31.67 dBm) / 0.710 W EIRP GSM1900 ( 28.51 dBm) Emission Designator(s): 248KGXW (GSM850), 248KGXW (GSM1900) Antenna Specification Manufacturer: INFO SPACE (H.K) LTD Antenna type: Monopole Antenna Peak Gain: 3.5 dBi (Cellular), 3.1 dBi (PCS) Date(s) of Tests: July 05, 2010 ~ July 09, 2010 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR08 Date of Issue: July 13, 2010 EUT Type: GSM/GPRS Terminal FCC ID: XAVVW450 Page 5 of 37 2. INTRODUCTION 2.1. EUT DESCRIPTION The Vertex Wireless Co., Ltd. VW450 GSM/GPRS Terminal consists of GSM850, GSM1900 and GPRS Class10. 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.3…

Text truncated - open the document above for the full version.

Report No.: HCTR1007FR08 FCC ID: XAVVW450 DATE: July 13, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 5 TEST SETUP PHOTOGRAPHS MEID Number: A00000016703A5 Report No.: HCTR1007FR08 FCC ID: XAVVW450 DATE: July 13, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 5 ■ Test Setup Photo Report No.: HCTR1007FR08 FCC ID: XAVVW450 DATE: July 13, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 5 ■ Test Setup Photo Report No.: HCTR1007FR08 FCC ID: XAVVW450 DATE: July 13, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 5 ■ Test Setup Photo Report No.: HCTR1007FR08 FCC ID: XAVVW450 DATE: July 13, 2010 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 5 ■ Test Setup Photo
