XBD-FM75Audio Transmitter

Initial Setup After this quick setup, you will be ready to enjoy your music wirelessly. 1) Plug in Plug the 12V power end of the JamKast into your vehicle’s cigarette lighter port, or 12V power outlet. Insert the Lightning connector from the JamKast into your iPod, iPhone or iPad. 2) Turn On Press the center button to turn on the JamKast. Operation To begin enjoying your music using the JamKast, tune your vehicle’s radio to the frequency shown on the LCD display, and press play on your iPod, iPhone or iPad. Additional features for optimal operation Autoscanning – The JamKast transmitter uses dTECT™ technology to locate and lock-in the four best stations for music playback from iPod, iPhone or iPad. 1) Hold both the + and - buttons at the same time to activate dTECT™ scanning 2) PRESETS will blink for 20 seconds, while scanning 3) Scanning is complete when PRESETS stop blinking NOTE: We recommend activating dTECT™ auto-scanning when you enter new geographical areas as you travel. Selecting Presets Use the + or - buttons to switch through the available presets. Manual Tuning and Saving Presets The JamKast transmitter allows you to manually tune to any frequency, and lock these frequencies into the preset memory. 1) Choose the PRESET that you want to change. 2) Press the center button once to enter manual tuning mode. 3) Use the + or - buttons to change to the desired frequency. 4) Press the center button once again, to lock the station into the PRESET memory. Tech Support: [email protected] 866-788-4237 WARNING: This equipment may be reset by unintentional electrostatic discharge during operation. Exposure to direct sunlight or extreme heat may cause damage or malfunction. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Re-orientate or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that of which the receiver is connected. 4. Consult the dealer or an experienced radio / television technical for help. Notice : The changes or modifications not expressly approved by the party responsible compliance could void the user authority to operate the equipment. JamKast FM Transmitter with Lightning Connector for iPod, iPhone or iPad IN-CAR CONNECTIVITY ISFM75 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)ÿThis device may not cause harmful interference, (2)ÿand (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Agent Authorization Letter 2014-09-22 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ 85204 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (bovey yang & BZT Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Client’s signature Client’s name / title Joe Durre /Manage Director Contact information / address 13160 56th Court, Suite 401, Clearwater, FL 33760,United States

Long Term Confidentiality Request Letter 2014-09-22 Compliance Testing LLC 1724 S. Nevada Way Mesa, AZ 85204 RE: CONFIDENTIALITY REQUEST FOR FCC ID: XBD-FM75 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the following documents required to be submitted with this application be permanently withheld from public review.  Block Diagram  Schematics  Theory of Operation These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Client’s signature Client’s name / title Joe Durre /Manage Director Contact information / address 13160 56th Court, Suite 401, Clearwater, FL 33760,United States

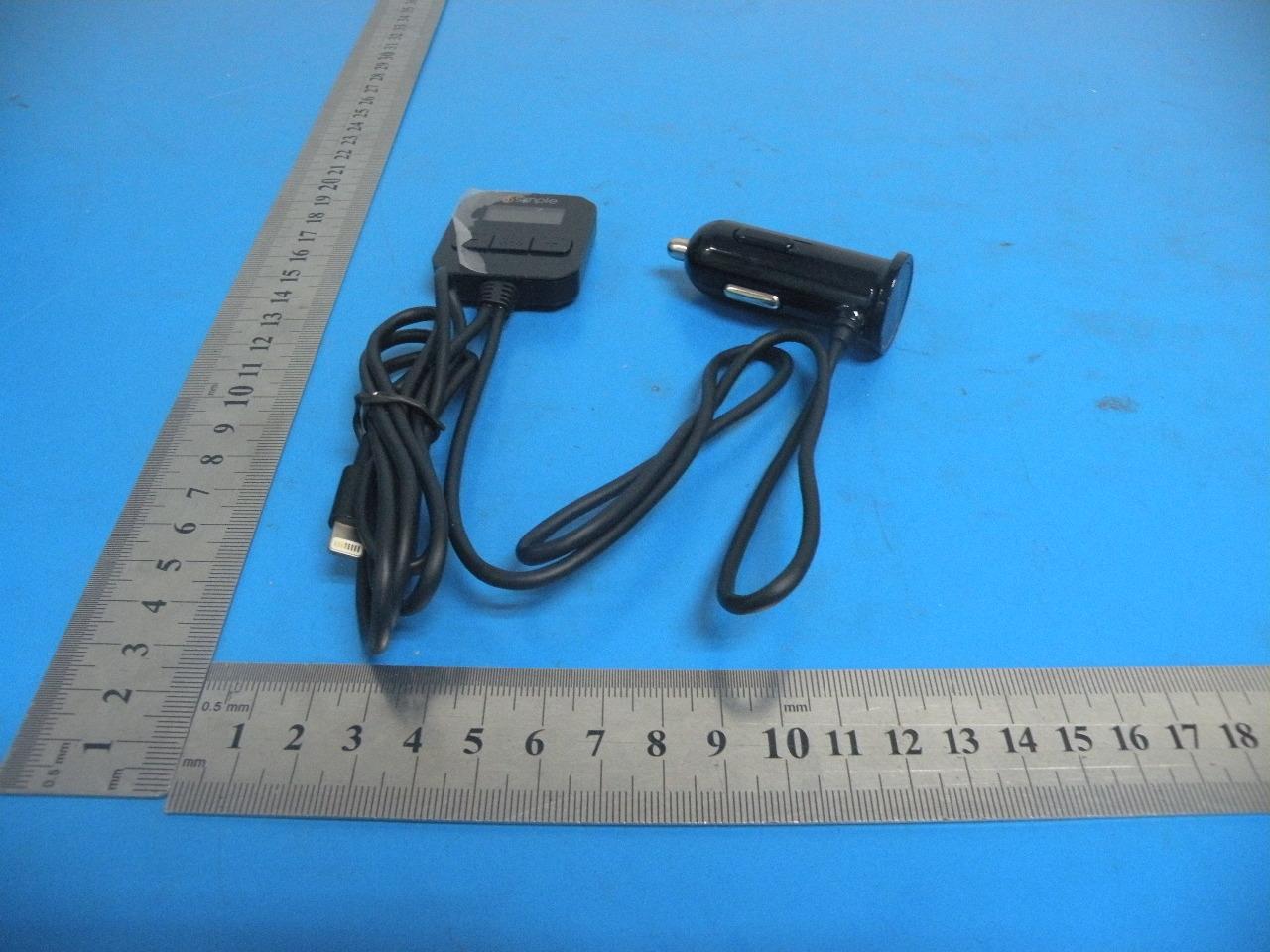

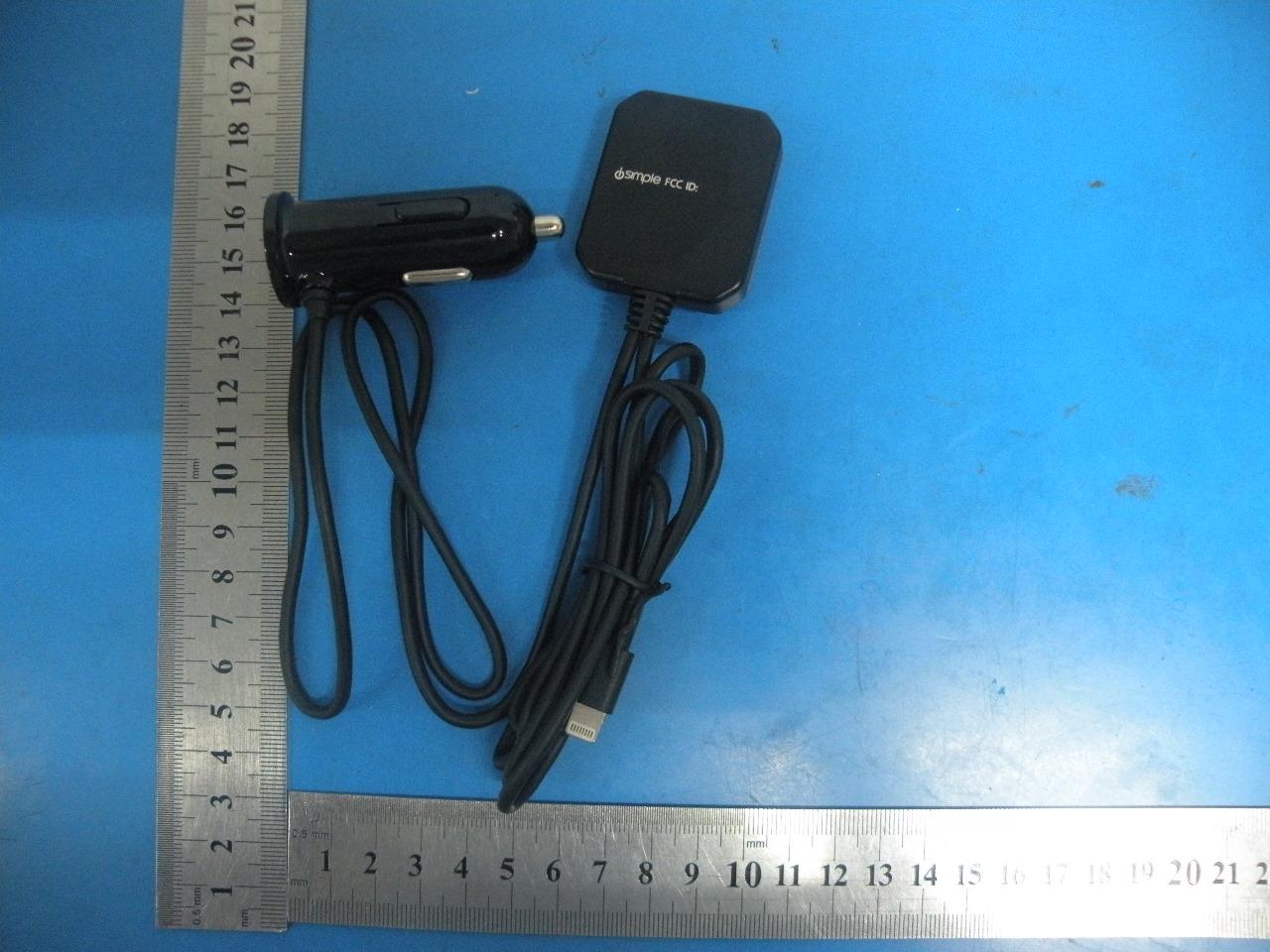

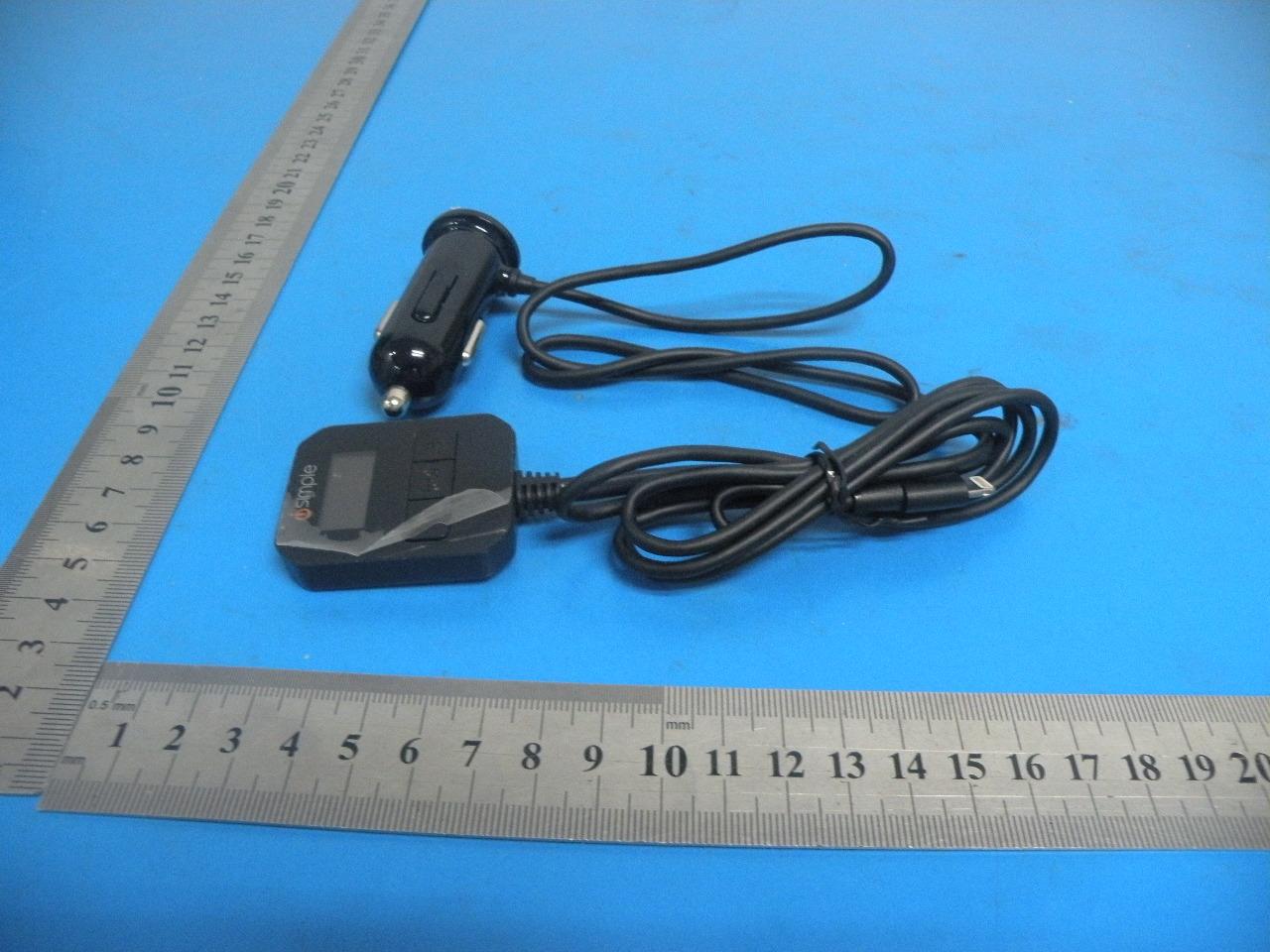

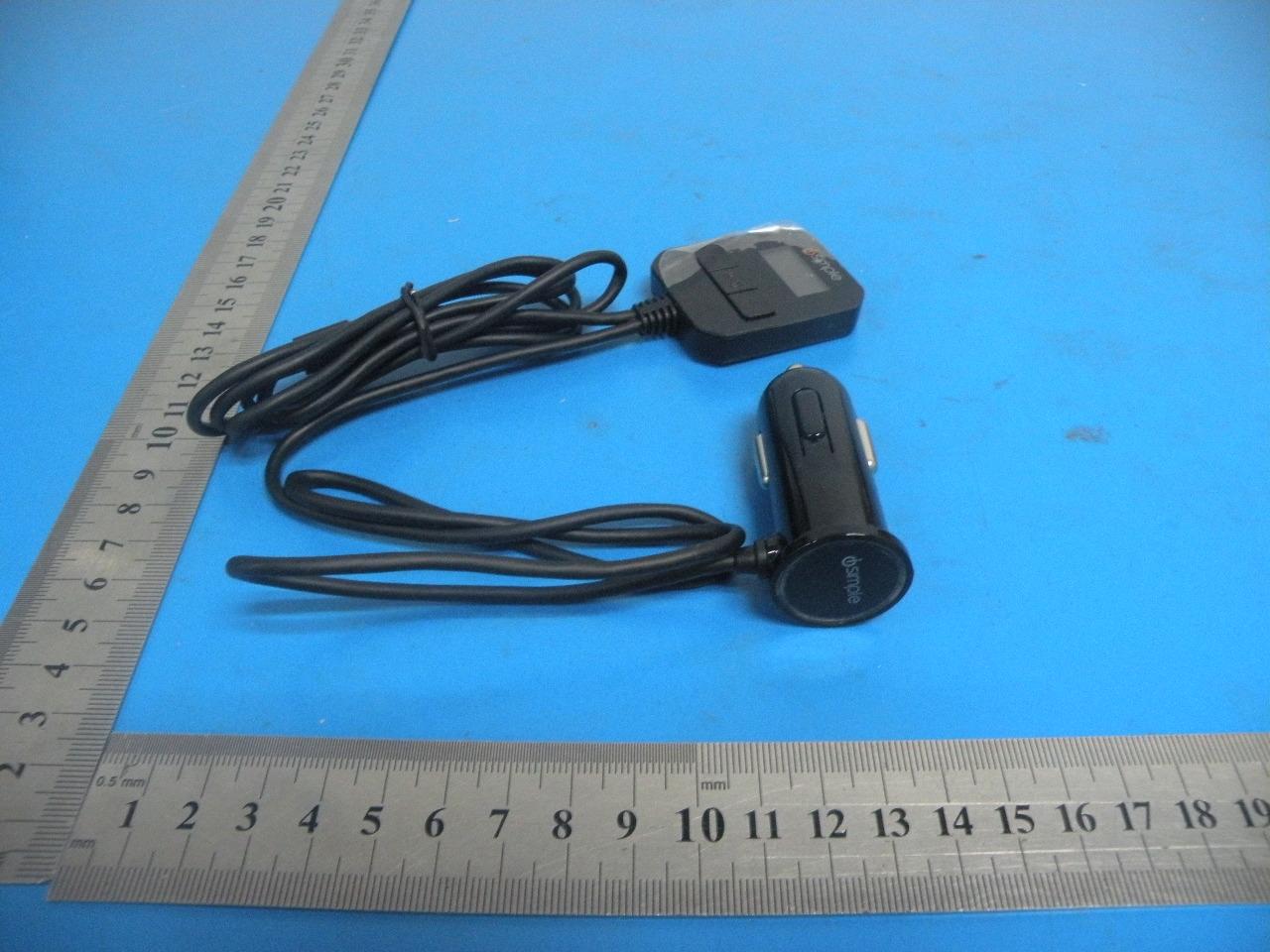

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

INPUT:DC 12V FCC ID: XBD-FM75 Label

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

FCC RADIO TEST REPORT FCC ID: XBD-FM75 Product： Audio Transmitter Trade Name： iSimple Model Name： ISFM75 Serial Model： N/A Report No.： BZT14921003 Prepared for AAMP of Flordia, dba AAMP of America 13160 56th Court, Suite 401, Clearwater, FL 33760,United States Prepared by Shenzhen BZT Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Website:www.bzt.org.cn Page 2 of 27 Report No.: BZT14921003 ` TEST RESULT CERTIFICATION Applicant’s name ................. : AAMP of Flordia, dba AAMP of America Address ................................. : 13160 56th Court, Suite 401, Clearwater, FL 33760,United States Manufacture's Name ............ : AAMP of Flordia, dba AAMP of America Address ................................. : 13160 56th Court, Suite 401, Clearwater, FL 33760,United States Product description Product name ........................... : Audio Transmitter Model and/or type reference : ISFM75 Serial Model： N/A Rating(s) ................................ : DC 12V Standards ............................. : FCC Part15.239 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 11 Sep. 2014 ~14 Sep. 2014 Date of Issue ........................................... : 16 Sep. 2014 Test Result ............................................... : Pass Testing Engineer : (Lynn Chen) Technical Manager : (Carlen Liu) Authorized Signatory : (Tommy zhang) Page 3 of 27 Report No.: BZT14921003 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BLOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . EUT TEST PHOTO 27 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 27 Report No.: BZT14921003 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.239) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.203 Antenna Requirement Pass 15.239 Radiated Spurious Emission Pass 15.239 Occupied Bandwidth Pass Page 5 of 27 Report No.: BZT14921003 ` 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 27 Report No.: BZT14921003 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Audio Transmitter Trade Name iSimple Model Name ISFM75 Serial Model N/A Model Difference N/A Product Description The EUT is a Audio Transmitter Product Type Low Power Communication Device Transmitter Operation Frequency: 88.1-107.9MHz Modulation Type: FM Number Of Channel 199CH. Antenna Designation: Wire antenna Antenna Gain(Peak) 0dBi Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 27 Report No.: BZT14921003 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 88.1MHz Mode 2 98.1MHz Mode 3 107.9MHz For Conducted Emission Final Test Mode Description N/A N/A For Radiated Emission Final Test Mode Description Mode 1 88.1MHz Mode 2 98.1MHz Mode 3 107.9MHz Note: (1) The measurements are performed at the highest, middle, lowest available channels. (2) The EUT use new battery. (3) During testing, the EUT was actively playing music set to its maximum audio volume in order to generate the worst case emissions (e.g. to generate the maximum bandwidth during bandwidth test). No test tones were used for testing. The tuning range of the EUT was manually verified and the conclusion is that it only w…

Text truncated - open the document above for the full version.

Page 27 of 27 Report No.: BZT14921003 ` 5. EUT TEST PHOTO Radiated Measurement Photos
