  1. Home/
  2. AAMP of Florida, Inc. dba AAMP Global/
  3. XBD-ISBT3

XBD-ISBT3Bluetooth audio receiver with rechargeable battery

AAMP of Florida, Inc. dba AAMP Global
Bluetooth audio receiver with rechargeable battery - FCC ID XBD-ISBT3 - AAMP of Florida, Inc. dba AAMP Global
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Sep 17, 2014
Application Purpose
Original Equipment
Date of Application
Sep 17, 2014
Equipment Note
Bluetooth audio receiver with rechargeable battery
Frequency Range
2402.00000000 - 2480.00000000
Company
AAMP of Florida, Inc. dba AAMP Global
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Initial Setup After this quick setup, you will be ready to enjoy your music wirelessly 1) Charge Charge your BluJax by connecting it to a USB power supply (USB cable included). When connected to a USB power source the BluJax will glow Red while charging. When charging is complete, the BluJax will glow Blue. 2) Pair After charging your BluJax, unplug it from the USB power source. If the BluJax is glowing, press the control button for 3 seconds to turn it off. Red light will blink 3 times to confirm power off. Press and hold the control button for 10 seconds (until blue light rapidly flashes) to enter Pairing mode. Open the Bluetooth menu on your smartphone or audio source, and search for available Bluetooth accessories. Select BluJax from the list, and select “connect”. When a successful connection has been established, the BluJax will confirm by glowing Blue. 3) Connect Plug the BluJax into the vehicle’s auxiliary audio input. The 3.5mm jack on the BluJax has been intentionally designed off-center so that it can be rotated to allow it to clear buttons or other obstructions located near your aux input. If simply rotating the BluJax is not allowing full insertion into the auxiliary input, we have provided a short extension cable which can be used to make the connection. Connect the extension cable between the BluJax and the Aux input. Operation When first returning to the vehicle, you will need to press the control button once on the BluJax to wake it up. Upon wake-up, the Blue light will blink three times, and the BluJax will automatically reconnect with the previously paired Bluetooth device, as long as it is in range. The BluJax will glow blue to confirm that it is reconnected to your device. Select the auxiliary audio input source on your radio to enjoy your music. 1) Control Streaming Music Playback Begin music playback from your paired Bluetooth device Press button once on the center of the BluJax to toggle Play / Pause of music playback Press button twice skips to the next track 2) Power On / Power Off To save battery life while not in use, simply press the control button for 3 seconds to turn off the BluJax. The red light will blink 3 times when turning off. When you are ready to use your BluJax, press the control button for 3 seconds to turn it on. The blue light will blink 3 times when turning on. 3) Power Save Mode If the paired Bluetooth device is out of range for 5 minutes, the BluJax will automatically go into sleep mode to preserve the battery power. When first returning to the vehicle, simply press the control button once on the BluJax to wake it up. 4) Battery Low Approximately 8 Hrs. of playback from the BluJax is expected on a single charge. When the BluJax battery is getting low, it will flash red. Please recharge BluJax soon. Tech Support: [email protected] 866-788-4237 WARNING: This equipment may be reset by unintentional electrostatic discharge during operation. Exposure to direct sunlight or extreme heat may cause damage or malfunction. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Re-orientate or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that of which the receiver is connected. 4. Consult the dealer or an experienced radio / television technical for help. Notice : The changes or modifications not expressly approved by the party responsible compliance could void the user authority to operate the equipment. BluJax Bluetooth connection for streaming your music wirelessly. The Built-in button provides wireless control of the paired Bluetooth device, providing the ability to play, pause, and skip tracks. IN-CAR CONNECTIVITY ISBT32

External Photos

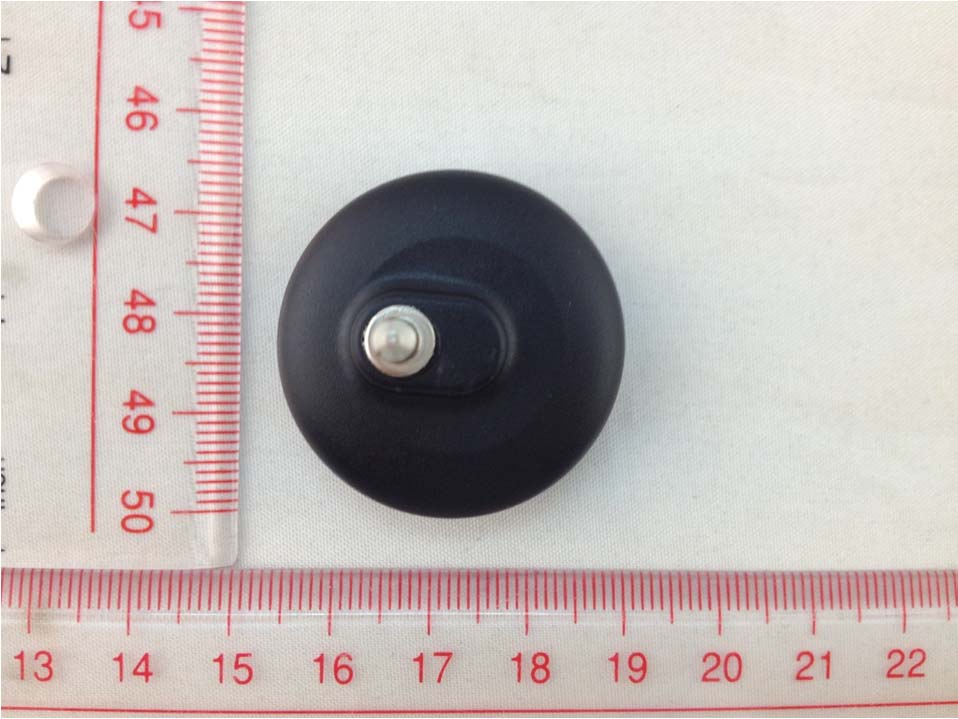

ANNEX C EUT PHOTOS C.1 Appearance of the EUT THE UP OF EUT (1) THE DOWN OF EUT (2) THE SIDE OF EUT (1) THE SIDE OF EUT (2) THE SIDE OF EUT (3) THE SIDE OF EUT (4)

ID Label/Location Info

Label and Label location: FCC ID

Internal Photos

C.2 Inside of the EUT EUT UNCOVER VIEW MAIN BOARD TOP VIEW 1 MAIN BOARD BACK VIEW 1 BATTERY

Test Report

Report No.: BL-SZ1470122-601 2 Revision History Version Issue Date Revisions Rev. 01 Sep 17, 2014 Initial Issue TABLE OF CONTENTS 1 ADMINISTRATIVE DATA (GENERAL INFORMATION) .......................................................................... 5 1.1 Identification of the Testing Laboratory .............................................................................................. 5 1.2 Identification of the Responsible Testing Location ............................................................................. 5 1.3 Test Environment Condition ............................................................................................................... 5 1.4 Announce ........................................................................................................................................... 6 2 PRODUCT INFORMATION ...................................................................................................................... 7 2.1 Applicant ............................................................................................................................................ 7 2.2 Manufacturer ...................................................................................................................................... 7 2.3 General Description for Equipment under Test (EUT) ....................................................................... 7 2.4 Technical Information ......................................................................................................................... 7 2.5 Ancillary Equipment ........................................................................................................................... 8 3 SUMMARY OF TEST RESULTS .............................................................................................................. 9 3.1 Test Standards ................................................................................................................................... 9 3.2 Verdict ................................................................................................................................................ 9 4 GENERAL TEST CONFIGURATIONS ................................................................................................... 10 4.1 Test Environments ........................................................................................................................... 10 4.2 Test Equipment List ......................................................................................................................... 10 4.3 Test Configurations .......................................................................................................................... 11 4.4 Description of Test Setup ................................................................................................................. 11 4.4.1 For Antenna Port Test ............................................................................................................... 11 4.4.2 For AC Power Supply Port Test ................................................................................................ 12 4.4.3 For Radiated Test (Below 30MHz) ............................................................................................ 12 4.4.4 For Radiated Test (30MHz-1GHz) ............................................................................................ 13 4.4.5 For Radiated Test (Above 1GHz) .............................................................................................. 13 4.5 Test Conditions ................................................................................................................................ 14 Report No.: BL-SZ1470122-601 3 TEST ITEMS ........................................................................................................................................... 15 5 5.1 Antenna Requirements .................................................................................................................... 15 5.1.1 Standard Applicable .................................................................................................................. 15 5.1.2 Antenna Anti-Replacement Construction .................................................................................. 15 5.1.3 Antenna Gain ............................................................................................................................ 15 5.2 Number of Hopping Frequency ........................................................................................................ 16 5.2.1 Limit ........................................................................................................................................... 16 5.2.2 Test Procedure .......................................................................................................................... 16 5.3 Peak Output Power .......................................................................................................................... 17 5.3.1 Test Limit ................................................................................................................................... 17 5.3.2 Test Procedure .......................................................................................................................... 17 5.4 Occupied Bandwidth ........................................................................................................................ 18 5.4.1 Limit ........................................................................................................................................... 18 5.4.2 Test Procedure .......................................................................................................................... 18 5.5 Carrier Frequency Separation .......................................................................................................... 19 5.5.1 Limit ...............................…

Text truncated - open the document above for the full version.

Test Setup Photos

ANNEX B TEST SETUP PHOTOS B.1 Conducted Test Photo B.2 Conducted Emissions Test Photo B.3 Radiated Test Photo Below 30MHz 30MHz to 1GHz Above 1GHz

Contact Information

Applicant

Aileen Alhambra
[email protected]9518989808Fax: 9518989972

Test Firm

Shenzhen BALUN Technology Co.,Ltd.Xuewen Wu
[email protected]86-755-66833404Fax: 86-755-61824271

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz5.14 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted.
