XEY-ZX-HVHigh Voltage Thermostat

VX3-HW-KT-W VX Series Wireless Energy Management Thermostat with an Occupancy Sensor and High Voltage HVAC Controller INSTALLATION MANUAL SEPTEMBER 2020 3 Table of Contents 1. Before You Begin ..................................................................................................6 1.1 Equipment Nomenclature ..................................................................................6 1.2 Installation Considerations .................................................................................7 1.3 Installation on a Bare Wall ...................................................................................8 1.4 Installation Using a Wall Plate .............................................................................9 2. Notice.................................................................................................................10 3. Network Installation ...........................................................................................11 3.1 Connecting the Antenna Module ......................................................................11 3.2 Connecting the Ethernet Cable .........................................................................12 3.3 Powering the Server .........................................................................................13 3.4 Configuring the Online Connection Kit .............................................................14 4. High Voltage HVAC Controller Installation ..........................................................15 5. Thermostat Installation ......................................................................................17 6. Thermostat Configuraton ...................................................................................18 6.1 Pairing an HVAC Controller to a Wireless Thermostat ........................................19 6.2 Accessing the Configuration Screen ..................................................................20 6.2.1 Setting the MESH ID ...........................................................................21 6.2.2 Entering the Room Number .................................................................22 6.2.3 Configuring the Equipment Type ........................................................23 6.2.4 Configuring Energy Savings Settings....................................................24 6.2.5 Setting the Thermostat Clock .............................................................25 6.3 Testing the Thermostats ...................................................................................26 6.4 Thermostat Maintenance .................................................................................27 7. Accessory Configuration .....................................................................................28 8.1 Accessing the Sensor Setup Menu.....................................................................28 8.2 Activating a Sensor ...........................................................................................29 8.3 Discovering a Sensor .........................................................................................30 8.4 Configure the Functionality of a Sensor ............................................................31 8.5 Completing the Sensor Setup ..........................................................................32 BLANK PAGE 45 Table of ContentsIntroduction Verdant VX Series Energy Management Thermostats deliver unprecedented energy savings without compromising the comfort of occupants. An Integrated occupancy sensor uses a combination of motion and thermal sensing technologies for accurate occupancy detection. Reliable occupancy detection allows for energy savings when rooms are unoccupied. Energy saving presets eliminate the guesswork and make it easy to adjust the energy saving settings. Fully configurable energy saving settings allow for customization of the thermostat energy saving settings to fit any situation. Comprehensive configuration options ensure full compatibility with virtually any existing or emerging HVAC system with up to 2 heat and 1 cool stages. Built-in wireless mesh-networking enables online management. 8. Troubleshooting .................................................................................................33 Error Codes ............................................................................................................33 Restoring Factory Settings ......................................................................................34 9. Warranty Information .........................................................................................37 10. Technical Specifications ....................................................................................40 THE THERMOSTAT’S OCCUPANCY SENSOR SHOULD FACE THE BED AREA OF THE ROOM OR THE AREA WHERE THE OCCUPANT WILL SPEND THE MOST TIME. THE THERMOSTAT MUST NOT BE INSTALLED IN THE VICINITY OF METAL STRUCTURES OR SURFACES INCLUDING METAL AIR DUCTING THAT MAY BE IN THE WALL. METAL STRUCTURES AND SURFACES SIGNIFICANTLY REDUCE THE RANGE OF THE WIRELESS SIGNAL. THE THERMOSTAT SHOULD NOT BE INSTALLED DIRECTLY ABOVE OR BELOW THE HVAC SYSTEM AS IT MAY CAUSE FALSE TEMPERATURE READINGS. PLEASE ENSURE THAT THE INSTALLATION RESPECTS THE LOCAL ELECTRICAL CODE. IF IN DOUBT, CONSULT A CERTIFIED ELECTRICIAN TO ENSURE YOUR INSTALLATION IS CODE COMPLIANT. 67 Before You Begin Equipment Nomenclature Before you begin installing Verdant equipment, we recommend you familiarize yourself with the various components that may be included in your shipment. Before You Begin Installation Considerations Selecting the appropriate installation location of the thermostat and any accessories is crucial to the proper operation of your Verdant energy management system. The following guidelines should be adhered to in all cases; VX ThermostatHVAC Controller Verdant VX Wall Plate Occupancy/Temperature Sensor (Optional) Door/Window Sensor (Opti…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: XEY-ZX-HV Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of information accompanying this application as outlined below: Exhibit Type Block diagram, Schematics, Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public, the public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jianan Cao

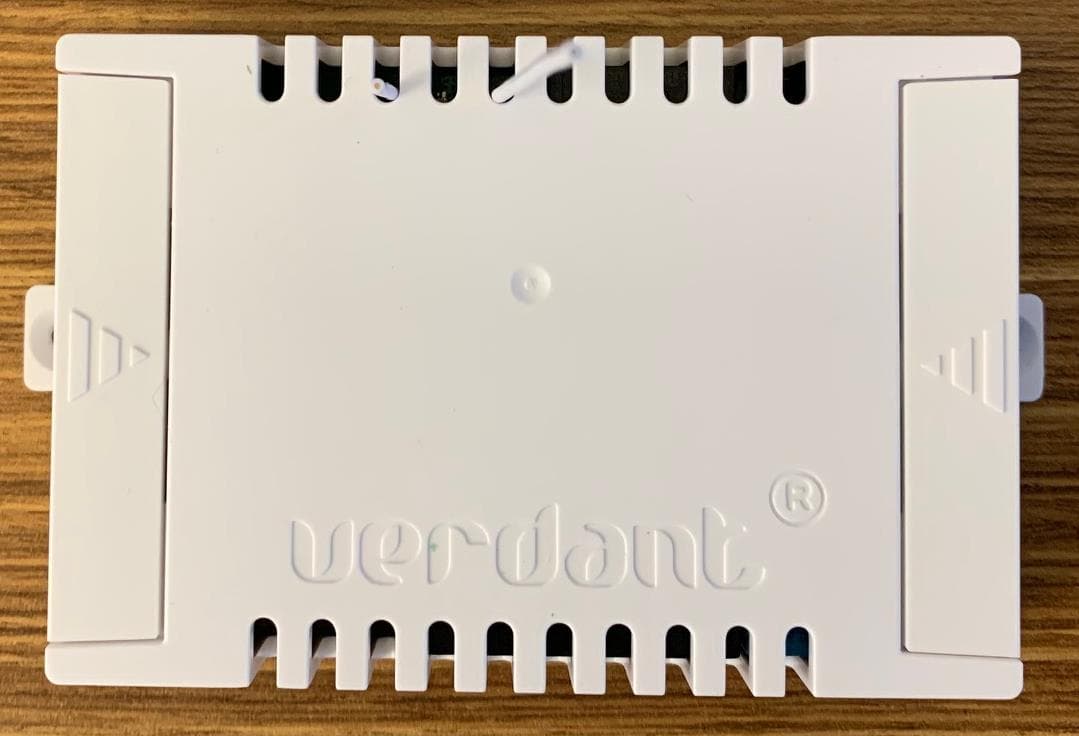

ZX-CC-HV External Photos:

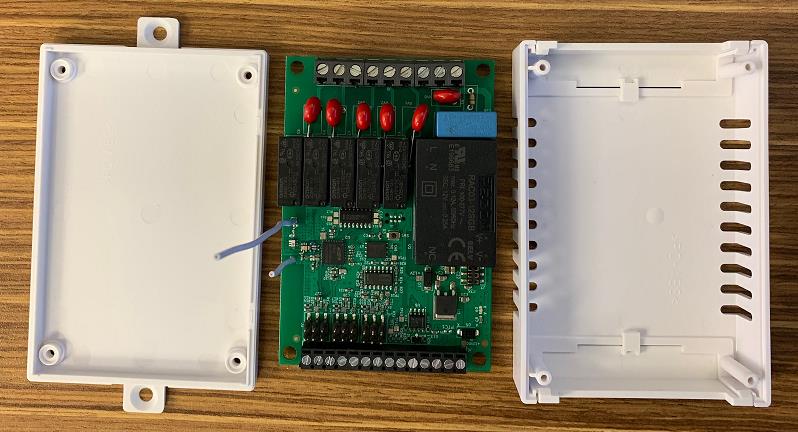

ZX-CC-HV Internal Photos:

© TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. May 22, 2020 FCC-XEY-ZX-HV_RF_Exposure Rev3 Exhibit: RF Exposure – FCC FCC ID: XEY-ZX-HV IC: 8410A-ZXHV © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. May 22, 2020 FCC-XEY-ZX-HV_RF_Exposure Rev3 1 Product High Voltage Thermostat Verdant Environmental Technologies Inc Client Standard(s) FCC Part 15 Subpart 15.247:2016 FCC KDB 447498:2015 SAR Calculations: 902.8 – 927.7 MHz FHSS transmitter The EUT contains a 902 MHz – 928MHz FHSS transmitters. The firmware guarantees simultaneous operation will not occur and therefore antenna co-location testing is not applicable. This device is designed to be operated handheld and for the purpose of demonstrating compliance with MPE requirements and SAR exemption; we present for a worst case 5mm distance and 100 % duty cycle. FCC Requirements: SAR test exclusion guidance As per FCC KDB 447498 D01 Section 4.3.1 a), the 1-g extremity SAR Test Exclusion Threshold for 100 MHz to 6 GHz at test separation distances ≤ 50 mm is determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 Performing the calculation, of the worst case mentioned above, using the maximum power measured of 4.64mW (see page Table 21 in TR-7169005898-FCC_ISED_XEYZX- HV_8401A-ZXHV.pdf) yields to: 4.64 5 ∙ √ 0.927525=0.89, 0.89 is below the 3.0 worst case limit, so this device complies with FCC requirements ISED Requirements: SAR test exclusion guidance As per Table 1 in RSS-102, Section 2.5.1 the interpolated limits between 835MHz (17mW) and 1900MHz (7mW) at 5mm (or less) is 16.37mW. The device is not head/body-worn therefore 2.5x16.37mW=40.93mW limit applies. The peak value of EIRP measurements (worst case scenario) was found 99.9dBμV/m at 3m distance, see for instance, page 95 in TR-7169005571-FCC_ISED_XEY-ZX- HV_8401A-ZXHV Rev1.pdf). Appling the conversion factor to convert to EIRP at 3m (95.2) yields to 99.9-95.2=4.7dBm or 3mW • 3mW is less than 40.93mW limit as per section 2.5.1 on RS-102, thus the device meets the exception rules. © TÜV SÜD Canada Inc. This test report shall not be reproduced except in full, without written approval of TÜV SÜD Canada Inc. May 22, 2020 FCC-XEY-ZX-HV_RF_Exposure Rev3 1 Product High Voltage Thermostat Verdant Environmental Technologies Inc Client Standard(s) FCC Part 15 Subpart 15.247:2016 FCC KDB 447498:2015 SAR Calculations: 2412 – 2462 MHz DTS transmitter FCC Requirements: SAR test exclusion guidance As per FCC KDB 447498 D01 Section 4.3.1 a), the 1-g extremity SAR Test Exclusion Threshold for 100 MHz to 6 GHz at test separation distances ≤ 50 mm is determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0. Performing the calculation, of the worst-case (at the antenna output) of 4.56mW (see page 50 on TR-7169005898-FCC_ISED_XEYZX-HV_8401A-ZXHV Rev1.pdf) yields to: 4.56 5 ∙ √ 2.402=1.41, 1.41 is below the 3.0 worst case limit, so this device complies with FCC requirements ISED Requirements: SAR test exclusion guidance As per Table 1 in RSS-102, Section 2.5.1 the power limit at 2450MHz at 5mm or less is 4mW. As per Table 1 in RSS-102, Section 2.5.1, the limit of 4.24mW has been calculated based on the interpolation between the limit of 1900MHz is 7mW and 2450MHz is 4mW at 5mm or less. The device is not head/body-worn therefore 2.5x4.24mW=11mW limit applies. This device has effective isotropic radiated power with a peak value of 101.3 dBμV/m i - 95.2 (factor to convert to EIRP at 3 meters) of 6.1dBm, or 4.1mW. • 1.51mW is less than 11mW limit as per section 2.5.1 on RS-102, thus the device meets the SAR exclusion criterion. i See in page 96 in TR-7169005898-FCC_ISED_XEYZX-HV_8401A-ZXHV Rev2.pdf

TÜV SÜD Product Service is a trading name of TUV SUD Ltd 2972 Joseph-A-Bombardier Laval, QC H7P 6E3 Canada TUV SUD Ltd is a TÜV SÜD Group Company Phone: +450-687-4976 www.tuv-sud.ca TÜV SÜD Product Service RESPONSIBLE FOR NAME DATE SIGNATURE Test Specialist Jose Martinez 12-09-2019 Authorised Signatory Scott Drysdale 12-09-2019 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules. EXECUTIVE SUMMARY A sample of this product was tested and found to be in compliance with FCC Part 15.247 Subpart C/ ICES 003 Issue 6 and RSS- 247 Issue 2. A2LA Cert. No. 2955.20 DISCLAIMER AND COPYRIGHT This non-binding report has been prepared by TÜV SÜD Canada with all reasonable skill and care. The document is confidential to the potential Client and TÜV SÜD Canada. No part of this document may be reproduced without the prior written approval of TÜV SÜD Canada. © TÜV SÜD. ACCREDITATION Our A2LA Accreditation does not cover opinions and interpretations and any expressed are outside the scope of our A2LA Accreditation. FCC/ISED RF Test Report As per RSS-247 Issue 2 FCC Part 15.247 Subpart C Unlicensed Intentional Radiators (FHSS) ZX High Voltage IC:8410A-ZXHV; FCC ID: XEY-ZX-HV Prepared to: Verdant. Environmental Technologies, Inc. 1850 – 55 th Avenue, Lachine, Quebec, H8T 3J5 CANADA Verdant Environmental Technologies, Inc.. Document Number: TR-7169005898-FCC- ISED_XEYZX-HV Rev2 ZX High Voltage Thermostat COMMERCIAL-IN-CONFIDENCE No part of this document may be reproduced without the prior written approval of TÜV SÜD Canada. © TÜV SÜD. Page 2 of 113 Contents 1 Report Summary .........................................................................................................................8 2 Introduction .................................................................................................................................9 3 EUT: ZX HIGH VOLTAGE ......................................................................................................... 15 3.1 Radio Specifications: .................................................................................................................. 15 3.2 Frequency Specifications: .......................................................................................................... 16 3.3 Modes of Operation .................................................................................................................... 17 3.4 Setup Diagram ........................................................................................................................... 18 4 Deviations from the Standard ................................................................................................. 19 5 Measurement Uncertainty ....................................................................................................... 19 6 99% Bandwidth ......................................................................................................................... 20 6.1 Purpose & Methods .................................................................................................................... 20 6.2 Test Specifications ..................................................................................................................... 20 6.3 Test Results ............................................................................................................................... 21 6.4 Graphs ........................................................................................................................................ 22 6.5 Test Setup .................................................................................................................................. 28 6.6 Test Instruments ......................................................................................................................... 28 7 6dB Bandwidth of Digitally Modulated Systems ................................................................... 29 7.1 Purpose & Methods .................................................................................................................... 29 7.2 Test Specifications ..................................................................................................................... 30 7.3 Test Setup .................................................................................................................................. 31 7.4 Test Results ............................................................................................................................... 31 7.5 Graphs ........................................................................................................................................ 31 7.6 Test Instruments ......................................................................................................................... 35 8 Hopping Channel ...................................................................................................................... 36 8.1 Purpose & Methods .................................................................................................................... 36 8.2 Test Specifications ..................................................................................................................... 36 8.3 Limits .......................................................................................................................................... 37 8.4 Test Results ............................................................................................................................... 37 8.5 Graphs ........................................................................................................................................ 38 8.6 Test Instruments ......................................................................................................................... 39 9 Channel Separation...............................…
