XFIPORT11VER1Personal Occupant Requirement Terminal PORT1.1

TFT LCD 800 x 480 7” + Touch Screen Digital RGB Touch LED Back light CPU ARM9 200 Mhz 10Mhz 24V DC 48VDC PoE USB PicoRead 13.56 Mhz 16 Mhz CPU ATMEL 90USB1286 PIR DET LED RGB PoE 3V3 5V Data Flash SPI Flash RAM Audio AMP Security Chip I2C DM9000 25Mhz Block schematics PORT1.1. Electronics LEP1 PCB NFCUSB1 PCB

Schindler Elevators Ltd Switzerland Schindler Elevators Ltd. Zugerstrasse 13 CH-6030 Ebikon Schweiz Tel. +41 41 445 31 31 Fax +41 41 445 39 11 www.schindler.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Schindler Elevators Ltd would like the following documents regarding this submission for FCC ID: XFIPORT11VER1 to be kept confidential. 1. Document:LEP1.CP3 schmatics 2. Document: LEP1.CP3 Gerber files 3. Document: NFCUSB1 schematics The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Schindler Elevators Ltd. Dennys Taiana Ebikon, 03. May 2010

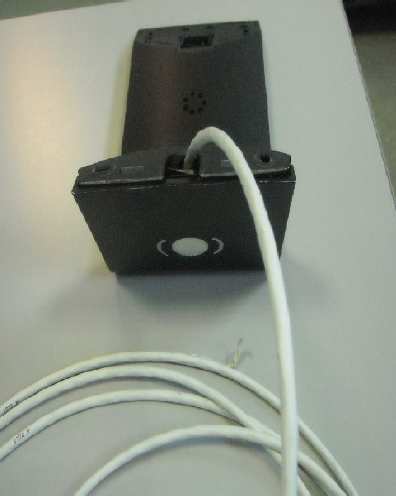

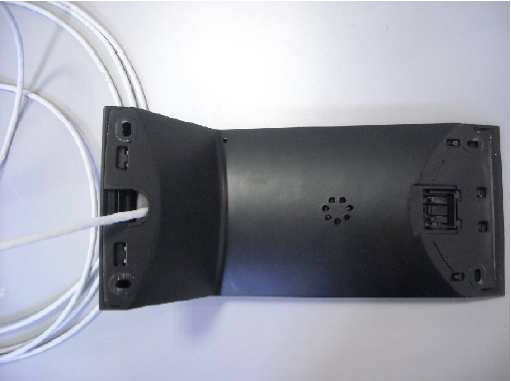

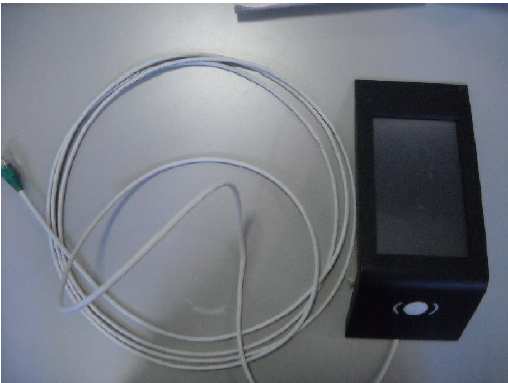

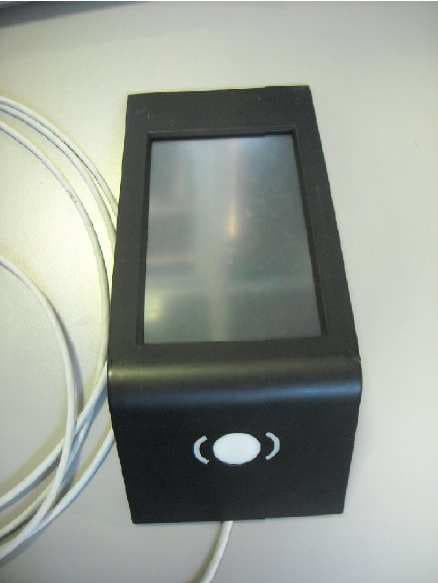

EXTERNAL PHOTOS front Rear front rear

PORT1.1 Id. Nr. 59900800 - customized color Id. Nr. 59900802 – Pearl white Id. Nr. 59900803 – Silver Gray Id. Nr. 59900804 – Black matt Power supply PoE In: 48VDC/5W Aux IN: 24VDC/5W 0051 FCC ID: XFIPORT11VER1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

INTERNAL PHOTOS

1 Introduction This document is a general description of the PORT device; type PORT 1.1. (PORT: Personal Occupant Requirement Terminal) 1.1 Application When you are committed to providing continuous service to a building's occupants as they go about their business, it is essential to have a consistent method of communicating with them. The extraordinary new PORT system can provide a whole range of command and communication functions from a wide variety of locations. Functions that utilize a standard hardware design which is as reliable as it is elegant and which can be easily customized to suit the most demanding architectural specifications. 1.2 Features The PORT features a brilliant, crisp, color touch screen which is dynamically reconfigurable to suit the situation. The screen adjusts automatically to different ambient light levels and the on-board people detector ensures that when it is not needed it is turned off to save energy. The PORT also incorporates a card reader with a highly-attractive illumination system to communicate status. 1.3 Functionalities The PORT device is used to control domotic system in a group or not. The system is used to get domotic system call from the user an then it dispatches them to get the most efficient domotic system to the user. It means the system is used to optimize the domotic system traffic. The system is also used, together with the domotic system, to give access to the building or building floor. In few words, the PORT is a user interface for the domotic system and access control build in a new technology way that use touch screen, Color display and identification over Card reader.

SETUP PHOTOS Test 5-30MHz 30-216MHz 216-1000MHz
