XFU-18541001EI.mesh ISA100 Sensor Interface Module/Repeater

Part Number 185302-01 Rev. D (04/12) Bently Nevada* Asset Condition Monitoring Installation and Maintenance Essential Insight.mesh * Wireless System Essential Insight.mesh Installation and Maintenance Manual ii © 2009-2012 Bently Nevada, Inc. All rights reserved. The information contained in this document is subject to change without notice. * Denotes trademark of Bently Nevada, Inc., a wholly owned subsidiary of General Electric Company. Bently Nevada, Essential Insight.mesh, System 1, Trendmaster, wSIM The following are trademarks of the legal entities cited: Unistrut ® is a registered trademark of Unistrut International Corporation in the United States and/or other countries. Printed in USA. Uncontrolled when transmitted electronically Contact Information The following contact information is provided for those times when the local representative cannot be contacted: Mailing Address 1631 Bently Parkway South Minden, Nevada USA 89423 USA Telephone 1.775.782.3611 1.800.227.5514 Fax 1.775.215.2873 Internet http://www.ge-msc.com/bently Essential Insight.mesh Installation and Maintenance Manual iii Additional Information Notice: This manual does not contain all the information required to operate and maintain the product. Refer to the following manuals for other required information. 200150, 200155, and 200157 Accelerometer Installation Guide (Part Number 164985-01) 200125 Trendmaster* 2000 Thermocouple (Part Number 149558-01) ISA100 Gateway Manufacturer Manual (as applicable) Product Disposal Statement Customers and third parties, who are not member states of the European Union, who are in control of the product at the end of its life or at the end of its use, are solely responsible for the proper disposal of the product. No person, firm, corporation, association or agency that is in control of product shall dispose of it in a manner that is in violation of any applicable federal, state, local or international law. Bently Nevada, Inc. is not responsible for the disposal of the product at the end of its life or at the end of its use. Essential Insight.mesh Installation and Maintenance Manual iv Contents 1. Introduction ...................................................... 7 2. Components ...................................................... 9 2.1 Wireless Sensor Interface Module Devices (wSIM Devices) ......................................................................................................... 9 2.2 Repeater ...................................................................................... 13 2.3 Manager Gateway .................................................................. 16 2.3.1 ISA100 Gateway ............................................................ 16 2.3.2 BN Protocol Manager Gateway .............................. 17 2.4 Power Modules ......................................................................... 20 2.4.1 Battery Power Modules .............................................. 20 2.4.2 External Power Module for Safe Areas ............... 22 2.5 Energy Harvesters .................................................................. 23 2.5.1 Vibration Energy Harvesters .................................... 23 2.6 Transducers ............................................................................... 24 2.7 Cables and Connectors ........................................................ 25 2.8 Mounting Hardware .............................................................. 26 3. Planning Network Installation .................... 29 3.1 Designing the Layout ............................................................ 33 4. Commissioning/Provisioning ...................... 35 4.1 Commissioning BN Protocol Devices ............................. 35 4.1.1 Attach Power Modules to wSIM Devices and Repeaters .............................................................................................. 35 4.1.2 Setup the Manager Gateway .................................. 36 4.1.3 Configure the Network ID ......................................... 38 4.1.4 Configure the Join Key ............................................... 39 4.1.5 Commission wSIM Devices and Repeaters ....... 40 4.1.6 Verify Operation ............................................................. 43 4.2 Provisioning ISA100 Devices .............................................. 43 Essential Insight.mesh Installation and Maintenance Manual v 5. Installing Hardware ...................................... 45 5.1 Installing the Manager Gateway ..................................... 45 5.1.1 Rack-Mount Manager Gateway ............................ 46 5.1.2 ISA100 Manager Gateway ........................................ 47 5.2 Installing a wSIM Device or Repeater ............................ 48 5.2.1 Choosing a Mounting Location .............................. 48 5.2.2 Mount a wSIM Device or Repeater ....................... 50 5.2.3 Mount a node to a Hex Mounting Base ............. 54 5.2.4 Connecting Transducers to wSIM Devices ....... 55 5.2.5 Transducer Field Termination ................................. 56 5.3 Installing a Vibration Energy Harvester ....................... 57 5.3.1 Finding the Right Location ....................................... 57 5.3.2 Mounting a Vibration Energy Harvester ............ 58 5.3.3 Connecting to a wSIM Device or Repeater ....... 58 6. Configuring Essential Insight.mesh in System 1 Software ................................................... 61 6.1 Configure the Plant Network ............................................. 61 6.1.1 BN Protocol ...................................................................... 61 6.1.2 ISA100 Protocol ............................................................. 62 6.2 Configure Essential Insight.mesh Network ................. 62 6.3 Data collection considerations ......................................... 64 6.3.1 Static Data ....................................................................... 64 6.3.2 Fast Static Data .................…

Text truncated - open the document above for the full version.

Page 1 of 8 Report No: 92719-13A RADIO FREQUENCY ADDENDUM EXPOSURE REPORT TO 92719-13 FOR THE Device: EI.mesh ISA100a Repeater, Model: 185450-01 & Device: EI.mesh ISA100a wSIM, Model: 185410-01 Report No.: 92719-13A Date of issue: July 25, 2012 PREPARED FOR: Bently Nevada, Inc. 1631 Bently Parkway South Minden NV 89423 PREPARED BY: Chuck Kendall CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Page 2 of 8 Report No: 92719-13A Purpose: To demonstrate compliance with United States, Canada and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) or Mobile equipment (devices used >20cm from the body) with power output below exemption levels and Mobile equipment, where Maximum Permissible Exposure (MPE) Calculations apply. Addendum A: To correct the previously reported power output levels and redo the calculations. United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5.0 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100,000 --- --- 1.0 30 * Plane wave equivalent power density Limit is calculated based on the mid-band frequency used in the operating frequency range. Exemption Level: Power output <60/f GHz (mW) Page 3 of 8 Report No: 92719-13A Canadian Compliance Requirements (RSS-102): Exemption Level: Frequency Range (MHz) Maximum Output Power (Conducted or EIRP) 0.003-1000 ≤ 200 mW 1000-2200 ≤ 100 mW 2200-3000 ≤ 20 mW 3000-6000 ≤ 10 mW Page 4 of 8 Report No: 92719-13A European Union Compliance Requirements (ICNIRP): RF Exposure Evaluation Limits Occupational / Controlled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.00082-0.065 610 24.4 --- 6 0.065-1.0 610 1.6/f --- 1.0-10 610/f 1.6/f --- 6 10-400 61 0.16 10 6 400-2000 3.0 * f 0.5 0.008 * f 0.5 f/40 6 2000-300,000 137 0.36 50 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-0.150 87 5.0 --- 6 0.150-1.0 87 0.73/f -- 6 1.0-10 87/f 0.5 0.73/f --- 6 10-400 28 0.073 2 6 400-2000 1.375 f 0.5 0.0037*f 0.5 f/200 6 2000-300,000 61 0.16 10 6 *Power density limit applicable >100MHz Exemption Level: Power output < 20mW 1 _________________________ 1 May vary by product type Page 5 of 8 Report No: 92719-13A Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65 & ANSI C95.1 for the US and Health Canada Safety Code 6 & RSS 102 for Canada. Other Considerations: None or Delete “none & Insert specific Page 6 of 8 Report No: 92719-13A MPE Calculations Applicability: Limit Used X General Population / Uncontrolled Exposure Occupational / Controlled Exposure RF Exposure Exemption No United States No Canada Yes Europe Equipment operational details: Config # Operating Frequency (MHz) Measured Output Power (dBm) Antenna Gain (dBi) Antenna Type / Configuration EIRP (dBm) 1 2400-2483.5 15.447 1.414 Integral 16.86 Measurements based from EMC Test Report(s): 92719-12 MPE Calculation: 2 4d EIRP DensityPower   Given: EIRP in mW or W and d in cm or m Config # Distance (cm) US (1.1310) Canada (RSS-102) EU (ICNIRP) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) 1 20 0.01 1.0 0.10 -- Exempt -- Page 7 of 8 Report No: 92719-13A Summary: Exemptions: In the case the equipment meets compliance requirements by exemption the product is approved for use under mobile or portable conditions without further testing under the condition that any additional collocation or simultaneous transmission requirements (including necessary separation distances) have been met. MPE Calculation Results: In the case the equipment meets compliance by MPE Calculations the product is approved for use under mobile conditions without further testing under the condition that any additional collocation or simultaneous transmission requirements (including necessary separation distances) have been met. It is assumed that the manufacturer shall design the equipment such that the minimum separation distance of 20cm (or greater, as listed above) is met or that the manufacturer provides a protection guide (or installation instructions) to the end user such that the antenna(s) may be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. The Absorption and distribution of Electromagnetic energy in the body is a very complex phenomena that depends on the mass, shape and physiological condition of the body; the orientation of the body with respect to the fields; and, the electrical properties of the body and the environment. Variables that may play a substantial role in possible biological effects are those that characterize the environment (including but not limited to: ambient temperature, air velocity, relative humidity and body insulation); and those that characterize the individual (including but not limited to: age, gender, activity level and existing debilitation or disease). Because innumerable factors may interact to determine specific biological effects of exposure to electromagnetic …

Text truncated - open the document above for the full version.

This report contains a total of 61 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Bently Nevada, Inc. ADDENDUM TEST REPORT TO 92719-12A EI.mesh ISA100a wSIM, 185410-01 EI.mesh ISA100a Repeater, 185450-01 Tested To The Following Standards: FCC Part 15 Subpart C Sections 15.207, 15.209, 15.247 and RSS 210 Issue 8 Report No.: 92719-12B Date of issue: July 25, 2012 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 61 Report No.: 92719-12B TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15 Subpart C ................................................................................................................................... 8 15.207 AC Conducted Emissions ................................................................................................................................ 8 15.209 Radiated Emissions ...................................................................................................................................... 16 15.247(b)(3) RF Power Output ................................................................................................................................ 32 -6dBc Occupied Bandwidth ..................................................................................................................................... 36 15.247(d) Bandedge ................................................................................................................................................ 41 15.247(e) Power Spectral Density ........................................................................................................................... 48 RSS-210 ....................................................................................................................................................... 55 99 % Bandwidth ....................................................................................................................................................... 55 Supplemental Information .......................................................................................................................... 60 Measurement Uncertainty ...................................................................................................................................... 60 Emissions Test Details .............................................................................................................................................. 60 Page 3 of 61 Report No.: 92719-12B ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Bently Nevada, Inc. 1631 Bently Parkway South Minden, NV 89423 Joyce Walker CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Dwayne Folden Project Number: 92719 DATE OF EQUIPMENT RECEIPT: February 6, 2012 DATE(S) OF TESTING: February 6-18, 2012 Revision History Original: Testing of the EI.mesh ISA100a wSIM, 185410-01 and EI.mesh ISA100a Repeater, 185450-01 to FCC Part 15 Subpart C Sections 15.207, 15.209, 15.247 and RSS-210 Issue 8. Addendum A: Replaced data in -6dBc Occupied Bandwidth, Bandedge and PSD with corrected data. Addendum B: Replaced data in the Power Output and PSD with corrected data. Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 61 Report No.: 92719-12B Test Facility Informa…

Text truncated - open the document above for the full version.

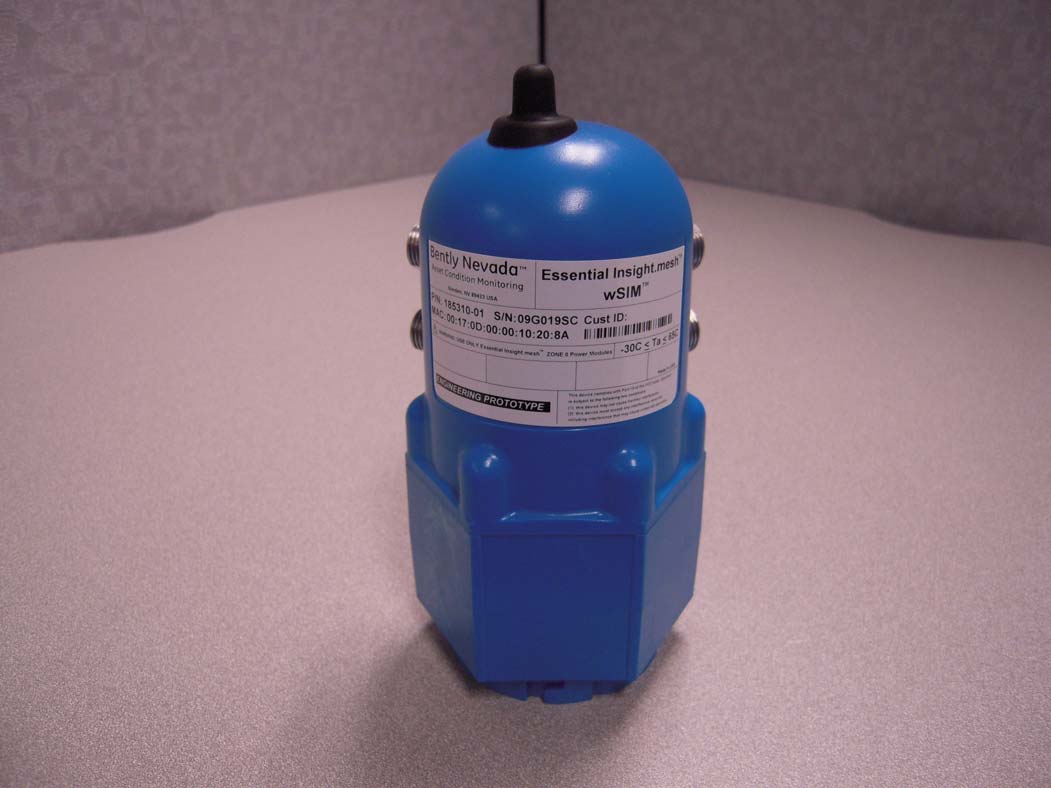

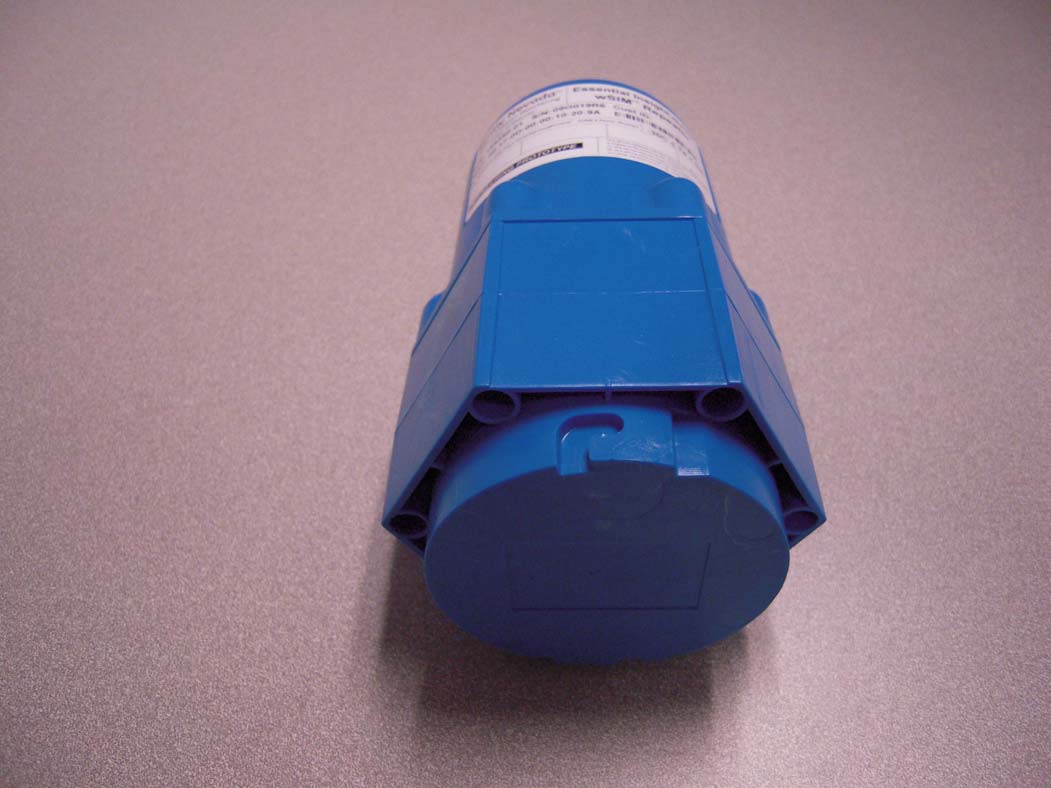

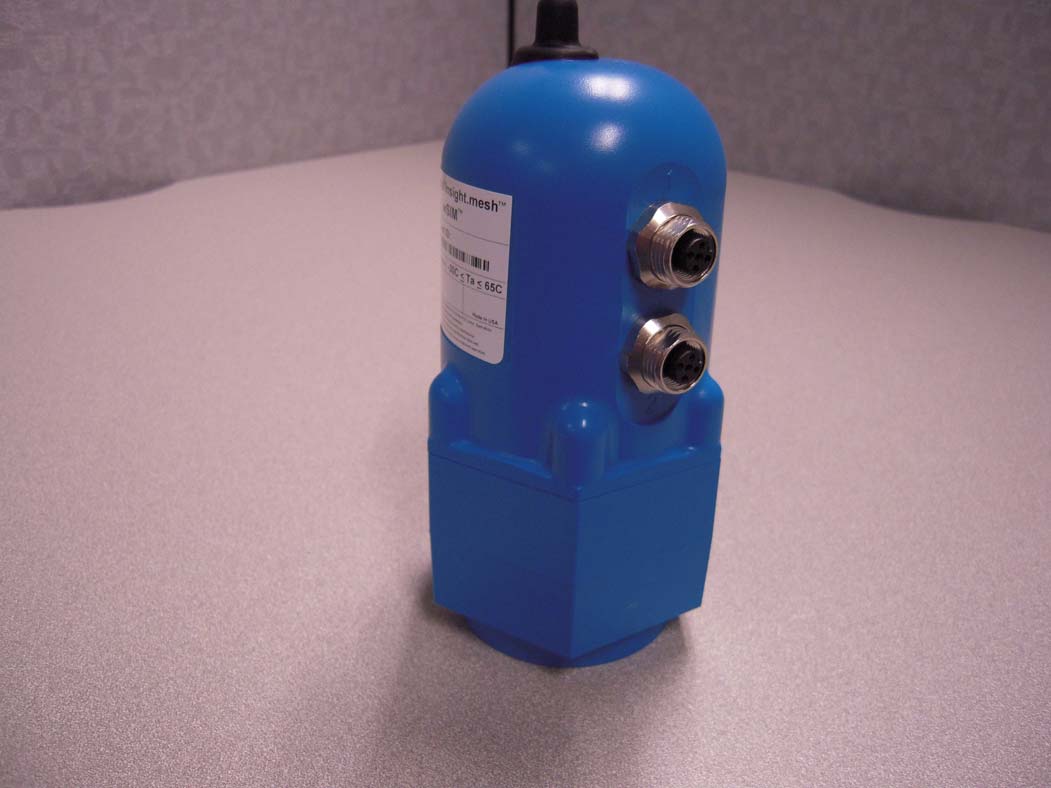

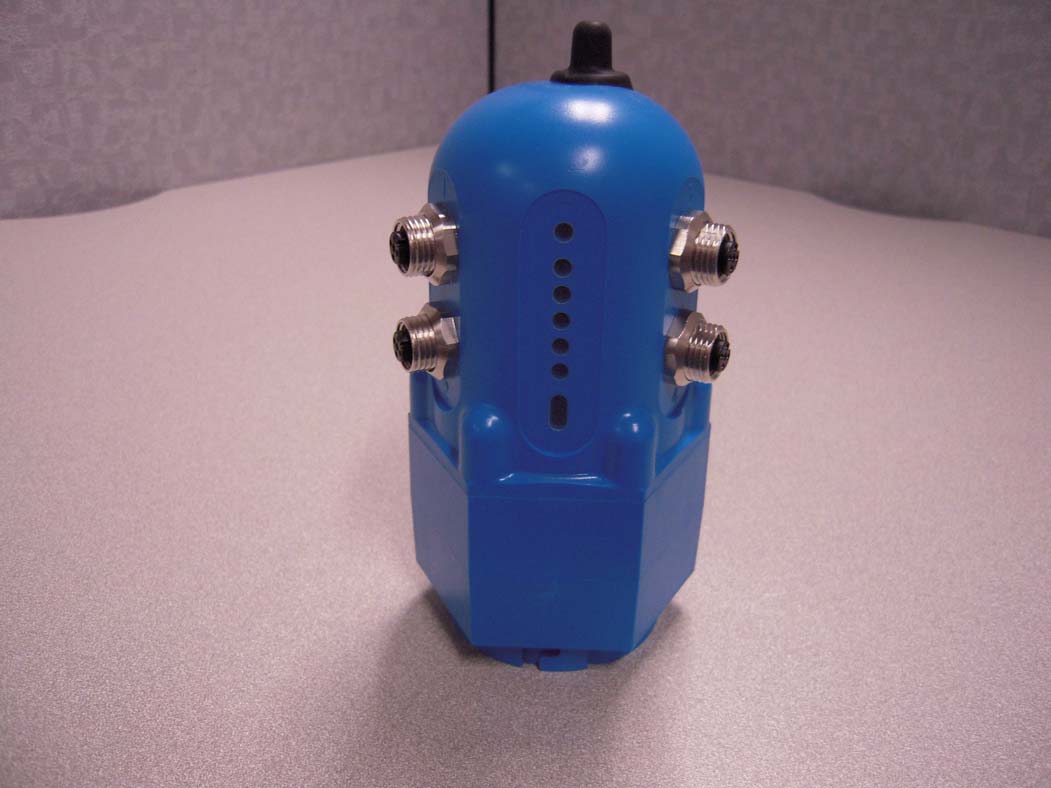

REPEATER LOW FREQUENCY FRONT VIEW REPEATER LOW FREQUENCY BACK VIEW REPEATER HIGH FREQUENCY FRONT VIEW REPEATER HIGH FREQUENCY BACK VIEW wSIM LOW FREQUENCY FRONT VIEW wSIM LOW FREQUENCY BACK VIEW wSIM HIGH FREQUENCY FRONT VIEW wSIM HIGH FREQUENCY BACK VIEW
