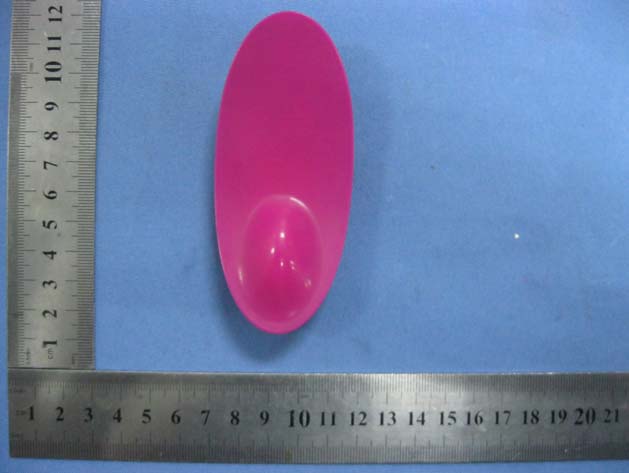

XG5ROB1011CLUB VIBE

Receiver design scheme Receiver USB charging port On/off switch Internal receiving antenna Logic Block Diagram Receiving antenna RF radio frequency receive and enlarge, signal demodulation and module process. Power and filter Drive control Status direction Motor Signal gating and receive loop Charging and interface circuit MCU Main control cell Button circuit Rechargeable battery Date signal 6.7458M quartz crystal oscillator Detect & protect Principle of operation • This product use 433.92MHZ high-frequency RB technology scheme. The electrocircuit inclu de receiving antenna LC resonance, radio frequency amplification frequ ency selection and demodulation, motor drive and control, Button ci rcuit, Status direction and power charging and voltage stabilizing circuit. • The transmitter send to wireless high frequency signal, and receive by receiving antenna. By LC resonance from frequency-selecting to radio frequency receive module, th is module will demodulate and enlarge the selected coded signal and convert to date signal which from the radio frequency module output to MCU. The MCU will decode and identify the date sign al, and then make the pulse instruction output to servo control ci rcuit, which to control the motor working. Hereby achieve the wire less control with various pulse mode. Electrical Specification • Power supply ： lithium cell 3.7V DC • Transmit range ： -70DB • Charging ： 2-3 hours • FCC Statement • 1. This device complies with Part 15 of the F CC Rules. Operation is subject to the following • two conditions: • (1) This device may not cause harmful interference, and • (2) This device must accept any interferen ce received, including i nterference that may • cause undesired operation. • 2. Changes or modifications no t expressly approved by the party responsible for compliance • could void the user’s author ity to operate the equipment. • Federal Communications Commission (FCC) Statement • This equipment has been tested. And it found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are des igned to provide reasonabl e protection against harmful interference in a residential installation. This equipment genera tes and uses and radi ates radio frequency energy and, if not installed and used in accordance wit h the instruction, may cause harmful interference to radio communications. However, there is no guarantee that in terference will not occur in a particular installation . If this equipment does cause harmful interference to radio or television reception, which can be de termined by tu rning the eq uipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • - Reorient or relocate the receiving antenna. • - Increase the separation betwe en the equipment and receiver. • - Connect the equipment into an outlet on a circuit di fferent from that to which the receiver is connected • - Consult the dealer or an experienced radio /TV technician for help. • Warning: A shielded-type power cord is required in orde r to meet FCC emission lim its and also to prevent interference to the nearby ra dio and television reception. It is essential th at only the supplied power cord be used.

Logic Block Diagram Receiving antenna RF radio frequency receive and enlarge, signal demodulation and module process. Power and filter Drive control Status direction Motor Signal gating and receive loop Charging and interface circuit MCU Main control cell Button circuit Rechargeable battery Date signal 6.7458M quartz crystal oscillator Detect & protect

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Revised wording (current) 1.0 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. August 11, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (CLUB VIBE) We affirm that between SIEMIC and ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. NO. 35 FIRST ROAD, ZHUHAI BAIJAO NEW TECHNOLOGICAL& INDUSTRIAL PARK, ZHUHAICITY, GUANGDONG PROVINCE, CHINA

2206 Ringwood Avenue, San Jose, CA 95131, USA Tel: +1(408) 526 1188, Fax: +1(408) 526 1088, Email: [email protected], URL: www.siemic.com August 30, 2011 To: FCC From: SIEMIC, INC. RE: Applicant: ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD., FCC ID: XG5ROB1011, Request for supercede of FCC label and FCC label location. Per customer’s request, FCC label and FCC label Location have wrong FCC ID, therefore, we are asking to kindly replace the FCC label and FCC label Location documents. , Thank you, Choon Sian Ooi SIEMIC, INC. 2206 Ringwood Ave., San Jose, CA 95131 Tel: 408-526-1188 Ext 209 Fax: 408-526-1088

FCC Label : FCC ID: XG5ROB1011

FCC Label Location

Principle of operation • This product use 433.92MHZ high-frequency RB technology scheme. The electrocircuit include receiving antenna LC resonance, radio frequency amplification frequency selection and demodulation, motor drive and control, Button circuit, Status direction and power charging and voltage stabilizing circuit. • The transmitter send to wireless high frequency signal, and receive by receiving antenna. By LC resonance from frequency-selecting to radio frequency receive module, this module will demodulate and enlarge the selected coded signal and convert to date signal which from the radio frequency module output to MCU. The MCU will decode and identify the date signal, and then make the pulse instruction output to servo control circuit, which to control the motor working. Hereby achieve the wireless control with various pulse mode.

1 1 2 2 3 3 4 4 DD CC BB AA Title NumberRevisionSize A4 Date:2011-7-25Sheet of File:D:\\..\.SCHDrawn By: R3 47R LED 12345 usb p- p+ D1 IN4148 1 2 3 45 6 7 8 U1 RL433 L1 22nH C1 5.6pF C2 2.7pF L2 18nH ANT1 C5 0.47UF C4 100PF C3 104 DO C6 1UF Y1 6.7458M L3 102 L4 102 Vdd shut R1 1K A - + MOTOR Q1 882 D2 IN4148 BT1 Vdd C7 104 E1 100U C8 104 Vbat C9 104 1 2 3 45 6 7 8 U2 ACM3916R Vdd DO shut Vin 2 GND 1 Vout 3 U3HT7133 SW R5 100K Vdd R4 100K ch+ ch+ P0ANT101 P0BT101 P0BT102 P0C101 P0C102 P0C201 P0C202 P0C301 P0C302 P0C401 P0C402 P0C501 P0C502 P0C601 P0C602 P0C701 P0C702 P0C801 P0C802 P0C901 P0C902 P0D101 P0D102 P0D201 P0D202 P0E101 P0E102 P0L101 P0L102 P0L201 P0L202 P0L301 P0L302 P0L401 P0L402 P0LED01 P0LED02 P0MOTOR01 P0MOTOR02 P0Q101 P0Q102 P0Q103 P0R101 P0R102 P0R301 P0R302 P0R401 P0R402 P0R501 P0R502 P0SW01 P0SW02 P0U101 P0U102 P0U103 P0U104 P0U105 P0U106 P0U107 P0U108 P0U201 P0U202 P0U203 P0U204 P0U205 P0U206 P0U207 P0U208 P0U301 P0U302 P0U303 P0usb01 P0usb02 P0usb03 P0usb04 P0usb05 P0Y101 P0Y102 P0L401 P0C102 P0C302 P0C402 P0C502 P0C602 P0L102 P0L202 P0L402 P0R401 P0SW02 P0U101 P0Y101 P0BT102 P0C702 P0C802 P0E102 P0LED02 P0Q103 P0U208 P0U301 P0usb05 P0ANT101 P0C101 P0C201 P0L101 P0C202 P0L201 P0U102 P0C301 P0C401 P0L302 P0U103 P0C501 P0U104 P0C601 P0U107 P0C902 P0D201 P0MOTOR02 P0Q102 P0D101 P0usb01 P0LED01 P0R301 P0Q101 P0R102 P0R101 P0U205 P0R302 P0U206 P0R501 P0SW01 P0U204 P0U105 P0U207 P0DO P0DO P0U106 P0U203 P0SHUT P0SHUT P0U108 P0Y102 P0usb02 P0usb03 P0usb04 N0P+ N0P0 P0BT101 P0C701 P0C901 P0D102 P0D202 P0MOTOR01 P0R402 P0U202 P0U302 N0VBAT P0CH+ P0CH+ P0C801 P0E101 P0L301 P0R502 P0U201 P0U303 P0CH+ P0SHUT P0DO P0L401 P0C102 P0C302 P0C402 P0C502 P0C602 P0L102 P0L202 P0L402 P0R401 P0SW02 P0U101 P0Y101 P0BT102 P0C702 P0C802 P0E102 P0LED02 P0Q103 P0U208 P0U301 P0usb05 P0ANT101 P0C101 P0C201 P0L101 P0C202 P0L201 P0U102 P0C301 P0C401 P0L302 P0U103 P0C501 P0U104 P0C601 P0U107 P0C902 P0D201 P0MOTOR02 P0Q102 P0D101 P0usb01 P0LED01 P0R301 P0Q101 P0R102 P0R101 P0U205 P0R302 P0U206 P0R501 P0SW01 P0U204 P0U105 P0U207 P0DO P0U106 P0U203 P0SHUT P0U108 P0Y102 P0usb02 P0usb03 P0usb04 N0P+ N0P0 N0VBAT P0BT101 P0C701 P0C901 P0D102 P0D202 P0MOTOR01 P0R402 P0U202 P0U302 P0CH+ P0C801 P0E101 P0L301 P0R502 P0U201 P0U303

Report No.: A001P110725006E-1 Shenzhen AOV Testing Technology Co., Ltd Page 1 of 11 FCC TEST REPORT Under FCC 15 Subpart B For ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. CLUB VIBE FCC ID : XG5ROB1011 Model No. : OB1011-01 Prepared for : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. NO. 35 FIRST ROAD, ZHUHAI BAIJAO NEW TECHNOLOGICAL & INDUSTRIAL PARK, ZHUHAI CITY. GUANGDONG PROVINCE, CHINA Prepared By : Shenzhen AOV Testing Technology Co., Ltd. 2-6/F, No.5, Yuantou lane, Tanglang, Taoyuan Street, Nanshan District, Shenzhen, Guangdong, China Tel : (86) 755-86008000 Fax : (86) 755-86008282 Report No. : A001P110725006E-1 Date of Test : August 05-10, 2011 Date of Rep. : August 10, 2011 Report No.: A001P110725006E-1 Shenzhen AOV Testing Technology Co., Ltd Page 2 of 11 TABLE OF CONTENTS Description Page Test Report Declaration 1. GENERAL INFORMATION...................................................................................................... 4 1.1. Description of Device (EUT)........................................................................................................... 4 1.2. Test Summary................................................................................................错误！未定义书签。 1.3. Test Facility....................................................................................................................................... 5 1.4. Uncertainty........................................................................................................................................ 5 2. POWER LINE CONDUCTED EMISSION TEST............................................................6 2.1. Test Equipment................................................................................................................................6 2.2. Block Diagram of Test Setup......................................................................................................... 6 2.3. Power Line Conducted Emission Limit......................................................................................... 6 2.4. EUT Configuration on Test............................................................................................................. 6 2.5. Operating Condition of EUT........................................................................................................... 7 2.6. Test Procedure................................................................................................................................. 7 2.7. Power Line Conducted Emission Test Results........................................................................... 7 3. RADIATED EMISSION TEST.................................................................................................. 8 3.1. Test Equipment................................................................................................................................8 3.2. Block Diagram of Test Setup......................................................................................................... 8 3.3. Radiation Limit.................................................................................................................................. 9 3.4. EUT Configuration on Test............................................................................................................. 9 3.5. Operating Condition of the EUT.................................................................................................... 9 3.6. Test Procedure...............................................................................................................................10 3.7. Radiated Emission Test Result................................................................................................... 10 4. PHOTOGRAPHS OF TEST SETUP..................................................................................... 11 4.1 . Photo of Power Line Conducted Emission Test ............................................................... 11 4.2. Photo of Radiated Emission Test................................................................................................ 11 APPENDIX I ----------- Power Line Conduction Emission Test Data APPENDIX II ------------ Radiated Emission Test Data Report No.: A001P110725006E-1 Shenzhen AOV Testing Technology Co., Ltd Page 3 of 11 TEST REPORT DECLARATION Applicant : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. Manufacturer : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. EUT Description : CLUB VIBE (A) Model No. : OB1011-01 (B) Serial No. : N/A (C) Power Supply: DC 3.7V Test Procedure Used: FCC Rules and Regulations Part 15 Subpart B. The device described above has been tested by Shenzhen AOV Testing Technology Co., Ltd to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B Class B limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen AOV Testing Technology Co., Ltd is assumed of full responsibility for the accuracy and completeness of these tests. Also, this report shows that the EUT (Equipment under Test) is complies with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen AOV Testing Technology Co., Ltd. Date of Test: August 05-10, 2011 Prepared by: Yang Tun Bo, Kingsley Project Engineer Reviewed by: Chen Chu Peng, Kait Project Supervisor Approved by: Lv Jie Hua, Jeewah Technical Director Report No.: A001P110725006E-1 Shenzhen AOV Testing Technology Co., Ltd Page 4 of 11 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description : CLUB VIBE Model No. : OB1011-01 Applicant : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFACTURING CO., LTD. NO. 35 FIRST ROAD, ZHUHAI BAIJAO NEW TECHNOLOGICAL & INDUSTRIAL PARK, ZHUHAI CITY. GUANGDONG PROVINCE, CHINA Manufacturer : ZHUHAI WINGPOW EROTIC & NOVELTY MANUFAC…
