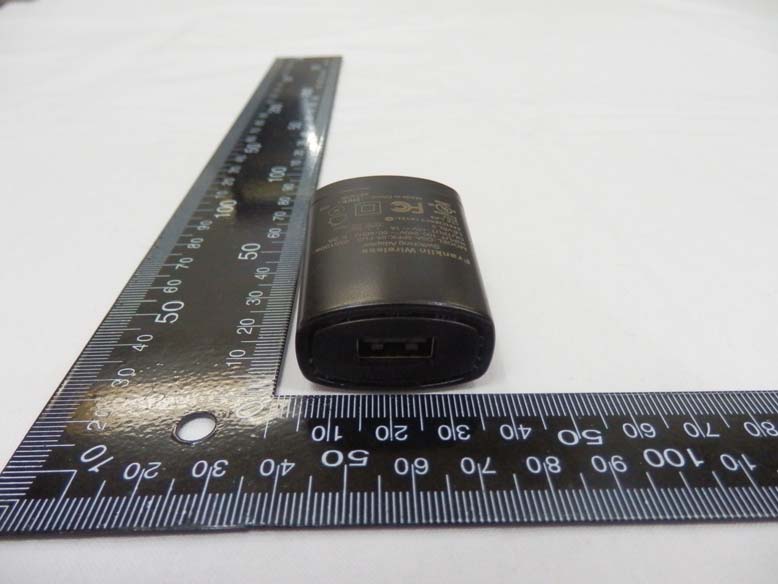

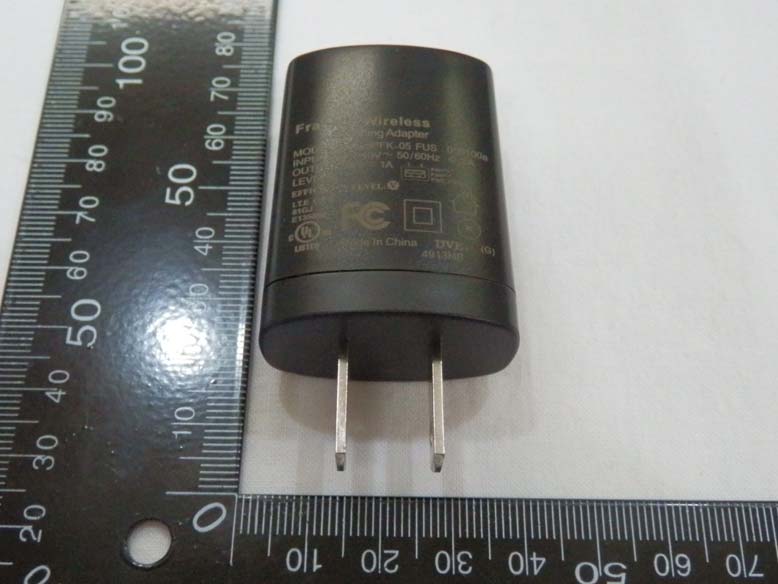

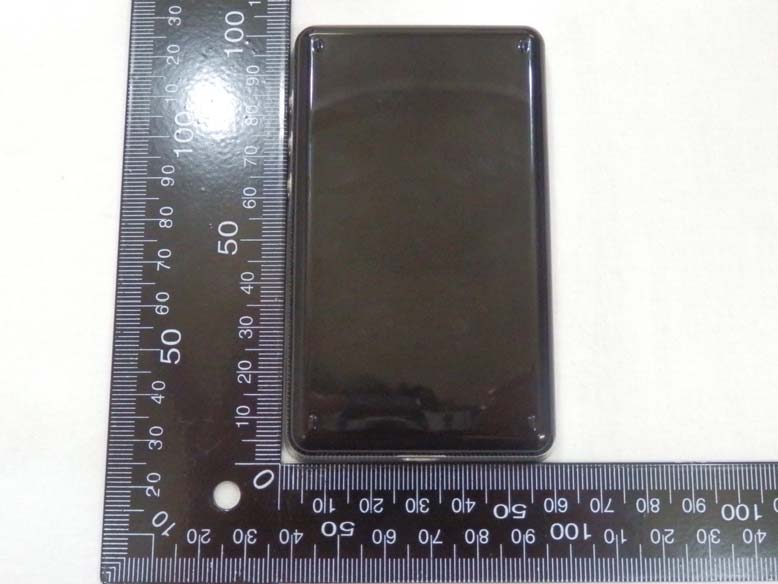

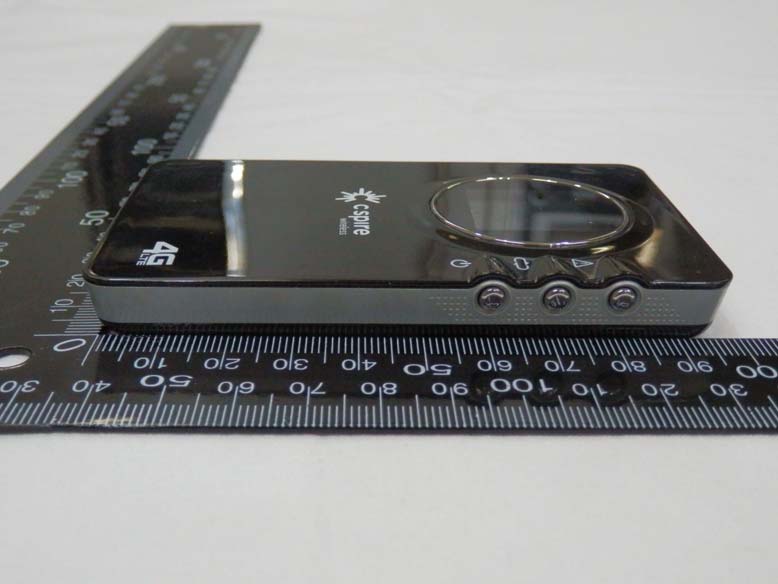

JNDL Laboratory CO., LTD Page 1 of 4 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001~0005 http://www.jndcerti.com FCCID : XHG-R774 External Photographs 1. Front View 2. Rear View JNDL Laboratory CO., LTD Page 2 of 4 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001~0005 http://www.jndcerti.com FCCID : XHG-R774 3. Side View (Top) 4. Side View (Bottom) JNDL Laboratory CO., LTD Page 3 of 4 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001~0005 http://www.jndcerti.com FCCID : XHG-R774 5. Side View (Left) 6. Side View (Right) JNDL Laboratory CO., LTD Page 4 of 4 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001~0005 http://www.jndcerti.com FCCID : XHG-R774 7. AC adapter( DC 5V Output)

JNDL Laboratory CO., LTD Page 1 of 1 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001~0005 http://www.jndcerti.com FCCID : XHG-R774 FCC PRODUCT LABELING FCC ID Label : Due to the product size, only the FCC ID shall be permanently affixed to the rear side of the equipment and other information shall be placed in the instruction(user’s) manual. FCC WARNING STATEMENT(Including User’s Manual) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. EUT

JNDL Laboratory CO., LTD Page 1 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 Internal Photographs 1. Front View JNDL Laboratory CO., LTD Page 2 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 2.Rear View Front View JNDL Laboratory CO., LTD Page 3 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 3. Component Board View : Front Cover Top & Bottom JNDL Laboratory CO., LTD Page 4 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 4. Component Board View : Rear Cover Top & Bottom JNDL Laboratory CO., LTD Page 5 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 5. Component Board View : WIFI(2.4GHz) Antenna Top & Bottom JNDL Laboratory CO., LTD Page 6 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 6. Component Board View : LTE/CDMA/PCS Antenna Top & Bottom JNDL Laboratory CO., LTD Page 7 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 7. Component Board View : Main Board Top (1) JNDL Laboratory CO., LTD Page 8 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 8. Component Board View : Main Board Top (2) JNDL Laboratory CO., LTD Page 9 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 9. Component Board View : Main Board Bottom (1) JNDL Laboratory CO., LTD Page 10 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 10. Component Board View : Main Board Bottom (2) JNDL Laboratory CO., LTD Page 11 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 11. Component Board View : LCD Board Top JNDL Laboratory CO., LTD Page 12 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 12. Component Board View : LCD Board Bottom JNDL Laboratory CO., LTD Page 13 of 13 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 ~ 0005 http://www.jndcerti.com FCCID : XHG-R774 13. Component view : Battery

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. SAR EVALUATION REPORT For Franklin Technology Inc. 906 JEI Platz, 459-11, Gasan-Dong, Geumcheon-Gu, Seoul, Korea FCC ID: XHG-R774 Report Type: Original Report Product Type: LTE/WIFI MOBILE ROUTER Test Engineer: Wilson Chen Report Number: RSZ140515005-20 Report Date: 2014-06-02 Reviewed By: Sandy Wang SAR Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn ] Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140515005-20 SAR Evaluation Report 2 of 135 Attestation of Test Results EUT Information Company Name Franklin Technology Inc. EUT Description LTE/WIFI MOBILE ROUTER FCC ID XHG-R774 Model Number R774 Test Date 2014-05-25 and 2014-05-26 Frequency Max. SAR Level(s) Reported Limit(W/Kg) LTE Band 12 0.560 W/kg 1g Body SAR 1.6 LTE Band 25 1.193 W/kg 1g Body SAR CDMA BC 0 0.795W/kg 1g Body SAR CDMA BC1 1.411 W/kg 1g Body SAR Wifi (802.11b) 0.083 W/kg 1g Body SAR Simultaneous 1.446 W/kg 1g Body SAR Applicable Standards ANSI / IEEE C95.1 : 2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fileds,3 kHz to 300 GHz. ANSI / IEEE C95.3 : 2002 IEEE Recommended Practice for Measurements and Computations of Radio Frequency Electromagnetic Fields With Respect to Human Exposure to SuchFields,100 kHz—300 GHz. IEEE1528:2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques KDB procedures KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. KDB 248227 D01 SAR Measurement Procedures for 802.11a/b/g Transmitters KDB 941225 D01 SAR Measurement Procedures for 3G Devices-CDMA 2000/EV-Do WCDMA/HSDPA/HSUPA KDB 941225 D05 SAR Evaluation Considerations for LTE Devices KDB 941225 D06 SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities. Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in IEEE 1528-2003 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Shenzhen) Report No: RSZ140515005-20 SAR Evaluation Report 3 of 135 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUILDELINES ............................................................................................... 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 20 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 21 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 29 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 29 CHEEK/TOUCH POSITION ........................................................................................................................................... 30 EAR/TILT POSITION ................................................................................................................................................... 30 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS .............................................................................. 31 SAR EVALUATION PROCEDURE ................................................................................................................................. 32 CONDUCTED OUTPUT POWER MEASUREMENT ........................................................................................... 33 PROVISION APPLICABLE ......................................................................…

Text truncated - open the document above for the full version.

JNDL Laboratory CO., LTD Page 2 of 40 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 http://www.jndcerti.com FCCID : XHG-R774 REPORT SUMMARY Purpose of Test : To demonstrate the EUT in compliance with Part 22 Subpart H of the FCC’s Disclaimer : The test results relate only to the items tested. Applicable Standards : Pt 22, Pt 2, ANSI 63.4:2009, TIA-603-D-2010 TEST ENVIRONMENT AND TEST SETUP Test Facilities : Test Firm Registration # : 748649 3m & 10m Open Site : 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 3m semi-Anechoic chamber : B 114~115, 810 Kwanyang-Dong, dongan- Gu, Anyang-Si, Kyunggi-Do, 431-060, Korea Laboratory Test Conditions : Open Site : Temperature 25 ºC, Humidity : 58 % 3m anechoic chamber : Temperature 26 ºC, Humidity : 55 % Test Exercise : The EUT was set in continuous transmit mode of operation unless stated otherwise. Modification to the EUT : No moidification was made. Supporting Accessories : None REVISION HISTORY Revison Date Desriptions 0 2014.06.02 Original release JNDL Laboratory CO., LTD Page 3 of 40 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 http://www.jndcerti.com FCCID : XHG-R774 Table of Contents 1. General Remarks .................................................................................................................................... 4 2. Test Site ................................................................................................................................................... 4 2.1 Location ........................................................................................................................................................... 4 2.2 List of Test equipment used for tests ............................................................................................................. 4 2.3 Test Date .......................................................................................................................................................... 4 3. Description of the Equipment Under Test ............................................................................................. 5 4. List of Measurements .............................................................................................................................. 6 5. Descritpion of Tests ................................................................................................................................ 7 6. Conducted Output power ...................................................................................................................... 10 7. Effective Radiated power ...................................................................................................................... 17 8. Peak to Average Ratio ........................................................................................................................... 20 9. Modulation Characteristics ................................................................................................................. 22 10. Ocupied Bandwidth ............................................................................................................................. 24 11. Band Edge Compliance ...................................................................................................................... 26 12. Spurious Emission at Antenna Terminals ......................................................................................... 30 13. Field Strength of Spurious Radiation ................................................................................................ 32 14. Frequency Stability ............................................................................................................................. 36 JNDL Laboratory CO., LTD Page 4 of 40 J NDL-QI-TR-F08(0) Report Ref. No. : JNDL-NU-14R-0001 http://www.jndcerti.com FCCID : XHG-R774 1. General Remarks The test results in this report apply to the particular Equipment Under Test (EUT) as declared in this report. The test results presented in this report relate only to the item tested. 2. Test Site 2.1 Location JNDL Laboratory. CO., LTD. .(Test Firm Registration # : 748649) 3m anechoic chamber : B 114~115, 810 Kwanyang-Dong, dongan-Gu, Anyang-Si, Kyunggi-Do, Korea 3m & 10m Open site : 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 2.2 List of Test equipment used for tests No. Instrument Model No. Due to Calibration Manufactor Serial No. PSA SPECTRUM ANALYZER (3 Hz ~ 26.5 GHz) E4440A 2014-10-15 Agilent Technologies MY46185375 SPECTRUM ANALYZER (20 Hz ~ 40.0 GHz) FSP40 2015-01-08 Rohde & Schwarz 100308 SIGNAL GENERATOR (10 MHz ~ 40 GHz) MG3694B 2014-10-15 Anritsu Corp 062513 POWER METER (DC ~ 67 GHz) NRP2 2014-10-15 Rohde & Schwarz 100973 POWER SENSOR (50 MHz ~ 40 GHz) NRP-Z85 2014-10-15 Rohde & Schwarz 101121 POWER SENSOR (9 KHz ~ 6 GHz) NRP-Z92 2014-10-15 Rohde & Schwarz 100093 EMI TEST RECEIVER (20 MHz ~ 1000 MHz) ESVS30 2014-10-15 Rohde & Schwarz 828525/005 COMMUNICATION TEST SET (WCDMA/CDMA/EVDO/PCS) E5515C 2014-07-31 Agilent Technologies MY50260242 COMMUNICATION TEST SET (LTE) CMW500 2014-07-31 Rohde & Schwarz 140388 POWER DIVIDER (DC-18GHz) 1506A 2014-10-15 WEINSCHEL KW957 BILOG ANTENNA (30 MHz ~ 1000 MHz) VULB 9168 2015-02-17 Schwarzbeck 9168-505 DIPOLE ANTENNA (30 MHz ~ 1 GHz) UHAP 2016-04-01 Schwarzbeck 950 HORN ANTENNA (1 GHz ~ 18 GHz) BBHA 9120D 2014-12-12 Schwarzbeck 568 HORN ANTENNA (1 GHz ~ 18 GHz) 3117 2014-10-24 ETS-Lindgren 00135889 Microwave Amplifier (1 GHz ~ 18 GHz) TK-PA18 2014-09-05 TESTEK 1200020 Low Noise Amplifier (18 GHz ~ 40 GHz) AMF-6F-18004000-37- 8P 2015-05-06 MITEQ 1814914 High Power Amplifier (0.7 GHz ~ 2.5 GHz) ZHL-30W-252-S+ N/A Mini Circuit 804501219 High Pass Filter (1.5 GHz ~ 15 GHz) WHKX1.5/15G-6SS 2015-03-17 WAINWRIGHT 4 High Pass Filter (3 GHz ~ 18 GHz) WHK3.0/18G-10SS 2014-06-07 WAINWRIGHT 344  All equipment is calibrated with traceable calibrations. 2.3 Test Date Date of Application: 2014- 04 - 18 Dat…
