1 S600W User Manual 2 FCC Regulations: zThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. zThis device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. zThe antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. zThis device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. 3 I. Functions and Usage The S600W development Kit is used to debug the Franklin Wireless M600W series module. It is designed by an auxiliary board with Franklin Wireless M600W series module embedded. When the S600W is used, you can connect the module to a PC through a USB cable. When the module works normally, the debugging functions can be implemented. The S600W provides multiple interfaces, such as the Mini-USB port, DC power jack, RF connectors. The S600W can be used to test the performance of the module. Both the wired connection test (connect the module to the each equipment) and the wireless connection test (connect the module to the antennas) can be implemented. The signal points can also be tested when you maintain and repair the module. II. Structure Figure-1 Structure of the S600W III. Method for Connecting the S600W 1. Diagram of connecting the S600W to the equipment. Figure-2. Configuration for Adjustment and Test of WIMAX mode 4 2. Diagram of connecting the S600W and the antenna Figure-3. Diagram of connecting the module and the antenna Table-1. Port definition of RF connectors Port definition 1 2 S600W WiMAX Main WiMAX Aux Figure -4 Port definition of RF connectors IV. Installation of the S600W 5 z Connect the devices and set up the test environment according to Figure-2. Then connect the S600W to the PC through a Micro-USB to Type A USB cable.. z When performing the wired connection test, connect the E5515C to the RF interface of the S600W.. (For the connection method, see Figure-2 ) z When performing the wireless connection test, connect the antennas to the RF interface of the S600W directly. (For the connection method, see Figure-3.) V. LED indication of the S600W Green: H/W power indication Blue: Indicate the state of the card.(M600W) VI. Material List Model Device USB Y-Cable WiMAX antenna S600WW 1 EA 1 EA 2 EA

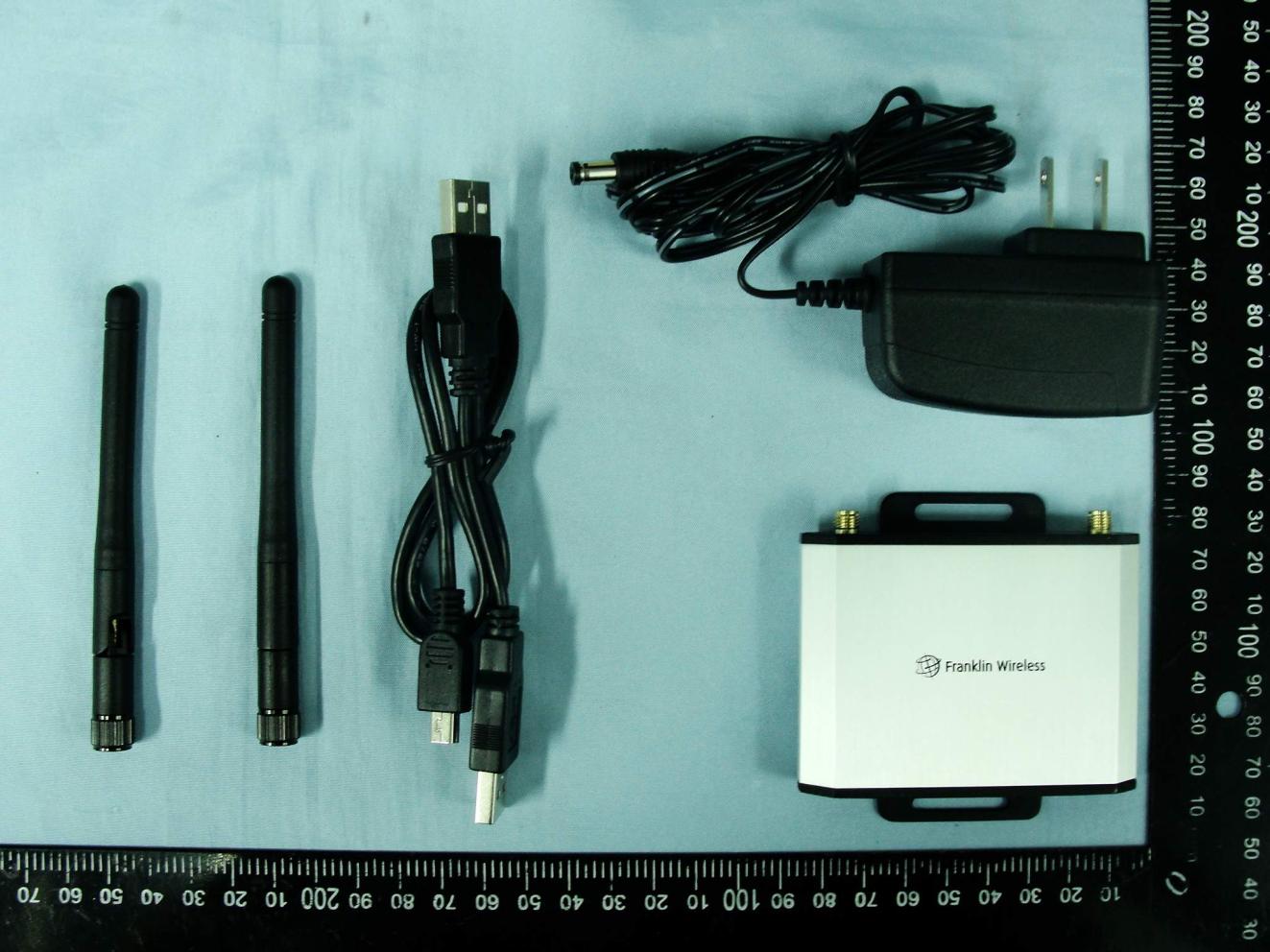

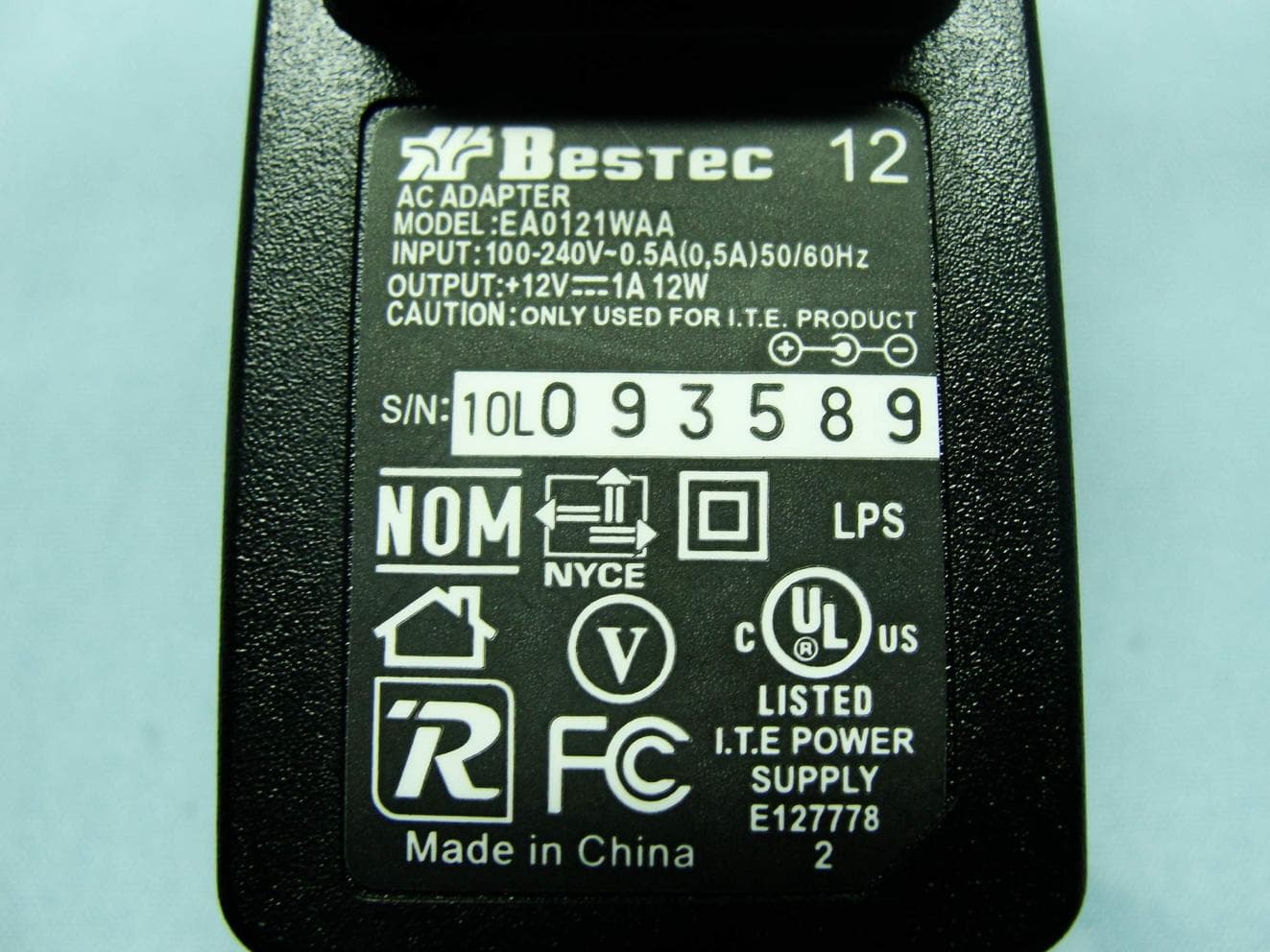

Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 1 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W 1. External Photograph of EUT Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 2 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W 720510 Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 3 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W List of Accessory: Specification of Accessory AC Adapter Brand Name Bestec Model Name EA0121WAA USB Cable Signal Line Type 0.4 meter shielded cable without ferrite core WWAN Module Brand Name Franklin Model Name M600W Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 4 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 5 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W 720510

40*25mm 40 MAC: XXXXXXXXXXXX S/N: MMYYXXXXXX FCC ID:XHG-S600W Made in Taiwan S600W

Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 6 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W 3. Internal Photograph of EUT Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 7 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 8 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W WiMAX Module Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 9 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 10 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 11 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W 720510 Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 12 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W WiMAX Main Antenna <Tx / Rx> Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 13 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 14 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W WiMAX Aux. Antenna <Tx / Rx> Photographs of EUT Report No.: EP131021-01 Brand Name: Franklin / Model Name: S600W SPORTON INTERNATIONAL INC. Page Number : 15 of 15 TEL : 886-3-327-3456 Report Issued Date : Apr. 12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W RF Exposure Evaluation Report Report No. : FA131021-01 RF Exposure Evaluation Report APPLICANT : Franklin Technology EQUIPMENT : 4G USB adapter BRAND NAME : Franklin MODEL NAME : S600W FCC ID : XHG-S600W FILING TYPE : Certification STANDARD : OET Bulletin 65 Supplement C (Edition 01-01) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with FCC OET Bulletin 65 Supplement C (Edition 01-01), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W RF Exposure Evaluation Report Report No. : FA131021-01 Table of Contents REVISION HISTORY .......................................................................................................................................... 3 1. RF EXPOSURE INTRODUCTION ............................................................................................................... 4 2. ADMINISTRATION DATA ........................................................................................................................... 6 2.1 Testing Laboratory ............................................................................................................................. 6 2.2 Applicant ............................................................................................................................................ 6 2.3 Manufacturer ...................................................................................................................................... 6 3. GENERAL INFORMATION ......................................................................................................................... 7 3.1 Description of Device Under Test (DUT) ........................................................................................... 7 4. RF EXPOSURE EVALUATION ................................................................................................................... 8 4.1 Radio Frequency Radiation Exposure Evaluation ............................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W RF Exposure Evaluation Report Report No. : FA131021-01 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA131021-01 Rev. 01 Initial issue of report Apr. 11, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W RF Exposure Evaluation Report Report No. : FA131021-01 1. RF Exposure Introduction Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows:  Fixed installation: Fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters.  Mobile Devices: A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitters’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091.  Portable Devices: A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Apr. 11, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W RF Exposure Evaluation Report Report No. : FA131021-01 The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows:  Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplace or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks.  General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 22 TEL : 886-3-327-3456 Report Issued Date : Apr.12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W FCC RF Test Report Report No. : FG131021-01 Partial FCC RF Test Report APPLICANT : Franklin Technology EQUIPMENT : 4G USB adapter BRAND NAME : Franklin MODEL NAME : S600W FCC ID : XHG-S600W STANDARD : 47 CFR Part 2, 27(M) CLASSIFICATION : PCS Licensed Transmitter (PCB) TX FREQUENCY RANGE : 2496 MHz ~ 2690 MHz Rx FREQUENCY RANGE : 2496 MHz ~ 2690 MHz MAX. EIRP POWER : 0.25 W (QPSK, BW 5MHz) 0.22 W (QPSK, BW 10MHz) 0.26 W (16QAM, BW 5MHz) 0.22 W (16QAM, BW 10MHz) This is a partial report which is only valid combined with the integrated the 4G Module (Brand Name: Franklin / Model Name: M600W, FCC ID: XHG-M600W) Report. The product was received on Mar. 10, 2011 and completely tested on Apr. 01, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and 47 CFR FCC Part 27 Subpart M and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 22 TEL : 886-3-327-3456 Report Issued Date : Apr.12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W FCC RF Test Report Report No. : FG131021-01 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode .......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................. 8 3 TEST RESULT ............................................................................................................................................. 9 3.1 Effective Isotropic Radiated Power Measurement ............................................................................ 9 3.2 Radiated Emissions Measurement .................................................................................................. 11 4 LIST OF MEASURING EQUIPMENTS...................................................................................................... 21 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 22 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 22 TEL : 886-3-327-3456 Report Issued Date : Apr.12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W FCC RF Test Report Report No. : FG131021-01 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG131021-01 Rev. 01 Initial issue of report Apr.12, 2011 SPORTON INTERNATIONAL INC. Page Number : 4 of 22 TEL : 886-3-327-3456 Report Issued Date : Apr.12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W FCC RF Test Report Report No. : FG131021-01 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 §27.50 Equivalent Isotropic Radiated Power < 2 Watts PASS - 3.2 §2.1053 §27.53 Field Strength of Spurious Radiation < 55+10log 10 (P[Watts]) PASS Under limit 8.89 dB at 7779 MHz SPORTON INTERNATIONAL INC. Page Number : 5 of 22 TEL : 886-3-327-3456 Report Issued Date : Apr.12, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : XHG-S600W FCC RF Test Report Report No. : FG131021-01 1 General Description 1.1 Applicant Franklin Technology 906 JEI Platz, 459-11 Gasan-dong, Guncheon-gu, Seoul, Korea 1.2 Manufacturer U-Media Communications, Inc. 9F, No. 1, Jin-shan 8th St., Hsinchu 300, Taiwan, R.O.C. 1.3 Feature of Equipment Under Test Product Feature & Specification Equipment 4G USB adapter Brand Name Franklin Model Name S600W FCC ID XHG-S600W Integrated Module Brand Name : Franklin Model Name : M600W Tx Frequency 2496 MHz ~ 2690 MHz Rx Frequency 2496 MHz ~ 2690 MHz Channel Bandwidth 5MHz / 10MHz Maximum Output Power to Antenna 21.75 dBm (QPSK, BW 5MHz) 21.23 dBm (QPSK, BW 10MHz) 21.70 dBm (16QAM, BW 5MHz) 21.26 dBm (16QAM, BW 10MHz) Maximum EIRP 0.25 W (24.03 dBm) (QPSK, BW 5MHz) 0.22 W (23.43 dBm) (QPSK, BW 10MHz) 0.2…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 2 of 80 Version TEST REPORT NO. DATE DESCRIPTION HCTR1010FR11 October 19, 2010 First Approval Report HCTR1010FR11-1 October 29, 2010 Change the test site description HCTR1010FR11-2 November 02, 2010Delete EIRP Test FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 3 of 80 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................... 5 2.1. EUT DESCRIPTION............................................................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5 2.3. TEST FACILITY .................................................................................................................................. 5 3. DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 EQUIVALENT ISOTROPIC RADIATED POWER ............................................................................... 6 3.2 OCCUPIED BANDWIDTH................................................................................................................... 7 3.3 SPURIOUS AND HARNONIC EMISSIONS AT ANTENNA TERMINAL. ........................................... 8 3.4 RADIATED SPURIOUS AND HARMONIC EMISSIONS .................................................................... 9 3.5 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 10 4. LIST OF TEST EQUIPMENT .......................................................................................................................11 5. SUMMARY OF TEST RESULTS ................................................................................................................ 12 6. SAMPLE CALCULATION ........................................................................................................................... 13 7. TEST DATA ................................................................................................................................................. 14 7.1 COCDUCTED OUTPUT POWER ......................................................................................................14 7.2 OCCUPIED BANDWIDTH ................................................................................................................. 16 7.3 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 18 7.3.1 CHANNEL EDGE .................................................................................................................... 19 7.4 RADIATED SPURIOUS EMISSIONS ................................................................................................20 7.4.1 RADIATED SPURIOUS EMISSIONS (WiMAX 5 MHz-16QAM)............................................. 20 7.4.2 RADIATED SPURIOUS EMISSIONS (WiMAX 10 MHz-16QAM)........................................... 21 7.5 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 22 7.5.1 FREQUENCY STABILITY (WiMAX-5 MHz) ........................................................................... 22 7.5.2 FREQUENCY STABILITY (WiMAX-10 MHz) ......................................................................... 23 8. TEST PLOTS.................................................................................................................. ............................. 24 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 4 of 80 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: Franklin Technology Inc. Address: 1505 Digital Tower Aston, 505-15 Gasan-dong, Gumcheon-gu, Seoul, Korea FCC ID: XHG-M600W Application Type: Certification FCC Classification: Licensed Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §27, §2 EUT Type: 4G Module Model(s): M600W Tx Frequency: 2 498.5 MHz ~ 2 687.5 MHz (5 MHz Bandwidth) 2 501.0 MHz ~ 2 685.0 MHz (10 MHz Bandwidth) Rx Frequency: 2 498.5 MHz ~ 2 687.5 MHz (5 MHz Bandwidth) 2 501.0 MHz ~ 2 685.0 MHz (10 MHz Bandwidth) Max. Conducted Power: 0.219 W 5 MHz 16QAM(23.41 dBm)/ 0.217 W 5MHz QPSK(23.37 dBm) / 0.204 W 10 MHz 16QAM(23.11 dBm)/ 0.200 W 10MHz QPSK(23.03 dBm) Emission Designator(s): 5 MHz BW : 4M39G7D (QPSK) / 4M45W7D (16QAM) 10 MHz BW :9M13G7D (QPSK) / 9M05W7D (16QAM) Date(s) of Tests: October 05, 2010 ~ October 15, 2010 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 5 of 80 2. INTRODUCTION 2.1. EUT DESCRIPTION The Franklin Technology Inc. M600W 4G Module consists of Cellular CDMA, PCS CDMA, EVDO Rev.A and wimax. 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.3. TEST FACILITY The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 105-1, Jangam-ri , Majang-Myeon, Icheon-si, 467-811, KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated June 10, 2009 (Registration Number: 90661) FCC C…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 24 of 80 8. TEST PLOTS FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 25 of 80 5 MHz  QPSK MODE 1/2 (2498.5 MHz) Conducted Output Power  QPSK MODE 3/4 (2498.5 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 26 of 80  16QAM MODE 1/2 (2498.5 MHz) Conducted Output Power  16QAM MODE 3/4 (2498.5 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 27 of 80  QPSK MODE 1/2 (2593.0 MHz) Conducted Output Power  QPSK MODE 3/4 (2593.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 28 of 80  16QAM MODE 1/2 (2593.0 MHz) Conducted Output Power  16QAM MODE 3/4 (2593.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 29 of 80  QPSK MODE 1/2 (2687.5 MHz) Conducted Output Power  QPSK MODE 3/4 (2687.5 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 30 of 80  16QAM MODE 1/2 (2687.5 MHz) Conducted Output Power  16QAM MODE 3/4 (2687.5 MHz) Conducted Output Power G FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 31 of 80 10 MHz  QPSK MODE 1/2 (2501.0 MHz) Conducted Output Power  QPSK MODE 3/4 (2501.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 32 of 80  16QAM MODE 1/2 (2501.0 MHz) Conducted Output Power  16QAM MODE 3/4 (2501.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 33 of 80  QPSK MODE 1/2 (2593.0 MHz) Conducted Output Power  QPSK MODE 3/4 (2593.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 34 of 80  16QAM MODE 1/2 (2593.0 MHz) Conducted Output Power  16QAM MODE 3/4 (2593.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 35 of 80  QPSK MODE 1/2 (2685.0 MHz) Conducted Output Power  QPSK MODE 3/4 (2685.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 36 of 80  16QAM MODE 1/2 (2685.0 MHz) Conducted Output Power  16QAM MODE 3/4 (2685.0 MHz) Conducted Output Power FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR11-2 Date of Issue: November 02, 2010 EUT Type: 4G Module FCC ID: XHG-M600W Page 37 of 80 5 MHz  QPSK MODE 1/2 (2498.5 MHz) Occupied Bandwidth  QPSK MODE 3…
