XHG-U310USB Modem

Mobile Broadband modem U310 User Manual U310 Access Manager™ U310 Mobile Broadband Modem 2 CONTENTS 1. BEFORE USING U310 ........................................................................................ 3 About This User’s Manual ................................................................................. 4 Product Overview ........................................................................................... 4 Product Package Contents ................................................................................ 4 Introduction to U310 USB Modem ..................................................................... 5 Product Specifications ..................................................................................... 5 Product handling ............................................................................................ 5 Configuration ................................................................................................. 5 2. INSTALLATION AND SETUP FOR U310 ACCESS MANAGER™ .................................... 7 Installing Software.......................................................................................... 8 Setup Program for Windows ............................................................................. 9 Setup Program for Mac OS X .......................................................................... 13 3. STARTING U310 ACCESS MANAGER™ ............................................................... 17 Features ...................................................................................................... 18 Getting Started ............................................................................................ 18 Connecting to the Internet ............................................................................. 19 4. USING U310 ACCESS MANAGER™ .................................................................... 20 The Session Menu ......................................................................................... 22 The Options Menu ......................................................................................... 23 The Help Menu ............................................................................................. 25 Additional Features ....................................................................................... 27 5. INSTALLING U310 .......................................................................................... 29 Recommended System Requirements .............................................................. 30 Remove the Modem from your Computer ......................................................... 30 Using the USB Extension cable ....................................................................... 30 Trouble Shooting .......................................................................................... 30 CARE AND MAINTENANCE .............................................................................. 31 WARRANTY .................................................................................................. 31 SAR INFORMATION ....................................................................................... 33 SAFETY INFORMATION .................................................................................. 33 U310 Mobile Broadband Modem 3 U.S.A. ......................................................................................................... 34 Section 1, 1. BEFORE USING U310 z About This User’s Manual z Product Overview z Product Package Contents z Introduction to U310 USB Modem z Product Specifications z Product handling z Configuration U310 Mobile Broadband Modem 4 About This User’s Manual This user manual contains all the necessary information regarding the device installation and how to use the modem for your internet navigation. Please make sure that you are familiar with the device operation by carefully reading this user manual before using the U310 WiMAX USB modem. Instructions y Install the U310 Access Manager™ software by inserting the U310 USB Device into your PC. The installation software is included in the U310 modem memory. When you insert the U310 into your computer, the installation process will automatically begin. y It is highly recommended that you read the safety precautions described in this manual before using the U310. Documents Included on your Modem Memory y Broadband Usage Conditions, Terms & Conditions y User Manual Product Overview Welcome and thank you for choosing U310 USB Modem for your wireless internet connection. The U310 is a high-speed wireless device that enables your computer to connect to 4G (WiMAX) high-speed wireless network. The U310 provides simple yet powerful user interface that is easy to install and use. Product Package Contents The following items are included in the product package. If any of the items listed below are missing, please contact the local retail store where you purchased the product. 9 U310 Modem Device 9 Quick Start Guide 9 USB Extension Cable 9 Carrying Pouch U310 Mobile Broadband Modem 5 Introduction to U310 USB Modem The U310 is designed for the USB port on your computer, which is available in most PC models. The U310 allows you to 9 Access the Internet, 9 Send and receive e-mail 9 Access your corporate network through VPN With U310, you are always connected whether you are away from home, on the road, or wherever wired Internet access is not readily available. Product Specifications y Power management: The U310 utilizes power management and system overhead reduction functions provided by the USB interface for maximum power savings. y Antenna design: Its efficient and innovative design optimizes data transfer rate and sensitivity to network signals. y Extension USB cable connector: This extension cable may be used to increase RF performance, and to resolve clearance issues if there is any. y USB Modem that supports Type A USB Port interface. y Supports high-spe…

Text truncated - open the document above for the full version.

Franklin Technology Inc. 906 JEI Platz, 459-11, Gasan-Dong, Gumcheon-Gu, Seoul, Korea(153-803) Date: March 8, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: XHG-U310 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Diffon corporation hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Diffon corporation temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, ---------------------------------------------- Sun-Hee Kim-Engineer HCT Co., Ltd. cc. Franklin Technology Inc.

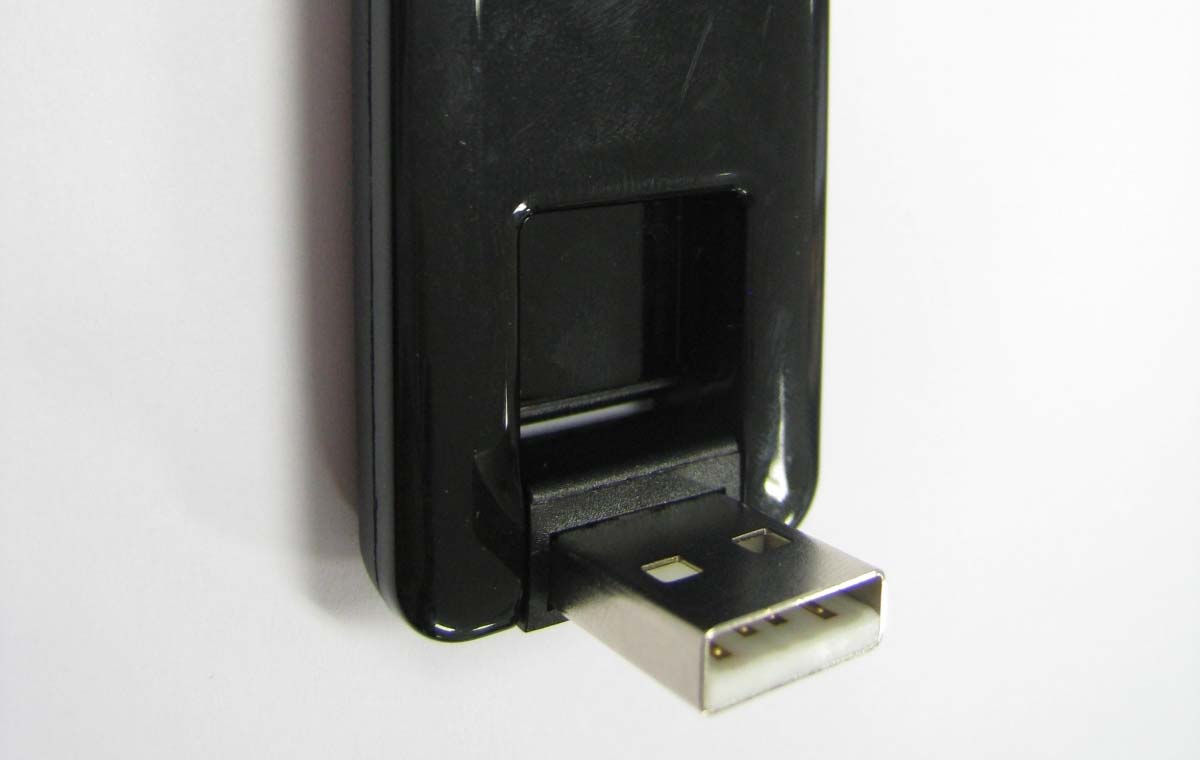

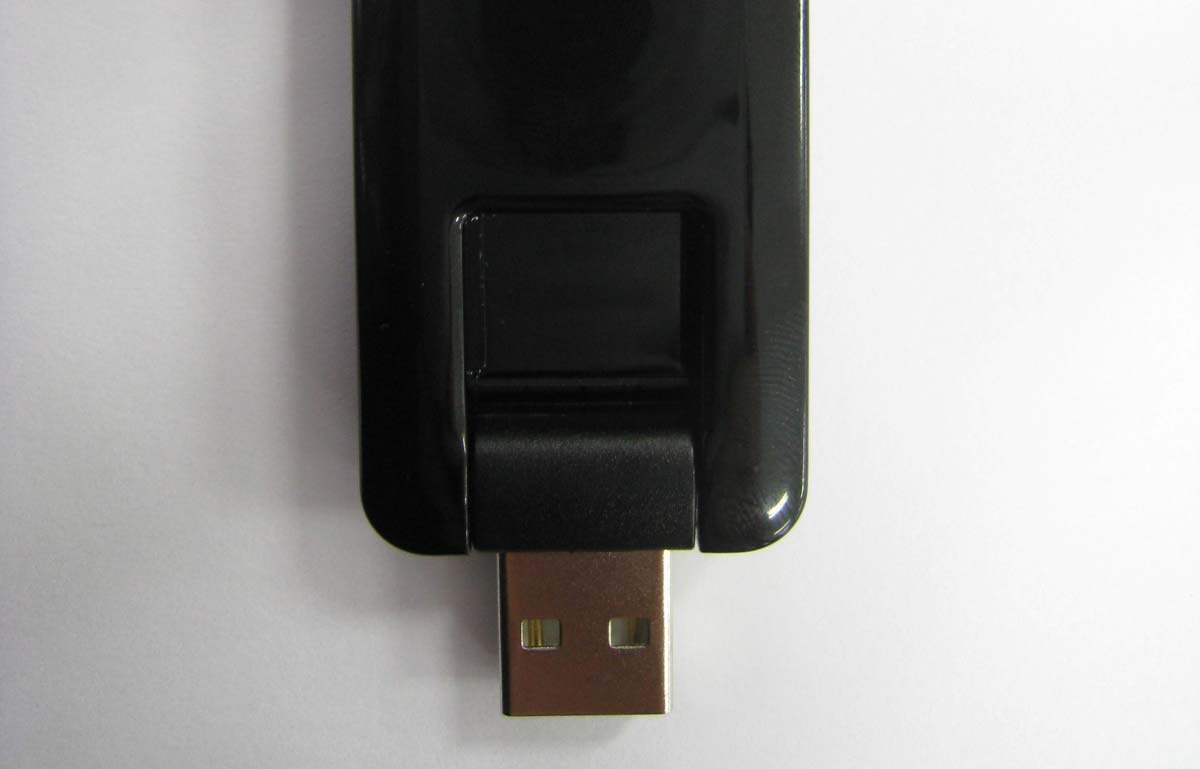

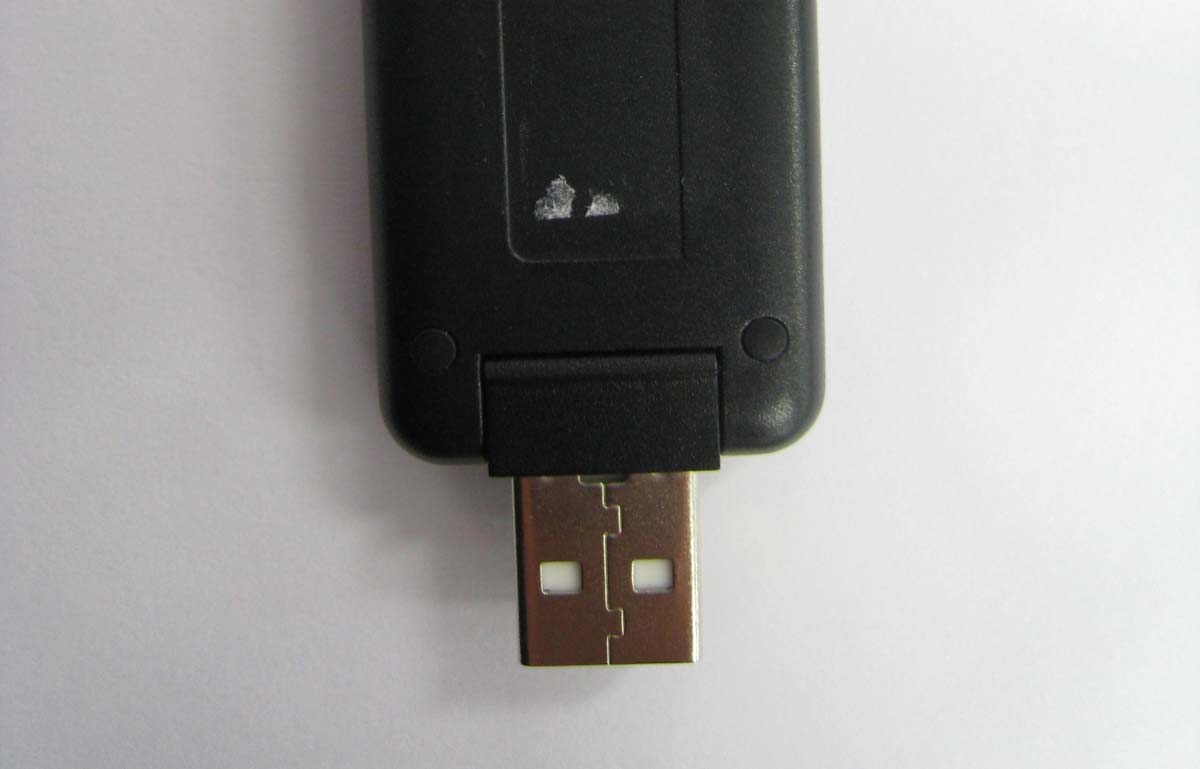

FCC ID: XHG-U310 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page １ of 6 EXTERNAL PHOTOGRAPHS FCC ID: XHG-U310 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ２ of 6 ■ EXTERNAL PHOTO FCC ID: XHG-U310 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ３ of 6 ■ EXTERNAL PHOTO FCC ID: XHG-U310 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ４ of 6 ■ EXTERNAL PHOTO FCC ID: XHG-U310 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ５ of 6 ■ EXTERNAL PHOTO FCC ID: XHG-U310 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr Page ６ of 6 ■ EXTERNAL PHOTO

Rear Side of Device Note; distance from Antenna to Edge side WiMAX TX/RX1 Antenna WiMAX RX2 Antenna 50 mm 30 mm 17 mm

RadiAnt 1 A4(210X297mm) SPECIFICATION Product Name WIMAX ANTENNA Customer Franklin Technology Model Name Dual WIMAX Antenna Port 1 & Port2 Customer Code. Provider RadiAnt Part Code. RKC1001-AA Buyer Submitted Checked Approved RadiAnt Submitted Checked Checked Approved RadiAnt 2 A4(210X297mm) – Table of Contents – 1. Product History------------------------------------------------------------------------- 3 2. Electrical Feature ------------------------------------------------------------------------4 2.1 Frequency Band 2.2 Impedance 2.3 Matching circuit 2.4 VSWR 2.5 Directivity 2.6 Maximum Power 3. Environment Test ----------------------------------------------------------------------6 4. Electric Performance Data ----------------------------------------------------------8 5. Drawing -----------------------------------------------------------------------------11 6. Packing ------------------------------------------------------------------------------12 7. Certification of RoHS --------------------------------------------------------------13 RadiAnt 3 A4(210X297mm) 1. Product History LIST NO Data Front After Change REV 1 2010.11.10 Initial Development 0 2 2011..01.19. Improve for Antenna performance 1 3 4 5 6 7 8 9 10 11 12 13 14 15 RadiAnt 4 A4(210X297mm) 2. Electrical Feature 2.1. Frequency Band BAND WIMAX FREQUENCY 2,495MHz~2,690MHz 2.2 Impedance 2.2.1 Input Impedance - R =50Ω 2.2.2 Measuring Method By using Network Analyzer, connect the antenna installed Set WIMAX terminal to the reflection point of Analyzer and measure the impedance value within the designated frequency band. 2.3 Matching circuit Matching Circuit is composed in free space of 2.1 frequency band while satisfying customer’s requirements. Figure 3.1 Dipole Matching Circuit Figure 3.1 Monopole Matching Circuit <Port1 Matching Circuit> <Port2 Matching Circuit> 3.9nH 0ohm 2pF RadiAnt 5 A4(210X297mm) 2.4 VSWR Impedance Matching optimization is performed under the below mentioned environment. . 2.4.1 Free Space Environment BAND WIMAX FREQ 2,500MHz 2,600MHz 2,700MHz VSWR 4.0 : 1 4.0 : 1 4.0 : 1 2.4.2 Measuring Method Connect (soldering) 50Ω semi-rigid coaxial cable to the 50Ω spot in Set WIMAX terminal. To minimize the loss of transmission, semi-rigid coaxial cable is used. Including PCB, the Set WIMAX terminal shouldn’t be different from the one, which will be used for mass production. Specification should be the same for all frequency bands. Free Space means that Set Se WIMAX terminal is put on the surface of no conducting plastic. 2.5 Directivity Omni-directional BAND 2,500MHz 2,600MHz 2,700MHz GAIN(Avg.) -4.0 dBi -2.0 dBi -4.0 dBi 2.6 Maximum Power - P=0.2W Under RadiAnt 6 A4(210X297mm) 3. Environment Test 3.1 Operating Temperature Test 3.1.1 Test Condition Temperature = -30°C, +80°C Duration time = 1 hour 3.1.2 Requirements After the test, the antenna must not have an outer damage, and also it must pass requirement shown in 2.4. 3.1.3 Measuring Method Antenna is kept at -30°C for 1 hour and +80°C for 1 hour and than passed test of 2.4 3.2 Temperature Cycling Test 3.2.1 Test Condition - Low cycling Temperature TLC = -40°C - High cycling Temperature THC = +80°C - 1Cycle = 4 hours - Test number = 10Cycle 3.2.2 Requirements After the test, the antenna must not have an outer damage, and also it must pass requirement shown in 2.4. RadiAnt 7 A4(210X297mm) 3.2.3 Measuring Method Antenna is kept at low temperature -40°C for 2 hours and increase the temperature up to +80°C within 2 hour and kept for another 2 hours at the same temperature will be 1 cycle. As shown in Figure 3.2.1 repeat 10 cycle and kept for 2 hour in normal temperature. Figure 3.2.1 Temperature Cycling 3.3 Corrosion Resistance Test 3.3.1 Test Condition - NaCl = 90% - Water Temperature = 60°C - Duration Time = 96 hours 3.3.2 Requirements After the test, the antenna must not have an outer damage, and also it must pass requirement shown in 2.4. 3.3.3 Measuring Method Antenna is soaked in sodium chloride solution at temperature +60°C and 90%(NaCl) for 96 hours and dry out. RadiAnt 8 A4(210X297mm) 4. Electric Performance Data 4.1. Return loss - Port1(S11), Port2(S22) RadiAnt 9 A4(210X297mm) 4.2. GAIN DATA 4.2.1. Dual WIMAX Antenna Port1 Frequency 2500.000Mhz 2600.000Mhz 2700.000Mhz Photo / Graph Photo / Graph Photo / Graph Frequency Peak Value Minimum Value Avg. Gain Efficiency [MHz] Value[dBi] Degree Value[dBi] Degree [dBi] [%] 2500 2.369 120 / 270-14.841 075 / 225-3.682 42.64% 2550 4.274 120 / 270-11.794 165 / 165-1.798 65.80% 2600 4.882 120 / 270-14.274 165 / 150-0.992 79.22% 2650 4.173 120 / 270-12.898 165 / 150-1.285 74.05% 2700 2.533 120 / 270-12.699 045 / 000-2.679 53.71% RadiAnt 10 A4(210X297mm) 4.2.2. Dual WIMAX Antenna Port2 Frequency 2500.000Mhz 2600.000Mhz 2700.000Mhz Photo / Graph Photo / Graph Photo / Graph Frequency Peak Value Minimum Value Avg. Gain Efficiency [MHz] Value[dBi] Degree Value[dBi] Degree [dBi] [%] 2500 4.503 150 / 270-16.603 075 / 165-0.958 79.84% 2550 5.297 150 / 270-21.932 075 / 165-0.671 85.29% 2600 5.566 150 / 270-18.846 060 / 015-0.477 89.18% 2650 5.753 150 / 270-13.398 090 / 1500.015 99.89% 2700 4.237 150 / 270-15.339 090 / 135-0.967 79.67% RadiAnt 11 A4(210X297mm) 5. Drawing RadiAnt 12 A4(210X297mm) 6. Packing RadiAnt 13 A4(210X297mm) 7.Certification of RoHS RadiAnt 14 A4(210X297mm) RadiAnt 15 A4(210X297mm) RadiAnt 16 A4(210X297mm) RadiAnt 17 A4(210X297mm) RadiAnt 18 A4(210X297mm) RadiAnt 19 A4(210X297mm) RadiAnt 20 A4(210X297mm)

SAR TEST REPORT HCT CO., LTD EUT Type: USB Modem FCC ID: XHG-U310 Model: U310 Trade Name Franklin Date of Issue: Mar. 04, 2011 Test report No.: HCTA1102FS02 Test Laboratory: HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 Applicant : Franklin Technology Inc. 906 JEI Platz, 459-11, Gasan-Dong, Gumcheon-Gu, Seoul,Korea 153-803 Testing has been carried out in accordance with: 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 2005 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Sun-Hee Kim : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCT1102FS02 FCC ID: XHG-U310Date of Issue: Mar. 04. 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 131 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ５ 3.1 SAR MEASUREMENT SETUP ........................................................................................................... ５ 3.2 DASY E-FIELD PROBE SYSTEM ...................................................................................................... ６ 3.3 PROBE CALIBRATION PROCESS .................................................................................................... ７ 3.4 SAM Phantom ..................................................................................................................................... ９ 3.5 Device Holder for Transmitters ............................................................................................................ ９ 3.6 Brain & Muscle Simulating Mixture Characterization ...................................................................... １０ 3.7 SAR TEST EQUIPMENT ................................................................................................................ １１ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １２ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １３ 5.1 HEAD POSITION ............................................................................................................................ １３ 5.2 Body Holster/Belt Clip Configurations ............................................................................................. １４ 5.3 Test Configurations .......................................................................................................................... １５ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １６ 7. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS .................................................................................. １７ 8. SYSTEM VERIFICATION ......................................................................................................................... １８ 8.1 Tissue Verification ........................................................................................................................... １８ 8.2 System Validation ............................................................................................................................ １８ 9.Devices with WIMAX Operating Parameters ..................................................................................... ........ １９ 10. SAR TEST DATA SUMMARY ................................................................................................................... 3 5 11. CONCLUSION ........................................................................................................................................ ４７ 12. REFERENCES ....................................................................................................................................... ４８ Attachment 1. – SAR Test Plots .................................................................................................................... ４９ Attachment 2. – Dipole Validation Plots ..................................................................................................... １０３ Attachment 4. – Probe Calibration Data .................................................................................................... １０８ Attachment 5. – Dipole Calibration Data ................................................................................................... １２２ Report No.: HCT1102FS02 FCC ID: XHG-U310Date of Issue: Mar. 04. 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of 131 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 2 of 97 Version TEST REPORT NO. DATE DESCRIPTION HCTR1103FR05 March 08, 2011 First Approval Report HCTR1103FR05-1 March 25, 2011 Revise page 1 summary states FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 3 of 97 Table of Contents 1. GENERAL INFORMATION ........................................................................................................................... 4 2. INTRODUCTION ........................................................................................................................................... 5 2.1. EUT DESCRIPTION............................................................................................................................ 5 2.2. MEASURING INSTRUMENT CALIBRATION .................................................................................... 5 2.3. TEST FACILITY .................................................................................................................................. 5 3. DESCRIPTION OF TESTS ........................................................................................................................... 6 3.1 EQUIVALENT ISOTROPIC RADIATED POWER ............................................................................... 6 3.2 OCCUPIED BANDWIDTH................................................................................................................... 7 3.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL............................................ 8 3.4 RADIATED SPURIOUS AND HARMONIC EMISSIONS .................................................................... 9 3.5 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 10 4. LIST OF TEST EQUIPMENT .......................................................................................................................11 5. SUMMARY OF TEST RESULTS ................................................................................................................ 12 6. SAMPLE CALCULATION ........................................................................................................................... 13 7. TEST DATA ................................................................................................................................................. 14 7.1 CONDUCTED OUTPUT POWER ......................................................................................................14 7.2 OCCUPIED BANDWIDTH ................................................................................................................. 17 7.3 CONDUCTED SPURIOUS EMISSIONS ........................................................................................... 19 7.3.1 CHANNEL EDGE .................................................................................................................... 20 7.4 EQUIVALENT ISOTROPIC RADIATED POWER (WiMAX) ............................................................. 21 7.4 RADIATED SPURIOUS EMISSIONS ................................................................................................23 7.4.1 RADIATED SPURIOUS EMISSIONS (TX1: WiMAX 5 MHz-QPSK) ...................................... 23 7.4.2 RADIATED SPURIOUS EMISSIONS (TX2: WiMAX 5 MHz-QPSK) ...................................... 24 7.4.3 RADIATED SPURIOUS EMISSIONS (TX1: WiMAX 10 MHz- QPSK) ................................... 25 7.4.4 RADIATED SPURIOUS EMISSIONS (TX2: WiMAX 10 MHz- QPSK) ................................... 26 7.5 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................... 27 7.5.1 FREQUENCY STABILITY (WiMAX-5 MHz) ........................................................................... 27 7.5.2 FREQUENCY STABILITY (WiMAX-10 MHz) ......................................................................... 28 8. TEST PLOTS............................................................................................................................................... 29 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 4 of 97 MEASUREMENT REPORT 1. GENERAL INFORMATION Applicant Name: Franklin Technology Inc. Address: 1505 Digital Tower Aston, 505-15 Gasan-dong, Gumcheon-gu, Seoul, Korea FCC ID: XHG-U310 Application Type: Certification FCC Classification: Licensed Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §27, §2 EUT Type: USB Modem Model(s): U310 Tx Frequency: 2 498.5 MHz ~ 2 687.5 MHz (5 MHz Bandwidth) 2 501.0 MHz ~ 2 685.0 MHz (10 MHz Bandwidth) Rx Frequency: 2 498.5 MHz ~ 2 687.5 MHz (5 MHz Bandwidth) 2 501.0 MHz ~ 2 685.0 MHz (10 MHz Bandwidth) Max. Conducted Power: TX1 0.344 W 5 MHz QPSK (25.37 dBm)/ 0.335 W 5 MHz 16QAM (25.25 dBm) 0.527 W 10 MHz QPSK (27.22 dBm)/ 0.661 W 10 MHz 16QAM (28.20 dBm) TX2 0.205 W 5 MHz QPSK (23.11 dBm)/ 0.220 W 5 MHz 16QAM (23.43 dBm) 0.317 W 10 MHz QPSK (25.01 dBm)/ 0.308 W 10 MHz 16QAM (24.89 dBm) Emission Designator(s): 5 MHz BW : 4M44G7D (QPSK)/ 4M46W7D(16QAM) 10 MHz BW : 9M23G7D (QPSK)/ 9M18W7D(16QAM) Date(s) of Tests: March 02, 2011 ~ March 08, 2011 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 5 of 97 2. INTRODUCTION 2.1. EUT DESCRIPTION The Franklin Technology Inc. U310 USB Modem consists of WIMAX. 2.2. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.3. TEST FACILITY The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiat…

Text truncated - open the document above for the full version.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 69 of 97 ■ 16QAM MODE 1/2 (2687.5 MHz) Channel Edge ■ 16QAM MODE 3/4 (2687.5 MHz) Channel Edge FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 70 of 97 10 MHz ■ QPSK MODE 1/2 (2501.0 MHz) Channel Edge ■ QPSK MODE 3/4 (2501.0 MHz) Channel Edge FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 71 of 97 ■ 16QAM MODE 1/2 (2501.0 MHz) Channel Edge ■ 16QAM MODE 3/4 (2501.0 MHz) Channel Edge FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 72 of 97 ■ QPSK MODE 1/2 (2685.0 MHz) Channel Edge ■ QPSK MODE 3/4 (2685.0 MHz) Channel Edge FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 73 of 97 ■ 16QAM MODE 1/2 (2685.0 MHz) Channel Edge ■ 16QAM MODE 3/4 (2685.0 MHz) Channel Edge FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 74 of 97 5 MHz ■ QPSK MODE 1/2 (2498.5 MHz) Conducted Spurious Emissions1 ■ QPSK MODE 1/2 (2498.5 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 75 of 97 ■ QPSK MODE 3/4 (2498.5 MHz) Conducted Spurious Emissions1 ■ QPSK MODE 3/4 (2498.5 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 76 of 97 ■ 16QAM MODE 1/2 (2498.5 MHz) Conducted Spurious Emissions1 ■ 16QAM MODE 1/2 (2498.5 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 77 of 97 ■ 16QAM MODE 3/4 (2498.5 MHz) Conducted Spurious Emissions1 ■ 16QAM MODE 3/4 (2498.5 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 78 of 97 ■ QPSK MODE 1/2 (2593.0 MHz) Conducted Spurious Emissions1 ■ QPSK MODE 1/2 (2593.0 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 79 of 97 ■ QPSK MODE 3/4 (2593.0 MHz) Conducted Spurious Emissions1 ■ QPSK MODE 3/4 (2593.0 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 80 of 97 ■ 16QAM MODE 1/2 (2593.0 MHz) Conducted Spurious Emissions1 ■ 16QAM MODE 1/2 (2593.0 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 81 of 97 ■ 16QAM MODE 3/4 (2593.0 MHz) Conducted Spurious Emissions1 ■ 16QAM MODE 3/4 (2593.0 MHz) Conducted Spurious Emissions2 FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1103FR05-1 Date of Issue: March 25, 2011 EUT Type: USB Modem FCC ID: XHG-U310 Page 82 of 97 ■ QPSK MODE 1/2 (26…
