XHG-U601USB Dongle

Mobile Broadband modem U601 User Manual U601 Access Manager™ U601 Mobile Broadband Modem 2 CONTENTS 1. BEFORE USING U601 ......................................................................................... 3 About This User‟s Manual .................................................................................. 4 Product Overview ............................................................................................ 4 Product Package Contents ................................................................................. 4 Introduction to U601 USB Modem ...................................................................... 5 Product Specifications ...................................................................................... 5 Product handling ............................................................................................. 5 Configuration .................................................................................................. 6 2. INSTALLATION AND SETUP FOR U601 ACCESS MANAGER™ .................................... 7 Installing Software ........................................................................................... 8 Setup Program for Windows .............................................................................. 9 Setup Program for Mac OS X ........................................................................... 13 3. STARTING U601 ACCESS MANAGER™ ................................................................ 17 Features ....................................................................................................... 18 Getting Started ............................................................................................. 18 Connecting to the Internet .............................................................................. 19 4. USING U601 ACCESS MANAGER™ ..................................................................... 21 The Session Menu .......................................................................................... 22 The Tools Menu ............................................................................................. 23 The Options Menu .......................................................................................... 25 The Help Menu .............................................................................................. 30 Additional Features ........................................................................................ 31 5. INSTALLING U601 ........................................................................................... 33 Recommended System Requirements ............................................................... 34 Remove the Modem from your Computer .......................................................... 34 Using the USB Extension cable ........................................................................ 34 Trouble Shooting ........................................................................................... 34 CARE AND MAINTENANCE ............................................................................... 35 WARRANTY ................................................................................................... 35 SAR INFORMATION ........................................................................................ 37 SAFETY INFORMATION ................................................................................... 37 U.S.A. .......................................................................................................... 38 FCC Compliance Information ........................................................................... 38 U601 Mobile Broadband Modem 3 Section 1, 1. BEFORE USING U601  About This User’s Manual  Product Overview  Product Package Contents  Introduction to U601 USB Modem  Product Specifications  Product handling  Configuration U601 Mobile Broadband Modem 4 About This User’s Manual This user manual contains all the necessary information regarding the device installation and how to use the modem for your internet navigation. Please make sure that you are familiar with the device operation by carefully reading this user manual before using the U601 EVDO and WiMAX USB modem. Instructions • Install the U601 Access Manager™ software by inserting the U601 USB Device into your PC. The installation software is included in the U601 modem memory. When you insert the U601 into your computer, the installation process will automatically begin. • It is highly recommended that you read the safety precautions described in this manual before using the U601. Documents Included on your Modem Memory  Broadband Usage Conditions, Terms & Conditions  User Manual Product Overview Welcome and thank you for choosing U601 USB Modem for your wireless internet connection. The U601 is a high-speed wireless device that enables your computer to connect to 3G high-speed wireless network. The U601 provides simple yet powerful user interface that is easy to install and use. Product Package Contents The following items are included in the product package. If any of the items listed below are missing, please contact the local retail store where you purchased the product.  U601 Modem Device  Quick Start Guide  USB Extension Cable  Carrying Pouch U601 Mobile Broadband Modem 5 Introduction to U601 USB Modem The U601 is designed for the USB port on your computer, which is available in most PC models. The U601 allows you to  Access the Internet,  Send and receive e-mail  Access your corporate network through VPN With U601, you are always connected whether you are away from home, on the road, or wherever wired Internet access is not readily available. Product Specifications  Power management: The U601 utilizes power management and system overhead reduction functions provided by the USB interface for maximum power savings.  Antenna design: Its efficient and innovative design optimizes data transfer rate a…

Text truncated - open the document above for the full version.

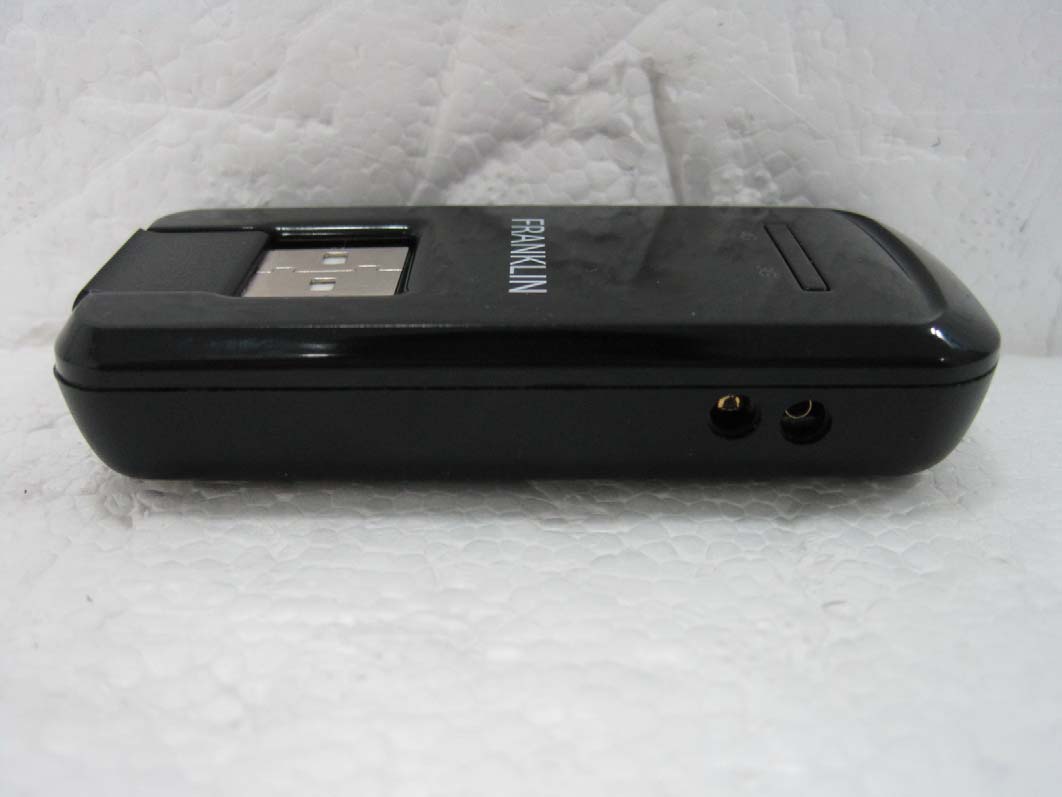

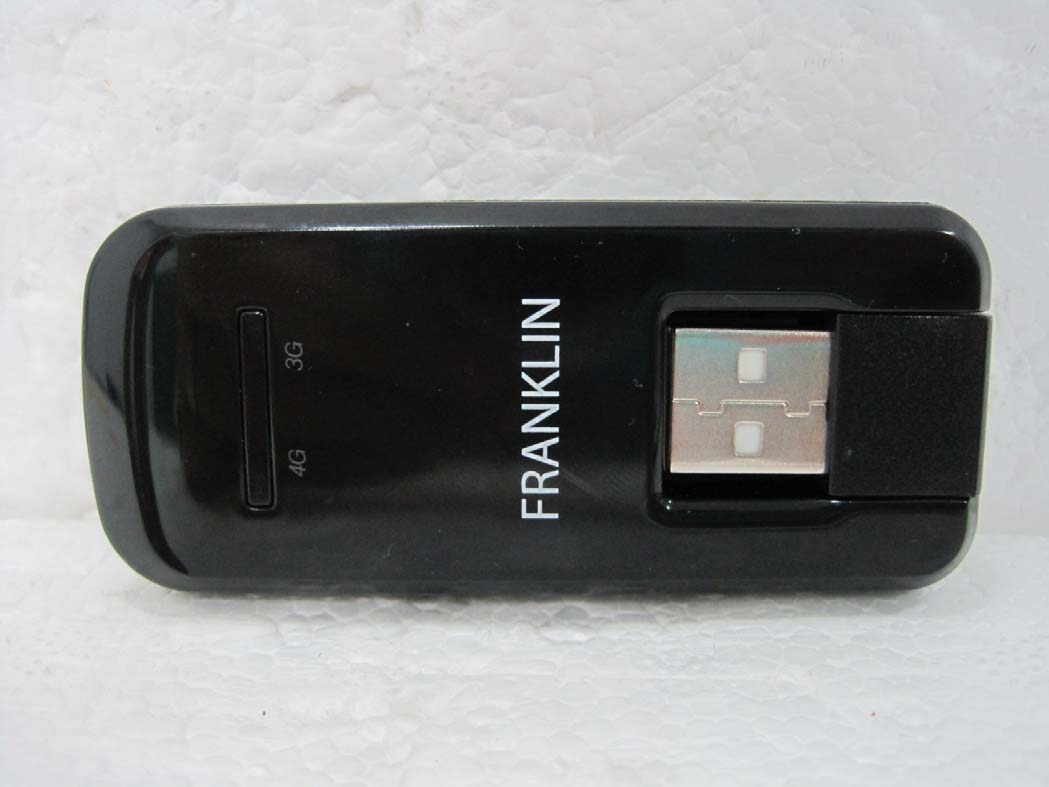

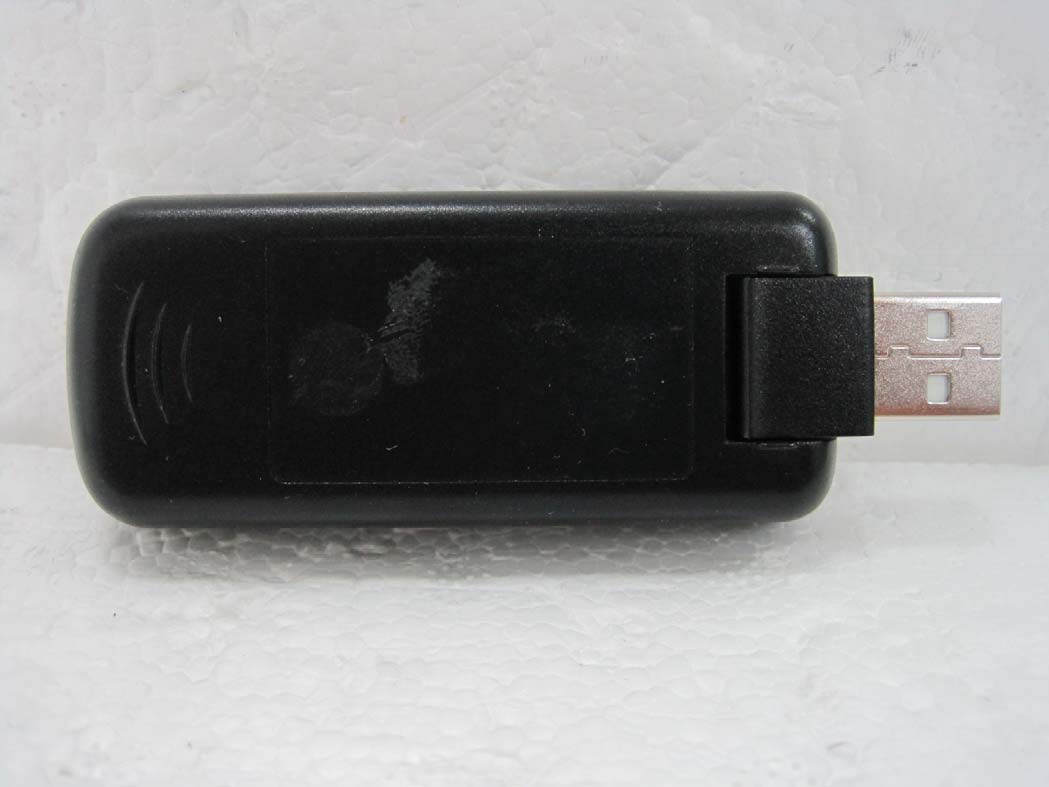

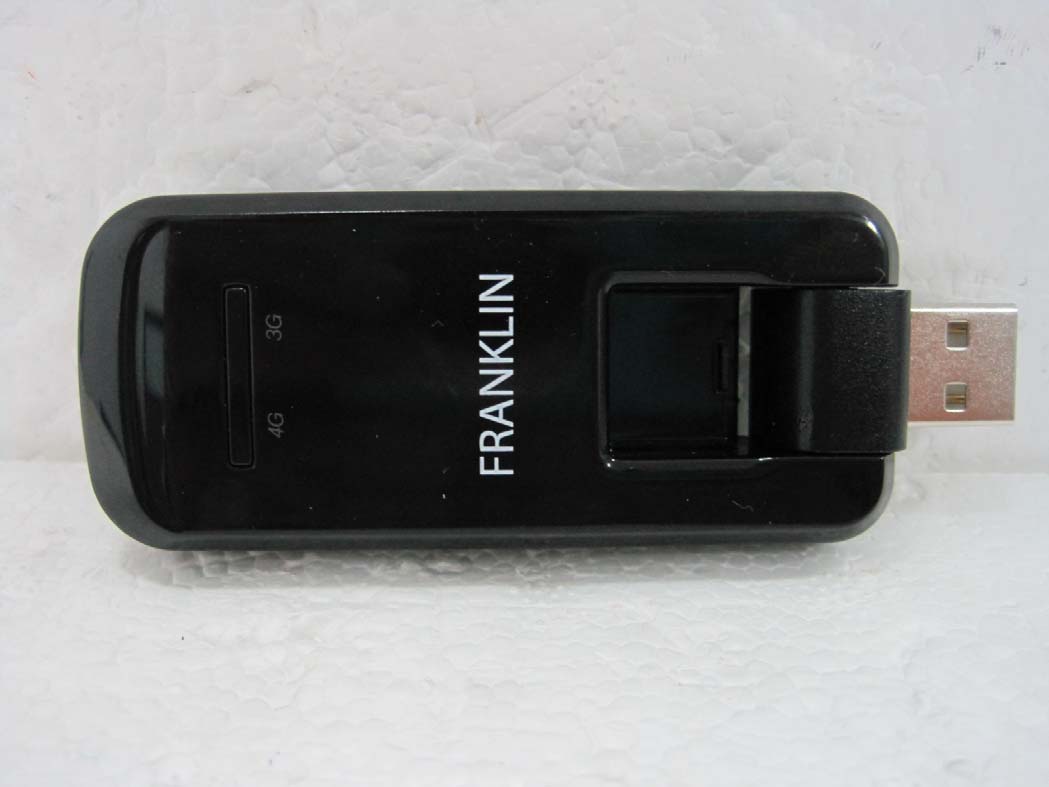

FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 9 EXTERNAL PHOTOGRAPHS FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 9 ■ EXTERNAL PHOTO FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 9 ■ EXTERNAL PHOTO FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 9 ■ EXTERNAL PHOTO FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 9 ■ EXTERNAL PHOTO FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 9 ■ EXTERNAL PHOTO FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 9 ■ EXTERNAL PHOTO FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 9 ■ EXTERNAL PHOTO FCC ID: XHGU601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 9 ■ EXTERNAL PHOTO

FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 12 INTERNAL PHOTOGRAPHS FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 12 ■ INTERNAL PHOTO FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 12 ■ INTERNAL PHOTO WiMAX PCB EVDO PCB FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 12 ■ INTERNAL PHOTO FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 12 ■ INTERNAL PHOTO WiMAX TX/RX1 Antenna WiMAX RX2 Antenna FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 12 ■ INTERNAL PHOTO FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 12 ■ INTERNAL PHOTO 1x EVDO TX Antenna FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 12 ■ INTERNAL PHOTO FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 12 ■ INTERNAL PHOTO FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 12 ■ INTERNAL PHOTO FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 12 ■ Antenna-to-Antenna & Antenna-to-User separation distance (Unit: mm) FCC ID: XHG-U601 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 12 ■ Antenna-to-Antenna & Antenna-to-User separation distance (Unit: mm)

SAR TEST REPORT HCT CO., LTD EUT Type: USB Dongle FCC ID: XHG-U601 Model: U601 Trade Name Franklin Date of Issue: June 14, 2010 Test report No.: HCTA1106FS04 Test Laboratory: HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 Applicant : Franklin Technology Inc. 906 JEI Platz, 459-11, Gasan-Dong, Gumcheon-Gu, Seoul,Korea 153-803 Testing has been carried out in accordance with: 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Sun-Hee Kim : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: June 14, 2010 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 www.hct.co.kr 2 of 82 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ６ 3.1 SAR MEASUREMENT SETUP ......................................................................................................... ６ 3.2 DASY E-FIELD PROBE SYSTEM ..................................................................................................... ７ 3.3 PROBE CALIBRATION PROCESS ................................................................................................... ８ 3.4 SAM Phantom ............................................................................................................................... １０ 3.5 Device Holder for Transmitters ....................................................................................................... １０ 3.6 Brain & Muscle Simulating Mixture Characterization ....................................................................... １１ 3.7 SAR TEST EQUIPMENT ............................................................................................................... １２ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １３ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １４ 5.1 HEAD POSITION .......................................................................................................................... １４ 5.2 Body Holster/Belt Clip Configurations ............................................................................................. １５ 5.3 Test Configurations ............................................................................................................................... １６ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １７ 7. ANSI/ IEEE C95.1 – 1992 RF EXPOSURE LIMITS ................................................................................. １８ 8. SYSTEM VERIFICATION ......................................................................................................................... １９ 8.1 Tissue Verification ......................................................................................................................... １９ 8.2 System Validation .......................................................................................................................... １９ 9. 3G MEASUREMENT PROCEDURES ..................................................................................................... ２０ 9.1 Procedures Used To Establish Test Signal ...................................................................................... ２０ 9.2 SAR Measurement Conditions for 1x Ev-Do Devices ...................................................................... ２０ 10. SAR TEST DATA SUMMARY ..................................................................................................................2 1 10.1 Measurement Results (CDMA835 Body SAR) .....................................................................................2 1 10.2 Measurement Results (PCS1900 Body SAR) ............................................................................... ２５ 11. CONCLUSION ........................................................................................................................................ ２６ 12. REFERENCES ....................................................................................................................................... ２７ Attachment 1. – SAR Test Plots ................................................................................................................... ２８ Attachment 2. – Dipole Validation Plots ........................................................................................................ ４７ Attachment 3. – Probe Calibration Data ....................................................................................................... ５２ Attachment 4. – Dipole Calibration Data .................................................................................................. 1５２ Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: June 14, 2010 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 www.hct.co.kr 3 of 82 1. INTRODUCTION The FCC has adopted the guidelines for evaluating …

Text truncated - open the document above for the full version.

SAR TEST REPORT HCT CO., LTD EUT Type: USB Dongle FCC ID: XHG-U601 Model: U601 Trade Name Franklin Date of Issue: Jun. 14, 2011 Test report No.: HCTA1106FS04 Test Laboratory: HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6485 FAX: +82 31 645 6401 Applicant : Franklin Technology Inc. 906 JEI Platz, 459-11, Gasan-Dong, Gumcheon-Gu, Seoul,Korea 153-803 Testing has been carried out in accordance with: 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Sun-Hee Kim : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 103 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ３ 2. DESCRIPTION OF DEVICE ......................................................................................................................... ４ 3. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ６ 4. SAR MEASUREMENT PROCEDURE ..................................................................................................... １３ 5. DESCRIPTION OF TEST POSITION ....................................................................................................... １４ 6. MEASUREMENT UNCERTAINTY ........................................................................................................... １５ 7. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS .................................................................................. １６ 8. SYSTEM VERIFICATION ......................................................................................................................... １７ 8.1 Tissue Verification ........................................................................................................................... １７ 8.2 System Validation ............................................................................................................................ １７ 8.3 System Validation Procedure .......................................................................................................... １７ 9. Devices with WIMAX ............................................................................................................................... １８ 9.1 802.16e/WiMAX Device and System Operating Parameters .......................................................... １８ 9.2. Information on Test Equipment and Measurement Results ............................................................. 2 0 9.3 Scaling Factor.................................................................................................................................. ２５ 9.4 Duty Cycle & Time Vector Slots ....................................................................................................... ２７ 9.5.1 PEAK TO AVERAGE Conducted Power RATIO .......................................................................... ３２ 10. SAR TEST DATA SUMMARY................................................................................................................. 3 8 10.1 Measurement Results (WIMAX2600 5MHz QPSK 1/2) Ant 1........................................................3 8 10.2 Measurement Results (WIMAX2600 5MHz 16QAM 1/2) Ant 1......................................................3 9 10.3 Measurement Results (WIMAX2600 10MHz QPSK 1/2) Ant 1 ......................................................4 0 10.4 Measurement Results (WIMAX2600 10MHz 16QAM 1/2) Ant 1..................................................... 4 1 10.5 Measurement Results (WIMAX2600 5MHz QPSK 1/2) Ant 2......................................................... 4 2 10.6 Measurement Results (WIMAX2600 10MHz QPSK 1/2) Ant 2....................................................... 4 3 11. CONCLUSION ........................................................................................................................................ ４３ 12. REFERENCES ....................................................................................................................................... ４４ Attachment 1. – SAR Test Plots ................................................................................................................... ４５ Attachment 2. – Dipole Validation Plots ........................................................................................................ ７７ Attachment 3. – Probe Calibration Data ....................................................................................................... ８２ Attachment 4. – Dipole Calibration Data ...................................................................................................... ９４ Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of 103 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized spe…

Text truncated - open the document above for the full version.

Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 91 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 92 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 93 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 94 of 103 Attachment 4. – Dipole Calibration Data Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 95 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 96 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 97 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 98 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 99 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 100 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 101 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 102 of 103 Report No.: HCT1106FS04 FCC ID: XHG-U601 Date of Issue: Jun. 14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 103 of 103

WiMAX SAR Test reduction (Tx1) 5 MHz Channel BW Channel No. Low Middle High Freuency(MHz) 2498.5 2593 2687.5 SAR(W/kg) measured scaled measured scaled measured scaled USB Horizontal-A QPSK 1/2 Test reduction 1 0.455 0.531 Test Reduction 2 USB Horizontal-B 0.455 0.56 1.17 1.365 0.691 0.815 USB vertiacl-C Test reduction 3 0.419 0.489 Test Reduction 4 USB vertiacl-D 0.319 0.372 USB tail/end 0.335 0.391 USB Horizontal-A 16QAM 1/2 Test reduction 5 USB Horizontal-B 0.491 0.604 1.12 1.365 0.681 0.855 USB vertiacl-C Test reduction 6 USB vertiacl-D USB tail/end 10 MHz Channel BW Channel No. Low Middle High Freuency(MHz) 2501 2593 2685 SAR(W/kg) measured scaled measured scaled measured scaled USB Horizontal-A QPSK 1/2 Test reduction 7 0.581 0.675 Test reduction 8 USB Horizontal-B 0.594 0.705 1.06 1.232 0.897 1.104 USB vertiacl-C Test reduction 9 0.402 0.467 Test Reduction 10 USB vertiacl-D 0.285 0.331 USB tail/end 0.321 0.373 USB Horizontal-A 16QAM 1/2 Test reduction 11 USB Horizontal-B 0.464 0.548 1.13 1.335 0.851 1.045 USB vertiacl-C Test reduction 12 USB vertiacl-D USB tail/end 1 Use the scaled SAR to determine test reduction (<0.8 W/kg etc.). SAR value of the Max. Conducted output power channel is less than 0.8 W/kg. Therefore low and high channel SAR test were saved. 2 See footnote 1, supra. 3 See footnote 1, supra. 4 See footnote 1, supra. 5 The 16QAM maximum output power is ≤ ¼ dB higher than QPSK and QPSK SAR is < 0.8 W/kg, 16QAM SAR is not needed. 6 See footnote 5, supra. 7 See footnote 1, supra. 8 See footnote 1, supra. 9 See footnote 1, supra. 10 See footnote 1, supra. 11 See footnote 5, supra. 12 See footnote 5, supra. WiMAX SAR Test reduction (Tx2) 5 MHz Channel BW Channel No. Low Middle High Freuency(MHz) 2498.5 2593 2687.5 SAR(W/kg) measured scaled measured scaled measured scaled USB Horizontal-A QPSK 1/2 0.048 0.059 Test reduction 13 Test Reduction 14 USB Horizontal-B 0.107 0.132 USB vertiacl-C 0.076 0.093 USB vertiacl-D 0.003 0.004 USB tail/end 0.000137 0.0002 USB Horizontal-A 16QAM 1/2 Test reduction 15 USB Horizontal-B USB vertiacl-C USB vertiacl-D USB tail/end 10 MHz Channel BW Channel No. Low Middle High Freuency(MHz) 2501 2593 2685 SAR(W/kg) measured scaled measured scaled measured scaled USB Horizontal-A QPSK 1/2 0.041 0.049 Test reduction 16 Test reduction 17 USB Horizontal-B 0.135 0.162 USB vertiacl-C 0.087 0.104 USB vertiacl-D 0.0044 0.005 USB tail/end 0.00019 0.0002 USB Horizontal-A 16QAM 1/2 Test reduction 18 USB Horizontal-B USB vertiacl-C USB vertiacl-D USB tail/end 13 Use the scaled SAR to determine test reduction (<0.8 W/kg etc.). SAR value of the Max. Conducted output power channel is less than 0.8 W/kg. Therefore middle and high channel SAR test were saved. 14 See footnote 13, supra. 15 The 16QAM maximum output power is ≤ ¼ dB higher than QPSK and QPSK SAR is < 0.8 W/kg, 16QAM SAR is not needed. 16 See footnote 13, supra. 17 See footnote 13, supra. 18 See footnote 15, supra.

FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR22 Test Dates: June 15, 2011 EUT Type: USB Dongle FCC ID: XHGU601 Page ２ of 42 Version TEST REPORT NO. DATE DESCRIPTION HCTR1106FR22 June 15, 2011 - First Approval Report FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1106FR22 Test Dates: June 15, 2011 EUT Type: USB Dongle FCC ID: XHGU601 Page ３ of 42 Table of Contents 1. GENERAL INFORMATION ..........................................................................................................................４ 2. INTRODUCTION ..........................................................................................................................................５ 2.1. EUT DESCRIPTION...........................................................................................................................５ 2.2. MEASURING INSTRUMENT CALIBRATION ...................................................................................５ 2.3. TEST FACILITY .................................................................................................................................５ 3. DESCRIPTION OF TESTS ..........................................................................................................................６ 3.1 EFFECTIVE RADIATED POWER/EQUIVALENT ISOTROPIC RADIATED POWER.......................６ 3.2 PEAK- TO- AVERAGE RATIO ...........................................................................................................７ 3.3 OCCUPIED BANDWIDTH..................................................................................................................８ 3.4 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...........................................９ 3.5 RADIATED SPURIOUS AND HARMOMIC EMISSIONS...............................................................１０ 3.6 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................................１１ 4. LIST OF TEST EQUIPMENT .............…

Text truncated - open the document above for the full version.
