XHT-1014148-3Toy RC Orbit Tumbler Glow in the Dark

The artwork and design of this manual are protected by US copyright law and may not be reproduced, distributed, displaced, published or used for any purpose without prior written permission. Altering, removing or reproducing any of the trademark or copyright notices on this package is not permitted. Sharper Image® name and logo are registered trademarks. Distributed by and © 2020 MerchSource, LLC. Irvine, CA 92618. All rights reserved OPERATING INSTRUCTIONS The car requires 6 AA (1.5V) alkaline batteries (not included). The battery compartment is on the underside of the vehicle. Loosen the screw using a phillips or cross screwdriver to remove the battery cover. Insert the AA batteries according to the diagram inside the battery tray. Replace battery cover and tighten screws. iiiiiiiiiiii Carefully remove items from package. BATTERY WARNING: • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries. • Alkaline batteries are recommended. Use only the specified voltage. • Insert batteries using the correct polarity. Always use, replace, and recharge (if applicable) batteries under adult supervision. • Do not charge with non-rechargeable batteries. • Do not short-circuit the battery supply terminals. • Do not dispose of batteries in a fire, batteries may explode or leak. • Remove batteries before storing. • Recycle or dispose of batteries according to federal, state, and local laws. • Keep these instructions for future reference. • Avoid water when operating. • Do not submerge car or controller in water. • Do not use people or animals as obstacles. • Do not run car into furniture objects or hard surfaces as this will cause damage to both the objects and car. • Keep fingers, hair and loose clothing away from the tires, gears and motor while car is switched to “ON”. • Do not leave car or remote control near sources of heat or under direct sunlight for long periods of time. • Remove all batteries when not in use to avoid accidental operation. • Adult supervision is recommended when operating car. • Thoroughly inspect products before every use. If the product appears worn, frayed/splintered, cracked, or broken in any manner, discontinue use and discard immediately. Forward Spinning Action Tumbling This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: KEEP THIS INSTRUCTION MANUAL AS IT CONTAINS IMPORTANT INFORMATION FOR FUTURE REFERENCE. Due to continuous product improvements, the pictures on this manual may dier slightly from the actual product. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. SAFETY PRECAUTIONS 1-800-374-2744 FOR TECHNICAL SUPPORT, PLEASE CALL 6+ *Press and Hold Reverse *Press and Hold Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Printed in ChinaModel Number: 1014148 *Press and Hold Note: for best operation, use vehicle on hard rough surface. When the vehicle is moving forward or backward and push the stunt button, it will cause it to flip over. GLOW IN THE DARK ORBIT TUMBLER The remote control requires 4 AA (1.5V) alkaline batteries (not included). Loosen the screw at the bottom of the remote using a phillips or cross screwdriver to remove the battery cover. Insert the batteries according to the diagram inside the battery tray. Replace battery cover and tighten screw. Battery Compartment Screw Power Switch Pairing: The Orbit Tumbler and Remote must be paired before driving. 1. Rotate the remote power knob clockwise to turn on the remote. The status light on the antenna cover will pulse. 2. Turn on Orbit Tumbler – its lights will flash rapidly. 3. The lights on the Orbit Tumbler and Remote will stop flashing when they are paired. If you have more than one vehicle and remote, you must pair one first, and then you may pair others. Charging the Glow In The Dark Cage: Place the Orbit Tumbler in direct sunlight for approximately 60 minutes. The cage will now glow in the dark for up to 20 minutes. Power Knob Left Wheels Right Wheels Stunt Button Status Light

APPENDIXB Mar07,2022 FederalCommunicationsCommission 44512 th StreetSW Washington,DC20554 Subject:LimitedAgencyAgreement GuangdongYinrunIndustryCo.,Ltd. FCCID:XHT-1014148-3 ToWhomItMayConcern: We,GuangdongYinrunIndustryCo.,Ltd.,herebyauthorizedIntertekTestingServicestoactas ourAgentforthepurposeofpreparingapplicationforFCCIDnumberXHT-1014148-3under allapplicablepartsoftheFCCrulesandregulations. TheeffectivedateofthislimitedagencyagreementisMar07,2022TheLimitedAgency Agreementexpireson2023-7-1,unlesssoonerterminatedorextendedbywrittennoticeto IntertekTestingServicesandtheFederalCommunicationsCommission. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.Theapplicant isnotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-DrugActof 1988,21U.S.C.862,andnopartytotheapplicationissubjecttoadenialoffederalbenefits pursuanttothatsection. Ifyouhaveanyquestionsorcomments,pleasedonothesitatetocontactme. Sincerely, [Signature] CYRUSYANG GENERALMANAGER

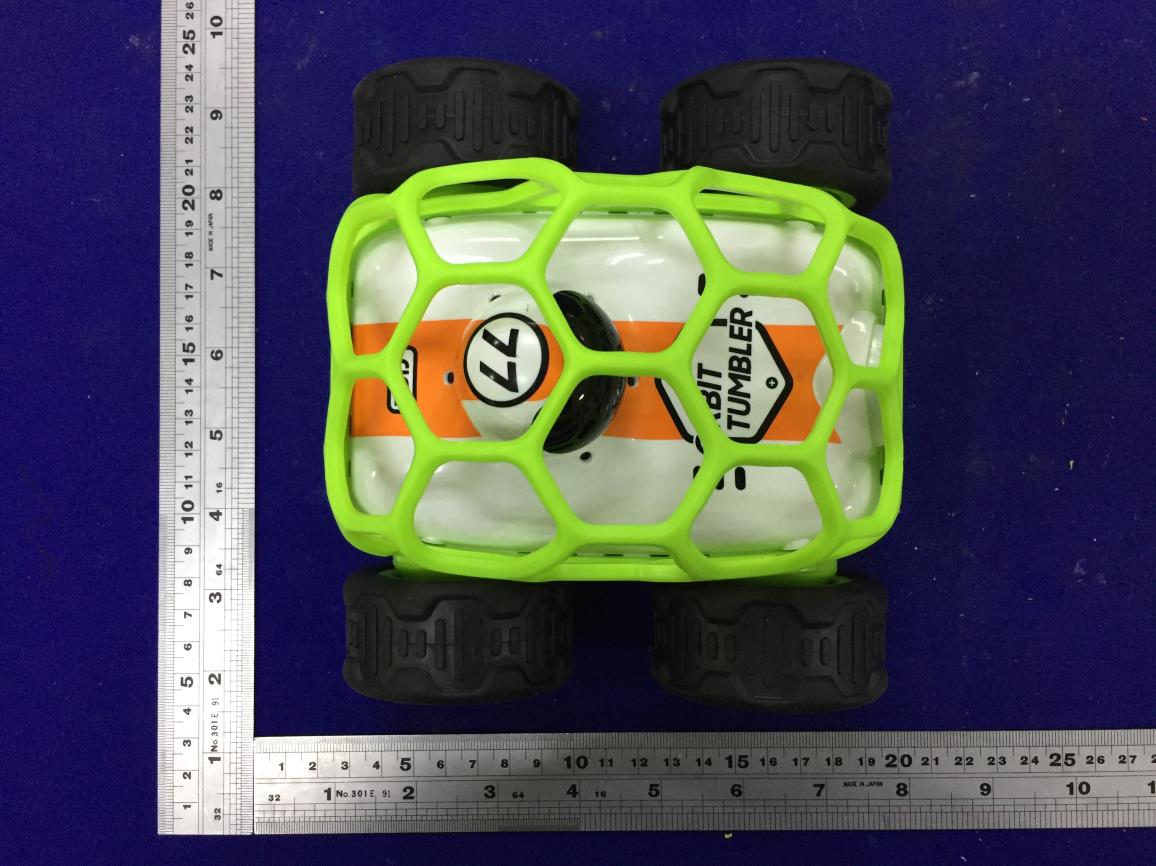

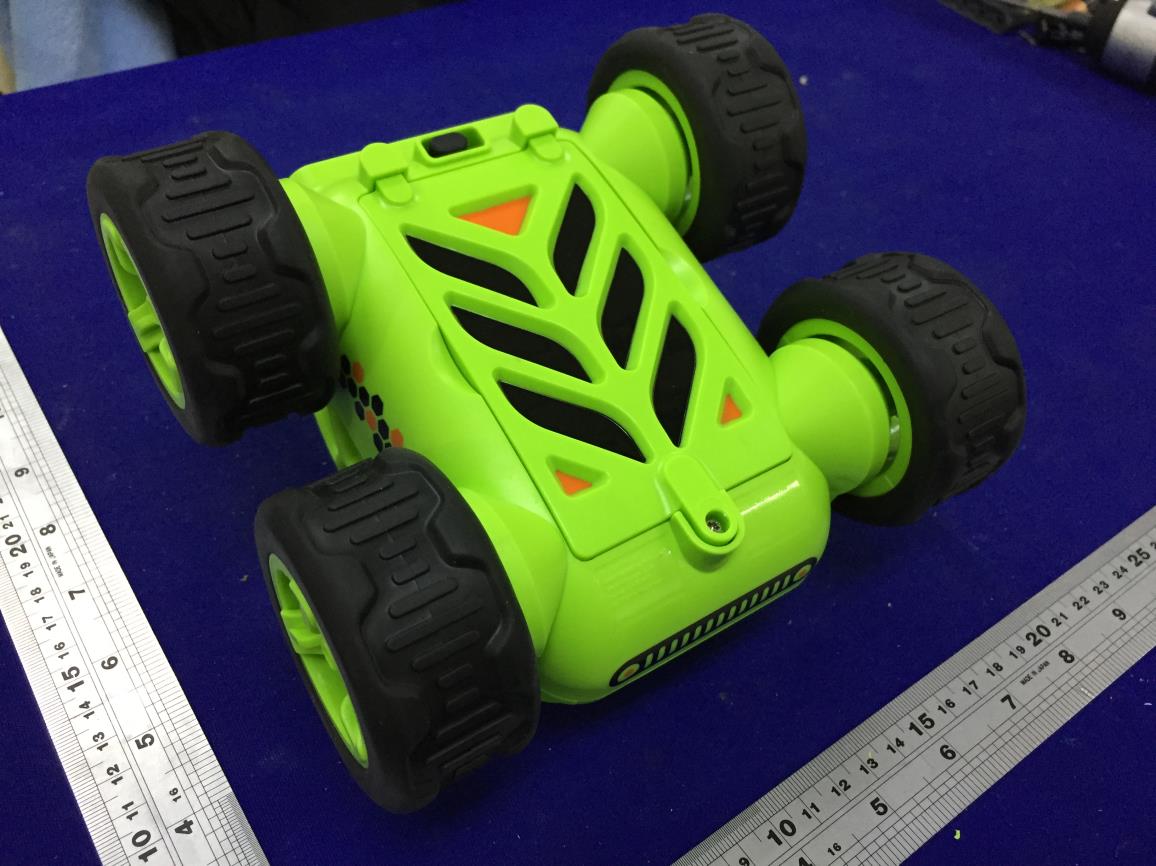

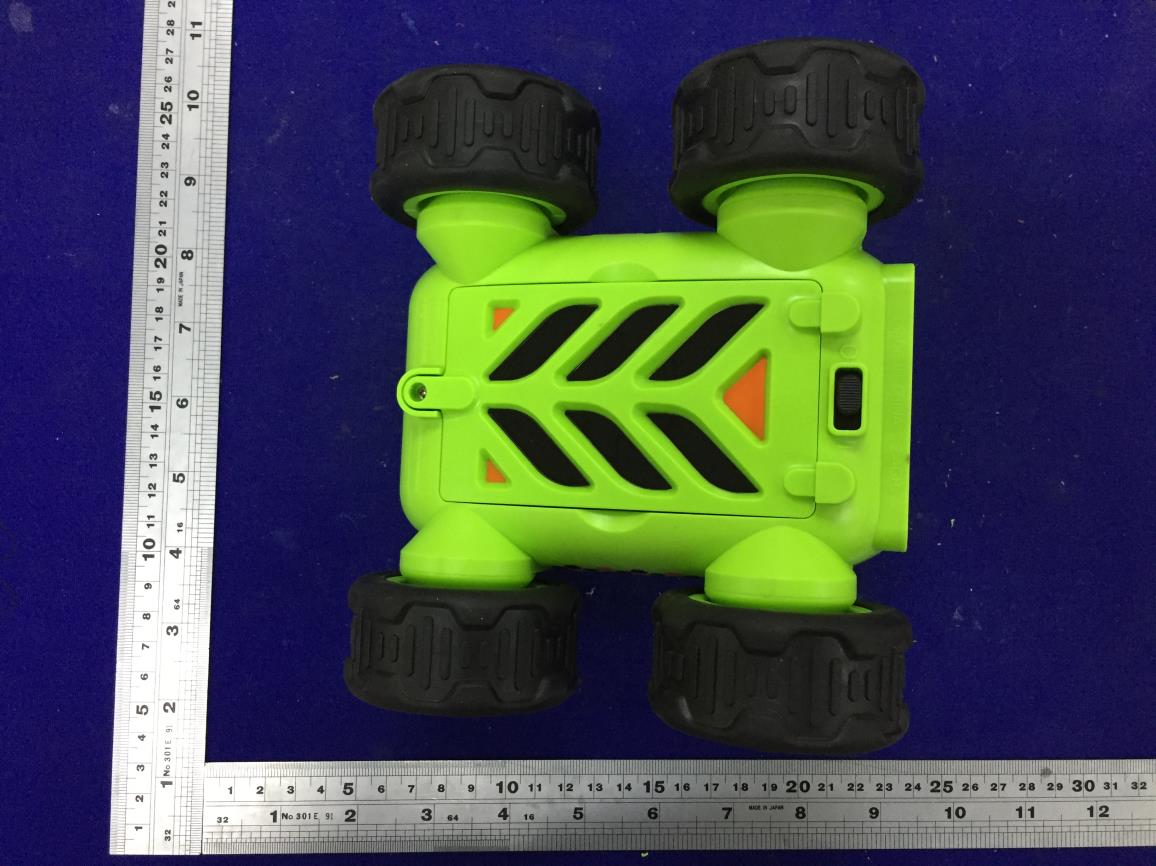

Page 1 of 2 External Photos Page 2 of 2

Label Artwork and Location SIZE: 18mm (W) x 5mm (H)

Page 1 of 2 Internal Photos Page 2 of 2

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Toy RC Orbit Tumbler Glow in the Dark operating at 2.4G Band. The EUT can be powered by DC 9.0V (6 x 1.5V AA batteries).For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Modulation Type: GFSK Antenna Gain: 2dBi The nominal conducted output power specified: -5.0 dBm (±3 dB) The nominal radiated output power (e.i.r.p) specified: -3.0 dBm (±3dB) According to the KDB 447498: The Maximum peak radiated emission for the EUT is 93.1 dB μV/m at 3m in the frequency 2462MHz The EIRP = [(FS*D) ^2 / 30] mW = -2.13dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 91.3 dB μV/m at 3m in the frequency 2418MHz The EIRP = [(FS*D) ^2 / 30] mW = -3.93dBm which is within the production variation . The maximum conducted output power specified is -2dBm= 0.631mW The source- based time-averaging conducted output power =0.631* Duty cycle mW <0.631 mW(Duty cycle <100%) The SAR Exclusion Threshold Level : 푃 th (mW) = ERP 20cm * (푑/20cm) 푥 (X= ) = 3060 * (0.5/20) 1.9 mW = 2.72 mW Since max. power of the source-based time-averaging conducted output power and effective radiated power (ERP) is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 7.9420ms Effective period of the cycle = 1.0725ms DC =1.0725ms / 7.9420ms =0.1350 or 13.50% FCC ID: XHT-1014148-3

Guangdong Yinrun Industry Co., LTD. TEST REPORT SCOPE OF WORK FCC TESTING– MODEL:1014148 REPORTNUMBER GZHH00440261-002 ISSUE DATE MAY 16, 2022 PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.:GZHH00440261-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page:1 of 24 FCC ID 249_C Test Report Guangdong Yinrun Industry Co., LTD. Application for Certification FCC ID: XHT-1014148-3 Toy RC Orbit Tumbler Glow in the Dark Model: 1014148 Additional Model No.: 1015632, 101XXXX (where xxxx can be 0000- 9999 which represent different customers) Brand Name: Sharper Image 2.4GHz Transceiver Report No.: GZHH00440261-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-20] Prepared and Checked by: Approved by: Sign on file Terry Tang Assistant Supervisor Peter Kang Technical Supervisor Date: May 16, 2022 Intertek Report No.:GZHH00440261-002 Version: 01-November-2017 Page:2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-20Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-86016288/86-755-86016751 Intertek Report No.:GZHH00440261-002 Version: 01-November-2017 Page:3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result ..................................................................................... 4 2.0 General Description ............................................................................................ 5 2.1Product Description ............................................................................................. 5 2.2Related Submittal(s) Grants ................................................................................ 5 2.3Test Methodology ................................................................................................ 5 2.4Test Facility ........................................................................................................ 5 3.0 System Test Configuration ................................................................................. 6 3.1 Justification ........................................................................................................ 6 3.2EUT Exercising Software ..................................................................................... 6 3.3Special Accessories ............................................................................................ 6 3.4Equipment Modification ....................................................................................... 6 3.5 Measurement Uncertainty .................................................................................. 6 3.6 Support Equipment List and Description ............................................................. 6 4.0Emission Results ................................................................................................. 7 4.1 Radiated Test Results ........................................................................................ 7 4.1.1 Field Strength Calculation ................................................................................ 7 4.1.2 Radiated Emission Configuration Photograph .................................................. 8 4.1.3Radiated Emissions .......................................................................................... 8 4.1.4 Transmitter Spurious Emissions .................................................................... 11 5.0 Equipment Photographs ................................................................................... 15 6.0Product Labelling ............................................................................................... 15 7.0Technical Specifications .................................................................................... 15 8.0Instruction Manual ............................................................................................. 15 9.0Miscellaneous Information ................................................................................ 16 9.1 Bandedge Plot ................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Radiated Photos Up to 1GHz (The EUT placed at the center of the turntable) Page 2 of 2 Above 1GHz (The EUT placed at the center of the turntable)
