XHTMC11012-R49MToy-R/C Monster Spin Car

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. † Consult the dealer or an experienced radio/TV technician for help.

RX Block Diagram ANT Super-regenerative receiver Decoder U1 (Clock frequency 128k Hz) Motor 2 49.860MHz Motor 1 Driver Motor 1 Motor 2 Driver

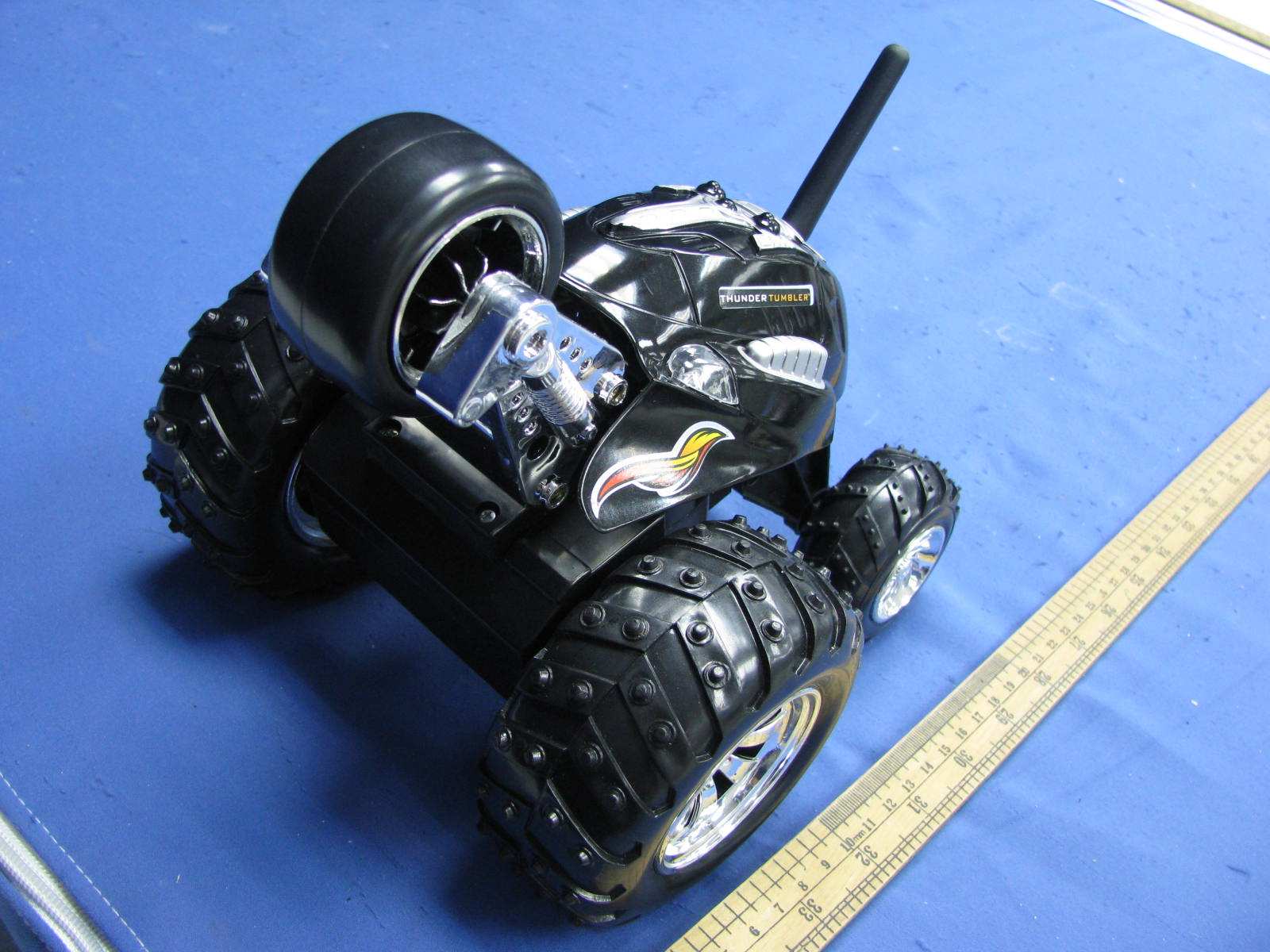

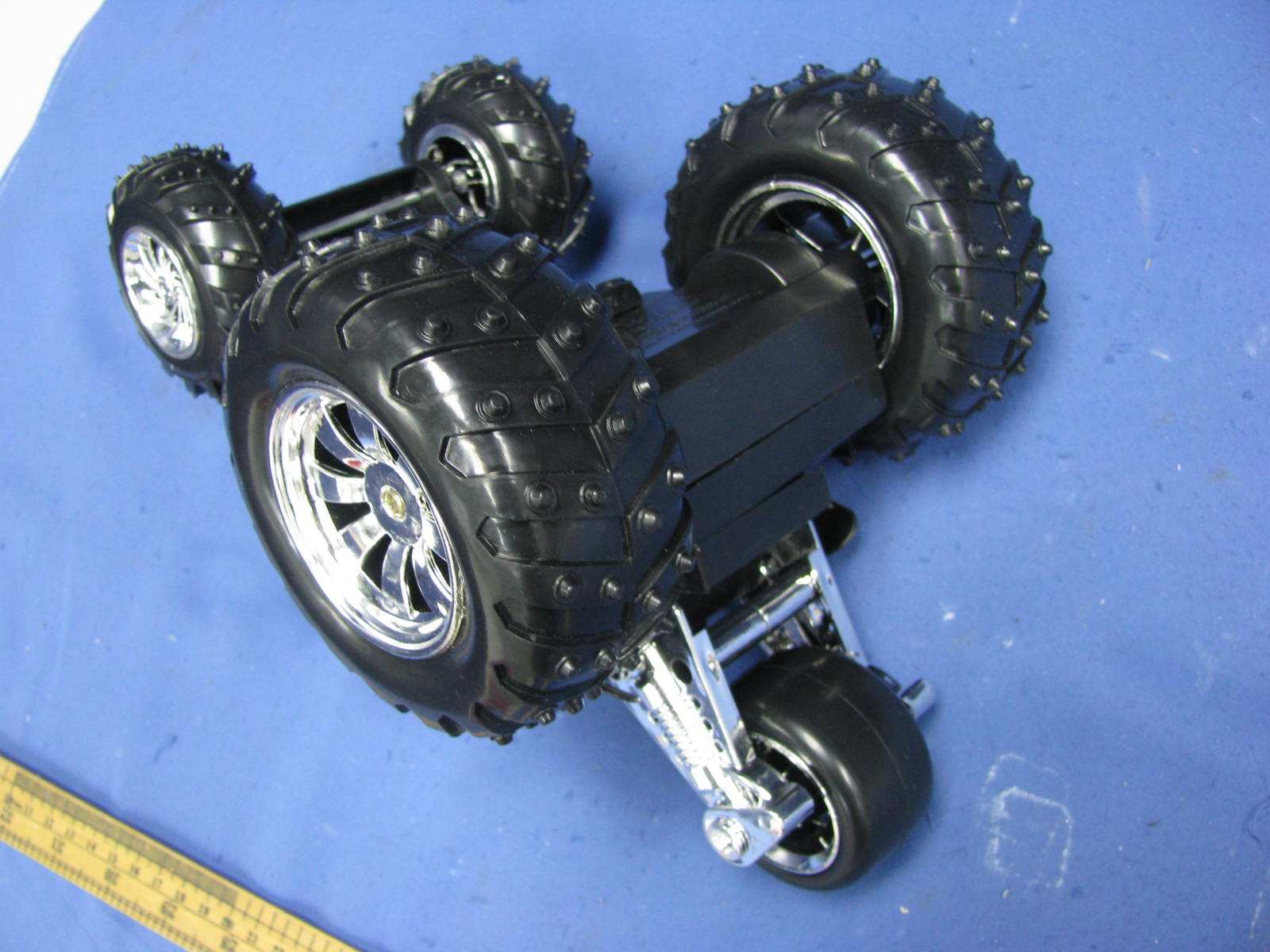

External Photos

Label Artwork and Location Label Size: 40mm x 15mm

Internal Photos

RX Technical description Description Function Component Antenna Receive the RF signal ANT Super-regenerative receiver Select the RF signal Q14 and associated circuit RF IC Decode the RF signal to Motor Driver U1 Motor1 Drivers Drive the Motor Q4, Q5, Q8, Q11,Q12, Q13 and associated circuit Motor2 Drivers Drive the Motor Q2, Q3, Q6, Q7, Q9,Q10 and associated circuit Type of antenna: Integral

123456 A B C D 6 54321 D C B A Title NumberRev isionSize B Date:29-Mar-2011Sheet of File:E:\201 0\ 新新新新新 (2)\其其\MyDesign1.ddbDrawn By : 104 pF C11 Q8 C327 9 Q11 C3279 Q4 C945 Q2 C945 Q5 C945 Q14 C1815 Q7 C327 9 Q6 C3279 Q10 A1300 Q9 A1300 Q13 A1300 Q12 A1300 R9 220 K R5 2.2M R18 33R R6 2.2K R7 820K R15 33R GND ANT GND GND R2 470R R3 3.9K R4 2.2K R8 2.2K R1 180 K R16 33R R10 150 R R17 33R C5 4.7uF C3 47pF C4 222pF C2 22pF C7 104 pF C1 10pF C6 473 pF L1 6.8uH T1 10T 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 C10 104 pF C8 501pF C9 332 pF GND GND GND Q3 C945 GND R13 1K R14 1K R12 1K R11 1K HL4513RX YFC-825 M1+M1-- M2+M2-- VCC:6.0V U1
