XIA-CTL2000Smart Installation Tool

NetComm Wireless Pty Ltd Level 5, 18-20 Orion Road, Lane Cove,NSW, 2066, Australia 18-20 Orion Roa d Lane Cove, NSW 2066, A ustra lia + 61 2 9424 2000 N e t C o m m W i r e l e s s P t y L t d A C N 0 0 2 49 0 48 6, a c q u i r e d b y C a s a S y s t e m s In c . CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 2023-06-26 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: XIA-CTL2000 NetComm Wireless Pty Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. NetComm Wireless Pty Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Printed Name: Pat Sinni Title: Certification and Compliance Team Leader

NetComm Wireless Pty Ltd Level 5, 18-20 Orion Road, Lane Cove,NSW, 2066, Australia 18-20 Orion Roa dLane Cove, NSW 2066, A ustra lia + 61 2 9424 2000 N e t C o m m W i r e l e s s P t y L t d A C N 0 0 2 49 0 48 6, a c q u i r e d b y C a s a S y s t e m s In c . Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 30, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing NetComm Wireless Pty Ltd (“the applicant”) certifies that, as of the date of the filing of the application, Americas Compliance Consulting LLc dba iCertifi. is our designated U.S. agent for service of process. NetComm Wireless Pty Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Americas Compliance Consulting LLc dba iCertifi. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process. Sincerely, Designated U.S. Agent Information: FRN: 0033399411 Name: Americas Compliance Consulting LLc dba iCertifi Contact Person: Mr Paul A Preston Address: 1001 SW Disk Drive, ste 250 Office 3 Bend, OR 97702 United States Tel.: (866) 885-4575 Email: [email protected] U.S. Agent Signature: Applicant: Company Name: NetComm Wireless Pty Ltd Grantee Code: XIA Contact Person: Pat Sinni Address: Level 5, 18-20 Orion Road, Lane Cove NSW 2066, Australia Tel.: +61 2 9424 2000 Email: [email protected] Applicant Signature:

NetComm Wireless Pty Ltd Level 5, 18-20 Orion Road, Lane Cove,NSW, 2066, Australia 18-20 Orion Road Lane Cove, NSW 2066, Austra lia + 61 2 942 4 2000 N e t C o m m W i r e l e s s P t y L t d A C N 0 0 2 49 0 48 6, a c q u i r e d b y C a s a S y s t e m s In c . Cover Letter Date:2023-06-26 Federal Communications Commission Authorization and Evaluation Division FCC ID: XIA-CTL2000 Please be notified that we, the undersigned, NetComm Wireless Pty Ltd declares that the product which bears the above FCC ID is also compliant with the FCC requirements for Supplier’s Declaration of Conformity(SDoC). And the SDoC procedure shall be carried out prior to marketing the device in the US. Sincerely, Signature: Name and Job Title : Pat Sinni Certification and Compliance Team Leader E-Mail : [email protected] Tel : +61294242070

NetComm Wireless Pty Ltd Level 5, 18-20 Orion Road, Lane Cove, NSW, 2066, Australia 18-20 Orion Roa d Lane Cove, NSW 2066, A ustra lia + 61 2 9424 2000 N e t C o m m W i r e l e s s P t y L t d A C N 0 0 2 49 0 48 6, a c q u i r e d b y C a s a S y s t e m s In c . Declaration of Authorization Date:2023-06-26 We Name: NetComm Wireless Pty Ltd Address: Level 5, 18-20 Orion Road, Lane Cove, NSW 2066, Sydney, Australia Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Smart Installation Tool FCC ID: XIA-CTL2000 Model No.: CTL-2000 Sincerely, ________________ Name and Job Title : Pat Sinni Certification and Compliance Team Leader E-Mail : [email protected] Tel : +61294242070

NetComm Wireless Pty Ltd Level 5, 18-20 Orion Road, Lane Cove, NSW, 2066, Australia 18-20 Orion Road Lane Cove, NSW 2066 , Au stralia + 61 2 9424 2000 N e t C o m m W i r e l e s s P t y L td AC N 0 0 2 49 0 48 6, a c q u i re d b y C a s a Sy ste m s I n c . Confidentiality Request Letter Date:2023-06-26 Federal Communications Commission Authorization and Evaluation Division FCC ID: XIA-CTL2000 Long Term Confidentiality: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request long-term confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description Short Term Confidentiality: As well as short-term (secrecy cycle: 180 days) confidential treatment of information accompanying this application as outlined below: ● Internal Photos ● User’s Manual ● External Photos ● Test Set-up Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. NetComm Wireless Pty Ltd Level 5, 18-20 Orion Road, Lane Cove, NSW, 2066, Australia 18-20 Orion Road Lane Cove, NSW 2066 , Au stralia + 61 2 9424 2000 N e t C o m m W i r e l e s s P t y L td AC N 0 0 2 49 0 48 6, a c q u i re d b y C a s a Sy ste m s I n c . Sincerely, Applicant’s company name : NetComm Wireless Pty Ltd Applicant’s company address : Level 5, 18-20 Orion Road, Lane Cove, NSW 2066, Sydney, Australia Signature : Name and Job Title : Pat Sinni / Certification and Compliance Team Leader E-Mail : [email protected] Tel : +61294242070

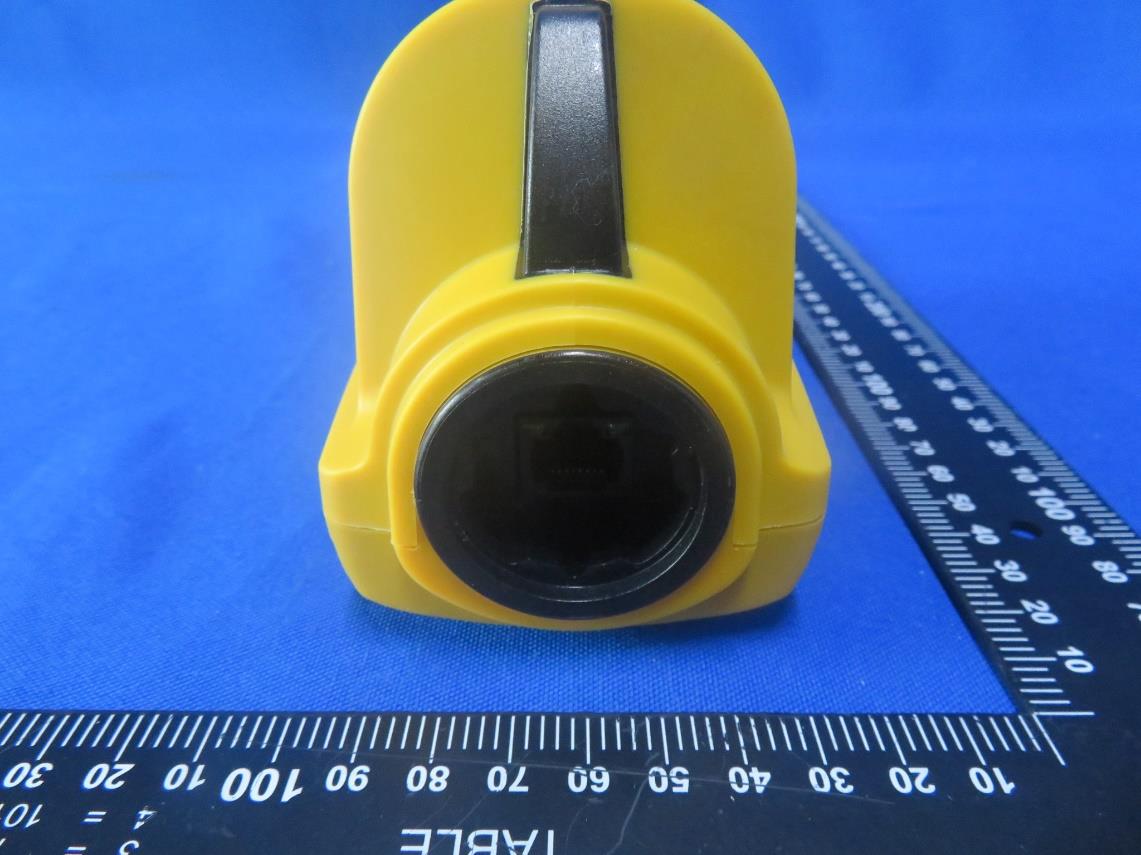

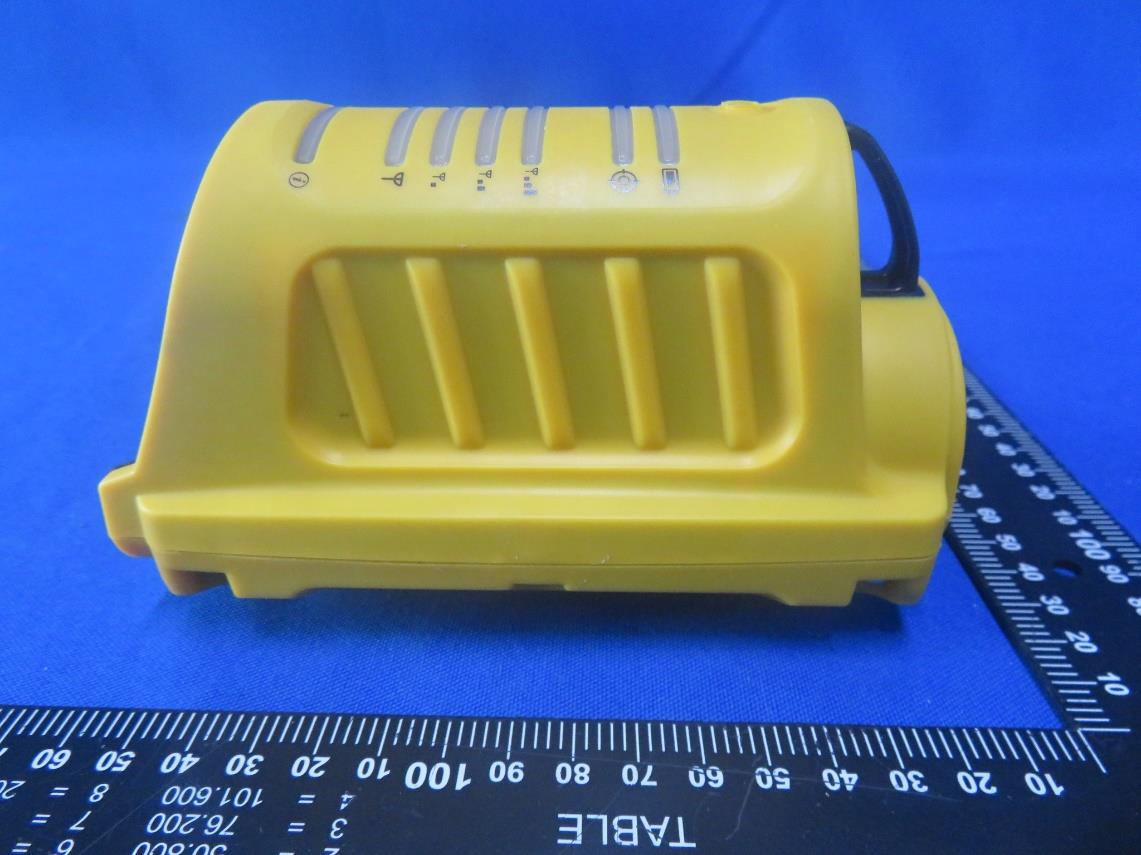

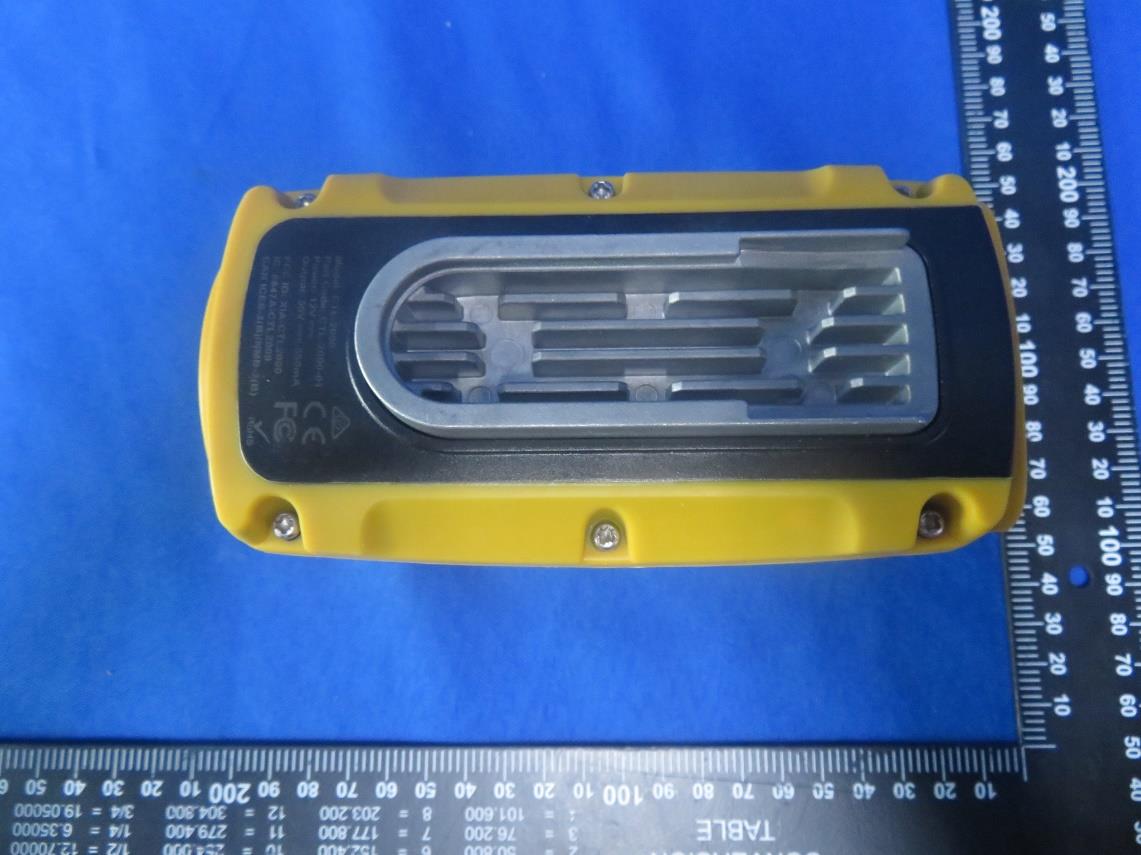

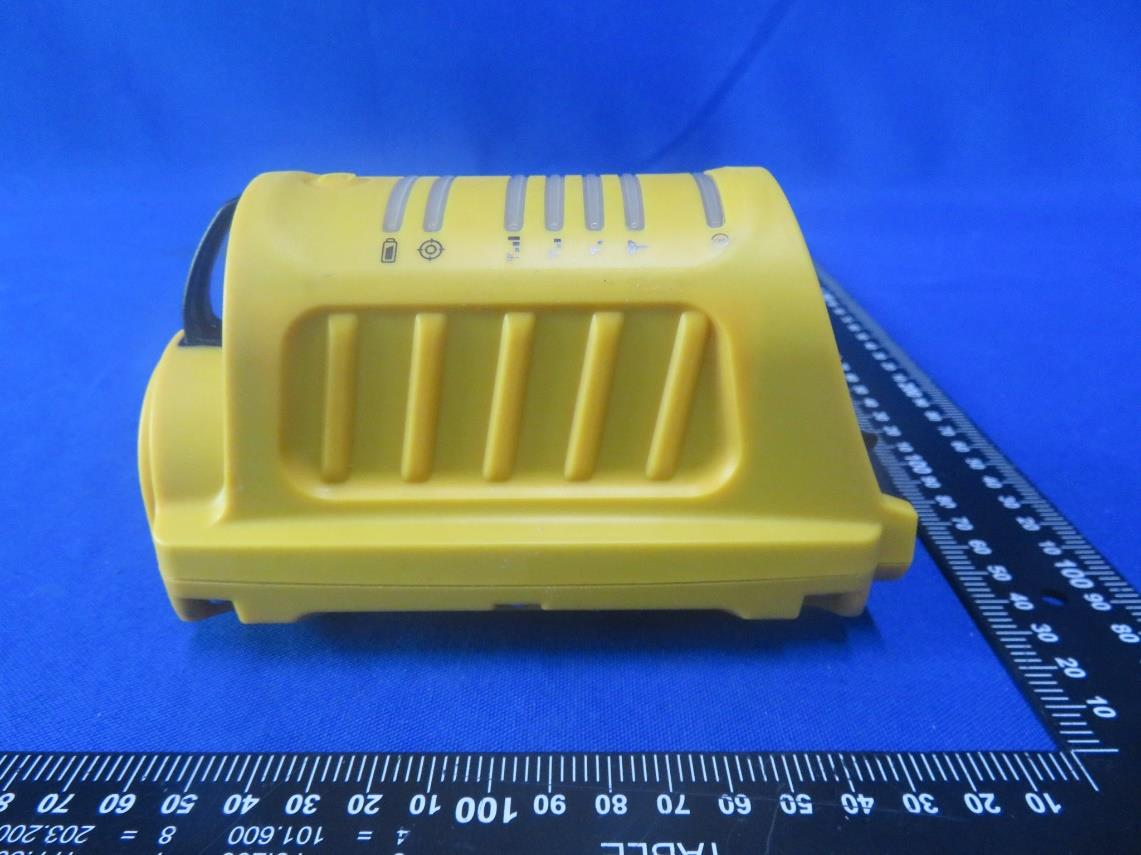

Report No.: 2304RSU026-UE 1 of 3 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2304RSU026-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2304RSU026-UE 3 of 3 (5) EUT Photo (6) EUT Photo

DATEDRWN BYREVECN A26/08/2022J.LAU B28/09/2022J.LAU BLACK SPECIFICATION COLOURS REFERENCE KEYLINE (DO NOT PRINT) ALL DIMENSIONS IN MM UNLESS OTHERWISE STATED DO NOT SCALE C28/09/2022G.Chacko Smart Antenna Tool Model: CTL-2000 Part Code: CTL-2000-01 Power: 10.8V Output: 55V 550mA MATW-00963-000C CTL-2000-01 Top Housing Printing Artwork TITLE FILE DATESCALE REV.PART NUMBER MATW-00963-000 RevB CTL-2000-01 Top Housing Printing Artwork (outline).ai 26/08/2022 DRWNCKD J. LAUP.LEWIS1:1 NO PART OF THIS DRAWING MAY BE REPRODUCED, NOR ITS CONTENTS USED IN ANY WAY WITHOUT THE PRIOR WRITTEN CONSENT OF CASA SYSTEMS © ALL RIGHT RESERVED. FCC ID: XIA-CTL2000 IC: 8847A-CTL2000 CAN ICES-3(B)/NMB-3(B) D e s i g n e d i n A u s t r a l i a . A s s e m b l e d i n C h i n a .

Report No.: 2304RSU026-UE 1 of 3 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2304RSU026-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2304RSU026-UE 3 of 3 (5) EUT Photo (6) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2304RSU026-U4 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2023-07-17 Template Version:0.0 1 of 50 SAR MEASUREMENT REPORT FCC ID: XIA-CTL2000 Applicant: NetComm Wireless Pty Ltd Product: Smart Installation Tool Model No.: CTL-2000 Brand Name: CASA SYSTEMS FCC Rule Part(s): FCC 47 CFR Part 2.1093 Result: Complies Received Date: 2023-04-11 Test Date: 2023-05-11 ~ 2023-07-17 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2304RSU026-U4 2 of 50 Revision History Report No. Version Description Issue Date Note 2304RSU026-U4 V01 Initial Report 2023-07-11 Invalid 2304RSU026-U4 V02 Remove the BR/EDR 2023-07-17 Valid Report No.: 2304RSU026-U4 3 of 50 CONTENTS Description Page 1. General Information ................................................................................................................................. 5 1.1. Applicant ........................................................................................................................................ 5 1.2. Manufacturer .................................................................................................................................. 5 1.3. Testing Facility ............................................................................................................................... 5 1.4. Product Information ........................................................................................................................ 6 1.5. Radio Specification under Test ...................................................................................................... 6 1.6. Antenna Details .............................................................................................................................. 7 2. Summary of Test Result .......................................................................................................................... 8 2.1. Test Standards ............................................................................................................................... 8 2.2. Environment Condition ................................................................................................................... 8 2.3. RF Exposure Limits ........................................................................................................................ 8 2.4. Test Result Summary .................................................................................................................... 9 3. Specific Absorption Rate (SAR) ............................................................................................................ 10 3.1. Introduction .................................................................................................................................. 10 3.2. Definition ...................................................................................................................................... 10 4. DASY6 Measurement System................................................................................................................ 11 4.1. Introduction .................................................................................................................................. 11 4.2. DASY6 Measurement System Diagram ...................................................................................... 11 4.3. System Components Details........................................................................................................ 12 5. The SAR Measurement Procedure ....................................................................................................... 23 5.1. Measurement Process Diagram .................................................................................................. 23 5.2. Test Position Definition ................................................................................................................ 24 5.3. Test Procedure ............................................................................................................................ 27 6. System Verificaiton ................................................................................................................................ 30 6.1. Tissue Check ............................................................................................................................... 30 6.2. System Check .............................................................................................................................. 33 7. Analysis and Results ............................................................................................................................. 35 7.1. Antenna Location ......................................................................................................................... 35 7.2. Conducted Power ........................................................................................................................ 36 7.3. SAR Test Results ......................................................................................................................... 37 8. Simultaneous Transmission Analysis .................................................................................................. 38 9. Measuring Instrument ............................................................................................................................ 39 Report No.: 2304RSU026-U4 4 of 50 10. Measuremen…

Text truncated - open the document above for the full version.

Return Loss and Impedance Indicated By Head Tissue Meas. Items Original Value Current Value Deviation Return Loss(dB) -29.0 -32.42 11.79% Impedance 53.7Ω - 0.01jΩ 49.20Ω + 2.28Ω -4.50Ω Real part 2.29Ω Imaginary part Test Date: 2023/0 5/18

Report No.: 2304RSU026-U2 46 of 91 802.11n-HT20 Out-of-Band Emissions Channel 11 (2462MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission Report No.: 2304RSU026-U2 47 of 91 802.11n-HT40 Out-of-Band Emissions Channel 03 (2422MHz) 100kHz PSD Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) 100kHz PSD Reference Level Spurious Emission Report No.: 2304RSU026-U2 48 of 91 802.11n-HT40 Out-of-Band Emissions Channel 09 (2452MHz) 100kHz PSD Reference Level High Band Edge Spurious Emission Report No.: 2304RSU026-U2 49 of 91 A.6 Radiated Spurious Emission Test Result Test Site SIP-AC2 Test Engineer Mero Zhou Test Date 2023-06-14 Test Mode: 802.11b Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 01 4825.0 57.6 -3.9 53.7 74.0 -20.3 Peak Horizontal 4825.0 56.9 -3.9 53.0 54.0 -1.0 Average Horizontal 10868.5 41.0 5.1 46.1 74.0 -27.9 Peak Horizontal 17864.0 37.4 15.7 53.1 74.0 -20.9 Peak Horizontal 17864.0 26.3 15.7 42.0 54.0 -12.0 Average Horizontal 4825.0 55.9 -3.9 52.0 74.0 -22.0 Peak Vertical 4825.0 52.2 -3.9 48.3 54.0 -5.7 Average Vertical 10996.0 40.8 5.0 45.8 74.0 -28.2 Peak Vertical 17838.5 37.2 16.2 53.4 74.0 -20.6 Peak Vertical 17838.5 26.4 16.2 42.6 54.0 -11.4 Average Vertical 06 4876.0 58.1 -3.7 54.4 74.0 -19.6 Peak Horizontal 4876.0 55.6 -3.7 51.9 54.0 -2.1 Average Horizontal 10851.5 41.9 4.9 46.8 74.0 -27.2 Peak Horizontal 17830.0 36.6 16.2 52.8 74.0 -21.2 Peak Horizontal 17830.0 25.8 16.2 42.0 54.0 -12.0 Average Horizontal 4876.0 56.9 -3.7 53.2 74.0 -20.8 Peak Vertical 4876.0 56.5 -3.7 52.8 54.0 -1.2 Average Vertical 11472.0 40.3 5.3 45.6 74.0 -28.4 Peak Vertical 17830.0 36.5 16.2 52.7 74.0 -21.3 Peak Vertical 17830.0 25.7 16.2 41.9 54.0 -12.1 Average Vertical Report No.: 2304RSU026-U2 50 of 91 11 4927.0 60.5 -3.7 56.8 74.0 -17.2 Peak Horizontal 4927.0 56.3 -3.7 52.6 54.0 -1.4 Average Horizontal 11540.0 40.0 5.5 45.5 74.0 -28.5 Peak Horizontal 17830.0 36.9 16.2 53.1 74.0 -20.9 Peak Horizontal 17830.0 26.4 16.2 42.6 54.0 -11.4 Average Horizontal 4927.0 57.2 -3.7 53.5 74.0 -20.5 Peak Vertical 4927.0 55.5 -3.7 51.8 54.0 -2.2 Average Vertical 11548.5 40.4 5.4 45.8 74.0 -28.2 Peak Vertical 17736.5 37.1 15.5 52.6 74.0 -21.4 Peak Vertical 17736.5 25.8 15.5 41.3 54.0 -12.7 Average Vertical Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2304RSU026-U2 51 of 91 Test Site SIP-AC2 Test Engineer Mero Zhou Test Date 2023-05-05~2023-05-09 Test Mode: 802.11g Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 01 4825.0 64.5 -7.4 57.1 74.0 -16.9 Peak Horizontal 4825.0 55.0 -7.4 47.6 54.0 -6.4 Average Horizontal 8123.0 50.0 -3.1 46.9 74.0 -27.1 Peak Horizontal 15866.5 47.0 3.4 50.4 74.0 -23.6 Peak Horizontal 4825.0 65.8 -7.4 58.4 74.0 -15.6 Peak Vertical 4825.0 56.7 -7.4 49.3 54.0 -4.7 Average Vertical 8157.0 49.0 -3.2 45.8 74.0 -28.2 Peak Vertical 11684.5 48.2 -3.4 44.8 74.0 -29.2 Peak Vertical 06 4876.0 62.1 -8.5 53.6 74.0 -20.4 Peak Horizontal 4876.0 53.4 -8.5 44.9 54.0 -9.1 Average Horizontal 8055.0 49.7 -3.2 46.5 74.0 -27.5 Peak Horizontal 15909.0 45.4 3.8 49.2 74.0 -24.8 Peak Horizontal 4867.5 63.1 -8.5 54.6 74.0 -19.4 Peak Vertical 4867.5 53.8 -8.5 45.3 54.0 -8.7 Average Vertical 8250.5 48.9 -3.1 45.8 74.0 -28.2 Peak Vertical 11880.0 49.1 -3.6 45.5 74.0 -28.5 Peak Vertical 11 4927.0 60.7 -8.3 52.4 74.0 -21.6 Peak Horizontal 4927.0 51.7 -8.3 43.4 54.0 -10.6 Average Horizontal 8080.5 50.3 -3.1 47.2 74.0 -26.8 Peak Horizontal 15917.5 45.9 3.7 49.6 74.0 -24.4 Peak Horizontal 4927.0 61.6 -8.3 53.3 74.0 -20.7 Peak Vertical 4927.0 52.0 -8.3 43.7 54.0 -10.3 Average Vertical 8140.0 49.3 -2.9 46.4 74.0 -27.6 Peak Vertical 15798.5 46.6 3.1 49.7 74.0 -24.3 Peak Vertical Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2304RSU026-U2 52 of 91 Test Site SIP-AC2 Test Engineer Mero Zhou Test Date 2023-05-05~2023-05-09 Test Mode: 802.11n-HT20 Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 01 4816.0 53.7 -7.6 46.1 54.0 -7.9 Average Horizontal 4816.5 64.8 -7.6 57.2 74.0 -16.8 Peak Horizontal 8165.5 49.6 -3.2 46.4 74.0 -27.6 Peak Horizontal 11803.5 49.3 -3.6 45.7 74.0 -28.3 Peak Horizontal 4816.0 55.7 -7.6 48.1 54.0 -5.9 Average Vertical 4816.5 64.8 -7.6 57.2 74.0 -16.8 Peak Vertical 8225.0 49.4 -2.8 46.6 74.0 -27.4 Peak Vertical 15892.0 46.3 3.6 49.9 74.0 -24.1 Peak Vertical 06 4876.0 63.2 -8.5 54.7 74.0 -19.3 Peak Horizontal 4876.0 53.5 -8.5 45.0 54.0 -9.0 Average Horizontal 8131.5 49.2 -3.0 46.2 74.0 -27.8 Peak Horizontal 15909.0 45.4 3.8 49.2 74.0 -24.8 Peak Horizontal 4876.0 63.6 -8.5 55.1 74.0 -18.9 Peak Vertical 4876.0 54.2 -8.5 45.7 54.0 -8.3 Average Vertical 8208.0 48.4 -2.7 45.7 74.0 -28.3 Peak Vertical 11021.5 48.2 -3.2 45.0 74.0 -29.0 Peak Vertical 11 4935.5 59.3 -5.9 53.4 74.0 -20.6 Peak Horizontal 4935.5 49.5 -5.9 43.6 54.0 -10.4 Average Horizontal 11497.5 40.0 8.1 48.1 74.0 -25.9 Peak Horizontal 17991.5 37.1 20.3 57.4 74.0 -16.6 Peak Horizontal 17991.5 25.0 20.3 45.3 54.0 -8.7 Average Horizontal 4927.0 60.6 -6.0 54.6 74.0 -19.4 Peak Vertical 4927.0 50.5 -6.…

Text truncated - open the document above for the full version.

Application Report 2.4-GHz Inverted F Antenna ABSTRACT This document describes a printed-circuit board (PCB) antenna design that can be used with all 2.4-GHz transceivers and transmitters from Texas Instruments ™ . The maximum gain when used on the reference board is measured to be +3.3 dBi, and the overall size requirements for this antenna are 25.7 × 7.5 mm (not including ground plane). Table of Contents 1 Description of the antenna Design........................................................................................................................................2 2 Measurement Results.............................................................................................................................................................3 2.1 Radiation Pattern...............................................................................................................................................................3 2.2 Reflection.........................................................................................................................................................................10 2.3 Bandwidth.........................................................................................................................................................................11 3 Summary................................................................................................................................................................................11 4 References.............................................................................................................................................................................11 5 Revision History...................................................................................................................................................................12 Trademarks Texas Instruments ™ is a trademark of Texas Instruments. All trademarks are the property of their respective owners. www.ti.comTable of Contents SWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback 2.4-GHz Inverted F Antenna1 Copyright © 2021 Texas Instruments Incorporated 1 Description of the antenna Design It is important to make an exact copy of the antenna dimensions to obtain optimum performance. The easiest approach to implement the antenna in a PCB CAD tool is to import the antenna layout from a gerber file or a DXF file. Such files are included in CC2430DB reference design [1]. The gerber file is called Inverted_F_Antenna.spl and the DXF file is called Inverted_F_Antenna.dxf. If the antenna is implemented on a PCB that is wider than the antenna, avoid placing components or having a ground plane close to the end points of the antenna. If the CAD tool being used does not support importing gerber or DXF files, see Figure 1-1 and Table 1-1. The antenna impedance is tuned to 50 ohm on the reference board. The impedance will however be affected by different size and shape of the ground plane, objects in the antenna nearfield such as mechanical assemblies (housing, batteries, etc.), PCB thickness, PCB material and so on. It is therefore recommended to add a pi-network close to the antenna feedpoint for impedance matching. The results presented in this document are based on an antenna implemented on a PCB with a 1-mm thickness using standard FR-4 material. Figure 1-1. IFA Dimensions Table 1-1. IFA Dimensions H15.70 mmW20.46 mm H20.74 mmL125.58 mm H31.29 mmL216.40 mm H42.21 mmL32.18 mm H50.66 mmL44.80 mm H61.21 mmL51.00 mm H70.80 mmL61.00 mm H81.80 mmL73.20 mm H90.61 mmL80.45 mm W11.21 mm Description of the antenna Designwww.ti.com 22.4-GHz Inverted F AntennaSWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated 2 Measurement Results All of the results presented in this section are based on measurements performed with the CC2430DB [1] evaluation board. 2.1 Radiation Pattern Figure 2-1 shows how to relate all of the radiation patterns to the orientation of the antenna. The radiation patterns were measured with the CC2430 device programmed to 0-dBm output power. Figure 2-1. Relating Antenna to Radiation Patterns www.ti.comMeasurement Results SWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback 2.4-GHz Inverted F Antenna3 Copyright © 2021 Texas Instruments Incorporated Figure 2-2 shows the XY plane vertical polarization. Figure 2-2. XY Plane–Vertical Polarization Measurement Resultswww.ti.com 42.4-GHz Inverted F AntennaSWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Figure 2-3 shows the XY plane horizontal polarization. Figure 2-3. XY Plane–Horizontal Polarization www.ti.comMeasurement Results SWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback 2.4-GHz Inverted F Antenna5 Copyright © 2021 Texas Instruments Incorporated Figure 2-4 shows the XZ plane vertical polarization. Figure 2-4. XZ Plane–Vertical Polarization Measurement Resultswww.ti.com 62.4-GHz Inverted F AntennaSWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Figure 2-5 shows the XZ plane horizontal polarization. Figure 2-5. XZ Plane–Horizontal Polarization www.ti.comMeasurement Results SWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback 2.4-GHz Inverted F Antenna7 Copyright © 2021 Texas Instruments Incorporated Figure 2-6 shows the YZ plane vertical polarization. Figure 2-6. YZ Plane–Vertical Polarization Measurement Resultswww.ti.com 82.4-GHz Inverted F AntennaSWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated Figure 2-7 shows the YZ plane horizontal polarization. Figure 2-7. YZ Plane–Horizontal Polarization www.ti.comMeasurement Results SWRU120D – APRIL 2007 – REVISED JANUARY 2019 Submit Document Feedback 2.4-GHz Inverted F Antenna9 Copyright © 202…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2304RSU026-U2 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2023-07-17 Template Version:0.0 1 of 91 RF MEASUREMENT REPORT FCC ID: XIA-CTL2000 Applicant: NetComm Wireless Pty Ltd Product: Smart Installation Tool Model No.: CTL-2000 Brand Name: CASA SYSTEMS FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Result: Complies Received Date: 2023-04-11 Test Date: 2023-05-05 ~ 2023-06-15 Reviewed By: Sunny Sun Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2304RSU026-U2 2 of 91 Revision History Report No. Version Description Issue Date Note 2304RSU026-U2 V01 Initial Report 2023-07-11 Valid 2304RSU026-U2 V02 Removed the BR/EDR function 2022-07-17 Valid Report No.: 2304RSU026-U2 3 of 91 CONTENTS Description Page 1. General Information ................................................................................................................................ 5 1.1. Applicant ...................................................................................................................................... 5 1.2. Manufacturer ................................................................................................................................ 5 1.3. Testing Facility ............................................................................................................................. 5 1.4. Product Information ...................................................................................................................... 6 1.5. Radio Specification under Test .................................................................................................... 6 1.6. Working Frequencies ................................................................................................................... 7 2. Test Configuration ................................................................................................................................... 8 2.1. Test Mode ..................................................................................................................................... 8 2.2. Test System Connection Diagram................................................................................................ 8 2.3. Test Software ............................................................................................................................... 9 2.4. Applied Standards ........................................................................................................................ 9 2.5. Test Environment Condition ......................................................................................................... 9 3. Antenna Requirements ......................................................................................................................... 10 4. Measuring Instrument ........................................................................................................................... 11 5. Decision Rules and Measurement Uncertainty .................................................................................. 12 5.1. Decision Rules ........................................................................................................................... 12 5.2. Measurement Uncertainty .......................................................................................................... 12 6. Test Result .............................................................................................................................................. 13 6.1. Summary .................................................................................................................................... 13 6.2. 6dB Bandwidth Measurement ................................…

Text truncated - open the document above for the full version.
