MT-600&MR-600 RadioRadioSystemystem InstructionInstructionManualanual 2.4GHz2.4GHz %LQGEXWWRQ 0L[HU Used to electronically change the on-board Mixer options.Choose from OFF, Delta,and V-tail. TRANSMITTER MT-600 (Rear and Side Panel) Connects the trainer cord when using the trainer function. (The trainer cord is sold separately. ) Use when replacing the battery . Slide the cover downward while pressing the part marked "". Battery cover Charging jack Trainer jack Antenna Channel Output "1": Aileron servo (CH1) "2": Elevator servo (CH2) "3": Throttle servo (CH3) "4": Rudder servo (CH4) "5": (Not used) (Ch5) "6": (Not used) (CH6) Pair button (At side of box) Link indicate LED RECEIVER Note:Merit MT-600 can only be the slave if connect it with other brand radios. MR-600 Special note for 2.4GHz FHSS radio system setup Receiver ’s Antenna installation Since the 2.4GHz have different characteristics than that of the conventional frequencies, please read this section carefully to enjoy safe flight with the 2.4GHz system. The MR-600has two antennas. These antennas have a diversity function to decrease the chance of a receiving error. The wavelength of the 2.4GHz is much shorter than that of the conventional frequencies, it is very susceptible to loss of signal which results in a receiving error. In order to avoid this phenomenon, the MR-600adopted a diversity antenna system. To obtain the best results of the diversity function, please refer to the following instructions; 1. The two antennas must be kept as straight as possible. Otherwise it will reduce the effective range. 2. The two antennas should be placed at 90 degrees to each other. This is not a critical figure, but the most important thing is to keep the antennas away from each other as much as possible. Larger models can have large metal objects that can attenuate the RF signal. In this case the antennas should be placed at both sides of the model. Then the best RF signal condition is obtained at any flying attitude. 3. The antennas must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not bend it in a small radius. 4. Keep the antennas away from the motor, ESC, and other noise sources as much as possible. * The two antennas should be placed at 90 degrees to each other. * The main purpose of the photo demonstrates how the antenna should be placed. For actual installation the receiver must be wrapped with a sponge or placed with floating material to protect it from vibration. e The receiver contains precision electronic parts. It is the most delicate radio component on-board the model and should be protected from vibration, shock and temperature extremes. To protect the receiver, wrap it in R/C foam rubber or other vibration-absorbing material. If appropriate, waterproof the receiver by placing it in a plastic bag and closing the open end with a rubber band before wrapping it in foam. If moisture enters the receiver, intermittent operation or a failure may result. Wrapping the receiver in a plastic bag also protects it from fuel and exhaust residue which, in some models, can work its way into the fuselage. Transmitter antenna 1. The transmitter antenna is adjustable so please make sure that the antenna is never pointed directly at the model when flying as this creates a weak signal for the receiver. 2. Keep the antenna perpendicular to the transmitter's face to create a better RF condition for the receiver. Of course this depends on how you hold the transmitter, but in most cases, adjusting the transmitter antenna so that it is perpendicular to the face will give the best results. Please adjust the transmitter antenna to the way you hold the transmitter. 3. NEVER grip the antenna when flying as this degrades RF quality. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operating instructions, may cause harmful interference to radio communications, however, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced technician for help. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.Operation is subject to the following two conditions: 1)This device may not cause harmful interference, and.... 2)This device must accept any interference received, including interference that may cause undesired operation. WARNING:Changes or modifications made to this equipment not expressly approved by the party responsible for compliance may void the FCC authorization to operate this equipment. Fail Safe Setup , Continue... 4. To confirm that fail safe is working properly, the ESC will go in to the neutral position and the vehicle will not move when you shut off the transmitter. See page 5 and check the Fail Safe function working properly. You do not need to repeat this procedure each time you run. 5. To confirm that fail safe is working properly, full brake should automatically be applied when you shut off the transmitter. See page 5 and check the Fail Safe function working properly. You do not need to repeat this procedure each time you run. T…

Text truncated - open the document above for the full version.

Authorization Letter We, (the approval holder) Company name SHANGHAI MERIT TECHNOLOGY CORP. Addresss 1058 TAOGAN RD., SHESHAN TOWN, SONGJIANG DISTRICT, City SHANGHAI Country China declare that the following representative (agent): Name (person) Bovey.yang Company name NTEK Testing Technology Co., Ltd. Addresss 1/F, Building E, Fenda Science Park Sanwei Community, Xixiang Street, Baoan District City Shenzhen Country China to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Description 6CH 2.4GHz FHSS RADIO SYSTEM Type or Model(s) MT-600 Tradename or Brand(s) N/A We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Shanghai 2012/3/14 Dongcheng Zheng Artificial Person

FCC Confidentiality Request To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name SHANGHAI MERIT TECHNOLOGY CORP. Addresss 1058 TAOGAN RD., SHESHAN TOWN, SONGJIANG DISTRICT, City SHANGHAI Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: XJ6 -MT600 of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) x Operational Description x Block Diagrams x Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Shanghai 2012/3/14 Dongcheng Zheng Artificial Person

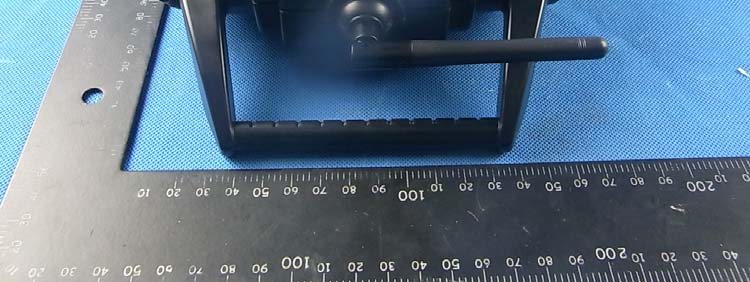

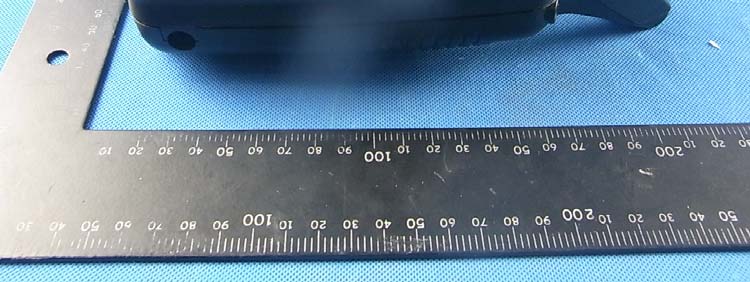

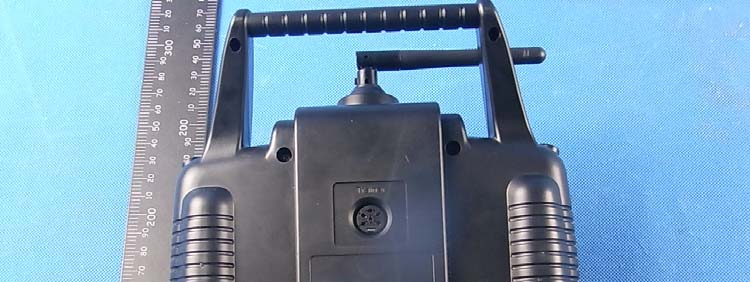

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC label 3.8*5cm

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12

Page 1 of 38 Report No.: NTEK-2012NT0307279F ` FCC RADIO TEST REPORT FCC ID: XJ6-MT600 Product： 6CH 2.4GHz FHSS RADIO SYSTEM Trade Name： MERITRC Model Number： MT-600 Serial Model： N/A Report No.： NTEK-2012NT0307279F Prepared for SHANGHAI MERIT TECHNOLOGY CORP. No. 1058 TAOGAN ROAD, SHESHAN,SONGJIANG, SHANGHAI, CHINA Prepared by NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 38 Report No.: NTEK-2012NT0307279F ` TEST RESULT CERTIFICATION Applicant’s name ................. : SHANGHAI MERIT TECHNOLOGY CORP. Address ................................. : No. 1058 TAOGAN ROAD, SHESHAN,SONGJIANG, SHANGHAI, CHINA Manufacture's Name ............ : SHANGHAI MERIT TECHNOLOGY CORP. Address ................................. : No. 1058 TAOGAN ROAD, SHESHAN,SONGJIANG, SHANGHAI, CHINA Product description Product name ........................... : 6CH 2.4GHz FHSS RADIO SYSTEM Model and/or type reference : MT-600 Serial Model： N/A Rating(s) ................................ : DC 6V(1.5V*4cell “AA” alkaline battery) Standards ............................. : FCC Part15.249 Test procedure ..............................ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 04 Mar. 2012 ~08 Mar. 2012 Date of Issue ........................................... : 10 Mar. 2012 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 38 Report No.: NTEK-2012NT0307279F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 3 . TEST RESULT 12 3.1 ANTENNA REQUIREMENT 12 3.1.1 STANDARD REQUIREMENT 12 3.1.2 EUT ANTENNA 12 3.2 CONDUCTED EMISSION MEASUREMENT 13 3.2.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.3 RADIATED EMISSION MEASUREMENT 17 3.3.1 RADIATED EMISSION LIMITS 17 3.3.2 TEST PROCEDURE 18 3.3.3 DEVIATION FROM TEST STANDARD 18 3.3.4 TEST SETUP 19 3.3.5 TEST RESULTS (BLOW 30MHZ) 21 3.3.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 3.3.7 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . BANDWIDTH TEST 34 4.1 TEST PROCEDURE 34 4.2 DEVIATION FROM STANDARD 34 4.3 TEST SETUP 34 4.4 TEST RESULTS 35 5 . EUT TEST PHOTO 38 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 38 Report No.: NTEK-2012NT0307279F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.249) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.203 Antenna Requirement Pass 15.249 Radiated Spurious Emission Pass 15.249 Occupied Bandwidth Pass Page 5 of 38 Report No.: NTEK-2012NT0307279F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC FRN Registration Nombre:238937; IC Registration Nombre:9270A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 38 Report No.: NTEK-2012NT0307279F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 6CH 2.4GHz FHSS RADIO SYSTEM Trade Name MERITRC Model Name MT-600 Serial Model N/A Model Difference N/A Product Description The EUT is a 6CH 2.4GHz FHSS RADIO SYSTEM Operation Frequency: 2405~2455 MHz Modulation Type: FHSS Antenna Designation: Built-in Antenna Antenna Gain(Peak) 2.0 dBi EIRP 99.51dbuv/m@3m Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List Please refer to the Note 2. Adapter AC Power Input: 100-240V~, 50/60Hz, 0.6A Output: 5V 0.5A Battery 1.5V*4cell “AA” alkaline battery Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 38 Report No.: NTEK-2012NT0307279F ` 2. Channel Frequency (MHz) 01 2405 02 2406 ...... ...... 26 2430 27 2431 ...... ...... 50 2454 51 2455 3. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A Built-in AntennaNA 2.0 Antenna Page 8 of 38 Report No.: NTEK-2012NT0307279F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 CH1 Mode 2 CH26 Mode 3 CH51 Mode 4 Charge Mode Fo…

Text truncated - open the document above for the full version.

Page 38 of 38 Report No.: NTEK-2012NT0307279F ` 5. EUT TEST PHOTO Radiated Measurement Photos Conducted Measurement Photos
