XJ6MT-033CH 2.4GHz FHSS Radio Control System

X X X

Shanghai Merit Technology Corporation. 1058 Taogan road,Sheshan, Songjiang District,Shanghai, China. FCC Authorization Letter Number: CF304 Version: V03 Date: 03-19-2014 We, (the approval holder) Company name Shanghai Merit Technology Corporation. Address 1058 Taogan road,Sheshan, Songjiang District,Shanghai, China. City Shanghai Country China declare that the following representative (agent): Name (person) Ruby.zhang Company name Compliance Certification Services Inc. Address No.10-1 Mingkeda Logistics park, No.18 Huanguan South Road. Guan Lan Town, Baoan District, Shenzhen, China City Shenzhen, Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 3CH 2.4GHz FHSS RADIO CONTROL SYSTEM Type or Model(s) MT-03 Tradename or Brand(s) MERITRC We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shanghai,China 2014-3-19 zheng,Mr Dong Cheng manager

Report No.: C140224Z03-RP1 Page 1/1 External Photos of EUT

Labels: Brand label : Product model label : FCC labels : attached to non-removable attached to non removable part of enclosure part of enclosure Locations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

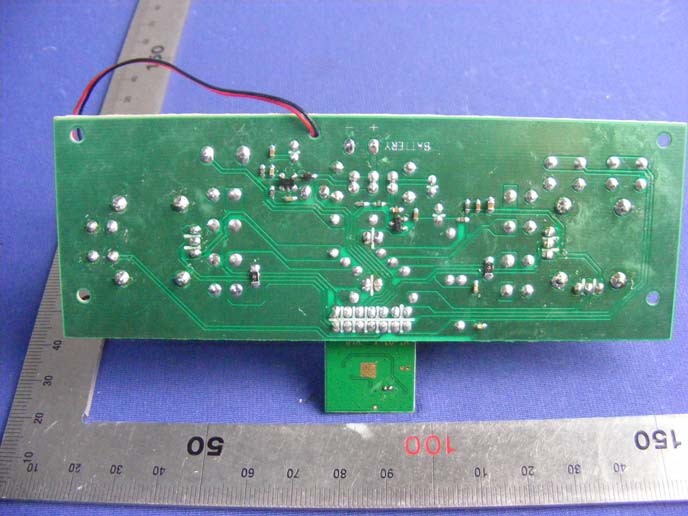

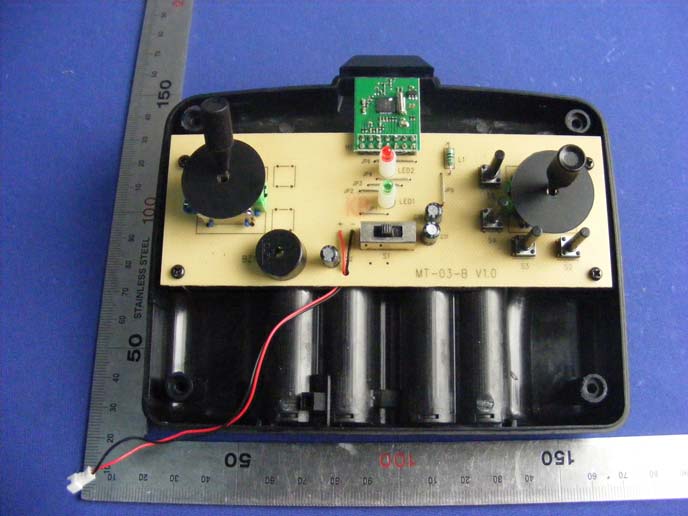

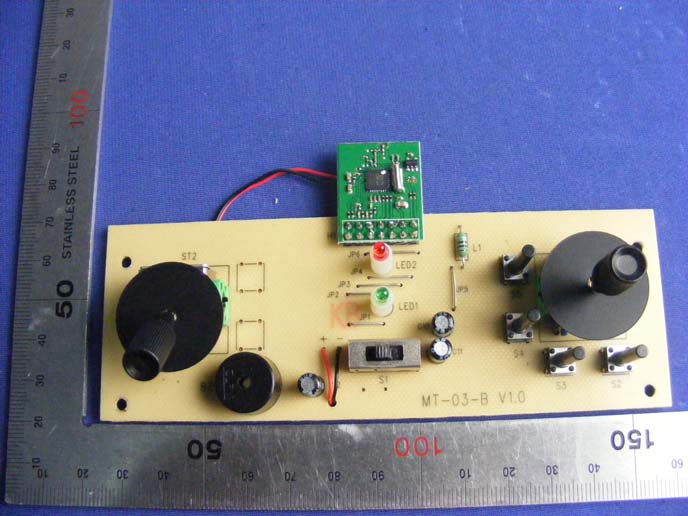

Report No.: C140224Z03-RP1 Page 1/2 Internal Photos of EUT Report No.: C140224Z03-RP1 Page 2/2

Report No.: C140224Z03-RP1 FCC ID: XJ6MT-03 Page 1/28 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C for 3CH 2.4GHz FHSS RADIO CONTROL SYSTEM Model: MT-03 Brand: Merit Test Report Number: C140224Z03-RP1 Issued for Shanghai Merit Technology Corporation. 1058 Taogan road, Sheshan, Songjiang District, Shanghai, China. Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: March 12, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 CNAS L4818 Report No.: C140224Z03-RP1 FCC ID: XJ6MT-03 Page 2/28 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C140224Z03-RP1 Initial Issue ALL Sabrina Wang Report No.: C140224Z03-RP1 FCC ID: XJ6MT-03 Page 3/28 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ...........................................................................................4 2 EUT DESCRIPTION.................................................................................................5 3 TEST METHODOLOGY...........................................................................................6 3.1. DESCRIPTION OF TEST MODES.......................................................................................6 4 TEST METHODOLOGY...........................................................................................7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................7 5 INSTRUMENT CALIBRATION ................................................................................8 6 SETUP OF EQUIPMENT UNDER TEST .................................................................8 6.1. DESCRIPTION OF SUPPORT UNITS .................................................................................8 6.2. CONFIGURATION OF SYSTEM UNDER TEST..................................................................8 7 FACILITIES AND ACCREDITATIONS ....................................................................9 7.1. FACILITIES ..........................................................................................................................9 7.2. ACCREDITATIONS ..............................................................................................................9 7.3. MEASUREMENT UNCERTAINTY .......................................................................................9 8 FCC PART 15.249 REQUIREMENTS ...................................................................10 8.1. BAND EDGES MEASUREMENT .......................................................................................10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT ...........................................13 8.3. SPURIOUS EMISSIONS MEASUREMENT .......................................................................20 Report No.: C140224Z03-RP1 FCC ID: XJ6MT-03 Page 4/28 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product 3CH 2.4GHz FHSS RADIO CONTROL SYSTEM Model MT-03 Brand Merit Tested February 24~March 11, 2014 Applicant Shanghai Merit Technology Corporation. 1058 Taogan road, Sheshan, Songjiang District, Shanghai, China. Manufacturer Shanghai Merit Technology Corporation. 1058 Taogan road, Sheshan, Songjiang District, Shanghai, China. APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140224Z03-RP1 FCC ID: XJ6MT-03 Page 5/28 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product 3CH 2.4GHz FHSS RADIO CONTROL SYSTEM Model MT-03 Brand Merit Model Discrepancy N/A Identify Number C140224Z03-RP1 Power Supply DC6V supplied by the battery Frequency Range 2407-2477 MHz Transmit Power Peak: 96.87dBuV/m (Max.) Average: 74.77dBuV/m (Max.) Modulation Technique GFSK Number of Channels 71 Channels Antenna Specification 1/4λ Antenna with 0dBi gain(MAX) Temperature Range 0°C ~ +40°C Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: XJ6MT-03 filing to comply with Section 15.207, 15.209 and 15.249 of th…

Text truncated - open the document above for the full version.

Report No.: C140224Z03-RP1 FCC ID: XJ6MT-03 Page 1/1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Below 1GHz Above 1GHz
