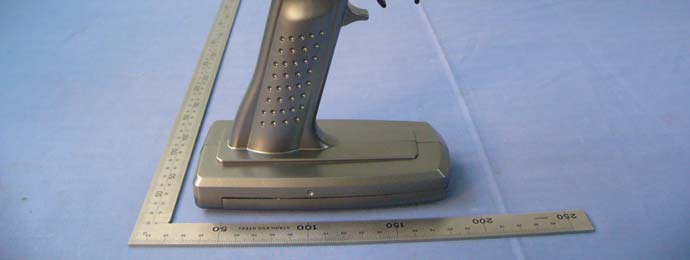

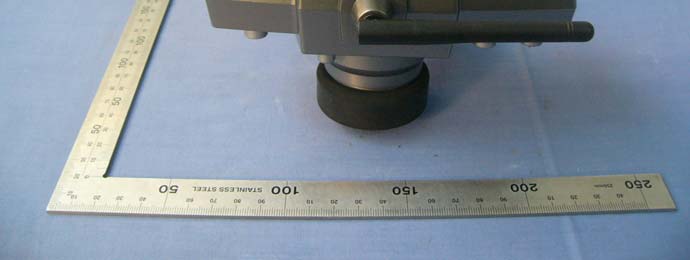

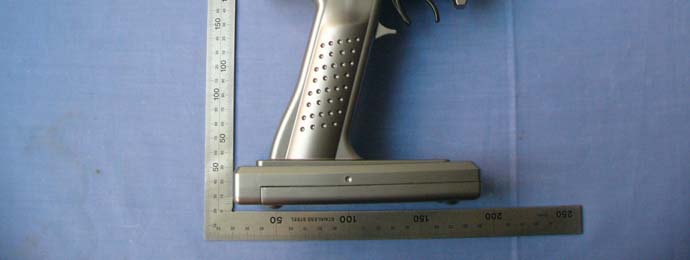

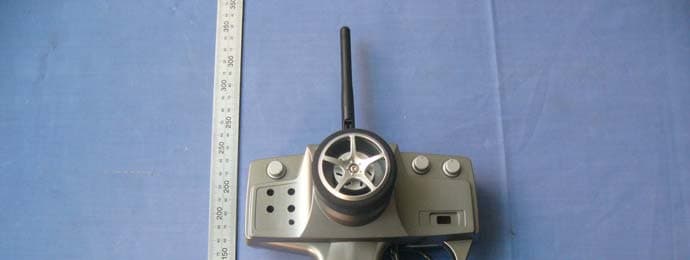

XJ6TXT3HFMR2.4GHz RADIO CONTROL SYSTEM

RR 2.4GHz FHSS radio system instruction manual 2.4GHz Pistol Radio Set NAME OF EACH PARTNAME OF EACH PART TRANSMITTER BATTERY COVER When replacing the battery. Slide the cover downward while pressing the part marked “ ”. Servo Reverse Switches On/off Switch RR RECEIVER LED Link indicate LED Pair button (At side of box) Antenna CHANNEL OUTPUT "1": CH1 "2": CH2 "3": CH3 "4": CH4 "5": (Not used)(CH5) "6": (Not used)(CH6) * Please noted the transmitter does not have charging function, 4"AA” alkaline dry cells required. .. 2 Throttle Trim Knob (CH3) Switch "PDM" Button Steering Wheel Throttle Trigger LED Dual Rate Knob Steering Trim Knob (CH.1)EPA (CH.2)EPA Spectial note for 2.4GHz FHSS radio system setup Since the 2.4GHz have different characteristics than that of the conventional frequencies, please read this section carefully to enjoy safe flight with the 2.4GHz system. The wavelength of the 2.4GHz is much shorter than that of the conventional frequencies, it is very susceptible to loss of signal which results in a receiving error. In order to avoid this phenomenon, please must follow the receiver antenna installation shown as below. . . Receiver’s Antenna Installation RR 3 Use this when performing left and right steering angle adjustments, throttle high side/brake side operation amount adjustment. - Corrects the maximum steering angle and left and right steering angles when there is a difference in the turning radius due to the characteristics, etc. of the vehicle. Maximum steering angle adjustment (The EPA function basically determines the maximum steering angle of each channel in each direction.) Adjustment: Range: 75~125% of each direction. Use the small Philip screwdriver (+) to turn the two small knobs inside the control panel upper side as shown to make adjustments of the steering angle of each direction. (Caution: The servo reverse switches will effect to the directions) Caution! Decide the EPA value at the contact point of your vehicle steering system construction. When trim the EPA, be sure that the steering servo does not bind at the maximum steering angle. Throttle (forward, brake side/reverse side) adjustment. Adjustment: Range: 75~125% of each direction. Use the small Philip screwdriver (+) to turn the two small knobs inside the control panel lower side as shown to make adjustments of the control range of each direction. (Caution: The servo reverse switches will effect to the directions) Caution! If the throttle channel is connected to an ESC, read your ESC manual to decide the EPA value for your vehicle. End Point Adjustment / EPA RR 4 1. The antenna must be kept as straight up as possible. Otherwise it will reduce the effective range. 2. The antenna should be placed at 90 degrees to the receiver case. 3. The antenna must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not bend it in a small radius. 4. Keep the antenna away from the motor, ESC, and other noise sources as much as possible. *This photo demonstrates how the antenna should be placed. For actual installation the receiver must be wrapped with a sponge or placed with floating material to protect it from vibration . The receiver contains precision electronic parts. It is the most delicate radio component on-board the model and should be protected from vibration, shock and temperature extremes. To protect the receiver, wrap it in R/C foam rubber or other vibration-absorbing material. If appropriate, waterproof the receiver by placing it in a plastic bag and closing the open end with a rubber band before wrapping it on chassis. If moisture enters the receiver, intermittent operation or a failure may result. Wrapping the receiver in a plastic bag also protects it from fuel and exhaust residue which, in some cars, can work its way into the body. . . Transmitter Antenna 1. The transmitter antenna is adjustable so please make sure the antenna is never pointed directly at the model when running it as this creates a weak signal for the receiver. 2. Keep the antenna vertical to the ground to create a better RF condition for the receiver. Of course this depends on how you hold the transmitter, but in most cases, adjusting the transmitter antenna so that it is vertical to the ground will give the best results. 3. Never grip the antenna when using this transmitter as this degrades RF quality. 0 9 0 . . Receiving signals and ID is matched. : On Receiving signals, but ID is not matched. : Off No signal reception.: Off Receiver ID memory is empty.: Blink per second The transmitter has an individual randomize ID that is created in the factory; even it is almost have no chance to meet the same ID transmitter in the same fly field, in case it does happen. The transmitter has an ID set up function. By holding the “PDM” button to turn on the transmitter, the LED will blink. Press the “PDM” button to random change a new ID, the new ID will active when the transmitter turns on next time. Once you have set up a new ID for your transmitter, please must remember to re-pair your receiver with your transmitter before running. You can go back to the original factory set ID by holding the “PDM” when turn on the transmitter, without press the “PDM” button, turn it off and on again to get back the original factory set up ID. . . . . . . . . Chang the transmitter ID A range check must be performed before the first run of a new car. It is not necessary to do a range check before every run (but is not a bad idea to perform a range check before the first run of each day). A range check is the final opportunity to reveal any radio malfunctions, and to be certain the system has adequate operational range. . . . . Range check the radio RR 5 Pair Procedure The transmitter has an individual randomize ID that is created in the factory, In order to start operation, the receiver must be linked with the ID code of the transmitter with wh…

Text truncated - open the document above for the full version.

Shanghai Merit Technology Corp. No.1058 Taogan Road, Sheshan Town,Songjiang District, Shanghai, China, 201602 2010-04-29 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: XJ6TXT3HFMR. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics XJ6TXT3HFMR _schematics.pdf Block Diagram XJ6TXT3HFMR _Block Diagram.pdf Operational Description XJ6TXT3HFMR _ Operational Description.pdf Parts List XJ6TXT3HFMR _ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Shanghai Merit Technology Corp. No.1058 Taogan Road, Sheshan Town,Songjiang District, Shanghai, China, 201602 FCC ID: XJ6TXT3HFMR POWER OF ATTORNEY April 29, 2010. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Compliance Certification Service (Shenzhen) Inc. (Aven Zhou) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Compliance Certification Service (Shenzhen) Inc. (Aven Zhou) on our behalf shall have the same effect as acts of our own. This authorization expires on Jun 28, 2010. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shanghai Merit Technology Corp., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

Reference No: Report No: SZ091118B03 Page 1 / 4 Reference No: Report No: SZ091118B03 Page 2 / 4 Reference No: Report No: SZ091118B03 Page 3 / 4 Reference No: Report No: SZ091118B03 Page 4 / 4

Label Location

Reference No: Report No: SZ091118B03 Page 1 / 10 Reference No: Report No: SZ091118B03 Page 2 / 10 Reference No: Report No: SZ091118B03 Page 3 / 10 Reference No: Report No: SZ091118B03 Page 4 / 10 Reference No: Report No: SZ091118B03 Page 5 / 10 Reference No: Report No: SZ091118B03 Page 6 / 10 Reference No: Report No: SZ091118B03 Page 7 / 10 Reference No: Report No: SZ091118B03 Page 8 / 10 Reference No: Report No: SZ091118B03 Page 9 / 10 Reference No: Report No: SZ091118B03 Page 10 / 10

Reference No.: Report No.: SZ091118B03-RP FCC ID : XJ6TXT3HFMR Page 1 / 26 FCC TEST REPORT for 2.4GHz Radio Control System MODEL: T3HF Brand Name: MERITRC Test Report Number: SZ091118B03-RP Issued for Shanghai Merit Technology Corp. No.1058 Taogan Road, Sheshan Town,Songjiang District, Shanghai, China, 201602 Issued by: COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: February 09, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Reference No.: Report No.: SZ091118B03-RP FCC ID : XJ6TXT3HFMR Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 February 09, 2010 Initial Issue ALL Clinton Kao Reference No.: Report No.: SZ091118B03-RP FCC ID : XJ6TXT3HFMR Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION................................................................................................ 5 3 TEST METHODOLOGY .......................................................................................... 6 3.1. DESCRIPTION OF TEST MODES ...................................................................................... 6 4 TEST METHODOLOGY .......................................................................................... 7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 7 5 INSTRUMENT CALIBRATION ............................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ................................................................ 8 6.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 6.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 7 FACILITIES AND ACCREDITATIONS ................................................................... 9 7.1. FACILITIES .......................................................................................................................... 9 7.2. ACCREDITATIONS ............................................................................................................. 9 7.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 8 FCC PART 15.249 REQUIREMENTS................................................................... 10 8.1. BAND EDGES MEASUREMENT....................................................................................... 10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 16 8.3. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 19 Reference No.: Report No.: SZ091118B03-RP FCC ID : XJ6TXT3HFMR Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product: 2.4GHz Radio Control System Model: T3HF Brand: MERITRC Tested: November 18, 2009 - February 09, 2010 Applicant: Shanghai Merit Technology Corp. No.1058 Taogan Road, Sheshan Town,Songjiang District, Shanghai, China, 201602 Manufacturer: Shanghai Merit Technology Corp. No.1058 Taogan Road, Sheshan Town,Songjiang District, Shanghai, China, 201602 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Clinton Kao Manager Compliance Certification Service Inc. Vincent Yao Assistant manager Compliance Certification Service Inc. Reference No.: Report No.: SZ091118B03-RP FCC ID : XJ6TXT3HFMR Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product 2.4GHz Radio Control System Trade Name MERITRC Model Number T3HF Model Discrepancy N/A Serial Number SZ091118B03-RP Power Supply DC6V powered by the battery（AA 1.5V * 4） Frequency Range 2406 -2470MHz Transmit Power 101.96 dBuV/m (Peak Max.) 92.35 dBuV/m (Average Max.) Modulation Technique FHSS Number of Channels 65 Channel Antenna Specification Dipole Antenna with 3dBi gain(Max) Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: XJ6TXT3HFMR filing to comply with Section 15.207, 15.209 and 15.249 of the FCC Part 15, Subpart C Rules. Reference No.: Report No.: SZ091118B03-RP FCC ID : XJ6T…
