XKB-APOSA8WULEWFSmart POS Terminal

User Guide Model：APOS A8 Contents 1. Introduction ..................................................................................................................... 3 2. Unpacking ......................................................................................................................... 3 3. Appearance of APOS A8 .................................................................................................. 4 4. Use of the terminal .......................................................................................................... 5 4.1 Power on/Power off the terminal ............................................................................ 5 4.2 Reading cards ............................................................................................................ 6 4.3 Installing Modules ..................................................................................................... 7 4.4 Paper roll.................................................................................................................... 8 4.5 Battery ....................................................................................................................... 9 5. Recommendations ......................................................................................................... 11 5.1 Safety ....................................................................................................................... 11 5.2 Security of your terminal ........................................................................................ 12 5.3 Cleaning of the terminal ......................................................................................... 12 5.4 Transport and storage ............................................................................................ 13 6. Standard ......................................................................................................................... 13 7. Troubleshooting............................................................................................................. 15 1. Introduction Thank you for choosing a ingenico payment terminal. We recommend you to read carefully this user guide: It gives you the necessary information about safety precautions, unpacking, installation, and maintenance of your terminal. WARRANTY/SECURITY To benefit from the guarantee-related product, and to respect the security, we ask you to use only the power supply delivered in box with the product, entrusting maintenance operations only to an authorized person. Failure to comply with these instructions will avoid the manufacturer’s responsibility. 2. Unpacking ADVICE Carefully preserve the packaging of the APOS A8. It must be re-used whenever the terminal is shipped. According to the model, the following items are included in the APOS A8 box (including optional accessories):  APOS A8 terminal  Power adapter  This user guide  A battery pack CAUTION The power adapter provided with your equipment is specially designed for ingenico APOS A8 terminal. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. 3. Appearance of APOS A8 1. Contactless landing zone, 2. LCD and touch screen, 3.Smart card reader, 4. Magnetic card reader, 5. Microphone, 6. Easy Loading Printer, 8. Power Key, 9. Volume Keys, 10. Front scanner, 11. LEDs for Contactless Card, 12. Charging LED, 13.Battery cover, 14. Headphone jack, 15. Micro USB connector 16. SIM card slot, 17. Micro SD slot, 18. Extended interface, 19. Buzzer, 20. Speaker 21. SAM cards slots, 22. Battery socket 23. Battery compartment 24. Flash 25. Rear camera Operating conditions Storage conditions 3.1 Keypad Function The terminal has three physical keys in total, a power button and two volume keys. They are placed at the upper right corner of the front casing. 4. Use of the terminal ADVICE Before using the terminal, always check if the roll of paper is present 4.1 Power on/Power off the terminal To power on: Make sure the terminal battery is correctly installed and Press <Power> button for about 1s until the display is turned up. To power off: Press <Power> button for more than 2s until the display show the following figure, select <Power off> then press it. Weight 473g (including battery) Dimension (L x W x H) 185mm x 86mm x 64mm Electrical mains network 100-240VAC/50-60Hz Ambient temperature -10°C～50°C Max relative humidity 10%～90%, Non-condensing Storage temperature -20°C～70°C Max relative humidity 5%～90%, Non-condensing If the battery is empty, the terminal automatically shuts off. Abnormal power off: When the device works abnormally, for example, it is crashed and no actions menu popped out while pressing the power button, please long-press the power button for 6s, the device will be automatically powered off. Screen switch operation: Short-press the power button for about 0.5s, the terminal display will be turned on or off. 4.2 Reading cards Magnetic stripe card The card can be read bi-directionally, with the stripe facing the terminal. Use a regular movement in order to ensure a reliable card reading. Smart card Insert the card horizontally with the metal chip facing upward and leave in position throughout the transaction. Contactless card Bring the card firmly up to the active zone. Keep the card close to the reader during the transaction. On the front LEDs are displayed to indicate transaction processing. 4.3 Installing Modules 4.3.1 SAM1/SAM2/SIM CAUTION: Switch off the terminal before opening the trapdoor. The SAM/SIM connectors are located inside the terminal, in a closed compartment.  Turn the terminal and remove the trapdoor.  SAM1, SAM2 and SIM are identified by the engraved marks on the lower housing.  When introducing a SAM/SIM in its slot, be sure to put the cut corner as indicated on the picture.  Close the trapdoor. NOTICE When using only one SAM card, it is recommended to…

Text truncated - open the document above for the full version.

QA-FR-170-B INGENICO ADD: 9 Avenue de la gare - Rolvatain TGV, Valence Cedex 9, 26958, France TEL: +330475842123 FAX: +33475842350 E-mail: [email protected] FCC Authorization Date: 2020-4-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , INGENICO, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Nicolas Jacquemont Title: Certification Manager

QA-FR-171-A INGENICO ADD: 9 Avenue de la gare - Rolvatain TGV, Valence Cedex 9, 26958, France TEL: +330475842123 FAX: +33475842350 E-mail: [email protected] FCC Confidential Authorization Date: 2020-4-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:XKB-APOSA8WULEWF In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, INGENICO hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts List/Tune up procedure(for licensed devices) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Nicolas Jacquemont Title: Certification Manager

INGENICO ADD: 9 Avenue de la gare - Rovaltain TGV, Valence Cedex 9, 26958, France TEL: +330475842123 FAX: +33475842350 E-mail: [email protected] Date: :2020-4-14 Product Similarity Declaration FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, INGENICO, hereby declare that the product: Smart POS Terminal, model:APOS A8, FCC ID: XKB-APOSA8WULEWF which was tested by BACL. This product has two configurations. The difference between the two configurations is that the screen manufacturers are different,the others are the same. The information of the two screen manufacturers is as follows Screen Name Model manufacturers LCD & TP Module MDT0550B SKYWORTH LCD MODULES(SHENZHEN) CO., LTD LCD & TP Module MDT0550B TIANMA MICRO-ELECTRONICS Corporation We guarantee all the information provided above is true,and notice that we will bear all the consequences caused by any false information or concealing. Please contact me should there be need for any additional or information. Sincerely, Signature: Name: Nicolas Jacquemont Title:Certification Manager

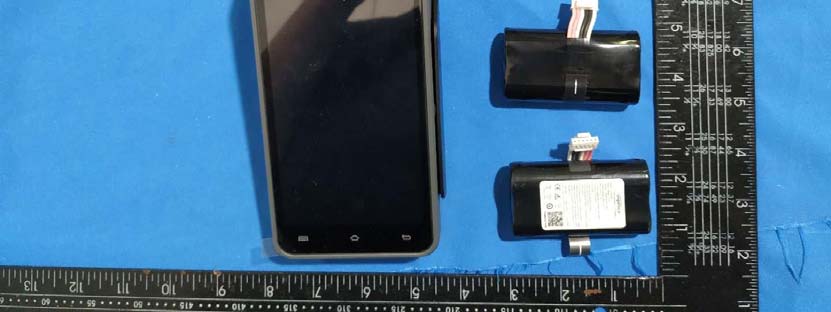

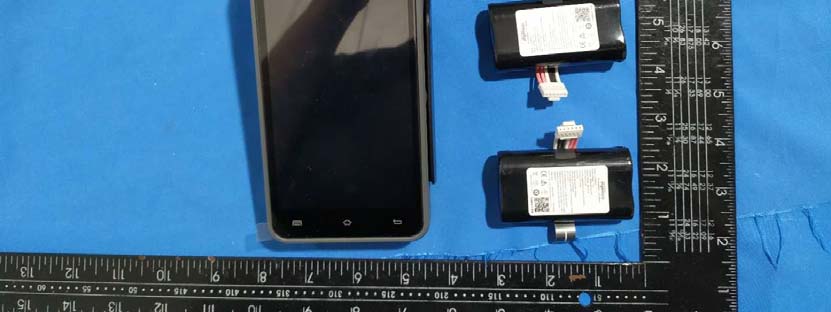

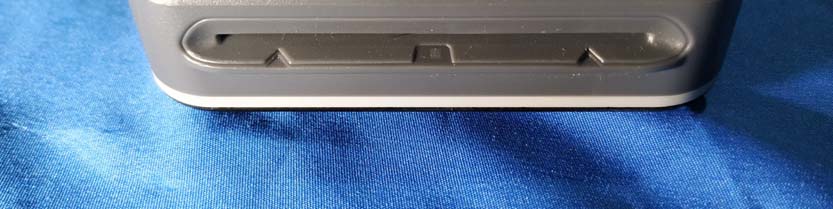

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT Configuration 1(LCD:SKYWORTH) EUT Configuration 2(LCD: TIANMA MICRO-ELECTRONICS)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT Configuration 1(LCD:SKYWORTH) EUT Configuration 2(LCD: TIANMA MICRO-ELECTRONICS)

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” SAR EVALUATION REPORT For INGENICO 9 Avenue de la gare - Rolvatain TGV, Valence Cedex 9, 26958, France FCC ID: XKB-APOSA8WULEWF Report Type: Revised Report Product Type: Smart POS Terminal Report Number: RXM200310053-20AM1 Report Date: 2020-06-04 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200310053-20AM1 SAR Evaluation Report 2 of 82 Attestation of Test Results EUT Information EUT Description Smart POS Terminal Tested Model APOS A8 FCC ID XKB-APOSA8WULEWF Serial Number RDG200310053-SA-S1 Test Date 2020-3-16 ~ 2020-6-3 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) Body Supported Mode GSM 850 1g Body SAR 0.72 1.6 PCS 1900 1g Body SAR 0.75 WCDMA Band 2 1g Body SAR 0.66 WCDMA Band 5 1g Body SAR 0.42 LTE Band 5 1g Body SAR 0.61 LTE Band 7 1g Body SAR 0.39 LTE Band 40 1g Body SAR 0.42 LTE Band 41&38 1g Body SAR 0.30 WLAN 2.4G 1g Body SAR 0.14 Simultaneous 1g Body SAR 0.92 Handheld Mode GSM 850 10g Extremity SAR1.20 4.0 PCS 1900 10g Extremity SAR1.53 WCDMA Band 2 10g Extremity SAR1.13 WCDMA Band 5 10g Extremity SAR0.75 LTE Band 5 10g Extremity SAR0.51 LTE Band 7 10g Extremity SAR1.26 LTE Band 40 10g Extremity SAR0.46 LTE Band 41&38 10g Extremity SAR0.45 WLAN 2.4G 10g Extremity SAR0.34 Simultaneous 10g Extremity SAR1.87 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200310053-20AM1 SAR Evaluation Report 3 of 82 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 20 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 22 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 32 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 32 CHEEK/TOUCH POSITION ........................................................................................................................................... 33 EAR/TILT POSITION .............…

Text truncated - open the document above for the full version.

Report No.: RXM20031053-20A Page 1 of 75 Test Plot 1#: GSM 850_ Body Back _Middle DUT: Smart POS Terminal; Type: APOS A8; Serial: RXM200310053-SA-S1 Communication System: Generic GPRS-2 slots; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.935 S/m; ε r = 40.406; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 2019/10/22  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2019/10/6  Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (71x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.969 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.80 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.682 W/kg; SAR(10 g) = 0.432 W/kg Maximum value of SAR (measured) = 0.980 W/kg 0 dB = 0.980 W/kg = -0.09 dBW/kg Test Plot 2 DUT: Sma Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 2#: GSM 850 art POS Term cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (81x111x1): value of SA R an (5x5x7)/Cu Value = 26.39 (extrapolated = 1.28 W/kg; value of SA R 0 dB = 2. 0_Handheld B minal; Type: m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 Interpolated R (interpolated ube 0: Measur 9 V/m; Power d) = 2.59 W/kg SAR(10 g) = R (measured) = .11 W/kg = 3.2 Back_Middle APOS A8; S RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 grid: dx=1.50 d) = 1.76 W/k rement grid: d r Drift = -0.16 g = 0.735 W/kg = 2.11 W/kg 24 dBW/kg Serial: RXM2 requency: 836 94 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA 00 mm, dy=1.5 g dx=8mm, dy=8 6 dB 200310053-SA 6.6 MHz;Duty 0.87; ρ = 1000 836.6 MHz; C ) TP:1412 AD X Version 500 mm 8mm, dz=5mm Repo A-S1 Cycle: 1:4 0 kg/m 3 ; Calibrated: 20 n 14.6.12 (747 m ort No.: RXM2 19/10/22; 70) 20031053-20A Page 2 of 7 A 75 Test Plot 3 DUT: Sma Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 3#: GSM 850 art POS Term cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (61x111x1): value of SA R an (5x5x7)/Cu Value = 41.29 (extrapolated = 2.04 W/kg; value of SA R 0 dB = 3. 0_Handheld L minal; Type: m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 Interpolated R (interpolated ube 0: Measur 9 V/m; Power d) = 3.99 W/kg SAR(10 g) = R (measured) = .22 W/kg = 5. Left_Middle APOS A8; S RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 grid: dx=1.50 d) = 2.61 W/k rement grid: d r Drift = 0.04 g = 1.14 W/kg = 3.22 W/kg 08 dBW/kg Serial: RXM2 requency: 836 94 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA 00 mm, dy=1.5 g dx=8mm, dy=8 dB 200310053-SA 6.6 MHz;Duty 0.87; ρ = 1000 836.6 MHz; C ) TP:1412 AD X Version 500 mm 8mm, dz=5mm Repo A-S1 Cycle: 1:4 0 kg/m 3 ; Calibrated: 20 n 14.6.12 (747 m ort No.: RXM2 19/10/22; 70) 20031053-20A Page 3 of 7 A 75 Test Plot 4 DUT: Sma Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 4#: GSM 850 art POS Term cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (61x111x1): value of SA R an (5x5x7)/Cu Value = 22.15 (extrapolated = 0.647 W/kg value of SAR 0 dB = 0. 0_Handheld R minal; Type: m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 Interpolated R (interpolated ube 0: Measur 5 V/m; Power d) = 1.00 W/kg g; SAR(10 g) R (measured) = .846 W/kg = - Right_Middle APOS A8; S RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 grid: dx=1.50 d) = 0.872 W/k rement grid: d r Drift = -0.14 g = 0.430 W/k g = 0.846 W/kg -0.73 dBW/kg e Serial: RXM2 requency: 836 94 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA 00 mm, dy=1.5 kg dx=8mm, dy=8 4 dB g g g 200310053-SA 6.6 MHz;Duty 0.87; ρ = 1000 836.6 MHz; C ) TP:1412 AD X Version 500 mm 8mm, dz=5mm Repo A-S1 Cycle: 1:4 0 kg/m 3 ; Calibrated: 20 n 14.6.12 (747 m ort No.: RXM2 19/10/22; 70) 20031053-20A Page 4 of 7 A 75 Test Plot 5 DUT: Sma Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 5#: GSM 850 art POS Term cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: Twin Measurement S n (81x111x1): value of SA R an (6x6x7)/Cu Value = 23.17 (extrapolated = 0.732 W/kg value of SAR 0 dB = 0. 0_Handheld T minal; Type: m: Generic GPR d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C n SAM; Type: SW: DASY52 Interpolated R (interpolated ube 0: Measur 7 V/m; Power d) = 1.12 W/kg g; SAR(10 g) R (measured) = .979 W/kg = - Top_Middle APOS A8; S RS-2 slots; Fr MHz; σ = 0.89 ConvF(9.97, 9 chanical Surfa Calibrated: 201 Tw i n S A M V , Version 52.1 grid: dx=1.50 d) = 1.03 W/k rement grid: d r Drift = -0.13 g = 0.507 W/k g = 0.979 W/kg -0.09 dBW/kg Serial: RXM2 requency: 836 94 S/m; ε r = 40 9.97, 9.97) @ ace Detection 19/10/6 V5.0; Serial: T 10 (2); SEMCA 00 mm, dy=1.5 g dx=8mm, dy=8 3 dB g g g 200310053-SA 6.6 MHz;Duty 0.87; ρ = 1000 836.6 MHz; C ) TP:1412 AD X Version 500 mm 8mm, dz=5mm Repo A-S1 Cycle: 1:4 0 kg/m 3 ; C…

Text truncated - open the document above for the full version.

Report No.: RXM200310053-20 Page 1 of 4 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Report No.: RXM200310053-20 Page 2 of 4 Body Back Setup Photo(10mm) Handheld Back Setup Photo(0mm) 10mm 10mm Report No.: RXM200310053-20 Page 3 of 4 Handheld Left Setup Photo(0mm) Handheld Right Setup Photo(0mm) Report No.: RXM200310053-20 Page 4 of 4 Handheld Top Setup Photo(0mm) Handheld Bottom Setup Photo(0mm)

FCC PART 15.247 TEST REPORT For INGENICO 9 Avenue de la gare - Rolvatain TGV, Valence Cedex 9, 26958, France Report Type: Original Report Product Name: Smart POS Terminal Re port Number: RXM200310053-00B Re port Date: 2020-04-17 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: XKB-APOSA8WULEWF Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RXM200310053-00B Page 2 of 57 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 EQUIPMENT MODIFICATIONS ..................................................................................................................................... 10 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................. 10 SUPPORT CABLE LIST AND DETAILS .......................................................................................................................... 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE .......................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203- ANTENNA REQUIREMENT ............................................................................................................ 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA INFORMATION AND CONNECTOR CONSTRUCTION ..................................................................................... 13 FCC §15.207 (a)– AC LINE CONDUCTED EMISSIONS ...................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 15 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205, §15.247(d) - SPURIOUS EMISSIONS ................................................................................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 19 TEST PROCEDURE ..........…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
