XKB-BAS930PBase Unit for Payment Terminal

INGENICO – 192 avenue Charles de Gaulle – 92200 Neuilly sur Seine - FRANCE Tél. 33(0)1 46 25 82 00 - Fax 33 (0)1 47 72 56 95 www.ingenico.com EFT930 Wireless Series U s e r G u i d e EFT930 Wireless Series • 2/35 Copyright © 2009 Ingenico 9000001568 R11 000 02/941 All rights reserved Contents 1. Introduction___________________________________________________ 4 2. Presentation __________________________________________________ 4 2.1. Content of the box ............................................................................................ 4 2.2. Overview of the EFT930 ............................................................................................ 5 2.3. Keyboard details and functionality ...................................................................................... 6 3. Use of the terminal_____________________________________________ 6 3.1. Adjusting contrast ............................................................................................ 6 3.2. Reading card ............................................................................................ 7 3.3. Switching off the terminal ............................................................................................ 8 3.4. Installing the terminal on the base....................................................................................... 8 4. Installation ___________________________________________________ 9 4.1. Recommendations ............................................................................................ 9 4.2. Terminal connections ............................................................................................ 9 4.3. Installing Modules ...........................................................................................10 4.3.1. SAM1/SAM2 10 4.3.2. SAM3/SAM4 or SIM 10 4.3.1. MMC or SD Memory Card 11 4.4. Paper roll ........................................................................................... 12 4.4.1. Mains characteristics of INGENICO paper roll 12 4.4.1. Installing paper roll 12 4.5. Battery ...........................................................................................14 4.5.1. Main characteristics 14 4.5.2. Installing the battery 14 4.5.3. Charging the battery 14 4.5.4. Changing the battery 16 5. Base _________________________________________________________17 5.1. Base identification ........................................................................................... 17 5.1.1. Base charger (EFT930G or EFT930W) 17 5.1.2. Base Modem 18 5.1.3. Base Ethernet (EFT930P) 20 5.1.4. Base Bluetooth Modem 21 5.1.5. Base Bluetooth Ethernet (EFT930B) 23 5.1.6. Base Bluetooth Ethernet Modem (EFT930B) 24 5.1.6.1. Overview 24 5.1.6.2. USB/RS232 Cable for Base BEM 25 5.1.7. Base Ethernet Modem (EFT930P) 26 5.1.7.1. Overview 26 5.1.7.2. USB/RS232 Cable for Base EM 27 6. Recommendations ___________________________________________ 28 6.1. Safety .......................................................................................... 28 6.2. Telephone call .......................................................................................... 29 7. Standards ___________________________________________________ 30 8. Troubleshooting______________________________________________ 34 9. Annex ______________________________________________________ 35 This symbol indicates an important Warning. This symbol indicates a piece of Advice. 1. Introduction We hope that you will be fully satisfied with your new terminal EFT930. This terminal comes in different models: EFT930G, EFT930B, EFT930P, EFT930W. Please read this guide to understand and make the best use of your terminal. It presents you the necessary information about use, installation, maintenance, safety and security recommendations. WARRANTY / SECURITY Use only the power supply included with the product to ensure best performance and safety. Maintenance should only be provided by Ingenico authorized technician. Failure to comply with these instructions will void the manufacturer’s responsibility. 2. Presentation 2.1. Content of the box WARNING The power supply unit provided with your equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. ADVICE : Keep the packaging. It must be re-used whenever the terminal is shipped. EFT930 terminal unit equipped with a paper roll A power supply unit that connects the power supply to the electric network A base receiving the unit (if no power travel adapter) A user guide A battery pack disconnected A telephone cable (With base modem) Power travel adapter (When no base) Or 2.2. Overview of the EFT930 Terminal Base Weight About 120g Dimensions 153 x 87 x 33 mm (L x w x h) Power supply unit Weight About 100g 2pole sockets 1 A The power supply unit is specially fitted for INGENICO terminals. Weight Between 360 g and 410 g, according to the model without paper roll and battery Dimensions 180 x 79 x 57 mm (L x w x h) Electrical mains network 100-240VAC / 50-60 Hz - Class II equipment Mini USB A serial link 100 mA max Connections on terminal Mini USB B serial link 1 st Smart card reader Base unit Backlit keyboard Magnetic card reader Compartment where are located : • the battery pack • the modules SAM1/ SAM2 Large graphic display Easy loading printer Compartment where are located : • the modules SAM3/SAM4 or SIM • the modules MMC or SDCARD • the 2 nd Smart card reader 2.3. Keyboard details and functionality This chapter describes the key functions of a terminal with no specific application. Some keys can have other functions according to the applications that are in the terminal. 3. Use of the terminal ADVICE Before to use the terminal, always check if the roll of paper is present. 3.1. Adjusting contrast If you wish to increase or to decrease the contrast of the characters displayed on screen, press simultaneously a…

Text truncated - open the document above for the full version.

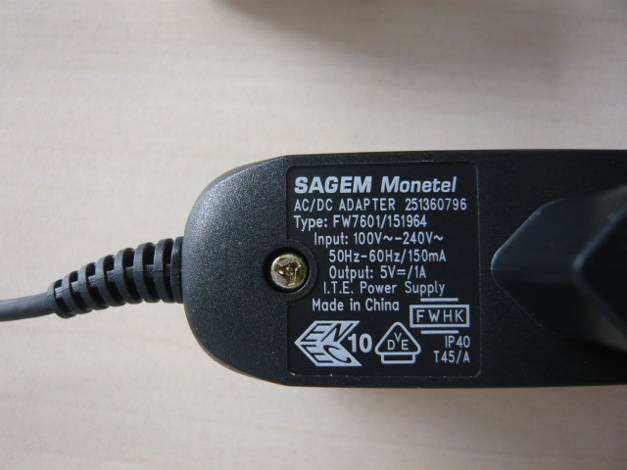

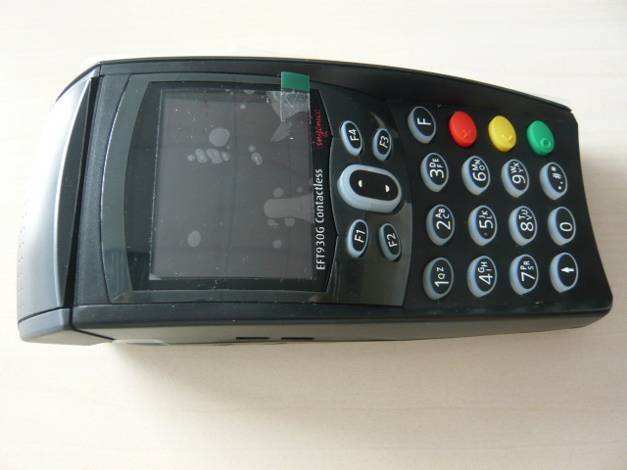

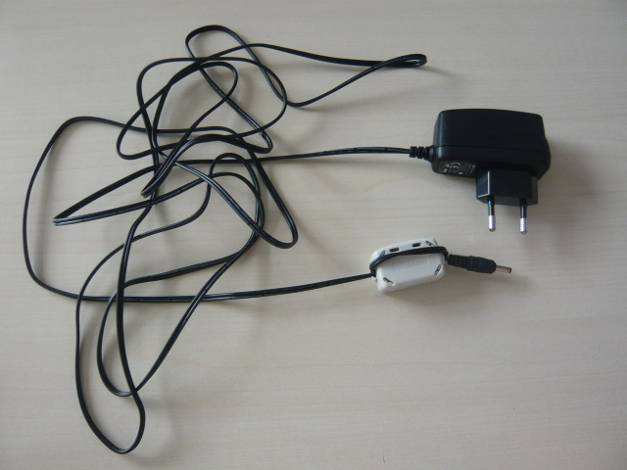

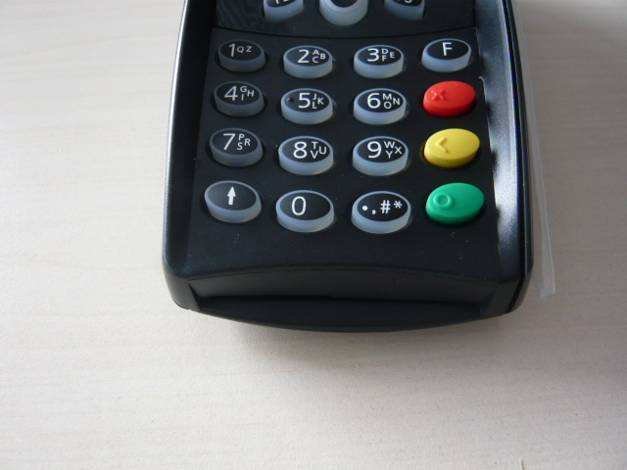

FCC ID: XKB-BAS930P Page 1/5 EXTERNAL PHOTOS OF TESTED EUT General views of Power supply FRIWO General views of Power supply PHIHONG FCC ID: XKB-BAS930P Page 2/5 General views of Base FCC ID: XKB-EFT930G Page 3/5 General views of Terminal on Base FCC ID: XKB-EFT930G Page 4/5 General views of Terminal EFT930G FCC ID: XKB-EFT930G Page 5/5 General view of printer Back views with and without cover Detail views without cover

FCC ID: XKB-EFT930G FCC ID: XKB-BAS930P Page 1/3 PRODUCT LABELING FCC ID / IC number label Terminal Base Note: - No special tools are required to open the battery compartment. - Device is shipped without batteries FCC ID: XKB-EFT930G FCC ID: XKB-BAS930P Page 2/3 For terminal: For base : FCC ID: XKB-EFT930G FCC ID: XKB-BAS930P Page 3/3 PRODUCT REFERENCE DEFINITION EFT930G – wxyz0102 w: Magnetic Head type 1: ISO2 Reader (1 track) 2: ISO1 and ISO2 Reader (2 tracks) 3: ISO1, ISO2 and ISO3 Reader (3 tracks) 4: ISO2 and ISO3 Reader (2 tracks) x: USB Port configuration N: No USB Port A: 1 x USB Type A only B: 1 x USB Type B only C: 1 x USB Type A and 1 x USB Type B y: Extension Board Option N: With SDCARD and SAM3 L: Without X: others memory card (SAM, SDCARD) configuration z: Thermal Pinter Option H: High speed printer OK L: Low speed printer 0102: Hardware version BAS930X – wxy101 X: Link Type N: Charger Only P: Infra Red w: Serial link N: None 1: 1 serial link 2: 2 serial links x: USB Port configuration N : No USB Port A: 1 x USB Type A only B: 1 x USB Type B only C: 1 x USB Type A and 1 x USB Type B y: Network type N: None T: Telefone E: Ethernet 101: Hardware version

FCC ID: XKB-BAS930P Page 1/13 INTERNAL PHOTOS OF TESTED EUT General views internal of Base FCC ID: XKB-BAS930P Page 2/13 General views PCB of Base Views of connector FCC ID: XKB-BAS930P Page 3/13 General views PCB of Base FCC ID: XKB-EFT930G Page 4/13 General views internal of Terminal FCC ID: XKB-EFT930G Page 5/13 General views PCB of terminal FCC ID: XKB-EFT930G Page 6/13 Detail views PCB of terminal FCC ID: XKB-EFT930G Page 7/13 Detail views Chipset-cable-connector-antenna Detail views 13.56MHz antenna FCC ID: XKB-EFT930G Page 8/13 Detail views PCB FCC ID: XKB-EFT930G Page 9/13 Detail views PCB other side with 13.56MHz antenna connector FCC ID: XKB-EFT930G Page 10/13 Detail views of monitor Detail views of PCB printer with SAMs FCC ID: XKB-EFT930G Page 11/13 Detail views of PCB FCC ID: XKB-EFT930G Page 12/13 Detail views of PCB FCC ID: XKB-EFT930G Page 13/13 Detail views of PCB

FCC ID: XKB-EFT930G Page 1/5 OPERATIONAL DESCRIPTION 1.1. EUT description FCC ID: XKB-EFT930G Page 2/5 FCC ID: XKB-EFT930G Page 3/5 1.2. Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: Power supply: FRIWO FW7601/151964, 100-240VAC, 50-60Hz, 5VDC 1A Power supply: PHIHONG PSA105E-050/251360796, 100-240VAC, 50-60Hz, 5VDC 1A Internal frequencies: < 500MHz Dimensions: 180 x 80 x 80 mm - Input/output: - DC power input (8Vdc) on base - 1 x Serial link (COM0) on base - 1x Modem line (LINE IN) on base - 1x Telephone line OUT on base - 2 x USB ports on portable terminal - 2 x SAM ports - 1 x SIM port - Cables: - 1x DC power supply cable (fixed on mains power unit), unshielded: 2m or 2.8m - 1x RS232 Com cable, RJ11, unshielded, 1.5m - 2x USB cables, Mini A&B connectors, shielded: 1m - 2x Telephone line cables, unshielded, length: 5m and 2m - Auxiliaries equipment used during test: - Smartcards (EFT Contactless and EMV card) - SAM cards (x2) - TELTON Telephone line simulator TLS-5B-01 Sn: 014184 - Universal Communication Tester Rhode & Schwarz CMU200 Sn: 8375860047 Note: The equipment contains a GPRS module certified (FCCID: VW3HILOC). The transmission GPRS is set in IDDLE mode during all the tests. FCC ID: XKB-EFT930G Page 4/5 1.4. EUT CONFIGURATION The inboard software (EMC TEST) performed the followings tests and activates the followings functions: - Printer ON - Smartcards reading: CAM0, SAM1&2 (Power ON and reading) - USB ON (Host to slave ports looped back) - Backlight and display are ON - Modem ON - Contact less ON (ATR reading in loop) 1.5. EQUIPMENT MODIFICATIONS Added ferrite clamps on following cable: - Ferrite Würth Elektronik 742 711 12 2 ways near the input power supply port of base. (for both power supplies) 1.6. SPECIAL ACCESSORIES None FCC ID: XKB-EFT930G Page 5/5 1.7. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart B. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.8. Test facility Tests have been performed on May 6 th , 2010. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

Rapport d’essai / Test report N° 201002-6071CR-A1-R1-E JDE : 99694 DELIVRE A / ISSUED TO : INGENICO 1, Rue Claude Chappe BP 348 07503 GUILHERAND-GRANGES - France Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes FCC CFR 47 Part 15, Subpart B et C. Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart B and C Matériel testé / Apparatus under test : • Produit / Product : Lecteur carte bancaire Sans Contact / Bank payment terminal Contactless • Marque / Trade mark : INGENICO • Constructeur / Manufacturer : INGENICO • Type / Model : EFT930G-wxyz0102+BAS930X-wxy101 • Type sous test / Model under test : EFT930G-3CXH0102+BAS930P-1NT101 • N° de série / serial number : 10077PT60457959+10007PT60334013 • FCC ID : XKB-EFT930G Date des essais / Test date : Du 3 Mai au 8 Juin 2010 / From May 3 rd to June 8 th , 2010 Lieu d’essai / Test location : BUREAU VERITAS LCIE SUD-EST ZI Centr’Alp – 170 rue de Chatagnon 38430 MOIRANS - France Test réalisé par / Test performed by : Anthony MERLIN Ce document comporte /Composition of document : 36 pages. M OIRANS, LE 11 JUIN 2010 / JUNE 11TH, 2010 Ecrit par / Written by, Approuvé par / Approved by, Anthony MERLIN Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Sauf indication contraire, la décision de conformité prend en compte l’incertitude de mesures. Il ne préjuge en aucun cas d’une décision de certification. . This document shall not be reproduced, except in full, without t he written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 201002-6071CR-A1-R1-E Page : 2 / 36 SUMMARY 1. TEST PROGRAM ................................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ........................................................................................................ 4 3. RADIATED EMISSION DATA ................................................................................................................. 6 4. FUNDAMENTAL FREQUENCY TOLERANCE (15.225E) ..................................................................... 12 5. BAND-EDGE COMPLIANCE §15.209................................................................................................. 13 6. CONDUCTED EMISSION DATA .......................................................................................................... 14 7. ANNEX 1 (GRAPHS) ............................................................................................................................ 17 8. TEST EQUIPMENT LIST (MOIRANS SITE) ......................................................................................... 34 9. UNCERTAINTIES CHART .................................................................................................................... 36 RAPPORT D'ESSAI / TEST REPORT N° 201002-6071CR-A1-R1-E Page : 3 / 36 1. TEST PROGRAM Standard: - FCC Part 15, Subpart B (Digital Devices) - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Frequency Quasi-peak value (dBμV) Average value (dBμV) 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 Limits for conducted disturbance at mains ports 150kHz-30MHz
5-30MHz 60 50 PASS Radiated emissions 30MHz-12.5GHz
Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Standard: - FCC Part 15, Subpart C - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Frequency Quasi-peak value (dBμV) Average value (dBμV) 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 Limits for conducted disturbance at mains ports 150kHz-30MHz
5-30MHz 60 50 PASS Radiated emissions 9kHz-30MHz
Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m PASS Radiated emissions 30MHz-12.5GHz*
Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Fundamental frequency tolerance
Operation within the band 13.110-14.010 MHz §15.225 PASS Bandedge compliance
Operation within the band 13.110-14.010 MHz §15.225 PASS *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. RAPPORT D'ESSAI / TEST REPORT N° 201002-6071CR-A1-R1-E Page : 4 / 36 2. SYSTEM TEST CONFIGURATION 2.1. JUSTIFICATION The system was configured for testing in a typical fashion (as a customer would normally use it). The model option under test is the worst case. 2.2. HARDWARE IDENTIFICATION • Equipment …

Text truncated - open the document above for the full version.

FCC ID: XKB-EFT930G and FCC ID: XKB-BAS930P Page 1/2 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Conducted emission FCC ID: XKB-EFT930G and FCC ID: XKB-BAS930P Page 2/2 1.2 Radiated emissions Radiated emission test setup
