XKB-DX4LOBCLWBSmart POS Terminal

WWW.ingenico.com 13-17 Rue Pages, 92150 Suresnes , Hauts-de-Seine, FRANCE/ (T)+33(0)1 58 01 80 00 / (F)+33 (0)1 58 01 91 35 Ingenico-SA au capital de 47 656 332 / 317 218 758 RCS Nanterre User Guide ModelφAXIUM DX4000  2 Contents 1. Introduction ..................................................................................................................... 3 2. Presentation ..................................................................................................................... 3 2.1 Content of the box .................................................................................................... 3 2.2 Overview of AXIUM DX4000 .................................................................................... 4 2.3 Keypad Functions ...................................................................................................... 5 2.4 Touch Panel ............................................................................................................... 5 3. Use of the terminal .......................................................................................................... 5 3.1 Power on/Power off the terminal ............................................................................ 5 3.2 Reading cards ............................................................................................................ 6 3.3 USB type-C ............................................................................................................... 7 4. Installation ........................................................................................................................ 7 4.1 Recommendations .................................................................................................... 7 4.2 Installing modules ..................................................................................................... 7 4.3 Paper roll .................................................................................................................... 9 4.4 Battery ..................................................................................................................... 10 4.5 Visual Impaired Accessory ...................................................................................... 11 5. Recommendations ......................................................................................................... 12 5.1 Safety ....................................................................................................................... 12 5.2 Security of your terminal ........................................................................................ 15 5.3 Fixed installation ..................................................................................................... 16 5.4 Cleaning the terminal .............................................................................................. 17 5.5 Transport and storage ............................................................................................ 17 6. Standard ......................................................................................................................... 17 7. Troubleshooting ............................................................................................................ 19 3 1. Introduction We hope that you will be fully satisfied with your new AXIUM DX4000 terminal. Read thisguide to understand and make the best use of your terminal. It presents you the necessary information about use,installation,maintenance,safety and security recommendations. WARRANTY/SECURITY Use only the power supply included with the product to ensure best performance and safety.Maintenance should only be provided by Ingenico authorized technician. Failure to comply with these instructions will void the manufacturer’s responsibility. This symbol indicates an important Warning. This symbol indicates a piece of advice. 2. Presentation 2.1 Content of the box ¾ AXIUM DX4000 terminal unit equipped with a paper roll ¾ Power adapter ¾ Abatterypack ¾ This userguide WARNING The power supply unit provided with your equipment is specially designed for ingenicoAXIUM DX4000 terminal. Do not use any other power supply.The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. ADVICE Keep the package. It must be re-used whenever the terminal is shipped. 4 2.2 Overview of AXIUM DX4000 1. Contactless landing zone 2. LEDs for Contactless Card 3. Power Key 4.Volume Keys 5.Battery cover 6.USB Type-C connector 7. Magnetic card reader 8. Smart card reader 9. LCD and touch screen 10.Flash 11. Rearcamera 12. Battery compartment 13. SIM 2 card slot ,SIM 1 card slot 14. Speaker 15. Micro SD slot 16. SAM card slot 17. Battery socket 18. Easy Loading Printer Weight 430g (including battery) Dimension (L x W x H) 177.6 X 80 X 56.8mm Electrical mains network 100-240VAC/50-60Hz Class II 5 2.3 Keypad Functions The terminal has three physical keys on the left side of the terminal, a power button and two volume keys. There are three capacitive keys at the bottom of the screen,Menu,Homeand Back keys. 2.4 Touch Panel The AXIUM DX4000 is equipped with touch panel that allows you capture functions and menus by your finger. 3. Use of the terminal ADVICE Before using the terminal, always check if the roll of paper is present 3.1 Power on/Power off the terminal To power on: Make sure the terminal battery is correctly installed and Press <Power> button for about 1s until the display is turned up. To power off: Press <Power> button for more than 2s until the display show the following figure, then press <Power off>. Volume Powerbutton Back Home Menu 6 If the battery is empty, the terminal automatically shuts off. Abnormal power off: When the device works abnormally, for example, it is crashed and no actions menu popped out while pressing the power button, pleaselong-press the power button for 8s, the device will be automatically power…

Text truncated - open the document above for the full version.

INGENICO Add: 9 Avenue de la gare - Rovaltain TGV, BP25156,Valence Cedex 9,26958 ,France Tel: +330475842123 Fax: +33475842350 Mail: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 2023-03-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID:XKB-DX4LOBCLWB INGENICO (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. INGENICO (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Printed name: Nicolas Jacquemont Title: Certification Manager

U.S. AGENT LETTER OF ATTESTATION Date: March 28, 2023 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation Statement according to 2.911(d)(7) TO WHOM IT MAY CONCERN: We, INGENICO designate Ingenico, Inc. to act as U.S. agent for service of process. Ingenico, Inc. with FCC Registration Number (FRN) 0033589185 hereby acknowledges the obligation of the U.S. agent for service of process. Further INGENICO accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Sincerely, Signature Signature Applicant U.S. Agent Contact: Nicolas Jcquemont Contact: Christopher E. Bryant Title: Certification Manager Title: Product Manager Company: INGENICO Company: Ingenico, Inc. Address: 9 Avenue de la gare - Rovaltain TGV BP25156, Valence Cedex 9, 26958 ,France Address: 3025 Winward Parkway Suite 600 Alpharetta, Georgia 30005 - USA Phone: +1 678-456-1200 Ingenico Inc. (U.S. agent) accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. FCC ID:XKB-DX4LOBCLWB

QA-FR-170-B INGENICO Add: 9 Avenue de la gare - Rovaltain TGV, BP25156,Valence Cedex 9,26958 ,France Tel: +330475842123 Fax: +33475842350 Mail: [email protected] FCC Authorization Date: 2023-03-03 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , INGENICO, hereby authorizes China Certification ICT Co.,Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co.,Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed name: Nicolas Jacquemont Title: Certification Manager

QA-FR-171-A INGENICO Add: 9 Avenue de la gare - Rovaltain TGV, BP25156,Valence Cedex 9,26958 ,France Tel: +330475842123 Fax: +33475842350 Mail: [email protected] FCC Confidential Authorization Date: 2023-03-03 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID:XKB-DX4LOBCLWB In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, INGENICO hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • BOM • Tune up The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed name: Nicolas Jacquemont Title: Certification Manager

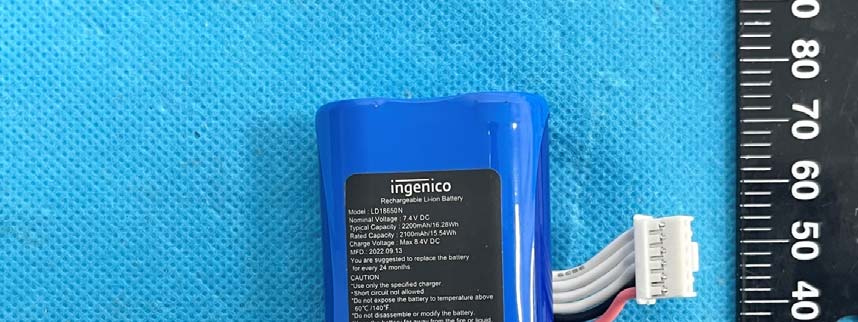

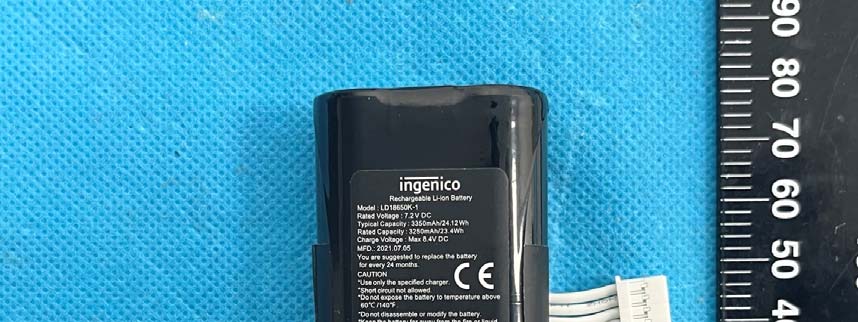

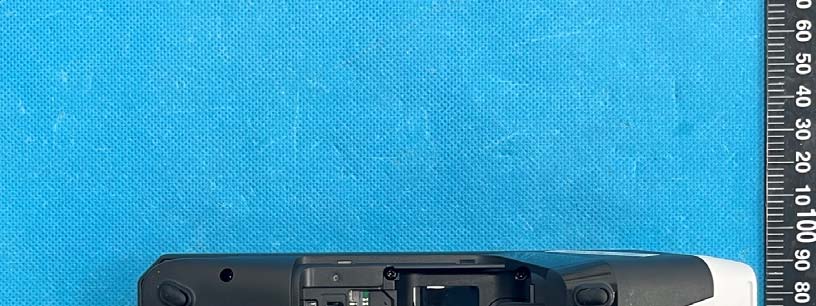

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS port port Adapter 1# Adapter 2# Adapter 3# Adapter 4# Battery 3# Battery 1# Battery 2#

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS GSM/WCDMA/LTE Main Antenna LTE DIV Antenna BT/WiFi/GPS Antenna NFC Antenna

China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263969-00C Page 37 of 37 5. RF EXPOSURE EVALUATION Applicable Standard According to KDB447498 D01 General RF Exposure Guidance v06: 4.3. General SAR test exclusion guidance c) For frequencies below 100 MHz, the following may be considered for SAR test exclusion (also illustrated in Appendix C): 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f (MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in c) 1) for 50 mm and 100 MHz is multiplied by ½ 3) SAR measurement procedures are not established below 100 MHz Measurement Result: For NFC, the power of EUT: E Field@3m is 65.98 dBuV/m = -29.22 dBm(0.001 mW) Note: E[dBμV/m] = EIRP[dBm] + 95.2 for d = 3 m. SAR test exclusion threshold for NFC(13.56MHz) separation distance < 50 mm =[474*(1 + log(100/f (MHz)))]/2 = 443mW >0.001mW Result: Compliant. ===== END OF REPORT =====

....... TEST REPORT Applicant: INGENICO Address: 9 Avenue de la gare - Rovaltain TGV, BP25156,Valence Cedex 9, 26958 , France FCC ID: XKB-DX4LOBCLWB Product Name: Smart POS Terminal Standard(s): 47 CFR Part 15, Subpart C(15.225) ANSI C63.10-2013 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR221263969-00C Date Of Issue: 2023/3/28 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263969-00C Page 2 of 37 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR221263969-00C Page 3 of 37 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 9 2. SUMMARY OF TEST RESULTS .......................................................................................... 10 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 11 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 11 3.1.1 Applicable Standard ..................................................................................................................................... 11 3.1.2 EUT Setup.................................................................................................................................................... 12 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 12 3.1.4 Test Procedure ............................................................................................................................................. 13 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 13 3.2 RADIATED EMISSIONS ....................................................................................................................... 14 3.2.1 Applicable Standard ..................................................................................................................................... 14 3.2.2 EUT Setup.................................................................................................................................................... 14 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 15 3.2.4 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.3 20 DB EMISSION BANDWIDTH: .......................................................................................................... 16 3.3.1 Applicable Standard ..................................................................................................................................... 16 3.3.2 EUT Setup.......................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Adapter 1# Conducted Emissions Side View Adapter 1# Radiated Emission 9k-30MHz Parallel View Adapter 4# Radiated Emission 9k-30MHz Perpendicular View Adapter 4# Radiated Emission 9k-30MHz Ground-parallel View Adapter 4# Radiated Emission 30M-1GHz View Adapter 4#
