XKB-ICT250V3Payment Terminal

INGENICO – 28-32 Boulevard de Grenelle –75015 Paris - FRANCE Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35 www.ingenico.com Product name : iCT220/iCT250 Range : COUNTER TOP U s e r G u i d e Product name : iCT220/iCT250 • 2/21 Copyright © 2012 Ingenico 900002734 R11 000 05/4012 All rights reserved Contents 1. Introduction __________________________________________________ 3 2. Unpacking ___________________________________________________ 3 3. Recommendations_____________________________________________ 4 3.1. Security _____________________________________________________________4 3.2. Telephone emergency, hanging up _______________________________________4 3.3. Security of your terminal _______________________________________________5 3.4. Standard compliance marking ___________________________________________5 3.5. FCC compliance_______________________________________________________6 3.6. Main Characteristics ___________________________________________________8 4. Installation and connection _____________________________________ 9 4.1. Positioning the terminal ________________________________________________9 4.2. Connections__________________________________________________________9 4.3. Installing the iCT220/iCT250 – Cable fixing__________________________________9 4.3.1. Opening the cable cover_________________________________________________________ 9 4.3.2. Kit Magic Box installation_______________________________________________________ 10 4.3.3. Connect cables ________________________________________________________________11 4.3.4. Close cover ___________________________________________________________________12 4.4. Installation of the Magic Box ___________________________________________ 12 4.5. Installing SAM (Secure access module)___________________________________ 13 4.6. Installing MicroSD Card (optional)_______________________________________ 14 5. Installing a paper roll __________________________________________15 6. Daily use _____________________________________________________16 6.1. Keypad functions ____________________________________________________16 6.2. Adjusting the contrast ________________________________________________16 6.3. Card insertion _______________________________________________________ 17 6.3.1. Swiping a card_________________________________________________________________17 6.3.2. Inserting a chip card ____________________________________________________________17 6.3.3. Inserting a chip card in second reader (Optional)_____________________________________17 6.3.4. Reading Contactless (Optional) ___________________________________________________17 7. Maintenance _________________________________________________18 7.1. Paper roll ___________________________________________________________18 7.2. Cleaning of the terminal _______________________________________________ 19 7.3. Transport and storage ________________________________________________ 19 7.4. Troubleshooting _____________________________________________________ 19 7.5. End of life___________________________________________________________20 Product name : iCT220/iCT250 • 3/21 Copyright © 2012 Ingenico 900002734 R11 000 05/4012 All rights reserved 1. Introduction Thank you for choosing an Ingenico payment terminal. We recommend you to read carefully this user guide: It gives you the necessary information about safety precautions, unpacking, installation, and maintenance of your terminal. CAUTION To benefit from the guarantee-related product, and to respect the security, we ask you to use only the power supply delivered in box with the product, entrusting maintenance operations only to an authorized person. Failure to comply with these instructions will void the manufacturer’s responsibility. 2. Unpacking ADVICE Carefully preserve the packaging of the iCT220/iCT250. It must be re-used whenever the terminal is shipped. According to the model, the following items are included in the iCT220/iCT250 box • The iCT220/iCT250 terminal equipped with its paper roll • Magic box ( mandatory use ) • The main power supply with its cable connection (according to the national needs). • The cable connection for the telephone network • This installation guide CAUTION The power supply unit provided with your equipment is specially designed for Ingenico iCT220/iCT250 terminals. Do not use any other power supply. Cable connection for the telephone network Magic box Desktop Power supply unit iCT220/iCT250 terminal User guider Product name : iCT220/iCT250 • 4/21 Copyright © 2012 Ingenico 900002734 R11 000 05/4012 All rights reserved 3. Recommendations 3.1. Security Power on/Power down To power on or power down the iCT220/iCT250 connect or disconnect the power supply from the electric outlet. Lithium battery The iCT220/iCT250 is fitted with a lithium battery which is not accessible to the user. Only a qualified technician may be authorized to open the unit and change this component. Electrical power supply network Provide an electrical outlet : - located near the equipment and easily accessible - which meets the standards and regulations in the country of use. Telephone network Provide a phone jack complying with standards and regulations in the country of use. SAM/SIM or SD Memory Card compartment cover Located under the terminal, it must be in place during normal operation of the terminal. Cable compartment cover The cable compartment cover is located under the terminal, it must be in place during normal operation of the terminal. 3.2. Telephone emergency, hanging up You have an urgent call to make, when iCT220/iCT250 hangs on the line. In order to get a dial tone... Place the handset in the hang up position and : press the red key (=cancel) or disconnect the power supply from the mains network or disconnect the iCT220/iCT250 telephone connector from the telephone call socket, and place the telephone connector into the telephone wall socket. You will have a dial tone within 6 seconds. Product name : iCT2…

Text truncated - open the document above for the full version.

November 26 th , 2012 CONFIDENTIALITY REQUEST Curtis-Straus LLC One Distribution Center Circle #1 Littleton, MA 01460 USA Re: Confidentiality request for a Low Power Communication Device FCC ID: XKB-ICT250V3 Gentlemen, INGENICO requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application. The following document regarding this submission for FCC ID: XKB-ICT250V3 shall be kept confidential: 1. Schematic Diagram (file: Schematic - XKB-ICT250V3.pdf) 2. Block Diagram (file: Block Diagram- XKB-ICT250V3.pdf) Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that INGENICO does not customarily release to the public and which is otherwise not generally available to the public. Regards, Marc DELORME Quality Manager

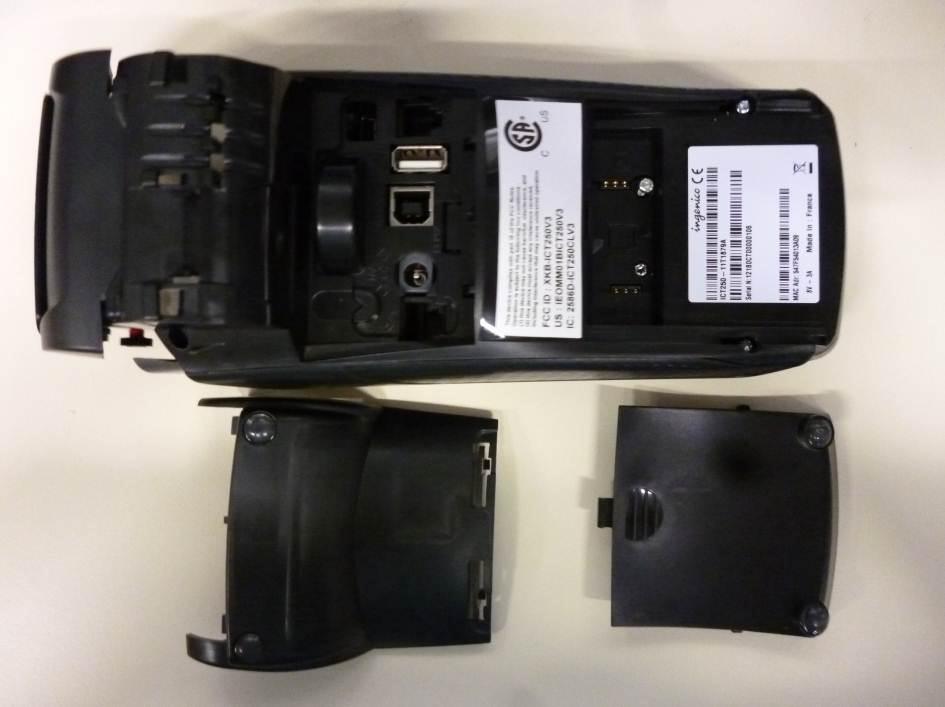

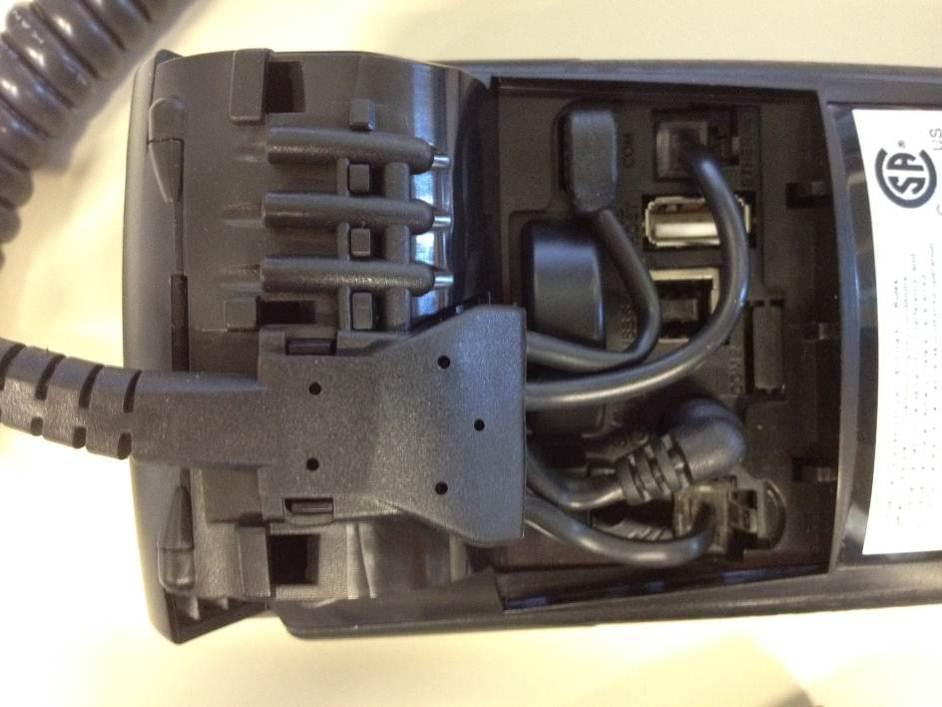

FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 1/7 EXTERNAL PHOTOS OF TESTED EUT FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 2/7 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 3/7 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 4/7 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 5/7 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 6/7 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 7/7

FCC ID: XKB-ICT250V3 IC: 2586D-ICT250CLV3 Page 1/2 PRODUCT LABELING FCC ID / IC number label FCC ID: XKB-ICT250V3 IC: 2586D-ICT250CLV3 Page 2/2

FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 1/12 INTERNAL PHOTOS OF TESTED EUT FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 2/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 3/12 RFID antenna FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 4/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 5/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 6/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 7/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 8/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 9/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 10/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 11/12 FCC ID: XKB-ICT250V3 IC : 2586D-ICT250CLV3 Page 12/12

FCC ID: XKB-ICT250V3 IC: 2586D-ICT250CLV3 Page 1/4 OPERATIONAL DESCRIPTION 1.1. EUT description FCC ID: XKB-ICT250V3 IC: 2586D-ICT250CLV3 Page 2/4 FCC ID: XKB-ICT250V3 IC: 2586D-ICT250CLV3 Page 3/4 1.2. Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The system was configured for testing in a typical fashion (as a customer would normally use it). All configurations of EUT is considered, worst cases are presented in this test report.  Power supply: - AC / DC Adaptor:INGENICO, Model PSM24W-080, P/N : 192020864 - Rating: 100-240VAC, 0.6A / 8.0VDC, 3.0A - Frequency: 50-60Hz During all the tests, EUT is supplied by this adaptor.  Inputs/outputs: Terminal - 1 x USB Host, not used, not tested - 1 x USB Slave, not used, not tested - 1 x Jack power supply DC to magicbox - 1 x COM0 to magicbox - 1 x Ethernet to magicbox - 1 x Line to magicbox - 2 x SAM - 2 x CAM - 1 x Printer - 1 x Contactless  Inputs/outputs: Magicbox: 296105416 29/2012 - 1 x Jack power supply DC - 1 x COM0 - 1 x Ethernet - 1 x Line  Cables: - 1 x Power supply cable, unshielded, length: 1.5m - 1 x Line cable, unshielded, length: 2m - 1 x Ethernet cable, unshielded, length: 2m - 1 x Com cable, unshielded, length: 2m, with load - 1 x Magicbox cable twisted, unshielded, length: 1.5m  Auxiliaries equipment used during test: - 1 x Contact card - 1 x Contactless card - 2 x SAM - 1 x Laptop LENOVO with its power supply (Laptop of laboratory) - 1 x TELTON Telephone line simulator TLS-5B-01, Sn: 014184 FCC ID: XKB-ICT250V3 IC: 2586D-ICT250CLV3 Page 4/4 1.4. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003 FCC Part 15 Subpart B and C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed from August 1 st to September 17 th , 2012. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

Rapport d’essai / Test report N° 439408-R1-E JDE : 115461 DELIVRE A / ISSUED TO : INGENICO 9 Avenue de la Gare Rovaltain TGV - Quartier de la gare 26958 VALENCE – France Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart B et C. RSS-GEN / RSS-210 Matériel testé / Apparatus under test :  Produit / Product : Terminal de payment / Payement terminal  Marque / Trade mark : INGENICO  Constructeur / Manufacturer : INGENICO  Type / Model : ICT250-11T1879A  N° de série / serial number : 12180CT00000100 & 12180CT00000106  FCC ID : XKB-ICT250V3  IC : 2586D-ICT250CLV3 Date des essais / Test date : Du 1 Aout au 17 Septembre 2012 / From August 1 st to September 17 th , 2012 Lieu d’essai / Test location : LCIE SUD-EST ZI Centr’Alp – 170 rue de Chatagnon 38430 MOIRANS - FRANCE Test réalisé par / Test performed by : Anthony MERLIN Ce document comporte /Composition of document : 31 pages. MOIRANS, LE 26 NOVEMBRE 2012 / NOVEMBER 26TH, 2012 Ecrit par / Written by, Approuvé par / Approved by, Anthony MERLIN Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Sauf indication contraire, la décision de conformité prend en compte l’incertitude de mesures. Il ne préjuge en aucun cas d’une décision de certification. This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 439408-R1-E Page : 2 / 31 SUMMARY 1. TEST PROGRAM .................................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ......................................................................................................... 4 3. RADIATED EMISSION DATA .................................................................................................................. 6 4. FUNDAMENTAL FREQUENCY TOLERANCE (15.225E) ...................................................................... 13 5. BAND-EDGE COMPLIANCE §15.209 ................................................................................................. 14 6. OCCUPIED BANDWIDTH ..................................................................................................................... 16 7. CONDUCTED EMISSION DATA ........................................................................................................... 18 8. ANNEX 1 (GRAPHS) ............................................................................................................................. 22 9. UNCERTAINTIES CHART ..................................................................................................................... 31 RAPPORT D'ESSAI / TEST REPORT N° 439408-R1-E Page : 3 / 31 1. TEST PROGRAM Standard: - FCC Part 15, Subpart B (Digital Devices) - FCC Part 15, Subpart C - ANSI C63.4 (2003) - RSS-Gen Issue 3 – Dec 2010 - RSS-210 Issue 8 – Dec 2010 EMISSION TEST LIMITS RESULTS (Comments) Limits for conducted disturbance at mains ports 150kHz-30MHz Frequency Quasi-peak value (dBμV) Average value (dBμV) PASS 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 5-30MHz 60 50 Radiated emissions 9kHz-30MHz CFR 47 §15.209 (a) CFR 47 §15.225 RSS-Gen §4.9 Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m PASS Radiated emissions 30MHz-25GHz* CFR 47 §15.209 (a) CFR 47 §15.225 RSS-Gen §4.9 Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Fundamental field strength limit CFR 47 §15.225 RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz PASS Fundamental frequency tolerance CFR 47 §15.225 RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz PASS Band edge compliance CFR 47 §15.225 RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz PASS Occupied bandwidth RSS-Gen §4.6.1 No limit PASS Receiver Spurious Emission** RSS-Gen §4.10 See RSS-Gen §4.10 NA *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. Highest frequency: 387MHz (Declaration of provider) **Testing covered the receive mode, and receiver spurious emissions are considered to be the same as transmitter. RAPPORT D'ESSAI / TEST REPORT N° 439408-R1-E Page : 4 / 31 2. SYSTEM TEST CONFIGURATION 2.1. JUSTIFICATION The system was configured for testing in a typical fashion (as a customer would normally use it). 2.2. HARDWARE IDENTIFICATION  Eq…
