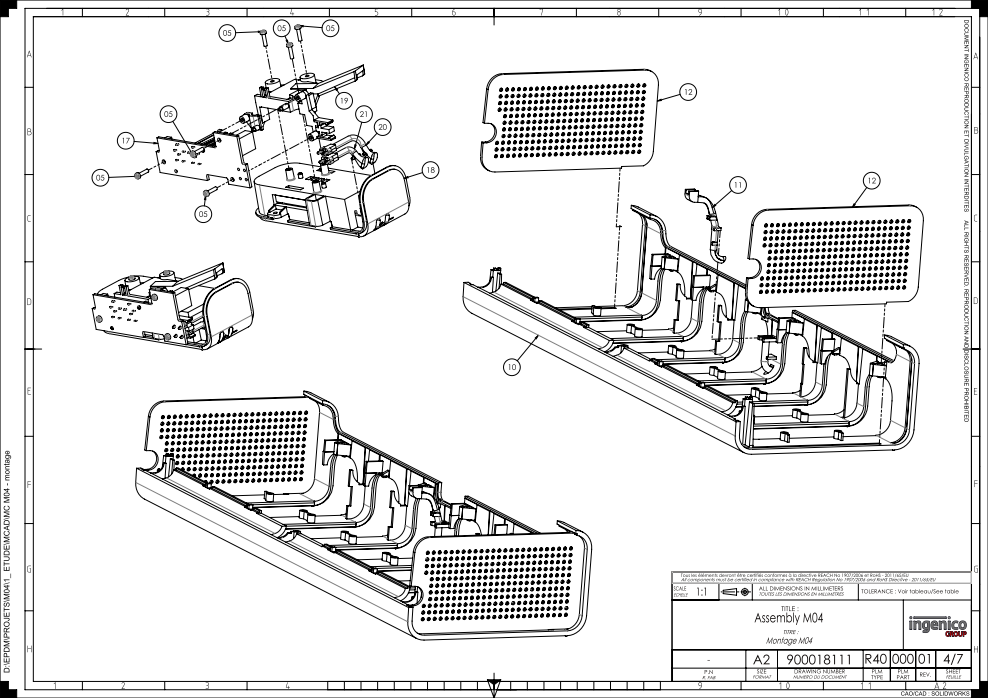

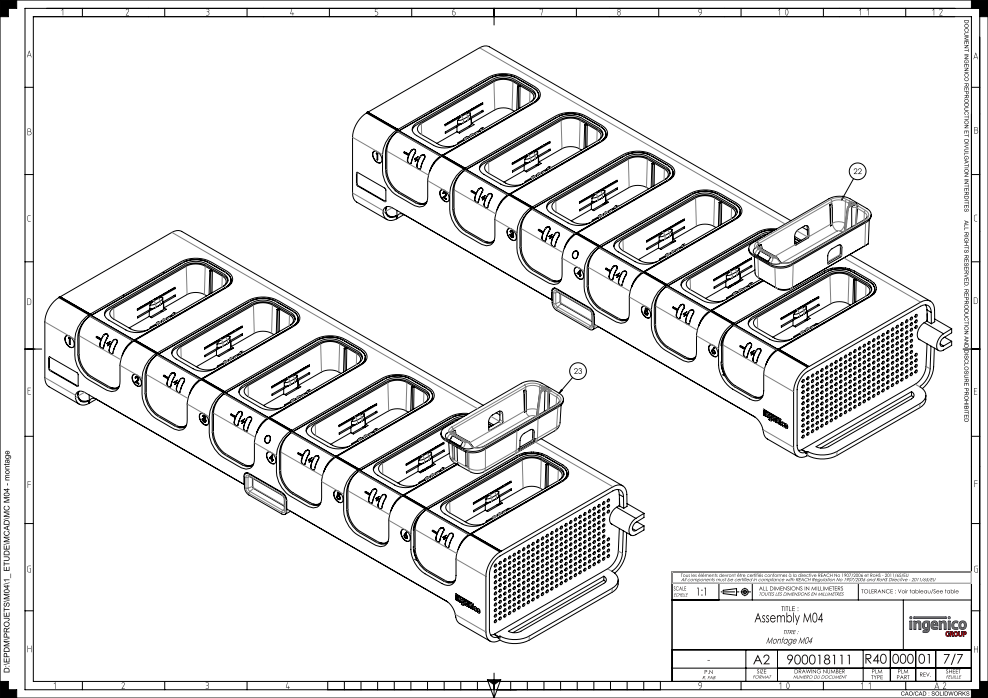

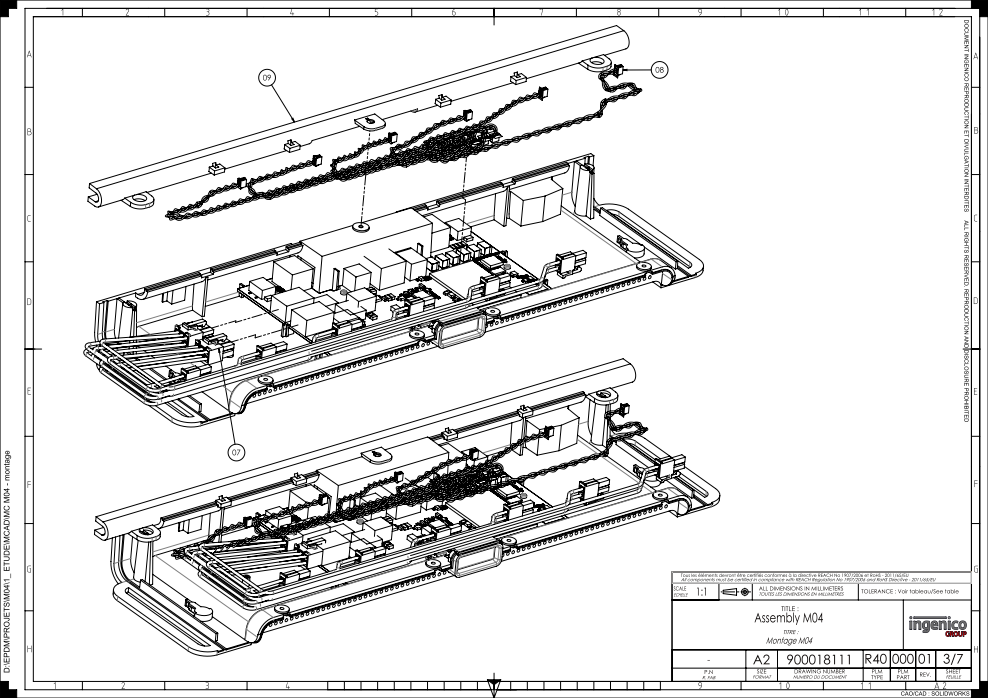

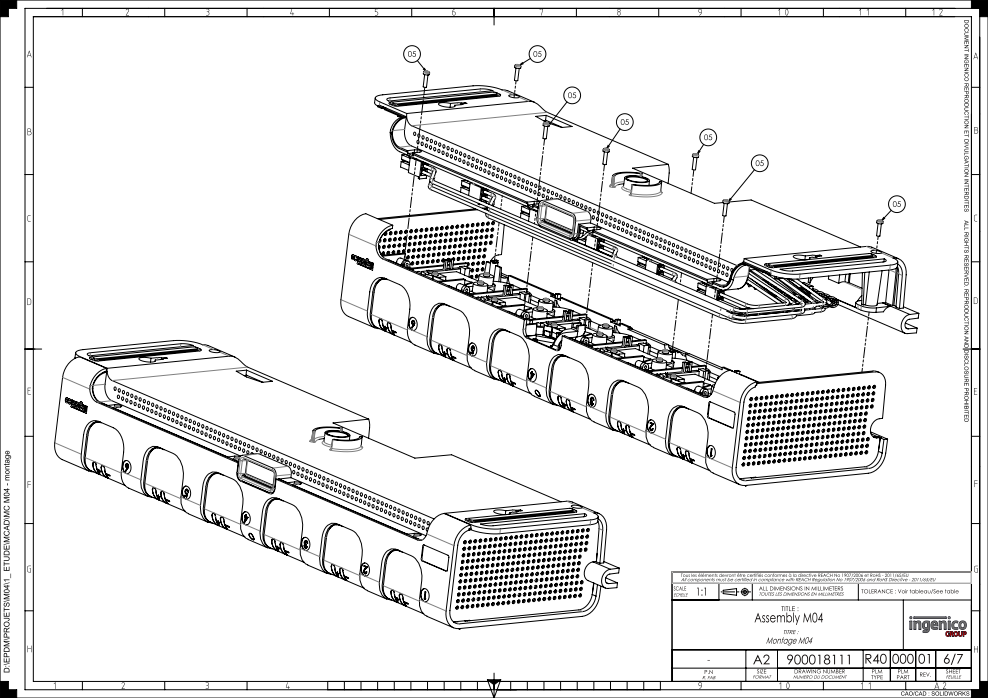

XKB-IMP40CClass B Computing Device Peripheral

Ingenico – 28-32 Boulevard de Grenelle 75015 PARIS Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35 Intelligent Docking Station for iSMP2 Companion IMP400 U S E R G U I D E IMP400  2/15 Copyright © 2014 Ingenico 900021684 R11 000 01/0615 All rights reserved Contents 1. Introduction _________________________________________________ 3 2. Unpacking __________________________________________________ 4 3. Recommendations ___________________________________________ 5 3.1. Security _____________________________________________________________ 5 3.2. Approvals and markings _______________________________________________ 5 3.3. EC standard compliance ______________________________________________ 7 3.4. FCC and IC compliance _______________________________________________ 7 3.5. Main Characteristics __________________________________________________ 8 4. Installation and connection ___________________________________ 9 4.1. Functional description _________________________________________________ 9 4.2. Connectivity _________________________________________________________ 9 4.3. Positioning the cradle _________________________________________________ 9 4.4. Cables connection ___________________________________________________ 10 4.5. Fixing the cradle on its support ________________________________________ 11 4.6. iSMP Docking _______________________________________________________ 11 4.7. Charging iSMP ______________________________________________________ 12 5. Maintenance ________________________________________________ 13 5.1. Cleaning of the cradle ________________________________________________ 13 5.2. Transport and storage________________________________________________ 13 5.3. Troubleshooting _____________________________________________________ 13 5.4. Environment (WEEE, Batteries and Packaging) _________________________ 14 IMP400  3/15 Copyright © 2014 Ingenico 900021684 R11 000 01/0615 All rights reserved 1. Introduction Thank you for choosing an Ingenico product. We recommend you to read carefully this installation guide: It gives you the necessary information about safety precautions, unpacking, installation, and maintenance of your terminal accessory. WARRANTY / SECURITY To benefit from the guarantee-related product, and to respect the security, we ask you to use only accessories delivered in box with the product, entrusting maintenance operations only to an authorized person. The IMP400 accessory has been designed for iSMP2 Companion product, do not attempt to use for any other use. Failure to comply with these instructions will void the manufacturer’s responsibility. This symbol indicates an important Warning. This symbol indicates a piece of advice. IMP400  4/15 Copyright © 2014 Ingenico 900021684 R11 000 01/0615 All rights reserved 2. Unpacking ADVICE Carefully preserve the packaging of the IMP400. It must be re-used whenever the accessory is shipped. The following items are included in the IMP400 box : IMP400 Intelligent Docking Station for iSMP2 Companion POWER SUPPLY UNIT (PSU) WARNING The power supply unit provided with your equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. This User guide IMP400  5/15 Copyright © 2014 Ingenico 900021684 R11 000 01/0615 All rights reserved 3. Recommendations 3.1. Security IMP400 is specially designed for iSMP2 Companion terminals charging.  Do not short-circuit the metallic contacts.  Do not attempt to open the product or the PSU.  Do not attempt to replace the PSU by any other type even the characteristics are similar.  In case of abnormal behaviour disconnect the main power cord from the wall plug. Electrical power outlet and power cord:  Power outlet must be installed near the equipment and easily accessible;  Main plug of power cord must meet standards and regulations of the country it is used in;  The protection of the installation must be set to 20 A in US and Canada, 13 A in the UK and 16 A in other countries. Warning In such case all the certifications below and warranty for ISMP2 COMPANION and IMP400 would be voided 3.2. Approvals and markings Mandatory conformity marking for products sold within the European Economic Area (EEA). It states that the product is assessed before being placed on the market and meets EU safety, health and environmental protection requirements Indicates that the product has been certified to applicable standards including standards written or administered by the American National Standards Institute (ANSI), Underwriters Laboratories (UL), CSA Group (CSA), NSF International (NSF), and other North American and global organizations Indicates that the product meet both American and Canadian standards for safety requirements Indicates that the product has been evaluated, tested and certified for electrical safety by an independent accredited third-party against German and European standards Mandatory mark for Japan according to the Electrical Appliance and Material Safety Law (DENAN) Proof a regulated energy-using product imported into Canada has been successfully tested and certified by an impartial and independent Testing Laboratory accredited by the Standards Council of Canada (SCC) IMP400  6/15 Copyright © 2014 Ingenico 900021684 R11 000 01/0615 All rights reserved Indicates a device’s compliance with applicable Australian Communications and Media Authority (ACMA) technical standards—that is, for telecommunications, radio communications, EMC and EME Indicates that the product has been tested against EMC and safety standards for Taiwan market Compulsory safety mark for many products imported, sold or used in the Chinese market Indicating a power supply meets the level V energy efficiency requirements. Indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for recovery and recycling Indicat…

Text truncated - open the document above for the full version.

Page 1/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE USER MANUAL (FCC STATEMENT) FCCID: XKB-IMP40C This is a copy of the page where the FCC statement is included: Ref User Manual: Page 2/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE EXTERNAL PHOTOS OF EQUIPMENT FCCID: XKB-IMP40C Page 2/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 3/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 4/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 5/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 6/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 7/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 8/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE PRODUCT LABELING FCCID: XKB-IMP40C Page 2/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE INTERNAL PHOTOS OF EQUIPMENT FCCID: XKB-IMP40C Page 2/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 3/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 4/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE GENERAL INFORMATION FCCID: XKB-IMP40C 1.1. Product description LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE 1.2. Tested System Details Equipment Under Test Power supply: For measurement with different voltage, it will be presented in test method. Name Type Rating Reference / Sn Comments Supply1  AC  DC  Battery 100-240V 50/60Hz Mean Well Model GS90A12-R7BBM1 Sn: EB4EC71609 Inputs/outputs - Cable: Access Type Length used (m) Declared <3m Shielded Under test Comments Supply1 AC/DC adaptor 2    LAN1 RJ45 1    LAN2 RJ45 1    USB USB -    Not used during tests Auxiliary equipment used during test: Type Reference Sn Comments Laptop TOSHIBA1 - - Laptop TOSHIBA1 - - 6 x ISMP2 INGENICO ISMP2 CEM iDS1; CEM IDS2; CEM iDS3 CEM iDS4; CEM iDS5; CEM iDS6 - 1.3. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart B. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE 1.4. Test facility Tests have been performed on April 27th , 2015. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested. Unless otherwise specified, the decision of conformity takes into account the uncertainty of measures. TEST REPORT N°: 840228-R1-E JDE : 135368 Subject Electromagnetic compatibility tests according to the standards: FCC CFR 47 Part 15, Subpart B. ANSI C63.4 (2003) Issued to INGENICO Rovaltain TGV – Le Valvert 9 avenue de la gare 26300 ALIXAN Apparatus under test  Product ISMP2 Intelligent Docking Station  Trade mark INGENICO  Manufacturer INGENICO  Model under test IMP400-01B3143A  Serial number 14347KT00004149 Test date From April 27 th , 2015 Test location Moirans Test performed by Majid MOURZAGH Composition of document 19 pages Last version None Document issued on June 30th , 2015 Written by : Approved by : Majid MOURZAGH Anthony MERLIN Tests operator Technical manager TEST REPORT N°840228-R1-E Page 2/19 SUMMARY 1. TEST PROGRAM ............................................................................................................................. 3 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) .............................. 4 3. MEASUREMENT OF CONDUCTED EMISSION .............................................................................. 7 4. MEASUREMENT OF RADIATED EMISSION (30MHZ-2GHZ) ......................................................... 9 5. UNCERTAINTIES CHART .............................................................................................................. 14 6. ANNEX 1 (GRAPHS) ...................................................................................................................... 15 TEST REPORT N°840228-R1-E Page 3/19 1. TEST PROGRAM 1.1. REQUIREMENTS FOR DISTURBANCE EMISSIONS Standard: - FCC Part 15, Subpart B (Digital Devices) - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Limits for conducted disturbance at mains ports 150kHz-30MHz Frequency Quasi-peak value Average value  PASS  FAIL  NA  NP 150-500kHz 66.0 dBμV to 56.0 dBμV 56.0 dBμV to 46.0 dBμV 0.5-5MHz 56.0 dBμV 46.0 dBμV 5-30MHz 60.0 dBμV 50.0 dBμV Radiated emissions 30MHz-1GHz Frequency Quasi-peak value @3m  PASS  FAIL  NA  NP 30MHz-88MHz 40.0 dBμV/m 88MHz-216MHz 43.5 dBμV/m 216MHz-960MHz 46.0 dBμV/m Above 960MHz 54.0 dBμV/m Radiated emissions 1GHz-2GHz* Highest frequency : 387 MHz (Declaration of provider) Frequency Peak value @3m Average value @3m  PASS  FAIL  NA  NP 1-2GHz 74.0 dBμV/m 54.0 dBμV/m *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. Highest frequency: 387MHz (Declaration of provider) TEST REPORT N°840228-R1-E Page 4/19 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) 2.1. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES): Equipment under test (EUT): IMP400-01B3143A Serial Number: 14347KT00004149 Equipment Under Test Power supply: For measurement with different voltage, it will be presented in test method. Name Type Rating Reference / Sn Comments Supply1  AC  DC  Battery 100-240V 50/60Hz Mean Well Model GS90A12-R7BBM1 Sn: EB4EC71609 Inputs/outputs - Cable: Access Type Length used (m) Declared <3m Shielded Under test Comments Supply1 AC/DC adaptor 2    LAN1 RJ45 1    LAN2 RJ45 1    USB USB -    Not used during tests Auxiliary equipment used during test: Type Reference Sn Comments Laptop TOSHIBA1 - - Laptop TOSHIBA1 - - 6 x ISMP2 INGENICO ISMP2 CEM iDS1; CEM IDS2; CEM iDS3 CEM iDS4; CEM iDS5; CEM iDS6 - TEST REPORT N°840228-R1-E Page 5/19 2.2. EUT CONFIGURATION – RUNNING MODE Firmware / Software version of EUT: SDK 9.22 based The EUT is connected to 2 laptop PC with its Ethernet link. (Ping function activated). 6 Auxiliaries are installed to be charged 2.3. EQUIPMENT MODIFICATIONS  None  Modification: TEST REPORT N°840228-R1-E Page 6/19 2.4. SPECIAL ACCESSORIES None 2.5. FIELD STRENGTH CALCULATION The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follow: FS = RA + AF + CF – AG Where FS = Field Strength RA = Receiver Amplitude AF = Antenna Factor CF = Cable Factor AG = Amplifier Gain Assume a receiver reading of 52.5dBμV is obtained. The antenna factor of 7.4 and a cable factor of 1.1 is added. The amplifier gain of 29dB is subtracted, giving field strength of 32 dBμV/m. FS = 52.5 + 7.4 + 1.1 – 29 = 32 dBμV/m The 32 dBμV/m value can be mathematically converted to its corresponding level in μV/m. Level in μV/m = Common Antilogarithm [(32dBμV/m)/20] = 39.8 μV/m. TEST REPORT N°840228-R1-E Page 7/19 3. MEASUREMENT OF CONDUCTED EMISSION 3.1. ENVIRONMENTAL CONDITIONS Date of test : April 27 th , 2015 Test performed by : Majid MOURZAGH Atmospheric pressure (hPa) : 997 Relative humidity (%) : 32 Ambient temperature (°C) : 23 3.2. TEST SETUP Mains terminals The EUT and auxiliaries are set:  80cm above the ground on the non-conducting table (Table-top equipment)  10cm above the ground on isolating support (Floor standing equipment) The distance betw…

Text truncated - open the document above for the full version.

Page 1/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE CONDUCTED AND RADIATED MEASUREMENT PHOTO FCCID: XKB-IMP40C 1.1 Conducted emission Page 2/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE 1.2 Radiated emissions Test setup on OATS Test setup in anechoic chamber
