Ingenico – 28/32 Boulevard de Grenelle – 75015 Paris - FRANCE Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35 www.ingenico.com Product name: IPP3x0-X1Txxxxx U s e r G u i d e Product name: IPP3x0-X1Txxxxx  2/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved Contents 1. Introduction __________________________________________________ 4 2. Unpacking ___________________________________________________ 5 3. Recommendations _____________________________________________ 5 3.1. Security _____________________________________________________________ 5 3.2. Security of your terminal _______________________________________________ 6 3.3. IPP3xx Fixed Installation ________________________________________________ 6 3.4. EC standard compliance marking _________________________________________ 8 3.5. IC statements ________________________________________________________ 8 3.6. FCC Statement ________________________________________________________ 8 3.7. Main Characteristics ___________________________________________________ 9 4. Installation and connection _____________________________________ 10 4.1. Positioning the terminal _______________________________________________ 10 4.2. Connections _________________________________________________________ 10 4.2.1. Cable or adaptor connection ____________________________________________________ 10 4.2.2. Cable or adaptor disconnection ___________________________________________________ 11 4.2.3. Installation of the Magic Box (optional) ____________________________________________ 12 12 4.3. Installing SAM (Secure access module) and MicroSD Card ___________________ 13 4.4. ___________________________________________________________________ 14 5. Daily use _____________________________________________________ 15 5.1. Keypad functions ____________________________________________________ 15 5.2. Adjusting the contrast ________________________________________________ 15 5.3. Card insertion _______________________________________________________ 16 5.3.1. Swiping a card ________________________________________________________________ 16 5.3.2. Inserting a chip card ___________________________________________________________ 16 5.3.3. Reading Contactless (Optional) __________________________________________________ 16 6. Maintenance _________________________________________________ 17 Product name: IPP3x0-X1Txxxxx  3/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved Cleaning of the terminal ___________________________________________________ 17 6.1. Transport and storage ________________________________________________ 17 6.2. Troubleshooting _____________________________________________________ 17 6.3. End of life ___________________________________________________________ 18 6.3.1. End of live ___________________________________________________________________ 18 6.3.2. Product end of life disassembly instructions ________________________________________ 18 Product name: IPP3x0-X1Txxxxx  4/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved 1. Introduction Thank you for choosing a payment terminal from Ingenico. We recommend that you to read this installation guide carefully: It gives you the necessary information about safety precautions, unpacking, installation, and maintenance of your terminal. WARRANTY / SECURITY To benefit from the product warranty, and to respect the security of the product, we ask you to use only the accessories delivered in the box with the product, and to ensure maintenance operations are only performed by an authorized person. GARANTIE / SICHERHEIT Um das mit der Garantie verbundene Erzeugnis nutzen und die Sicherheit wahren zu können, bitten wir Sie, nur die mit dem Erzeugnis in der Verpackung gelieferten Zubehörteile zu verwenden und die Wartungsarbeiten einer dazu berechtigten Person anzuvertrauen. The IPP3X0-X1TXXXXX can be powered by different sources please respect these recommendations: All external circuits connected to the IPP3X0-X1TXXXXX must be SELV (Safety Extra Low Voltage) and LPS (limited power source) within the meaning of section 2.2 and 2.5 of the standard IEC60950-1:2005+/A1:2010 and EN60950-1:2006+/A11:2009+/A1:2010+/A12:2011 IPP3X0-X1TXXXXX can be USB powered from a USB port; it must be connected to a fully compatible USB port. USB 5V 500 mA IPP3X0-X1TXXXXX can be powered from an Power Over Ethernet (POE) port; it must be connected to a full compatible POE port. POE 48V (1.3W) When IPP3X0-X1TXXXXX is driven by RS232 interface, it must be powered by the specific power supply supplied by Ingenico. Falls IPP3X0-X1TXXXXX durch RS232 betrieben wird, muss die von Ingenico bereitgestellte spezifische Stromversorgung verwendet werden. For Europe use power supply 152810 and PSC16E-080, l’USB et le POE For US and Canada use supply 153051, l’USB et le POE The PSU is 8-12 volts DC and must be compliant with international standard IEC60950-1 (§2.5 : limited power source) 8 – 12 V 450 mA Note : Failure to comply with these instructions will void the manufacturer’s responsibility. This symbol indicates an important Warning. Dieses Symbol stellt ein wichtiges Warnzeichen dar. This symbol indicates a piece of advice. Product name: IPP3x0-X1Txxxxx  5/20 Copyright © 2012 Ingenico 900001663 R11 000 08/1227 All rights reserved 2. Unpacking ADVICE Carefully preserve the packaging of the IPP3X0-X1TXXXXX. It must be re-used whenever the terminal is shipped. According to the model, the following items are included in the IPP3X0-X1TXXXXX box (including optional accessories):  The IPP3X0-X1TXXXXX terminal  This installation guide  The IPP3X0 cradle (optional)  The connection cable or adaptor (optional)  The application user guide (optional) 3. Recommendations 3.1. Security Power on/Power down To power on or power off the IPP3X0-X1TXXXXX you must connect or disconnect the cable connected to the host port (for USB or Power Over Ethernet) If the serial link is us…

Text truncated - open the document above for the full version.

Page 1/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE USER MANUAL (FCC STATEMENT) FCCID: XKB-IUC15ZCL This is a copy of the page where the FCC statement is included: 900001663 R11 000 08/1227 Page 2/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE EXTERNAL PHOTOS OF EQUIPMENT FCCID: XKB-IPP3V4 Page 2/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 3/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 4/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 5/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 6/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 7/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 8/8 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE PRODUCT LABELING FCCID: XKB-IPP3V4 Page 2/2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

Page 1/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE INTERNAL PHOTOS OF EQUIPMENT FCCID: XKB-IPP3V4 Page 2/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 3/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Page 4/4 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE

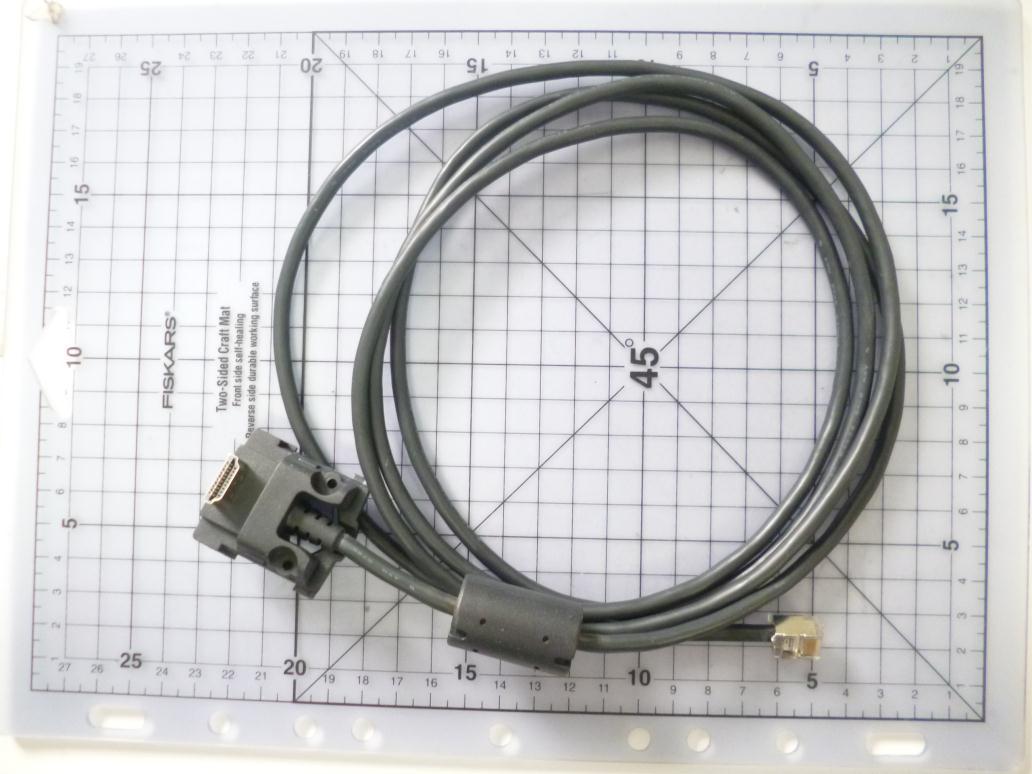

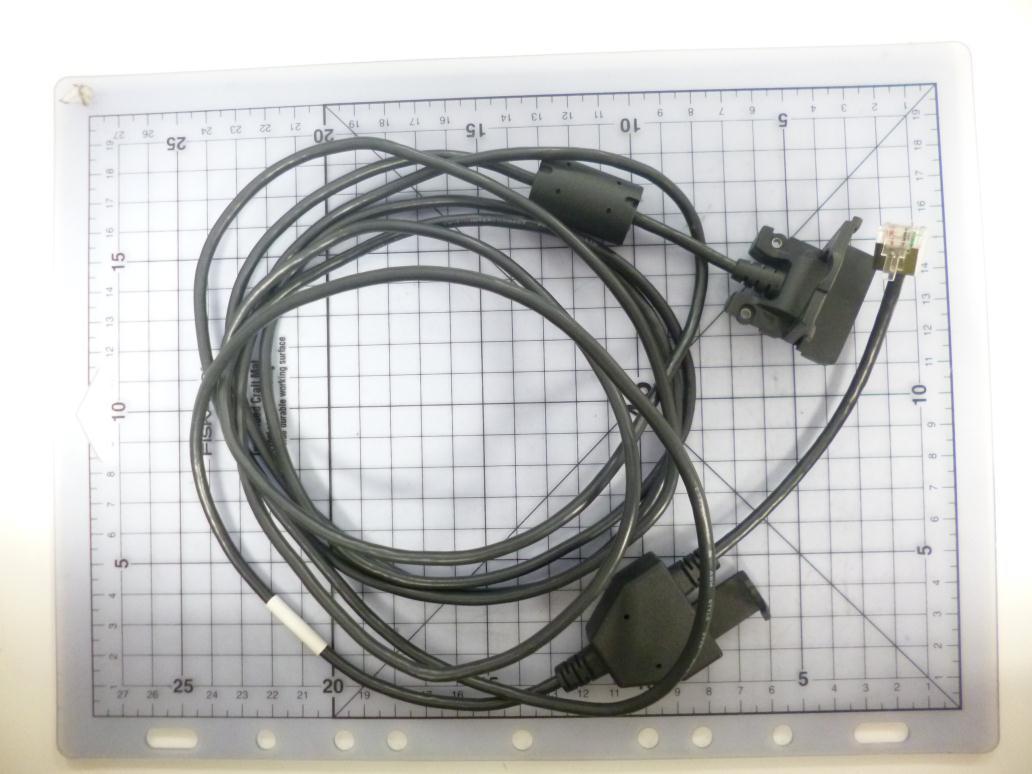

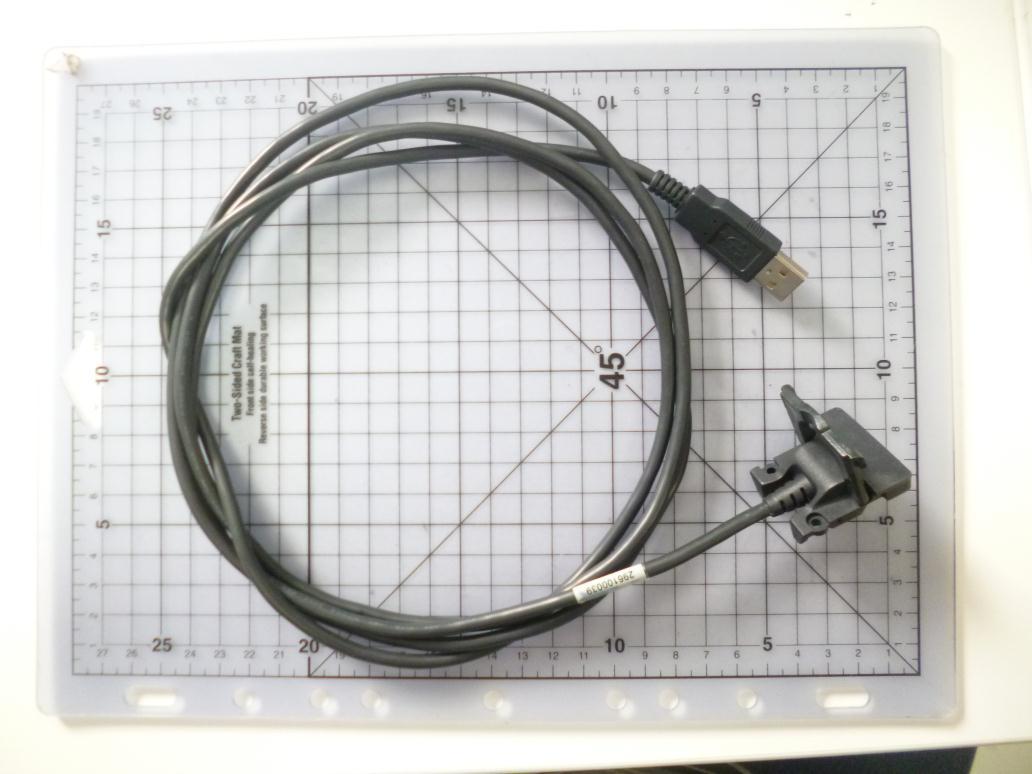

LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE GENERAL INFORMATION FCCID: XKB-IPP3V4 1.1. Product description LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE 1.2. Tested System Details Equipment under test (EUT): Photography of EUT Power supply: During all the tests, EUT is supplied by V nom : 5VDC or 8-12VDC or 48VDC For measurement with different voltage, it will be presented in test method. Name Type Rating Reference / Sn Comments Friwo  AC  DC  Battery 8VDC 153051 / 179901469 For configuration 1* USB  AC  DC  Battery 5VDC - For configuration 5* Phihong POE  AC  DC  Battery 48VDC PSA16-480 / - For configuration 4* Phihong  AC  DC  Battery 8VDC PSC16E-080 / 192011097 For configuration 2* Phihong  AC  DC  Battery 8VDC PSM24W-080(IN)-R / - For configuration 3* *See the running mode §2.2 LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Inputs/outputs – EUT: Access Type Length used (m) Declared <3m Shielded Under test Comments Configuration 1/3/4* HDMI 1.8    Cable with ferrite near to EUT (5 centimeters) Configuration 2/5* HDMI 1.8    - *See the running mode §2.2 Inputs/outputs – Power supply: Access Type Length used (m) Declared <3m Shielded Under test Comments Friwo DC 1.8    Configuration 1* USB DC 1.8    Configuration 5* POE DC 2    Configuration 4* Phihong PSC16E-80 DC 1.8    Configuration 2* Phihong PSM24W DC 2    Configuration 3* Ethernet RJ45 2    - RS232 RS232 0.01    - *See the running mode §2.2 Auxiliary equipment used during test: Type Reference Sn Comments LAPTOP DELL LATITUDE - - Power supply DC - - - Contactless Card - - Class B Equipment information: RF module: - Frequency band: [13.553 – 13.567] MHz RF mode: Transmitter Transceiver Receiver Standby Receiver classification § 4.1.1 1 2 3 Antenna type: External: Internal: Antenna gain: NC dBi Extreme temperature range: Category I (General) -30°C to +55°C Category II (Portable) -10°C to +55°C Category III (Indoor) +5°C to +35°C Extreme test source voltage: ±10%: Vmin 207Vac Vmax 253Vac other: LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE 1.1. EUT CONFIGURATION There are 5 configurations tests, each configuration is tested in Conducted emission data, radiated emission data and the worst case is tested for the others tests. Configuration 1: EUT is powered by the FRIWO, model 153051. A reading and writing process are performed on: - SAM 1 - SAM 2 - Micro SD - CAM 0 - CLESS In this setup, a sequence with a continuous ping process is performed between the EUT and the LAPTOP. Configuration 2: EUT is powered by the Phihong, model PCS16E-080. A reading and writing process are performed on: - SAM 1 - SAM 2 - Micro SD - CAM 0 - CLESS In this setup, a sequence with a serial communication is performed (RS232 and COM 0). Serial communication consist to performed a self-communication (RX and TX are bypassed). LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Configuration 3: EUT is powered by the Phihong PSM24W-080(IN)-R. A reading and writing process are performed on: - SAM 1 - SAM 2 - Micro SD - CAM 0 - CLESS In this setup, a sequence with a continuous ping process is performed between the EUT and the LAPTOP. Configuration 4: EUT is powered by the Phihong POE. A reading and writing process are performed on: - SAM 1 - SAM 2 - Micro SD - CAM 0 - CLESS In this setup, a sequence with a continuous ping process is performed between the EUT and the LAPTOP. LCIE Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS-FRANCE Configuration 5: EUT is powered by the USB. A reading and writing process are performed on: - SAM 1 - SAM 2 - Micro SD - CAM 0 - CLESS 1.3. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.4. Test facility Tests have been performed on from June 1st to 5th, 2015. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. TEST REPORT N°: 843636-R1-E JDE : 135776 Subject Electromagnetic compatibility and Radio spectrum Matters (ERM) tests according to standards: FCC CFR 47 Part 15, Subpart B et C RSS-210 Issue 8.1 Issued to INGENICO Rovaltain TGV – Quartier de la Gare 26300 ALIXAN Apparatus under test  Product IPP300  Trade mark INGENICO  Manufacturer INGENICO  Model under test IPP350-31T3154A  Serial number 15138PP00008441  FCCID XKB-IPP3V4  ICID 2586D-IPP3V4 Test date From June 1 st to 5 th , 2015 Test location Moirans IC Test site 6500A-1 & 6500A-3 Test performed by Gaëtan Deschamps / Jonathan Sarto Composition of document 48 pages Modification of the last version None Document issued on September 4th, 2015 Written by : Approved by : Gaëtan Deschamps Anthony Merlin Tests operator Technical manager TEST REPORT N°843636-R1-E Page 2/48 SUMMARY 1. TEST PROGRAM .................................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ......................................................................................................... 4 3. CONDUCTED EMISSION DATA ............................................................................................................. 9 4. RADIATED EMISSION DATA (15.209) .................................................................................................. 11 5. FUNDAMENTAL FREQUENCY TOLERANCE (15.225E) ...................................................................... 19 6. BAND-EDGE COMPLIANCE §15.209 ................................................................................................... 21 7. OCCUPIED BANDWIDTH ..................................................................................................................... 23 8. ANNEX 1 (GRAPHS) ............................................................................................................................. 25 18. UNCERTAINTIES CHART ................................................................................................................. 48 TEST REPORT N°843636-R1-E Page 3/48 1. TEST PROGRAM Standard: - FCC Part 15, Subpart B (Digital Devices) - FCC Part 15, Subpart C - ANSI C63.4 (2003) - RSS-210 Issue 8.1 – Feb 2015 - RSS-Gen Issue 4 – Nov 2014 EMISSION TEST LIMITS RESULTS (Comments) Limits for conducted disturbance at mains ports 150kHz-30MHz CFR 47 §15.207 Frequency Quasi-peak value (dBμV) Average value (dBμV)  PASS  FAIL  NA  NP 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 5-30MHz 60 50 Radiated emissions 9kHz-30MHz CFR 47 §15.209 (a) CFR 47 §15.225 RSS-Gen §4.9 Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m  PASS  FAIL  NA  NP Radiated emissions 30MHz-1GHz* CFR 47 §15.209 (a) CFR 47 §15.225 RSS-Gen §4.9 Highest frequency :96MHz (Declaration of provider) Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m  PASS  FAIL  NA  NP Fundamental field strength limit CFR 47 §15.225 RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz  PASS  FAIL  NA  NP Fundamental frequency tolerance CFR 47 §15.225 RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz  PASS  FAIL  NA  NP Band edge compliance CFR 47 §15.225 RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz  PASS  FAIL  NA  NP Occupied bandwidth RSS-Gen §4.6.1 No limit  PASS  FAIL  NA  NP Receiver Spurious Emission** RSS-Gen §4.10 See RSS-Gen §4.10  PASS  FAIL  NA  NP *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. **Testing covered the receive mode, and receiver spurious emissions are considered to be the same as transmitter. TEST REPORT N°843636-R1-E Page 4/48 2. SYSTEM TEST CONFIGURATION 2.1. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES): Equipment under test (EUT): IPP350-31T3154A Serial Number: 15138PP00008441 Photography of EUT Power supply: During all the tests, EUT is supplied by V nom : 5VDC or 8-12VDC or 48VDC For measurement with different voltage, it will be presented in test method. Name Type Rating Reference / Sn Comments Friwo  AC  DC  Battery 8VDC 153051 / 179901469 For configuration 1* USB  AC  DC  Battery 5VDC - For configuration 5* Phihong POE  AC  DC  Battery 48VDC PSA16-480 / - For configuration 4* Phihong  AC  DC  Battery 8VDC PSC16E-080 / 192011097 For configuration 2* Phihong  AC  DC  Battery 8VDC PSM24W-080(IN)-R / - For configuration 3* *See the running mode §2.2 TEST REPORT N°843636-R1-E Page 5/48 Inputs/outputs – EUT: Access Type Length used (m) Declared <3m Shielded Under test Comments Configuration 1/3/4* HDMI 1.8    Cable with ferrite near to EUT (5 centimeters) Configuration 2/5* HDMI 1.8    - *See the run…
