XKB-IPP3X0-01TXXXRFID TAG READER

Ingenico – 190-192 Avenue Charles de Gaulle 92200 Neuilly sur Seine Tél. 33(0)1 46 25 82 00 - Fax 33 (0)1 47 72 56 95 Product name: IPP3x0-01Txxxxx User Guide Product name: IPP3x0-01Txxxxx • 2/17 Copyright © 2010 Ingenico 900001663 R11 000 01 All rights reserved Contents 1. Introduction _________________________________________________ 3 2. Unpacking __________________________________________________ 4 3. Recommendations __________________________________________ 4 3.1. Security_____________________________________________________________4 3.2. Security of your terminal _____________________________________________4 3.3. EC standard compliance marking ___________________________________5 3.4. Main Characteristics ________________________________________________6 4. Installation and connection __________________________________ 7 4.1. Positioning the terminal______________________________________________7 4.2. Connections________________________________________________________7 4.2.1. Cable or adaptor connection ________________________________________________ 7 4.2.2. Cable or adaptor disconnection______________________________________________ 8 4.2.3. Installation of the Magic Box (optional) ________________________________________ 9 4.3. Installing SAM (Secure access module) and MicroSD Card___________ 10 4.4. Installing contact less module______________________________________ 11 5. Daily use ___________________________________________________ 13 5.1. Keypad functions _________________________________________________ 13 5.2. Adjusting the contrast _____________________________________________ 13 5.3. Card insertion_____________________________________________________ 14 5.3.1. Swiping a card______________________________________________________________ 14 5.3.2. Inserting a chip card ________________________________________________________ 14 5.3.3. Reading Contactless (Optional)______________________________________________ 14 6. Maintenance_______________________________________________ 15 Cleaning of the terminal ______________________________________________ 15 6.1. Transport and storage _____________________________________________ 15 6.2. Troubleshooting ___________________________________________________ 15 6.3. End of life_________________________________________________________ 16 Product name: IPP3x0-01Txxxxx • 3/17 Copyright © 2010 Ingenico 900001663 R11 000 01 All rights reserved 1. Introduction Thank you for choosing a payment terminal Ingenico. We recommend you to read carefully this installation guide: It gives you the necessary information about safety precautions, unpacking, installation, and maintenance of your terminal. WARRANTY / SECURITY To benefit from the guarantee-related product, and to respect the security, we ask you to use only accessories delivered in box with the product, entrusting maintenance operations only to an authorized person. The IPP3X0-01TXXXXX can be powered by different sources please respect these recommendations: IPP3X0-01TXXXXX can be USB powered; it must be connected to a full compatible USB link. IPP3X0-01TXXXXX can be Power Over Ethernet (POE) powered; it must be connected to a full compatible POE link. When IPP3X0-01TXXXXX is driven by RS232, it must be power by the specific alimentation furnished by Ingenico. Failure to comply with these instructions will void the manufacturer’s responsibility. This symbol indicates an important Warning. This symbol indicates a piece of advice. Product name: IPP3x0-01Txxxxx • 4/17 Copyright © 2010 Ingenico 900001663 R11 000 01 All rights reserved 2. Unpacking ADVICE Carefully preserve the packaging of the IPP3X0-01TXXXXX. It must be re-used whenever the terminal is shipped. According to the model, the following items are included in the IPP3X0- 01TXXXXX box (including optional accessories): • The IPP3X0-01TXXXXX terminal • This installation guide • The IPP3X0 cradle (optional) • The connection cable or adaptor (optional) • The application user guide (optional) 3. Recommendations 3.1. Security Power on/Power down To power on or power down the IPP3X0-01TXXXXX connect or disconnect the cable connected to the host (for USB or Power Over Ethernet) If the serial link is used with additional power supply: The disconnecting device of the equipment is the separable plug of the power supply cord. Therefore the socket outlet shall be installed near the equipment and shall be easily accessible by the operator. Lithium battery The IPP3X0-01TXXXXX is fitted with a lithium battery which is not accessible to the user. Only a qualified technician may be authorized to open the unit and change this component. SAM, MMC and contacless lid The lid located under the terminal (see chapter “Installation SAM”) must be in place during normal operation of the terminal. 3.2. Security of your terminal Upon receipt of your terminal you should check for signs of tampering of the equipment. It is strongly advised that these checks are performed regularly after receipt. You should check, for example: that the keypad is firmly in place; that there is no evidence of unusual wires that have been connected to any ports on your terminal or associated equipment, the chip card reader, or any other part of your terminal. Such checks would provide warning of any unauthorised modifications to your terminal, and other suspicious behaviour of individuals that have access to your terminal. Your terminal detects any “tampered state”. In this state the terminal will repeatedly flash the message” Alert Irruption!” and further use of the terminal will not be possible. If you observe the “Alert Irruption!” message, you should contact the terminal helpdesk immediately. You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy. Product name: IPP3x0-01Txxxxx • 5/17 Copyright © 2010 Ingenico 900001663 R11 000 01 All rights reserved CAUTION NEVER ask the cust…

Text truncated - open the document above for the full version.

June 17 th , 2010 CONFIDENTIALITY REQUEST Curtis-Straus LLC One Distribution Center Circle #1 Littleton, MA 01460 USA Re: Confidentiality request for a Digital Device FCC ID: XKB-IPP3X0-01TXXX Gentlemen, INGENICO SA requests, pursuant to 47CFR 0.459, post grant confidentiality for portions of the material contained in this application. The following document regarding this submission for FCC ID: XKB-iPP3x0-01Txxx shall be kept confidential: 1. Block Diagram description of the iPP3x0-01Txxxxx (file: Block Diagram-XKB-IPP3X0-01TXXX.pdf) 2. Schematic Diagram of the iPP3x0-01Txxxxx (file: Schematic- XKB- IPP3X0-01TXXX.pdf) Specifically, these exhibits contain information relating to circuit function and complexity that could be of benefit to competitors. The material contains trade secrets and confidential information that INGENICO does not customarily release to the public and which is otherwise not generally available to the public. Regards, Marc DELORME Quality Manager 1, rue Claude Chappe – BP 346 07503 GUILHERAND GRANGES - France

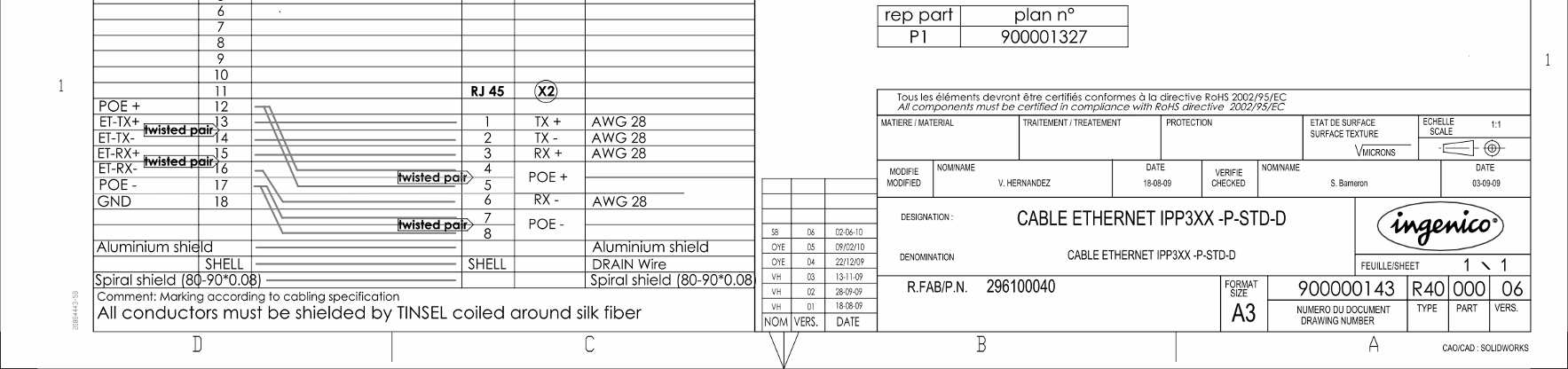

FCC ID: XKB-iPP3x0-01Txxx Page 1/10 EXTERNAL PHOTOS OF TESTED EUT iPP350-01Txxxxx FCC ID: XKB-iPP3x0-01Txxx Page 2/10 iPP320-01Txxxxx FCC ID: XKB-iPP3x0-01Txxx Page 3/10 iPP350-01Txxxxx and iPP320-01Txxxxx HDMI connector With and without the RF module option 13.56MHz FCC ID: XKB-iPP3x0-01Txxx Page 4/10 RF module option 13.56MHz FCC ID: XKB-iPP3x0-01Txxx Page 5/10 Configuration n° 1 : Communication access : - Ethernet Power supply : - Power supply adapter Type FRIWO 153051 (8Vdc <-> IPP3x) Option Cable: - Ref: IPP3xx-A-XXX-X FCC ID: XKB-iPP3x0-01Txxx Page 6/10 FCC ID: XKB-iPP3x0-01Txxx Page 7/10 Configuration n° 2 : Communication access : - Ethernet Power supply : - Power over Ethernet (POE) provided by a POE injector type PHIHONG POE30U-560 Option Cable: - Ref: IPP3xx-P-XXX-X FCC ID: XKB-iPP3x0-01Txxx Page 8/10 FCC ID: XKB-iPP3x0-01Txxx Page 9/10 Configuration n° 3 : Communication access : - USB Power supply : - Power provided by a Laptop (USB, 5Vdc <-> IPP3x) Option Cable: - Ref: IPP3xx-X-XXX-X FCC ID: XKB-iPP3x0-01Txxx Page 10/10 Configuration n° 4 : Communication access : - RS232 Power supply : - Power supply adapter Type PHIHONG PSC16E-080 (8Vdc <-> IPP3x) Option Cable: - Ref: IPP3xx-XX-XXX-X

FCC ID: XKB-IPP3X0-01TXXX Page 1/2 PRODUCT LABELING FCC ID: XKB-IPP3X0-01TXXX Page 2/2

FCC ID: XKB-iPP3x0-01Txxx INTERNAL PHOTOS OF EQUIPMENT Internal views of iPP350-01Txxxxx: Overview FCC ID: XKB-iPP3x0-01Txxx Enclosure detail views FCC ID: XKB-iPP3x0-01Txxx General views of Antenna FCC ID: XKB-iPP3x0-01Txxx General views of PCB FCC ID: XKB-iPP3x0-01Txxx View without the screen FCC ID: XKB-iPP3x0-01Txxx Other side of PCB FCC ID: XKB-iPP3x0-01Txxx Internal views of iPP320-01Txxxxx Difference between iPP350 and iPP320 is the screen, color for iPP350 and black and white for iPP320. View of internal enclosure View of B&W screen

FCC ID: XKB-iPP3x0-01Txxx GENERAL INFORMATION 1.1. Product description FCC ID: XKB-iPP3x0-01Txxx FCC ID: XKB-iPP3x0-01Txxx FCC ID: XKB-iPP3x0-01Txxx 1.2. Related Submittal(s) / Grant(s) All host equipments used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, with description of all cables used in the tested system are: - Equipment under test (EUT): E.U.T. : iPP350-01T1108A Serial number: Erreur ! Source du renvoi introuvable. Model with all options E.U.T. : iPP320-01T1185A Serial number: 09350PP40063626 Model with all options With Power supply FRIWO 153051 120V / 50-60Hz <-> 8Vdc (Configuration n°1) With Power supply PHIHONG PSC16E-080 100-240V / 50Hz <-> 8Vdc (Configuration n°4) Highest internal frequency: 387 MHz - Input/output: 1 x Power supply / Data port (Type HDMI, “1”) FCC ID: XKB-iPP3x0-01Txxx - Auxiliaries used for testing: - Laptop TOSHIBA SATELLITE PS141E-04YC sn: 13594938G - POE Injector POE30U-560 (56Vdc 0.55A) PHIHONG sn: P71400110B1 • I/O cables used for testing: - Configuration 1: 1 x Ethernet cable (2m) (AC/DC adapter input), shielded, Ref: IPP3xx-A-XXX-X - Configuration 2: 1 x Ethernet cable (2m) (POE) shielded, Ref: IPP3xx-P-XXX-X - Configuration 2: 1 x Ethernet cable (2m), FTP Cat 5e, Type CM shielded - Configuration 3: 1 x USB cable (2m), shielded, Ref: IPP3xx-X-XXX-X - Configuration 4: 1 x RS232 cable (2m), shielded, Ref: IPP3xx-XX-XXX-X 1.4. RUNNING MODE Sequence n°1 : Sequence n°3: A reading and writing process are performed on sequence n°1 + serial communication on COM0 - SAM1 - SAM2 Serial communication (RS232, COM0) consists to - SAM3 performed a self communication (RX and TX are bypassed) - CAM0 - Cless Sequence n°2 : Sequence n°1 + a continuous ping process to EUT IP address from Laptop (TOSHIBA) (Ethernet link) is performed. Configuration Running mode 1 2 3 4 Sequence n°1 x Sequence n°2 x x Sequence n°3 x FCC ID: XKB-iPP3x0-01Txxx 1.5. EQUIPMENT MODIFICATIONS A ferrite (ref: wurth 742 711 12) on EUT cable has been necessary during testing for configuration 1 & 2. Configuration 1 Configuration 2 1.6. EUT EXERCISE SOFTWARE Pack OS 3777 0900 + driver Cless 8200490207 Appli test CEM: TESTCAM0107 FCC ID: XKB-iPP3x0-01Txxx 1.7. EUT CONFIGURATION Configuration 1 : Communication access : - Ethernet Power supply : - Power supply adapter Type FRIWO 153051 (8Vdc <-> IPP3x) Option Cable: - Ref: IPP3xx-A-XXX-X Configuration 2 : Communication access : - Ethernet Power supply : - Power over Ethernet (POE) provided by a POE injector type PHIHONG POE30U-560 Option Cable: - Ref: IPP3xx-P-XXX-X FCC ID: XKB-iPP3x0-01Txxx Configuration 3 : Communication access : - USB Power supply : - Power provided by a Laptop (USB, 5Vdc <-> IPP3x) Option Cable: - Ref: IPP3xx-X-XXX-X Configuration 4 : Communication access : - RS232 Power supply : - Power supply adapter Type PSC16E-080 (8Vdc <-> IPP3x) Option Cable: - Ref: IPP3xx-XX-XXX-X FCC ID: XKB-iPP3x0-01Txxx 1.8. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2009, FCC Part 15 Subpart B and C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.9. Test facility Tests have been performed from April 26 th to 28 th , 2010 This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

Rapport d’essai / Test report JDE : 97607 N° 201001-5960C-R1-E DELIVRE A / ISSUED TO : INGENICO Rue Claude Chappe B.P. 344 07503 GUILHERAND GRANGES Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes : Electromagnetic compatibility tests according to the standards: FCC CFR 47 Part 15, Subpart B. ANSI C63.4 (2003) Matériel testé / Apparatus under test : • Produit / Product : Lecteur de carte bancaire / Bank payment terminal • Marque / Trade mark : INGENICO • Constructeur / Manufacturer : INGENICO • Type / Model : iPP3x0-01Txxxxx • Type sous test / Model under test iPP350-01T1108A iPP320-01T1185A • N° de série / serial number : 09350PP40063651 09350PP40063626 • Configuration / Configuration Ethernet , Ethernet POE, RS232, USB • FCC ID : : XKB-iPP3x0-01Txxx Date des essais / Test date : Du 14 au 27 Janvier / January 14 th to 27 th , 2010 Lieu d’essai / Test location : BUREAU VERITAS LCIE SUD-EST ZI Centr’Alp – 170 rue de Chatagnon 38430 MOIRANS - France Test réalisé par / Test performed by : Jonathan PAUC document comporte / Composition of document: 57 pages MOIRANS, LE 7 JUIN 2010 / JUNE 7TH, 2010 Ecrit par / Written by Approuvé par / Approved by, Jonathan PAUC Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Sauf indication contraire, la décision de conformité prend en compte l’incertitude de mesures. Il ne préjuge en aucun cas d’une décision de certification. This document shall not be reproduced, except in full, without t he written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified, the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 201001-5960C-R1-E Page : 2 / 57 SUMMARY 1. TEST PROGRAM ...................................................................................................................................... 3 2. APPARATUS UNDER TEST: CONFIGURATION ...................................................................................... 4 3. MEASUREMENT OF CONDUCTED EMISSION (150KHZ-30MHZ) .......................................................... 8 4. MEASUREMENT OF RADIATED EMISSION (30MHZ-2GHZ)................................................................. 11 5. TEST EQUIPMENT LIST ......................................................................................................................... 19 6. UNCERTAINTIES CHART ....................................................................................................................... 21 7. ANNEX 1 (GRAPHS) ............................................................................................................................... 22 RAPPORT D'ESSAI / TEST REPORT N° 201001-5960C-R1-E Page : 3 / 57 1. TEST PROGRAM Standard: - FCC Part 15, Subpart B (Digital Devices) - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Frequency Quasi-peak value (dBμV) Average value (dBμV) 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 Limits for conducted disturbance at mains ports 150kHz-30MHz 5-30MHz 60 50 PASS Radiated emissions 30MHz-12.5GHz Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS RAPPORT D'ESSAI / TEST REPORT N° 201001-5960C-R1-E Page : 4 / 57 2. APPARATUS UNDER TEST: CONFIGURATION 2.1. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES): E.U.T. : iPP350-01T1108A Serial number: 09350PP40063651 Model with all options without Contactless E.U.T. : iPP320-01T1185A Serial number: 09350PP40063626 Model with all options without Contactless Option With color screen display Option with black and white screen display With Power supply FRIWO 153051 120V / 50-60Hz <-> 8Vdc (Configuration n°1) With Power supply PHIHONG PSC16E-080 100-240V / 50Hz <-> 8Vdc (Configuration n°4) - Soft: Appli CEM: TESTCAM0102 OS BL3: 8300640201 Thunder II 820036 0742 • Inputs/outputs : - 1 x Power supply / Data port (Type HDMI, “1”) • Cables: - 1 x Ethernet cable (2m) (AC/DC adapter input), shielded, “Configuration 1” Ref: IPP3xx-A-XXX-X - 1 x Ethernet cable (2m) (POE), shielded “Configuration 2” Ref: IPP3xx-P-XXX-X - 1 x USB cable (2m), shielded “Configuration 3” Ref: IPP3xx-X-XXX-X - 1 x RS232 cable (2m), shielded “Configuration 4” Ref: IPP3xx-XX-XXX-X - 1 x Ethernet cable (2m), FTP Cat 5e, Type CM shielded “Configuration 2” (1) RAPPORT D'ESSAI / TEST REPORT N° 201001-5960C-R1-E Page : 5 / 57 • Auxiliaries equipment used during test: Trade Mark – Model Number (Serial number) FCC ID Description Cable description Laptop TOSHIBA SATELLITE PS141E-04YCM None Laptop Power cable unshielded Power supply TOSHIBA PA3201U-1ACA SEB 100 P2-15.0 None Adaptor AC/DC Power cable unshielded POE Injector POE30U-560 (56Vdc 0.55A) PHIHONG None POE Injector Power cable unshielded 2.2. RUNNING MODE Sequence n°1: Sequence n°3: A reading and writing process are performed on sequence n°1 + serial communication on COM0 - SAM1 - SAM2 Serial communication (RS232, COM0) consists to - SAM3 performed a self communication (RX and TX are bypassed) - CAM0 Sequence n°2 : Sequence n°1 + a continuous ping process to EUT IP address from Laptop (TOSHIBA) (Ethernet link) is performed. Configuration Running mode 1 2 3 4 Sequence n°1 x Sequence n°2 x x Sequence n°3 x RAPPORT D'ESSAI / TEST REPORT N° 201001-5960C-R1-E Page : 6 / 57 2.3. CONFIGURATION Configuration n° 1 : Communication access : - Ethernet Power supply : - Power supply adapter Type …

Text truncated - open the document above for the full version.

Rapport d’essai / Test report N° 201003-6156CR-R2-E JDE : 99698 DELIVRE A / ISSUED TO : INGENICO Rue Claude Chappe B.P. 344 07503 GUILHERAND GRANGES Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes FCC CFR 47 Part 15, Subpart B et C. Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart B and C Matériel testé / Apparatus under test : • Produit / Product : Lecteur de carte bancaire / Bank payment terminal • Marque / Trade mark : INGENICO • Constructeur / Manufacturer : INGENICO • Type / Model iPP3x0-01Txxxxx • Type sous test / Model under test : iPP350-01T1108A iPP320-01T1185A • N° de série / serial number : 09350PP40063651 09350PP40063626 • FCC ID : XKB-iPP3x0-01Txxx Date des essais / Test date : Du 26 au 28 Avril 2010 / From April 26 th to 28 th , 2010 Lieu d’essai / Test location : BUREAU VERITAS LCIE SUD-EST ZI Centr’Alp – 170 rue de Chatagnon 38430 MOIRANS - France Test réalisé par / Test performed by : Anthony MERLIN Ce document comporte /Composition of document : 72 pages. M OIRANS, LE 7 JUIN 2010 / JUNE 7TH, 2010 Ecrit par / Written by, Approuvé par / Approved by, Anthony MERLIN Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Sauf indication contraire, la décision de conformité prend en compte l’incertitude de mesures. Il ne préjuge en aucun cas d’une décision de certification . This document shall not be reproduced, except in full, without t he written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 201003-6156CR-R2-E Page : 2 / 72 SUMMARY 1. TEST PROGRAM ................................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ........................................................................................................ 4 3. RADIATED EMISSION DATA ................................................................................................................. 9 4. FUNDAMENTAL FREQUENCY TOLERANCE (15.225E) ..................................................................... 17 5. BAND-EDGE COMPLIANCE §15.209................................................................................................. 19 6. CONDUCTED EMISSION DATA .......................................................................................................... 20 TEST EQUIPMENT LIST (MOIRANS SITE) ................................................................................................. 26 7. UNCERTAINTIES CHART .................................................................................................................... 28 8. ANNEX 1 (GRAPHS) ............................................................................................................................ 29 RAPPORT D'ESSAI / TEST REPORT N° 201003-6156CR-R2-E Page : 3 / 72 1. TEST PROGRAM Standard: - FCC Part 15, Subpart B (Digital Devices) - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Frequency Quasi-peak value (dBμV) Average value (dBμV) 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 Limits for conducted disturbance at mains ports 150kHz-30MHz 5-30MHz 60 50 PASS Radiated emissions 30MHz-12.5GHz Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Standard: - FCC Part 15, Subpart C - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Frequency Quasi-peak value (dBμV) Average value (dBμV) 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 Limits for conducted disturbance at mains ports 150kHz-30MHz 5-30MHz 60 50 PASS Radiated emissions 9kHz-30MHz Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m PASS Radiated emissions 30MHz-12.5GHz* Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Fundamental frequency tolerance Operation within the band 13.110-14.010 MHz §15.225 PASS Bandedge compliance Operation within the band 13.110-14.010 MHz §15.225 PASS *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. RAPPORT D'ESSAI / TEST REPORT N° 201003-6156CR-R2-E Page : 4 / 72 2. SYSTEM TEST CONFIGURATION 2.1. JUSTIFICATION The system was configured for testing in a typical fashion (as a customer would normally use it). 2.2. HARDWARE IDENTIFICATION • Equipment under test (EUT): E.U.T. : iPP350-01T1108A Serial number: 09350PP40063651 Model with all options E.U.T. : iPP320-01T1…

Text truncated - open the document above for the full version.

FCC ID: XKB-iPP3x0-01Txxx Page 1/11 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Conducted emission – Without Contact less option Configuration n°1 : FRIWO Mains « 110V/60Hz » Configuration n°2 (POE) : Injector POE « 110V/60Hz » FCC ID: XKB-iPP3x0-01Txxx Page 2/11 Configuration n°4 : PHIHONG Mains « 110V/60Hz » Configuration n°2 (POE): Laptop Toshiba power supply « 110V/60Hz » Configuration n°3 (USB) : Laptop Toshiba power supply « 110V/60Hz » FCC ID: XKB-iPP3x0-01Txxx Page 3/11 1.2 Conducted emission – With Contact less option Configuration n°1 FCC ID: XKB-iPP3x0-01Txxx Page 4/11 Configuration n°2 FCC ID: XKB-iPP3x0-01Txxx Page 5/11 Configuration n°3 FCC ID: XKB-iPP3x0-01Txxx Page 6/11 Configuration n°4 FCC ID: XKB-iPP3x0-01Txxx Page 7/11 1.3 Radiated emissions – Without Contact less Option Configuration n°1 Configuration n°2 FCC ID: XKB-iPP3x0-01Txxx Page 8/11 Configuration n°3 Configuration n°4 FCC ID: XKB-iPP3x0-01Txxx Page 9/11 1.4 Radiated emissions – With Contact less Option Configuration n°1 Configuration n°2 FCC ID: XKB-iPP3x0-01Txxx Page 10/11 Configuration n°3 FCC ID: XKB-iPP3x0-01Txxx Page 11/11 Configuration n°4
