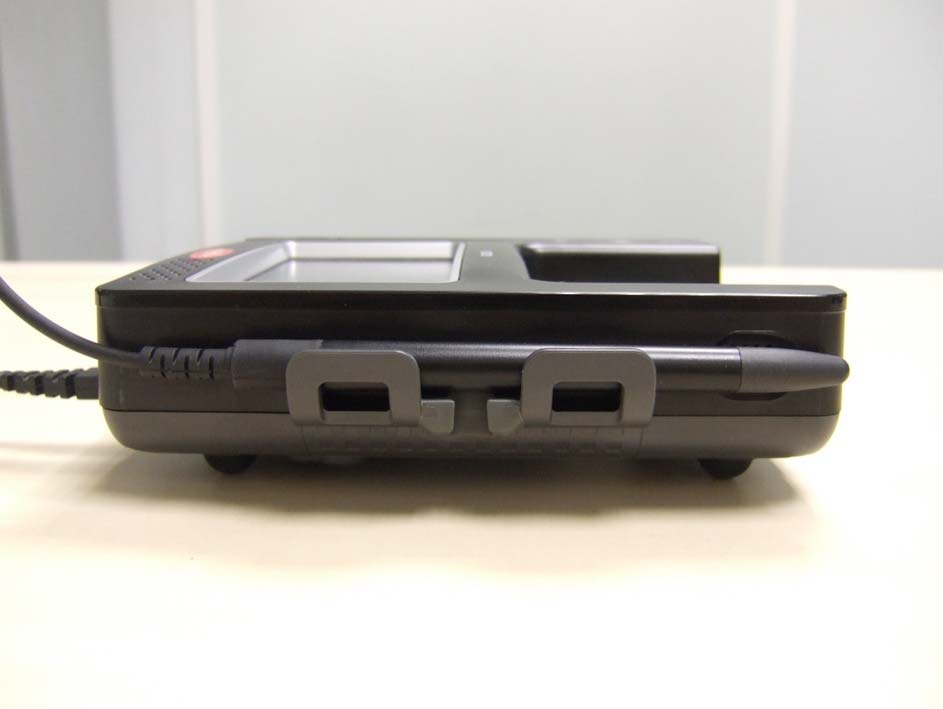

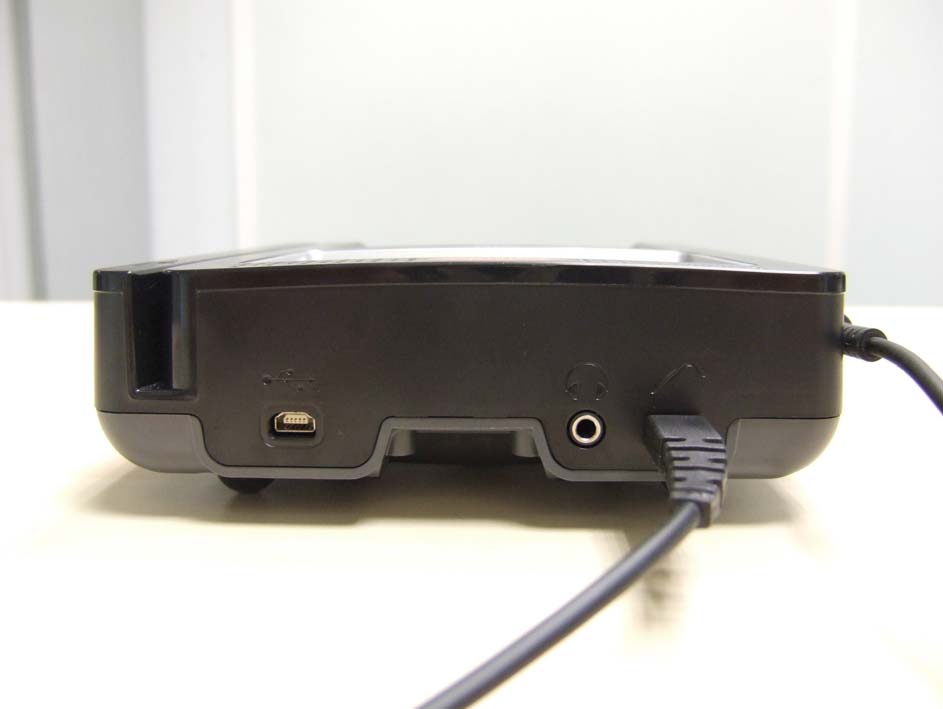

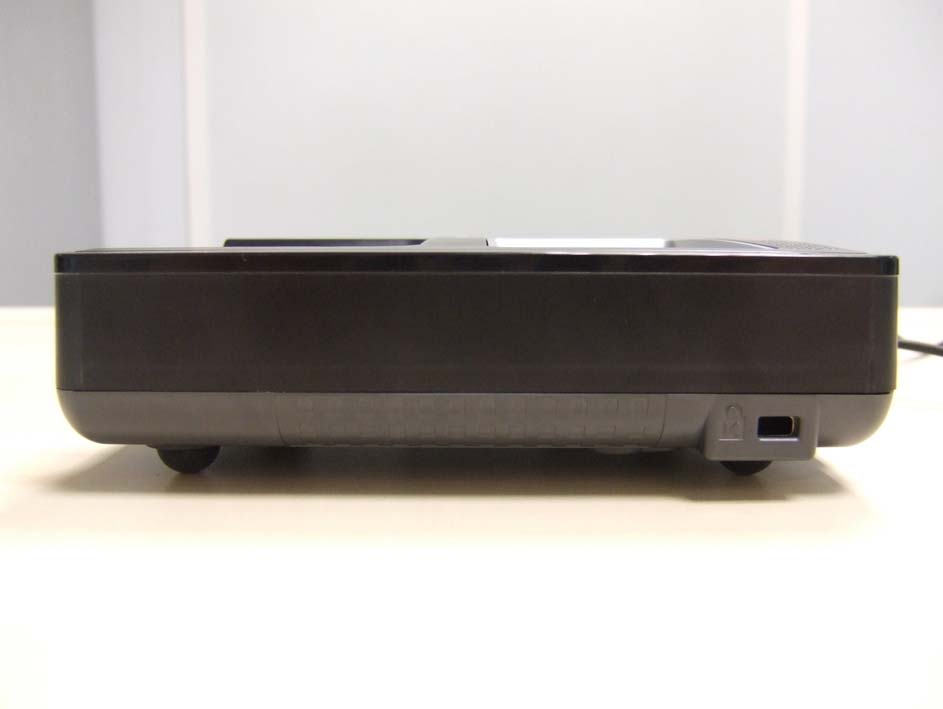

XKB-ISC250CLPAIEMENT TERMINAL WITH RFID

Ingenico – 190 ‐ 192 Avenue Charles de Gaulle 92200 Neuilly sur Seine Tél. 33(0)1 46 25 82 00 ‐ Fax 33 (0)1 47 72 56 95 Ingenico – 190 ‐ 192 Avenue Charles de Gaulle 92200 Neuilly sur Seine Tél. 33(0)1 46 25 82 00 ‐ Fax 33 (0)1 47 72 56 95 900003392 R11 000 01 Isc250 Security of your terminal Your device fulfils current applicable PCI PED security requirements. Upon receipt of your terminal you should check for signs of tampering of the equipment. It is strongly advised that these checks are performed regularly after receipt. You should check, for example: that the keypad is firmly in place; that there is no evidence of unusual wires that have been connected to any ports on your terminal or associated equipment, the chip card reader or any other part of your terminal. Such checks would provide warning of any unauthorised modifications to your terminal, and other suspicious behaviour of individuals that have access to your terminal. Your terminal detects any “tampered state”. In this state the terminal will repeatedly flash the message” Alert Irruption!” and further use of the terminal will not be possible. If you observe the “Alert Irruption!” message, you should contact the terminal helpdesk immediately. You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy. CAUTION Positioning of the ISC250 on check stand must be in such a way to make cardholder PIN (Personal Identification Number) spying infeasible. NEVER ask the customer to divulge their PIN Code. Customers should be advised to ensure that they are not being overlooked when entering their PIN Code. WARNING TO USERS IN THE UNITED STATES Federal Communication Commission Interference Statement 47 CFR Section 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. NO UNAUTHORIZED MODIFICATIONS * 296106 CAUTION: This equipment may not be modified, altered, or changed in any way without signed written permission from Ingenico. Unauthorized modification may void the equipment authorization from the FCC and will void the Ingenico warranty. ANTENNA REQUIREMENT 47 CFR Section 15.203 This device ISC250 complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING TO USERS IN THE CANADA: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. SAFETY CAUTION: risk of explosion if the battery is replaced by an incorrect type. Dispose of used battery according to the instructions Connection of headset on audio output side jack ; An excessive acoustic pressure of headset can involve deafness! Only use the power supply AC/DC provided with iSC250 (8VDC, 2A or 8VDC, 3,6A) or the power provided by a cash register (16 Watt min, 8V min) limited power source (LPS). Remove the DC power jack connector to power off the terminal. Installation Guide Power & Cable connections St y lus Pen Connection Carefully inspect the shipping carton and its contents for shipping damage. If the device is damaged, file a claim immediately with the shipping company and notify Ingenico. You should have : Save the carton and packing material for repackaging or moving the device in the future. Connect the cable to the HOST port before connecting the device to power. 1 2 3 iSC250 device Stylus This guide The box may also include the following items depending on your configuration working: • Cable (specific to your connectivity requirements) • Power supply unit E q ui p ment check list Turn the terminal. There is one port on the back for power and communication. Connect the cable on the terminal. Connect the other end to the power supply unit. Connect the power supply unit to the mains by the wall receptacle. Two ports at the rear side: ‐ audio out ‐ USB host Swiping a Magnetic Stripe Card Take care to ensure that the card is inserted in the correct manner (direction is marked on terminal). Slide the card from the rear to the front in a continuous motion for best results. The ISC250 device’s magnetic stripe reader reads debit, credit, and all standard magnetic stripe cards. Smart Card Reader (SCR) Bring the card firmly up to the active zone above the display (at about 1cm). Keep the card close to the display during the transaction. Signature Handling The iSC250 can capture an electronic image of a customer's signature for transactions that require a signature and transmit to a host system . T…

Text truncated - open the document above for the full version.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 51 0,5 - 0 26,5 0,5 - 0 MODEL / MODELE: iSC250 FCC ID:XKB-ISC250CL IC: 4001517

RC-032-PTE-10-106054-1-A (01) Page 2 sur 30 NAME OF THE EQUIPMENT UNDER TEST (E.U.T.) : Payment terminal RP01 Serial number : 102855C40000868 FCC ID number : XKB-ISC250CL Part number : - Software Version : - MANUFACTURER'S NAME : INGENICO APPLICANT’S ADDRESS: Company : INGENICO Address : 11, rue Curie 92150 SURESNES FRANCE Person present during the tests : Mr LUC Responsible : Mr LUC DATES OF TESTS : 13 and 14/12/2010 TESTS LOCATIONS : EMITECH Laboratory at Montigny-le- Bretonneux (78) et Open area test site at Aunainville (28) - FRANCE TESTS SUPERVISOR : - TESTS OPERATOR : B. PELLERIN RC-032-PTE-10-106054-1-A (01) Page 3 sur 30 CONTENTS 1. INTRODUCTION__________________________________________________________________ 4 2. REFERENCE DOCUMENT _________________________________________________________ 4 3. EQUIPMENT UNDER TEST CONFIGURATION _________________________________________ 4 4. SUMMARY OF TESTS RESULTS ____________________________________________________ 5 5. INTENTIONAL RADIATED EMISSIONS IN THE BAND 13.553 MHZ - 13.567 MHZ _____________ 6 6. UNINTENTIONAL RADIATED EMISSIONS IN THE BAND 9 KHZ - 30 MHZ __________________ 8 7. UNINTENTIONAL RADIATED EMISSIONS IN THE BAND 30 MHZ - 2 GHZ _________________ 10 8. CONDUCTED EMISSION _________________________________________________________ 13 9. FREQUENCY DRIFT _____________________________________________________________ 15 ANNEX 1: PHOTOGRAPHIES ANNEX 2: ANTENNA FACTORS, INSERTION LOSSES AND AMPLIFIER VALUES ANNEX 3: CALIBRATION DATES RC-032-PTE-10-106054-1-A (01) Page 4 sur 30 1. INTRODUCTION This document submits the results of Electromagnetic Compatibility tests performed on the equipment «Payment terminal RP01» (denominated hereafter E.U.T.: equipment under test) according to document listed below. 2. REFERENCE DOCUMENT FCC part 15 : 2009 Code of federal regulations Title 47- Telecommunication Chapter 1- Federal Communication Commission Part 15- Radio frequency devices Subpart B- Unintentional Radiators Limits and methods of measurement of radio disturbance Characteristic of information technology equipment. 3. EQUIPMENT UNDER TEST CONFIGURATION Equipment under test (E.U.T.) description: Payment terminal with RFID function. Cycle and operating mode during emission tests : In EMC test software configuration with continuous emission at 13.56 MHz. Equipment modifications applied during tests : No RC-032-PTE-10-106054-1-A (01) Page 5 sur 30 4. SUMMARY OF TESTS RESULTS Tests designation Results satisfying? Comments Intentional radiated emissions in the band 13.553 - 13.567 MHz YES Section 15.225 (a) Unintentional radiated emissions in the band 9 kHz - 30 MHz YES Sections 15.209 and 15.225 (b), (c) and (d) Unintentional radiated emissions in the band 30 MHz - 2 GHz YES Section 15.209 Conducted emission YES Section 15.207 Frequency drift YES Section 15.225 (e) N.P.: Not Performed. N.A.: Not Applicable. Sample subject to the test complies with prescriptions of the standard: ¾ FCC part 15 : 2009 According to limits, specified in this tests report. To declare or not compliance with the specification, it has not been given explicit account of the uncertainty associated with result(s). RC-032-PTE-10-106054-1-A (01) Page 6 sur 30 5. INTENTIONAL RADIATED EMISSIONS IN THE BAND 13.553 MHz – 13.567 MHz Standard: FCC PART 15 Edition 2009 Section : 15.225 (a) Equipment under test arrangement Category of equipment: Table-top equipment The equipment under test (EUT) is placed on a non-conductive test table at 0.8 m above the horizontal reference ground plane. Antenna height is 1 m above the ground plane. For each frequency corresponding to an emission, EUT carried out a rotation through 360° with the aid of the turntable, with the aim to find the maximum of signal. The test antenna is oriented in all orientations. Only the highest level is recorded. Test configuration photographies: Frequency range : 13.553 MHz - 13.567 MHz Detection mode : Quasi-peak. Resolution bandwidth: 9 kHz RC-032-PTE-10-106054-1-A (01) Page 7 sur 30 Measurement distance : 3 meters. Limit : Frequency field strength Frequency range (MHz) μV/m dBμV/m Frequency measurement distance (meters) 13.593 – 13.567 15848 84 30 Limit in dBμV/m can be extrapolated at other measurement distance using 40 dB / decade. Operating mode during the test : EUT is in permanent transmission. Instrumentation test list: CATEGORY BRAND TYPE N R EMITECH AC Power supply SECAS CF1000 50/60 2102 Autocontrôle EMITECH Autocontrôle champ mg 5363 Cable - N-2m 4359 Cable - N-8m 8019 Loop antenna Rohde et Schwarz HFH2-Z2 315 Open site Emitech Aunainville 187 Power supply Emitech HZ-9 3198 RSIL Fischer CCI 253 RSIL Fischer CCI 710 Results: FREQUENCY (MHz) ANTENNA ORIENTATION AZIMUTH (degrees) MEASUREMENT (dBμV/m) LIMIT (dBμV/m) (1) MARGIN (dB) 13.5611 Perpendicular 180 55.7 124 68.3 (1) Limit extrapolated at 3 meters measurement distance. Observation during the test : The equipment complies with the requirements of the standard FCC PART 15.225 Edition 2009. RC-032-PTE-10-106054-1-A (01) Page 8 sur 30 6. UNINTENTIONAL RADIATED EMISSIONS IN THE BAND 9 KHz – 30 MHz Standard: FCC PART 15: 2009 Section: 15.209 / 15.225 Equipment under test arrangement Category of equipment: Table-top equipment The equipment under test (EUT) is placed on a non-conductive test table at 0.8 m above the horizontal reference ground plane. Antenna height is 1 m. For each frequency corresponding to an emission, EUT carried out a rotation through 360° with the aid of the turntable, with the aim to find the maximum of signal. The test antenna is oriented in all orientations. Only the highest level is recorded. Test configuration photographies : Frequency range: 9 kHz - 30 MHz. Detection mode : Quasi-peak except frequency bands 9-90 kHz and 110-490 kHz (average). Resolution bandwidth : 200 Hz from 9 kHz to 150 kHz. 9 kHz from 150 kHz to 30 MHz RC-032-PTE-10-106054-1-A (01) Page 9 sur 30 Measurement distance: 3 meters. Limit: Frequency range (MHz) Fr…
