XKB-ISC480CLPayment Terminal

Ingenico – 28-32 Boulevard de Grenelle 75015 Paris Tél. + 33 (0)1 58 01 80 00- Fax +33 (0)1 58 01 91 35 Ingenico – 28-32 Boulevard de Grenelle 75015 Paris Tél. + 33 (0)1 58 01 80 00- Fax +33 (0)1 58 01 91 35 90000xxxx R11 000 01 Isc480 Security of your terminal Your device fulfils current applicable PCI PTS security requirements. Upon receipt of your terminal you should check for signs of tampering of the equipment. It is strongly advised that these checks are performed regularly after receipt. You should check, for example: that the keypad is firmly in place; that there is no evidence of unusual wires that have been connected to any ports on your terminal or associated equipment, the chip card reader or any other part of your terminal. Such checks would provide warning of any unauthorised modifications to your terminal, and other suspicious behaviour of individuals that have access to your terminal. Your terminal detects any “tampered state”. In this state the terminal will repeatedly flash the message” Alert Irruption!” and further use of the terminal will not be possible. If you observe the “Alert Irruption!” message, you should contact the terminal helpdesk immediately. You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy. The terminal must never be put in or left at a location where it could be stolen or replaced by another device. CAUTION Positioning of the ISC480 on check stand must be in such a way to make cardholder PIN (Personal Identification Number) spying infeasible. Alternatively, the optional privacy shield should be installed as described in the dedicated section. NEVER ask the customer to divulge their PIN Code. Customers should be advised to ensure that they are not being overlooked when entering their PIN Code. WARNING TO USERS IN THE UNITED STATES Federal Communication Commission Interference Statement 47 CFR Section 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. NO UNAUTHORIZED MODIFICATIONS 47 CFR Section 15.21 *296106 439* - Consult the dealer or an experienced radio/TV technician for help. CAUTION: This equipment may not be modified, altered, or changed in any way without signed written permission from Ingenico. Unauthorized modification may void the equipment authorization from the FCC and will void the Ingenico warranty. ANTENNA REQUIREMENT 47 CFR Section 15.203 This device ISC480 complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING TO USERS IN THE CANADA: This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication SAFETY CAUTION: risk of explosion if the battery is replaced by an incorrect type. Dispose of used battery according to the instructions Connection of headset on audio output jack: An excessive acoustic pressure of headset can involve deafness! Only use the power supply AC/DC provided with iSC480 (8VDC, 3A) or the power provided by a cash register (16 Watt min, 8V min) limited power source (LPS). Remove the power jack to power off the terminal. Authorized power supply units : DELTA ELECTRONICS PUBLIC Co. Ltd TADP-24AB C PHIHONG (Trademark: Ingenico and PHIHONG) PSM24W-080 I n s t a l l a t i o n G u i d e DC Ingenico – 28-32 Boulevard de Grenelle 75015 Paris Tél. + 33 (0)1 58 01 80 00- Fax +33 (0)1 58 01 91 35 Ingenico – 28-32 Boulevard de Grenelle 75015 Paris Tél. + 33 (0)1 58 01 80 00- Fax +33 (0)1 58 01 91 35 90000xxxx R11 000 01 Power & Cable connections Stylus Pen Connection Carefully inspect the shipping carton and its contents for shipping damage. If the device is damaged, file a claim immediately with the shipping company and notify Ingenico. You should have : Save the carton and packing material for repackaging or moving the device in the future. Connect the cable to the HOST port before connecting the device to power. 1 2 3 iSC480 device Stylus This guide Terminal Location The ISC480 device may be mounted on a flat surface, wall, or customer stand (recommended). Installing the privacy shield (option) Do not place the ISC480 device on a PC monitor, adjacent to an electronically active security tag deactivation system, or near other sources of magnetic fiel…

Text truncated - open the document above for the full version.

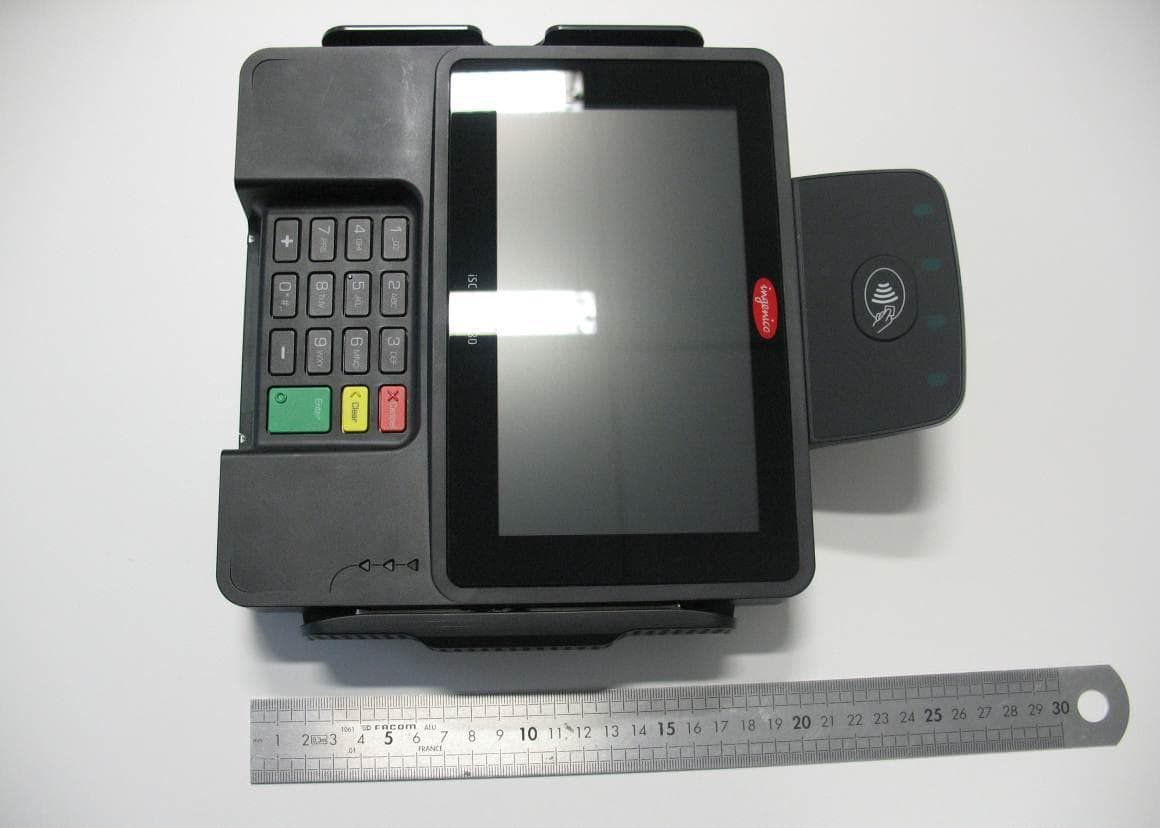

INGENICO ISC480 external photos FCC ID : XKB-ISC480CL IC : 2586D-ISC480CL

VERS(PART NUMERO6DU6DOCUMENT 6 DRAWING NUMBER FORMAT SIZE FEUILLE6)6SHEET ETABLI DRAWN VERIFIE ECHELLE SCALE NOM6)6NAME NOM6)6NAME DATEDATE LIBELLE DENOMINATION DOCUMENT6(6REPRODUCTION6ET6DIVULGATION6INTERDITESALL6RIGHTS6RESERVED6REPRODUCTION6AND6DISCLOSURE6PROHIBITED o)o CHECKED pdddobbsnddd dx TYPE RWé u Olivier6BLANC bpéohédébJJ bn)do)bdo:bn)do)bdo: J(BALASSE Etiquette6FCC6iSCWnd6*MAR3 6FCC6LABEL6iSCWnd6*MAR3 Adobe6)6ILLUSTRATOR666666DRAFT ColormWhite6RALpdod Adhésive6one6sidem6permanent6ULpép6certified Materialm6Vynil6or6Polyesterq6thickness6hd6to6odd6m6ULpép6certified omo Cli6o Pantone6Black6c pdddobbsp6RWé6ddd6do ICm6bhnéDuISCWndCL Scale6omo ICm6 ICm DRAFT

INGENICO ISC480 internal photos FCC ID : XKB-ISC480CL IC : 2586D-ISC480CL

TEST REPORT N° 118072-636270A Page 2 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL TABLE OF CONTENTS 1 – GENERAL 1.1 – Summary of test results Page 3 1.2 – References Page 3 1.3 – Equipment under test specification Page 5 2 – TEST RESULTS 2.1 – Power line conducted emission test Page 8 2.2 – Field strength within the 13.110-14.010MHz band Page 13 2.3 – Field strength outside the 13.110-14.010MHz band Page 19 2.4 – Frequency tolerance over extreme voltage and temperature condition Page 30 TEST REPORT N° 118072-636270A Page 3 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL 1 – GENERAL 1.1 – Summary of test results Radiated emissions are made in anechoic chamber, located at Fontenay-Aux-Roses (92260, FRANCE). FCC REGISTRATION NUMBER: 166175 INDUSTRY CANADA NUMBER: 6230B A description of the test facility is on file with the FCC. 47 CFR Part 15 & RSS 210 Paragraph No. Name of test Remarks Result § 15.203 Antenna requirement Internal antenna Pass § 15.205 Restricted band operation Pass § 15.207 (a) & RSS GEN §7.2.2 Power line conducted limits Pass § 15.209 (a) (b) (c) (d) & table 3 RSS 210 Radiated measurement of spurious emissions Pass §15.225 (a) (b) (c) & RSS 210 Field strength within the band 13.110-14.010 MHz Pass §15.225 (d) & A2.6 of RSS 210 Field strength outside of the bands 13.110-14.010 MHz Pass §15.225 (e) & A.2 of RSS 210 Frequency stability over extreme temperature and voltage conditions Pass NA : Not Applicable Remark: 1.2 – References Measurements were performed in accordance with the following standards: 47 CFR Part 15 of October, 2012: Code of federal regulations – Telecommunication –Radiofrequency devices RSS-Gen of December 2010: General Requirements and Information for the Certification of Radiocommunication Equipment RSS-102 of Mars 2010: Radio Frequency Exposure Compliance of Radiocommunication Apparatus RSS-210 of December 2010: Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment ANSI C63.4 of December 11, 2003: American national standard for methods of measurement of radio noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz. CISPR 16-4-2 of November, 2003: International electrotechnical commission - Specification for radio disturbance and immunity measuring apparatus and methods – Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements. TEST REPORT N° 118072-636270A Page 4 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL 1.3 – test methodology Radio performance tests procedures given in part 15: Paragraph 33: frequency range of radiated measurements Paragraph 35: measurement detector functions and bandwidths Paragraph 203: antenna requirement Paragraph 205: restricted bands of operation Paragraph 207: conducted limits Paragraph 209: radiated emission limits; general requirements Paragraph 225: radiated emission limits; general requirements TEST REPORT N° 118072-636270A Page 5 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL 1.3 - Equipment under test specification 1.3.1 – General equipment information 1.3.2 – Description of modifications The equipment has not been modified during tests. 1.3.3 – Description of operation The equipment was configured in the following operation mode: - Maximum transmission power: Permanently emission at 13.56 MHz with the usual modulation. Applicant : INGENICO 9 Avenue de la Gare Rovaltain TGV BP 25156 26958 VALENCE FRANCE Manufacturer : INGENICO 28-32 Boulevard de Grenelle 75015 PARIS - France Dimensions : 229 x 250 x 71 mm Frequency band : 13.56 MHz Number of channel : 1 Channel spacing : - User frequency adjustment : No User power adjustment : No Type of antenna : Dedicated loop antenna permanently connected on the PCB Is the operation point to point? : No Power supply : 120V 60Hz Internal frequencies : Ethernet 25 MHz, Thunder3 quartz 12MHz, Video oscillator 24 MHz, Booster3 processor quartz 32.7 kHz + 18.4 MHz, Contactless microcontroller quartz 27.12 MHz, DAC + Ampli (12 MHz) External links : Port 1 : Mini USB Port 2 : Power supply DELTA or PHIHONG Note: power supply is an option for this equipment TEST REPORT N° 118072-636270A Page 6 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL 1.3.4 – Photographs of the sample General view of the ISC480 Power supply of the ISC480 (optional) Power supply DELTA (optional) marking plate Power supply PHIHONG (optional) marking plate TEST REPORT N° 118072-636270A Page 7 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL 1.3.5 – Auxiliary equipment None TEST REPORT N° 118072-636270A Page 8 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL 2– TEST RESULTS 2.1 Power line conducted emission test 2.1.1 - General The product has been tested with 120 V / 60 Hz power line voltage and compared to the FCC part 15 subpart C § 15.207 limits. The 6 dB resolution bandwidth was 9 kHz from 150 kHz to 30 MHz. 2.1.2 – Test setup The EUT is placed on a table at 0.8 m height. The cable of the power port has been shorted to 1 meter length. The EUT is powered through the LISN. 2.1.3 – Equipment list Description Manufacturer Model Identifier Cal. Date Cal. Due Spectrum analyser ROHDE & SHWARZ ESI40 A2642010 2012/09 2013/09 V ISLN ROHDE & SHWARZ ENV216 C2320162 2012/09 2013/10 TEST REPORT N° 118072-636270A Page 9 FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL 2.1.4 – Uncertainty The uncertainty values calculated by the laboratory are lower than limit uncertainty values defined by the CISPR 16-4-2. The conformity of the sample is directly established by the applicable limits values. Kind of measurement Wide uncertainty laboratory (k=2)  x CISPR uncertainty limit  y Measurement of conducted disturbances in voltage on the power port 3.51 dB 3.6 dB 2.1.5 – Test results ISC480 with power supply DELTA / RFID ON Conducted measurement on conductor 1 Frequency (MHz) Peak measurements (dBμV) Quasi-Peak measurements (dBμV) Quasi-Peak limits (dBμV) Average measurement (dBμV) Average limits (dBμV) 0.54 46 - 56.0 38.9 46.0 25 42 - 60.0 41 50 Conducted measurement on conductor 2 …

Text truncated - open the document above for the full version.

FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL TEST SET UP PHOTOS INGENICO ISC480 Conducted emission measurements FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL Radiated emissions measurements FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL Radiated emissions measurements FCC ID: XKB- ISC480CL IC: 2586D-ISC480CL Extrême condition tests
