XKB-IUC18X-RFPayment Terminal

Ingenico – 28-32 Boulevard de Grenelle - 75015 PARIS Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35 Contactless payment iUC150 & iUC180 I n t é g r a t i o n G u i d e Intégration Guide_iUC150&iUC180 2/70 Copyright © 2012 Ingenico 900009816 R11 000 01/1223 All rights reserved The scope of this document is to assist third party integrators when dealing with Ingenico UNattended products (iUN) such as iUC150 and iUC180, or others. It offers all information needed for a successful integration of iUC150 and iUC180 products into unattended kiosk machines. For any sales information please refer to your Ingenico contact into the region. Updates table Version Date Nature of modifications Author Visa 0.1 26/04/12 First Draft O.Fabregoule E.Dubois 2 31/05/2012 First diffusion A. Soubiranne O.Fabregoule Y. Moreno E.Dubois Intégration Guide_iUC150&iUC180 3/70 Copyright © 2012 Ingenico 900009816 R11 000 01/1223 All rights reserved Table of contents 1 GENERAL .............................................................................................................6 1.1 Definition of acronyms .....................................................................................6 1.2 iUC150 & iUC180 payment solution presentation ..........................................7 1.2.1 Diagram of iUC180 & iUC150 connectivity and communications..................8 1.2.2 Services ........................................................................................................9 1.3 Description of modules ..................................................................................10 1.3.1 iUC180........................................................................................................10 1.3.1.1 Technical Hardware characteristics ......................................................11 1.3.1.2 iUC180 output connectors description ..................................................12 1.3.1.3 SAM & μSD Installation ........................................................................19 1.3.1.4 Buzzer...................................................................................................20 1.3.1.5 RGB backlight .......................................................................................20 1.3.1.6 Contactless LEDs & Contactless Logo .................................................21 1.3.1.7 Maintenance Button and LED ...............................................................22 1.3.1.8 Keypad..................................................................................................23 1.3.1.9 Cable Protection ...................................................................................24 1.3.1.10 Antenna Installation.............................................................................25 1.3.1.11 Grounding connections .......................................................................26 1.3.1.12 Appearance personalisation................................................................27 1.3.2 iUC150........................................................................................................29 1.3.2.1 Technical Hardware characteristics ......................................................29 1.3.2.2 iUC150 output connectors description ..................................................31 1.3.2.3 SAM Installation ....................................................................................33 1.3.2.4 Buzzer...................................................................................................34 1.3.2.5 Contactless LEDs & Contactless Logo .................................................35 1.3.2.6 Cable Protection ...................................................................................36 1.3.2.7 Grounding connections .........................................................................37 1.3.2.8 Appearance personalisation .................................................................38 1.3.2.9 Contactless reader iUC150 and i9500 interconnectivity........................39 1.4 Professional installation Requirement .........................................................40 2 MAIN ACCESSORIES ........................................................................................40 2.1.1 Generality ...................................................................................................40 2.1.2 Optional USB cable ....................................................................................40 2.1.3 iUC150 Power supply .................................................................................41 2.1.4 Serial cable .................................................................................................41 2.1.5 Adapter cable..............................................................................................42 2.1.6 LLT cable ....................................................................................................42 2.1.7 Stand-by management cable ......................................................................43 3 IUC180/IUC150 SOFTWARE ..............................................................................44 3.1.1 Software Architecture .................................................................................45 Intégration Guide_iUC150&iUC180 4/70 Copyright © 2012 Ingenico 900009816 R11 000 01/1223 All rights reserved 3.1.2 Secure management of software ................................................................46 3.1.3 Operating system........................................................................................47 3.1.4 TELIUM MANAGER on iUC180 only ..........................................................48 3.1.5 Software downloading ................................................................................50 3.1.6 Development station (iUC180)....................................................................53 4 TERMINAL MANAGEMENT SYSTEM (IUC180) ................................................55 4.1 Int…

Text truncated - open the document above for the full version.

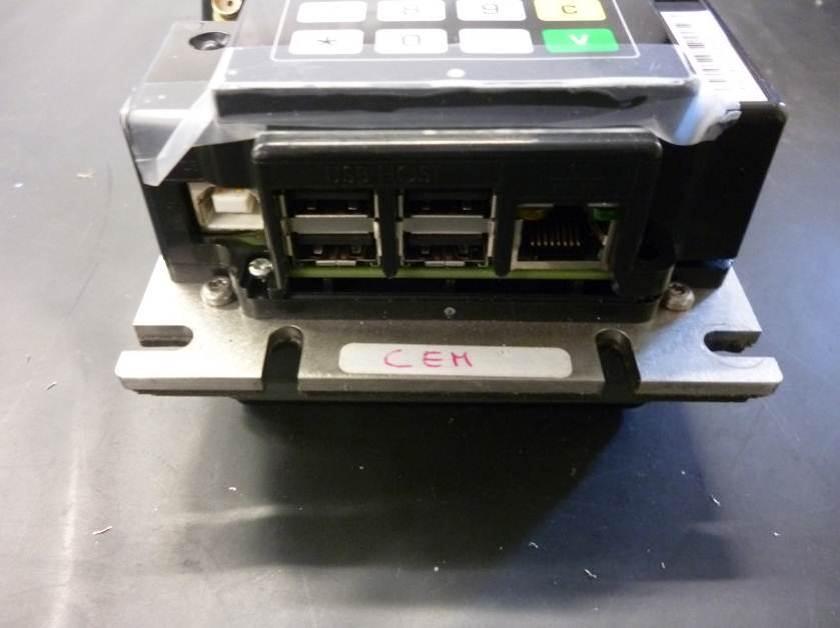

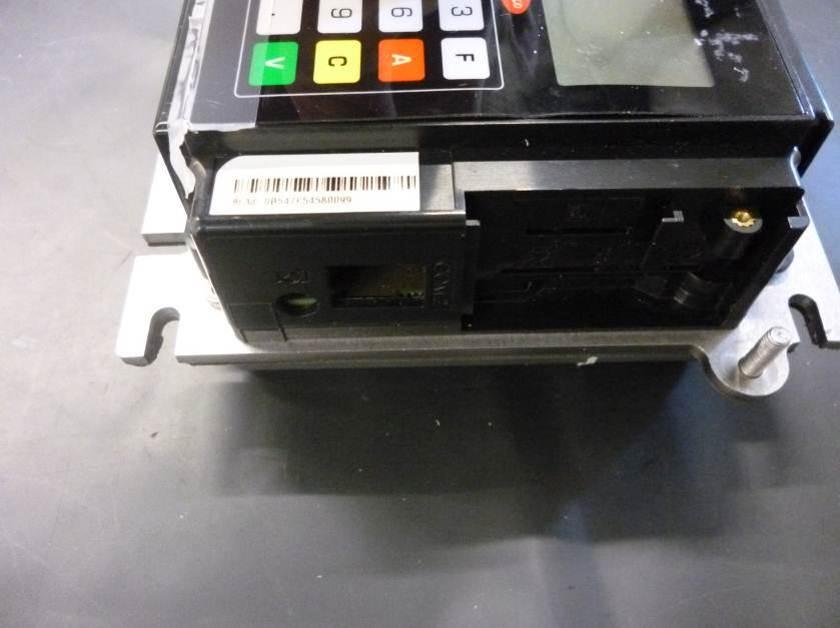

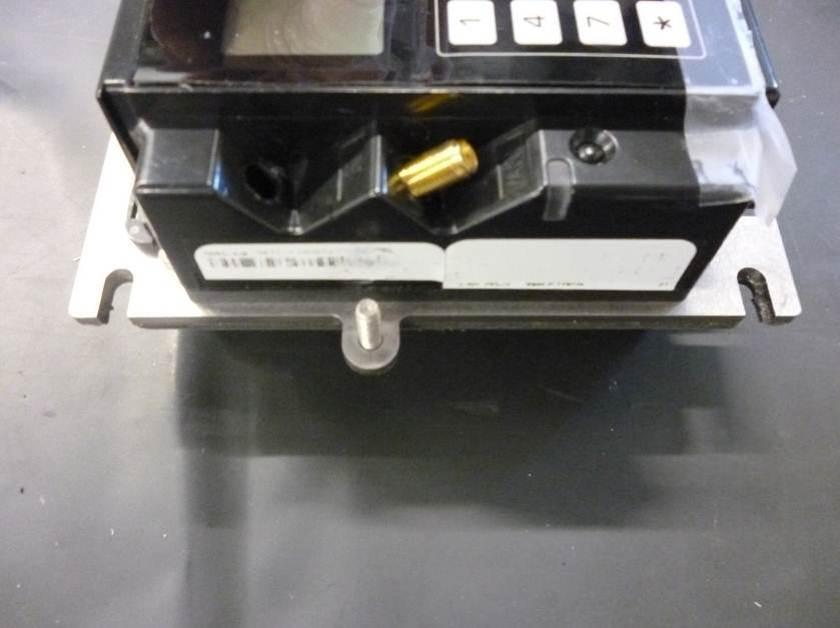

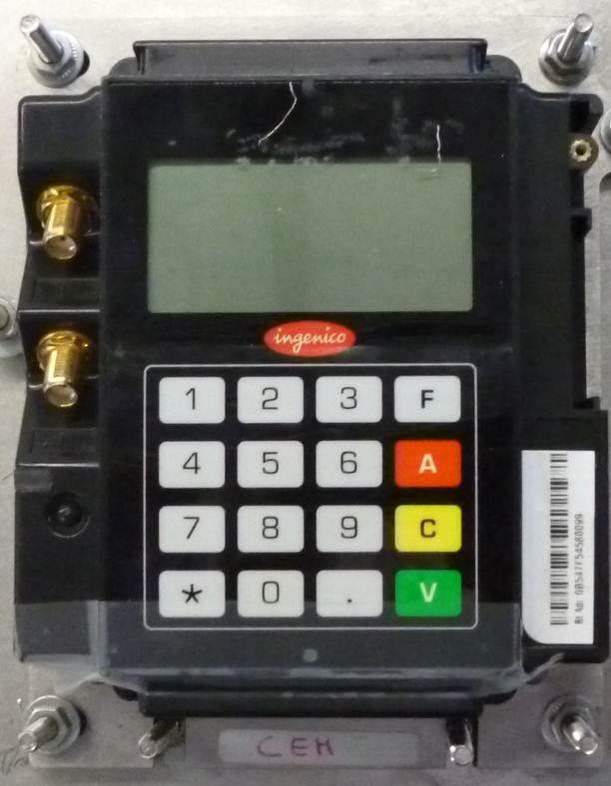

FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 1/7 EXTERNAL PHOTOS OF TESTED EUT FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 2/7 With or without option FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 3/7 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 4/7 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 5/7 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 6/7 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 7/7 Antenna Bluetooth tested:

FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 1/4 PRODUCT LABELING FCC ID / IC number label FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 2/4 FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 3/4 FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 4/4 Localization :

FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 1/11 INTERNAL PHOTOS OF TESTED EUT FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 2/11 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 3/11 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 4/11 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 5/11 RFID antenna FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 6/11 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 7/11 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 8/11 FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 9/11 OPTION PCB – COM2 + MDB+BLUETOOTH: Bluetooth connector FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 10/11 OPTION PCB – COM2 + MDB+BLUETOOTH+GPRS: FCC ID: XKB-IUC18X-RF IC : 2586D-IUC18XRF Page 11/11 BLUETOOTH PART Modular Approval GPRS

FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 1/6 OPERATIONAL DESCRIPTION 1.1. EUT description FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 2/6 FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 3/6 1.2. Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: - Internal max frequencies <500MHz (Declaration of provider) • Power supply: - DC voltage, 12-30VDC, tested at 12VDC (worst case) During all the tests, EUT is supplied by an AC/DC adaptor, not supplied with EUT so not tested, PHIHONG PSM36W-120TW, 100-240VAC / 1.5A / 50-60Hz, output 12VDC / 3A. • Input/output: - 1 x Power supply connector, 2 wires - 5 x USB - 1 x LAN - 2 x COM - 1 x Earth - 1 x Jack “Clock” - 1 x MDB master - 1 x MDB slave, same connector that power supply - 2 x SMA connector, GPRS and Bluetooth - 2 x SAM - 1 x SIM - 1 x MicroSD • Modular Approval contained: - 1 x GPRS module, SAGEMCOM, HILO V2 INGENICO, FCC ID: VW3HILOV2 • Auxiliaries used for testing: - 1 x Laptop TOSHIBA SATELLITE, PS141E-04YC, Sn: 13594938G - 2 x SAM - 1 x SIM - 1 x Contactless card FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 4/6 • I/O cables used for testing: - 1 x AC power cord, 2 wires, unshielded: 2m - 1 x DC power supply cable (fixed on mains power unit), unshielded: 1.75m - 1 x Ethernet cable Type: STP Cat 5e, shielded: 1m - 5 x USB cables, shielded: 1m - 2 x RS232 Com cables, RJ11, unshielded, 1.5m (COM 0 & COM 2) - 1 x MDB-slave ‘6 pins’ <-> MDB-master ‘8 pins’ cable, unshielded, 4 wires, length: 1m - 1 x Jack cable, unshielded, length: 0.2cm • Equipment information – 13.56MHz: - Type: Bluetooth Other: 13.56MHz RFID - Frequency band: [13.56] MHz - Number of channel: 1 - RF mode: TX/RX RX Standby - Antenna type: Internal - Antenna connector: Permanent external Permanent internal None Temporary (only for tests) - Normal power source: 12VDC (host) - Extreme temperature range: -30°C to +55°C - Extreme test source voltage: 12VDC ±10% other: • Equipment information: - Type: Bluetooth Other: - Frequency band: [2400.0 – 2483.5] MHz - Number of channel: 79 - Channel tested: Full test on 2402MHz / 2441MHZ / 2480MHz - Modulation Technology: FHSS DSSS - Modulation type: GFSK Pi/4 DQPSK 8DPSK Packet type: DH1 DH3 DH5 Transfert data rate: 1Mbps 2Mbps 3Mbps - RF mode: TX/RX RX Standby - Antenna type: SMA connector + Whip antenna (not supplied) - Antenna connector: Permanent external Permanent internal None Temporary (only for tests) - Normal power source: 12VDC (host) - Extreme temperature range: -30°C to +55°C - Extreme test source voltage: 12VDC ±10% other: FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 5/6 • EUT configuration For all tests: A generic program test is loaded on EUT, in order to perform in loop following functions: - Reading / writing SAM card (SAM1 & SAM2) - Reading / writing μSD card (MMC) - RX/TX on Serial port (COM0 & COM2) - RX/TX between MDB master and slave - Reading Contactless card With laptop: - Continuous Ethernet communication is performed from EUT to Laptop (Ping) For special Bluetooth tests: With a special mode of EUT a communication is performed with CMU, a permanent link with followings parameters is tested (worst case): - Lowest, middle, highest channel - Max power - EDR / DH5 - Hopping mode: ON or OFF following test • Equipment modifications A ferrite (integrated secondary power supply PHIHONG PSM36W-120TW) is set on two wires which provided 12Vdc (MDB slave connector side). A ferrite type WE 74271222(Two turns) is set on others MDB slave wires FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 6/6 1.4. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart B and C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed from April 2 nd to 12 th , 2012. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

FCCID : XKB-IUC18X-RF IC : 2586D-IUC18XRF RF Exposure Information When all the antennas are at least 20cm away from the user’s body (excluding hands and wrists during normal operation of the device), but individual antennas cannot be separated by more than 20cm from each other. If [ Pd(1) / LPd(1) ] + [ Pd(2) / LPd(2) ] + ..... + [ Pd(n) / LPd(n) ] < 1, Then, the device complies with FCC’s RF radiation exposure limit for general population as a mobile device (d>20cm). Where; Pd(n) = Power density of n th transmitter at 20cm LPd(n) = Power density limit for the n th transmitter § 1.1310 Radiofrequency radiation exposure limits. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2 4R PG S p = FCCID : XKB-IUC18X-RF IC : 2586D-IUC18XRF Calculations: For 2.4GHz transmitter: Maximum peak output power at the antenna terminal:3.80(dBm) Maximum peak output power at the antenna terminal:2.40(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1(numeric) Prediction distance:20(cm) Prediction frequency:2483.5(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency: 0.000477(mW/cm^2) For GPRS transmitter (FCC ID: VW3HILOV2): From its RF exposure exhibit on file with the FCC. GPRS850 is worst case Calculation: (Pd(2.4GHz) / LPd(2.4GHz)) + (Pd(GPRS) / LPd(GPRS))<1 ( 0.000477 / 1 ) + ( 0.29 / 0.55 ) = 0.5277 < 1 Conclusion: The device complies with FCC’s and RF radiation exposure limit for general population as a mobile device (d>20cm) under the collocation conditions described above.

Rapport d’essai / Test report N° 221171-A1-R1-E JDE : 113232 DELIVRE A / ISSUED TO : INGENICO 9 Avenue de la Gare Rovaltain TGV - Quartier de la gare 26958 VALENCE - FRANCE Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes FCC CFR 47 Part 15, Subpart B et C RSS-210 Issue 8 Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart B and C RSS-210 Issue 8 Matériel testé / Apparatus under test :  Produit / Product : Lecteur sans contact / Contactless reader  Marque / Trade mark : INGENICO  Constructeur / Manufacturer : INGENICO  Type / Model : IUC180-00T1999 / IUC180-00T1651  Type sous test / Model under test : IUC180-00T1651  N° de série / serial number : 11283IU00000246  FCC ID : XKB-IUC18X-RF  IC : 2586D-IUC18XRF Date des essais / Test date : Du 2 au 12 Avril 2012 / From April 2 nd to 12 th , 2012 Lieu d’essai / Test location : LCIE SUD-EST ZI Centr‟Alp – 170 rue de Chatagnon 38430 MOIRANS - FRANCE Test réalisé par / Test performed by : Anthony MERLIN Ce document comporte /Composition of document : 46 pages. MOIRANS, LE 19 JUILLET 2012 / JULY 19TH, 2012 Ecrit par / Written by, Approuvé par / Approved by, Anthony MERLIN Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d‟essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l‟ensemble des produits fabriqués à l‟objet essayé. Sauf indication contraire, la décision de conformité prend en compte l‟incertitude de mesures. Il ne préjuge en aucun cas d‟une décision de certification. This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 221171-A1-R1-E Page : 2 / 46 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ..................................................................................................... 4 3. CONDUCTED EMISSION DATA......................................................................................................... 7 4. RADIATED EMISSION DATA ........................................................................................................... 10 5. BAND-EDGE COMPLIANCE §15.209 ............................................................................................. 17 6. MAXIMUM PEAK OUTPUT POWER (15.247) .................................................................................. 19 7. HOPPING CHANNEL SEPARATION (15.247) .................................................................................. 21 8. NUMBER OF HOPPING FREQUENCIES (15.247) ........................................................................... 28 9. TIME OF OCCUPANCY (DWELL TIME) (15.247) ............................................................................. 30 10. BAND EDGE MEASUREMENT (15.247) .......................................................................................... 34 11. FUNDAMENTAL FREQUENCY TOLERANCE.................................................................................. 37 12. OCCUPIED BANDWIDTH ................................................................................................................. 39 13. ANNEX 1 (GRAPHS) ........................................................................................................................ 41 14. UNCERTAINTIES CHART ................................................................................................................ 46 RAPPORT D'ESSAI / TEST REPORT N° 221171-A1-R1-E Page : 3 / 46 1. TEST PROGRAM Standard: - FCC Part 15, Subpart C 15.247 - ANSI C63.4 (2003) - RSS-210 Issue 8 – Dec 2010 - RSS-Gen Issue 3 – Dec 2010 EMISSION TEST LIMITS RESULTS (Comments) Limits for conducted disturbance at mains ports 150kHz-30MHz Frequency Quasi-peak value (dBμV) Average value (dBμV) PASS 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 5-30MHz 60 50 Radiated emissions 9kHz-30MHz CFR 47 §15.209 (a) CFR 47 §15.247 (d) and §15.225 RSS-210 §A8.5 Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m PASS Radiated emissions 30MHz-25GHz* CFR 47 §15.209 (a) CFR 47 §15.247 (d) and §15.225 RSS-210 §A8.5 Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Maximum Peak Output Power CFR 47 §15.247 (b) RSS-210 §A8.4(1) Limit: 21dBm Conducted or Radiated measurement PASS Hopping Channel Separation CFR 47 §15.247 (a) (1) RSS-210 §A8.1(b) Minimum between: Two-third 20dB Bandwidth or 25kHz Whichever is greater PASS Number of Hopping Frequencies CFR 47 §15.247 (a) (1) (iii) RSS-210 §A8.1(d) At least 15 channels used PASS Time of Occupancy (Dwell Time) CFR 47 §15.247 (a) (1) (iii) RSS-210 §A8.1(d) Maximum 0.4 sec within 31.6sec PASS Band Edge Measurement CFR 47 §15.209 (a) and CFR 47 §15.247 (d) RSS-210 §A8.5 Limit: -20dBc PASS Occupied bandwidth RSS-Gen §4.6.1 No limit PASS Receiver Spurious Emission** RSS-Gen §4.10 See RSS-Gen §4.10 Not Applicable Fundamental field strength limit CFR 47 §15.225 and RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz PASS Fundamental frequency tolerance CFR 47 §15.225 and RSS-210 §A2.6 Operation within the band 13.110-14.010 MHz PASS Band edge compliance CFR 47 §15.225 and RSS-210 §A2.6 Operation within the …

Text truncated - open the document above for the full version.

FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 1/3 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Conducted emission FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 2/3 1.2 Radiated emissions FCC ID: XKB-IUC18X-RF IC: 2586D-IUC18XRF Page 3/3 Radiated emission test setup
