XKB-IUI12X-RFDigital Device

FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 1/2 USER MANUAL (FCC STATEMENT) This is a copy of the page where the FCC statement is included: 900016253 R11 000 01_296169246_Integration guide_IUI120_2014 04 14 FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 2/2

Ingenico – 28-32 Boulevard de Grenelle - 75015 PARIS Tél. 33(0)1 58 01 80 00 - Fax 33 (0)1 58 01 91 35 Ingenico Unattended Product iUI120 I n t é g r a t i o n G u i d e Intégration Guide_iUI120 2/58 Copyright © 2013 Ingenico 900016253 R11 000 01/1416 All rights reserved The scope of this document is to assist third party integrators when dealing with iUI120 Ingenico Unattended product. It offers all information needed for a successful integration of iUI120 product into unattended kiosk machines. For any sales information please refer to your Ingenico contact into the region. Updates table Version Date Nature of modifications Author Visa 0.1 06/02/2014 First Draft R Allirot E.Dubois 0.1 15/04/14 Update IC and FCC number O.Fabregoule Intégration Guide_iUI120 3/58 Copyright © 2013 Ingenico 900016253 R11 000 01/1416 All rights reserved Table of contents 1 GENERAL ............................................................................................................. 6 1.1 Definition of acronyms ..................................................................................... 6 1.2 iUI120 payment solution presentation ............................................................ 7 1.2.1 Diagram of iUI120 connectivity and communications .............................................. 8 1.2.2 Services ................................................................................................................. 9 1.3 Description of iUI120 product ........................................................................ 10 1.3.1 iUI120 product views ............................................................................................ 10 1.3.2 iUI120 Technical Hardware characteristics ........................................................... 11 1.3.3 iUI120 output connectors description .................................................................... 13 1.3.3.1 Ethernet ................................................................................................ 15 1.3.3.2 USB device ........................................................................................... 15 1.3.3.3 USB host ............................................................................................... 15 1.3.3.4 COM0 link ............................................................................................. 15 1.3.3.5 COM2 link (optional) ............................................................................. 15 1.3.3.6 MDB Slave ............................................................................................ 16 1.3.3.7 MDB master (optional) .......................................................................... 16 1.3.3.8 Wake-Up Jack ...................................................................................... 17 1.3.3.9 Bluetooth (optional) ............................................................................... 17 1.3.3.10 GPRS (optional) .................................................................................. 18 1.3.3.11 SAM & μSD Installation ....................................................................... 19 1.3.3.12 Buzzer ................................................................................................. 20 1.3.3.13 Display ................................................................................................ 20 1.3.3.14 Maintenance Button and LED ............................................................. 20 1.3.3.15 iUI 120 Keypad .................................................................................... 21 1.3.3.16 Cable Protection .................................................................................. 22 1.3.3.17 Antenna Installation ............................................................................. 23 1.4 Professional installation Requirement ......................................................... 24 1.5 Wake-UP function a revoir ............................................................................. 25 1.5.1 Wake-up mechanism iUI120 unit .......................................................................... 25 1.5.2 Recommended circuit implementation .................................................................. 26 1.5.3 Power-On sequence iUI120/iUR250/iUC150 ........................................................ 27 2 MAIN ACCESSORIES ........................................................................................ 28 2.1.1 Generality ............................................................................................................. 28 2.1.2 Optional USB cable .............................................................................................. 28 2.1.3 Serial cable .......................................................................................................... 28 2.1.4 LLT cable ............................................................................................................. 29 2.1.5 Stand-by management cables .............................................................................. 30 2.1.5.1 Jack connector ...................................................................................... 30 2.1.5.2 COM0 and COM2 ................................................................................. 30 3 IUI120 SOFTWARE ............................................................................................. 31 Intégration Guide_iUI120 4/58 Copyright © 2013 Ingenico 900016253 R11 000 01/1416 All rights reserved 3.1.1 Software Architecture ........................................................................................... 32 3.1.2 Secure management of software .......................................................................... 33 3.1.3 Operating system ................................................................................................. 34 3.1.4 TELIUM MANAGER ............................................................................................. 35…

Text truncated - open the document above for the full version.

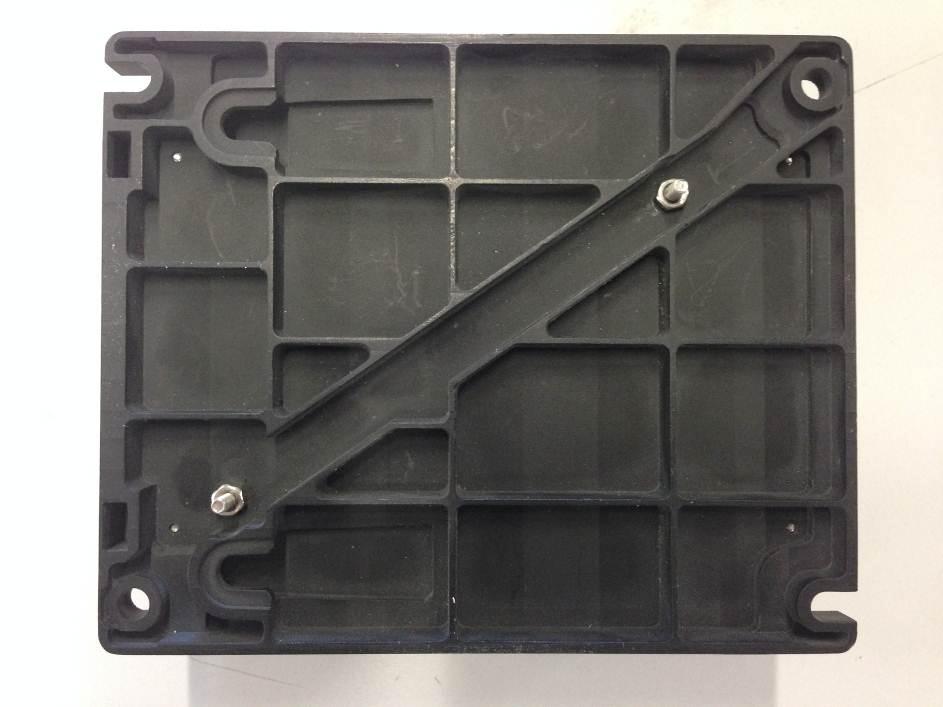

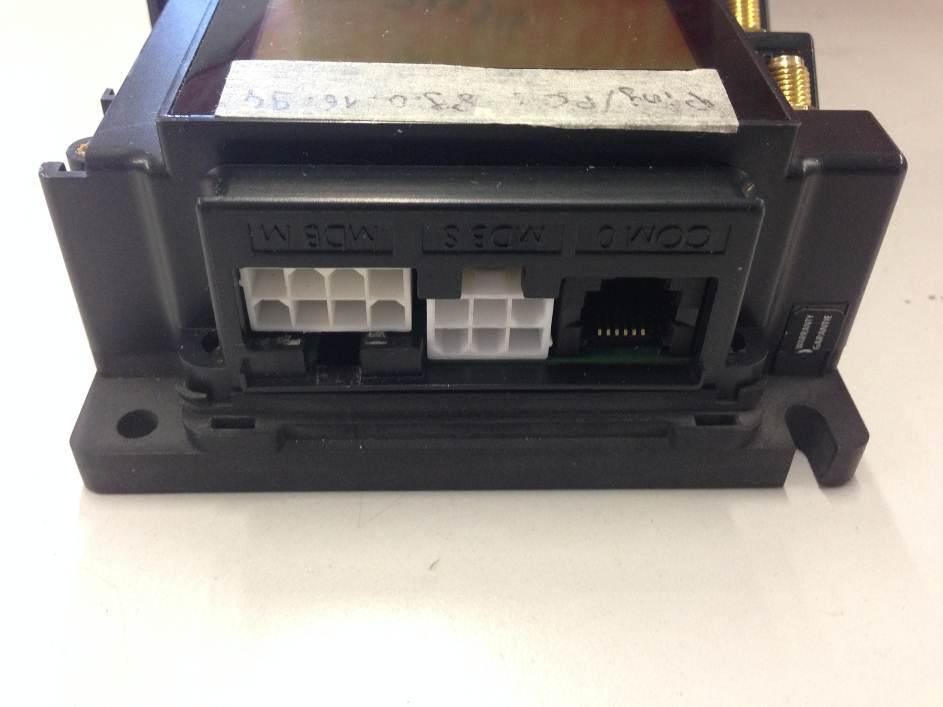

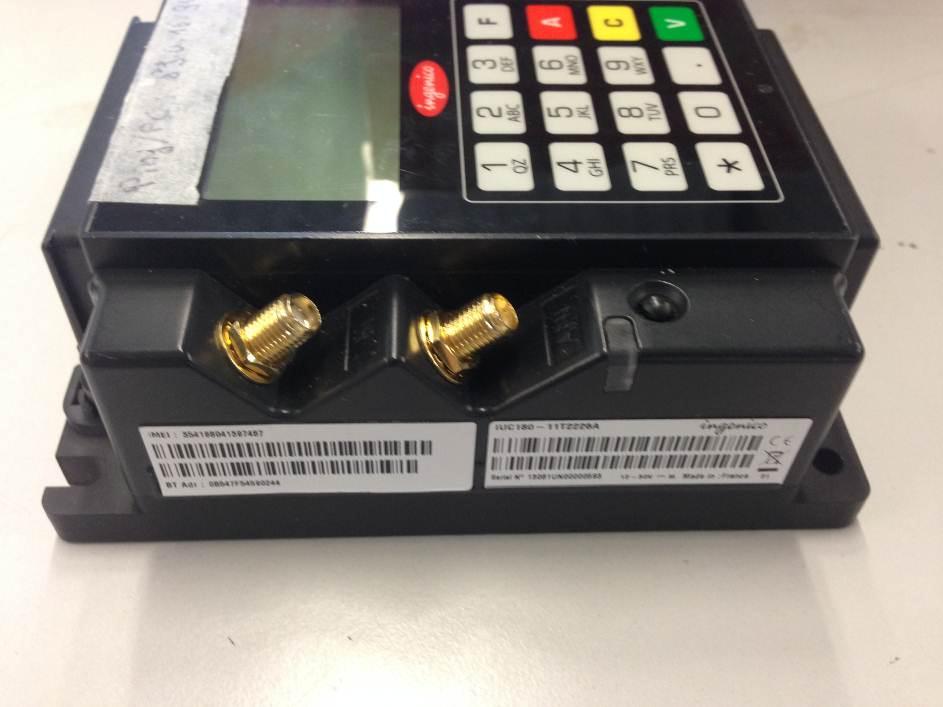

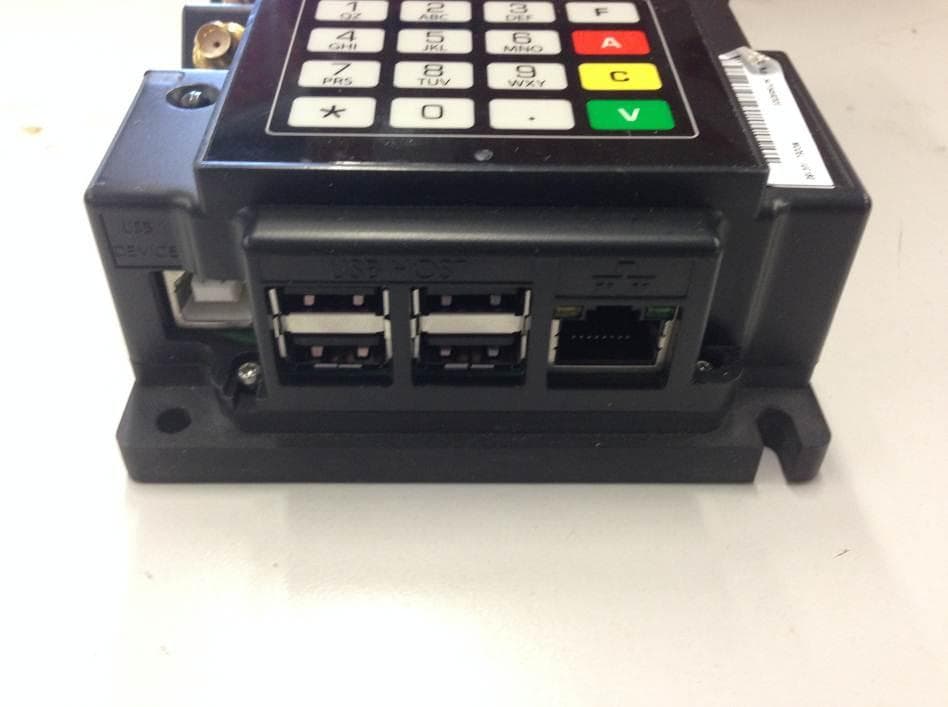

FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 1/3 EXTERNAL PHOTOS OF TESTED EUT FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 2/3 FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 3/3

FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 1/4 PRODUCT LABELING FCC ID / IC number label IUI120 / Option Bluetooth Ref : IUI120-01T2661 FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 2/4 IUI120 / Option Bluetooth + Module Approuvé GPRS Ref : IUI120-01T2662 FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 3/4 FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 4/4 Localization :

FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 1/9 INTERNAL PHOTOS OF TESTED EUT FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 2/9 FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 3/9 FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 4/9 FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 5/9 FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 6/9 FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 7/9 OPTION PCB – COM2 + MDB+BLUETOOTH: FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 8/9 OPTION PCB – COM2 + MDB+BLUETOOTH+GPRS: FCC ID: XKB-IUI12X-RF IC : 2586D-IUI12XRF Page 9/9 BLUETOOTH PART Modular Approval GPRS

FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 1/5 OPERATIONAL DESCRIPTION 1.1. EUT description FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 2/5 FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 3/5 1.2. Related Submittal(s) / Grant(s) All host equipment used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, plus description of all cables used in the tested system are: - Internal max frequencies <500MHz (Declaration of provider) The system was configured for testing in a typical fashion (as a customer would normally use it). The equipment IUI120 can be used with several internal option cards:  COM2 + MDB + Bluetooth Configuration n°1  COM2 + MDB + Bluetooth + GPRS modular approval Configuration n°2 (Worst case) The Equipment Under Test will be the configuration n°2 to represent others configurations. IUI120 has to be is integrated in unattended devices. The test configuration is given by the manufacturer Power supply: - DC voltage, 10-45VDC, tested at 12VDC (worst case) During all the tests, EUT is supplied by an AC/DC adaptor, not supplied with EUT so not tested, PHIHONG PSM36W-120TW, 100-240VAC / 1.5A / 50-60Hz, output 12VDC / 3A or power supply of laboratory. Input/output: - 1 x Power supply connector, 2 wires - 5 x USB - 1 x LAN - 2 x COM - 1 x Earth - 1 x Jack “Clock” - 1 x MDB master - 1 x MDB slave, same connector that power supply - 2 x SMA connector, GPRS and Bluetooth - 2 x SAM - 1 x SIM - 1 x MicroSD RF Module contained: - 1 x GPRS, module certified, FCCID: VW3HILOV2 and IC: 9140A-HILOV2 with antenna, GC300M-011-2500 (not supplied by provider), it‟s a deported antenna, none collocation with BT antenna inferior at 20cm. Auxiliaries used for testing: - 1 x Laptop TOSHIBA SATELLITE, PS141E-04YC, Sn: 13594938G - 2 x SAM - 1 x SIM FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 4/5 I/O cables used for testing: - 1 x AC power cord, 2 wires, unshielded: 2m - 1 x DC power supply cable (fixed on mains power unit), with ferrite, unshielded: 1.75m - 1 x Ethernet cable Type: STP Cat 5e, shielded: 1m - 5 x USB cables, shielded: 1m - 2 x RS232 Com cables, RJ11, unshielded, 1.5m (COM 0 & COM 2) - 1 x MDB-slave „6 pins‟ <-> MDB-master „8 pins‟ cable, unshielded, 4 wires with WE ferrite 74271222, length: 1m - 1 x Jack cable, unshielded, length: 0.2cm Equipment information: (Declared by provider) - Frequency band: [2400.0 – 2483.5] MHz - Standard: Wifi Bluetooth Zigbee - Spectrum Modulation: FHSS DSSS - Modulation type: GFSK Pi/4 DQPSK 8DPSK Packet type: 1-DH5 2-DH5 3-DH5 Transfert data rate: 1Mbps 2Mbps 3Mbps - Number of channel: 79 - Channel separation: 5MHz 2MHz 1MHz - Channel bandwidth: 10MHz 20MHz 1MHz - RF mode: TX/RX RX Standby - Antenna type: SMA connector + Whip antenna (not supplied) - Antenna for test: Bluetooth antenna, EAD-FBTS35024-SM-ST. - Antenna connector: Permanent external Permanent internal None Temporary (only for tests) For all tests: A generic program test is loaded on EUT, in order to perform in loop following functions: - Reading / writing SAM card (SAM1 & SAM2) - Reading / writing μSD card (MMC) - RX/TX on Serial port (COM0 & COM2) - RX/TX between MDB master and slave With laptop: - Continuous Ethernet communication is performed from EUT to Laptop (Ping) For special Bluetooth tests: With a special mode of EUT a communication is performed with CMU, a permanent link with followings parameters is tested (worst case): - Permanent emission of the carrier frequency with modulation, highest, middle and lowest channel - Choice of modulation type: Worst case, packet type DH5 with all modulations - FHSS mode ON or OFF FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 5/5 1.4. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart B and C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment‟s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed from 17th January to 19th March, 2014. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB LOW POWER RF EXPOSURE SAMPLE Frequency Range: 2402-2480MHz Low threshold = 60/f(GHz) mW = 60 / 2.480 = 24.19mW Conducted Output Power Measured (dBm) = 3.9 dBm Antenna Gain (dBi) = 0 dBi EIRP = 2.5 mW Conducted Output Power (mW) = 2.5mW Since both Conducted Output Power and EIRP are below the low threshold, device complies with FCC and Industry Canada RF radiation exposure limits for general population/uncontrolled exposure as a portable device without SAR evaluation.

Rapport d’essai / Test report N° 729321-R1-E JDE : 125731 DELIVRE A / ISSUED TO : INGENICO 9 Avenue de la Gare Rovaltain TGV - Quartier de la gare 26300 ALIXAN - FRANCE Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart B et C RSS-210 Issue 8 Matériel testé / Apparatus under test :  Produit / Product : Terminal de paiement - automate / Payment terminal - Automaton  Marque / Trade mark : INGENICO  Constructeur / Manufacturer : INGENICO  Type / Model : IUI120B  Type sous test / Model under test : IUI120-11T2662  N° de série / serial number : None  FCC ID : XKB-IUI12X-RF  IC : 2586D-IUI12XRFB Date des essais / Test date : Du 17 Janvier au 19 Mars 2014 / From 17 th January to 19 th March, 2014 Lieu d’essai / Test location : LCIE SUD-EST ZI Centr‟Alp – 170 rue de Chatagnon 38430 MOIRANS - FRANCE Test réalisé par / Test performed by : Anthony Merlin / Gaëtan Deschamps Ce document comporte / Composition of document : 46 pages. MOIRANS, LE 20 MARS / MARCH 20 TH , 2014 Ecrit par / Written by, Approuvé par / Approved by, Anthony Merlin Jacques Lorquin La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d‟essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l‟ensemble des produits fabriqués à l‟objet essayé. Sauf indication contraire, la décision de conformité prend en compte l‟incertitude de mesures. Il ne préjuge en aucun cas d‟une décision de certification. This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 729321-R1-E Page : 2 / 46 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ..................................................................................................... 4 3. CONDUCTED EMISSION DATA......................................................................................................... 7 4. RADIATED EMISSION DATA ............................................................................................................. 9 5. MAXIMUM PEAK OUTPUT POWER (15.247) .................................................................................. 16 6. HOPPING CHANNEL SEPARATION (15.247) .................................................................................. 19 7. NUMBER OF HOPPING FREQUENCIES (15.247) ........................................................................... 27 8. TIME OF OCCUPANCY (DWELL TIME) (15.247) ............................................................................. 29 9. BAND EDGE MEASUREMENT (15.247) .......................................................................................... 32 10. OCCUPIED BANDWIDTH ................................................................................................................. 36 11. ANNEX 1 (GRAPHS) ........................................................................................................................ 40 12. UNCERTAINTIES CHART ................................................................................................................ 46 RAPPORT D'ESSAI / TEST REPORT N° 729321-R1-E Page : 3 / 46 1. TEST PROGRAM Standard: - FCC Part 15, Subpart C 15.247 - ANSI C63.4 (2003) - RSS-210 Issue 8 – Dec 2010 - RSS-Gen Issue 3 – Dec 2010 EMISSION Test LIMITS RESULTS (Comments) Limits for conducted disturbance at mains ports 150kHz-30MHz Frequency Quasi-peak value (dBμV) Average value (dBμV) PASS FAIL NA NP 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 5-30MHz 60 50 Radiated emissions 9kHz-30MHz CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-210 §A8.5 Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m PASS FAIL NA NP Radiated emissions 30MHz-25GHz* CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-210 §A8.5 Highest frequency : (Declaration of provider) Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS FAIL NA NP Maximum Peak Output Power CFR 47 §15.247 (b) RSS-210 §A8.4(1) Limit: 21dBm Conducted or Radiated measurement PASS FAIL NA NP Hopping Channel Separation CFR 47 §15.247 (a) (1) RSS-210 §A8.1(b) Minimum between: Two-third 20dB Bandwidth or 25kHz Whichever is greater PASS FAIL NA NP Number of Hopping Frequencies CFR 47 §15.247 (a) (1) (iii) RSS-210 §A8.1(d) At least 15 channels used PASS FAIL NA NP Time of Occupancy (Dwell Time) CFR 47 §15.247 (a) (1) (iii) RSS-210 §A8.1(d) Maximum 0.4 sec within 31.6sec PASS FAIL NA NP Band Edge Measurement CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-210 §A8.5 Limit: -20dBc PASS FAIL NA NP Occupied bandwidth RSS-Gen §4.6.1 No limit PASS FAIL NA NP Receiver Spurious Emission** RSS-Gen §4.10 See RSS-Gen §4.10 PASS FAIL NA NP *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until…

Text truncated - open the document above for the full version.

FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 1/3 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Conducted emission FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 2/3 1.2 Radiated emissions FCC ID: XKB-IUI12X-RF IC: 2586D-IUI12XRFB Page 3/3
