XKB-IWL2XX3GCL3G and Contactless Point of Sales terminal

FCC ID: XKB-IWL2XX3GCL This is to confirm use of 15.225 20 September 2011 for application FCC ID Test Report covers testing of FCC ID: XKB MHz RFID radio transceiver circuitry to FCC ID: RFI Global Services Ltd RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 CL 25 Part 15C Test Report RFI-RPT-RP82173JD0 for application FCC ID: XKB-IWL2XX3GCL. testing of FCC ID: XKB- IWL2XXBCL which contains identical radio transceiver circuitry to FCC ID: XKB-IWL2XX3GCL lion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG global.com Registered in England and Wales Company number: 2117901 JD01A V3.0 dated which contains identical 13.56

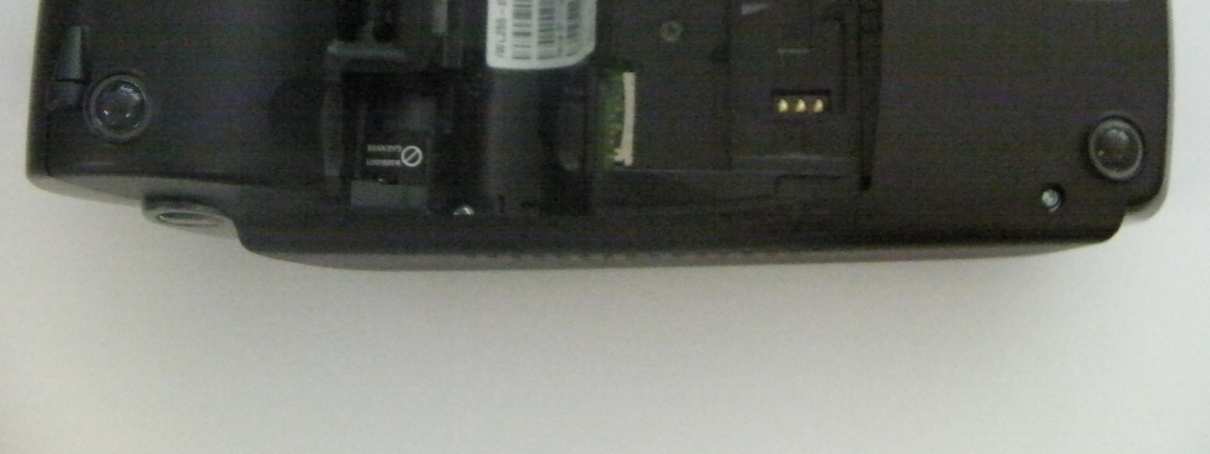

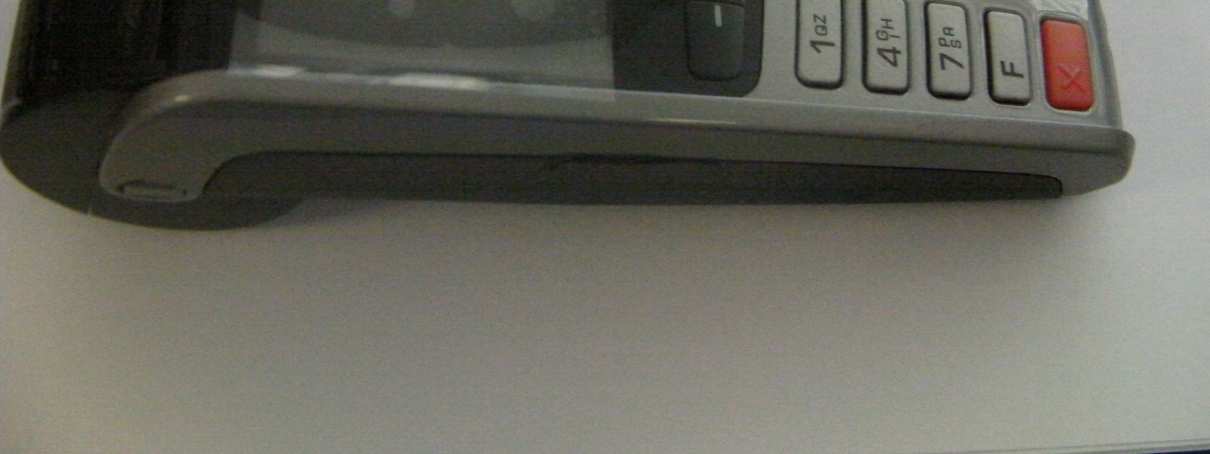

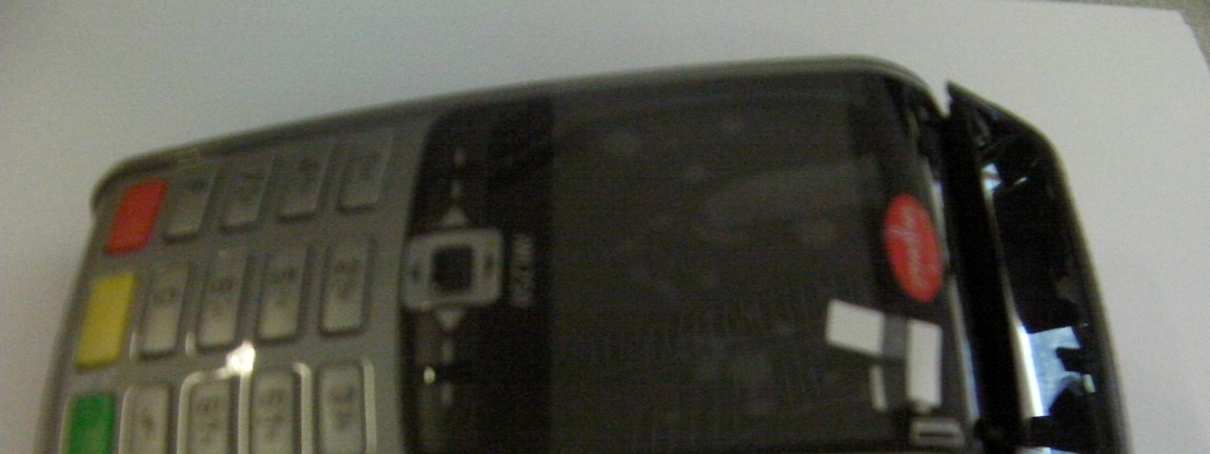

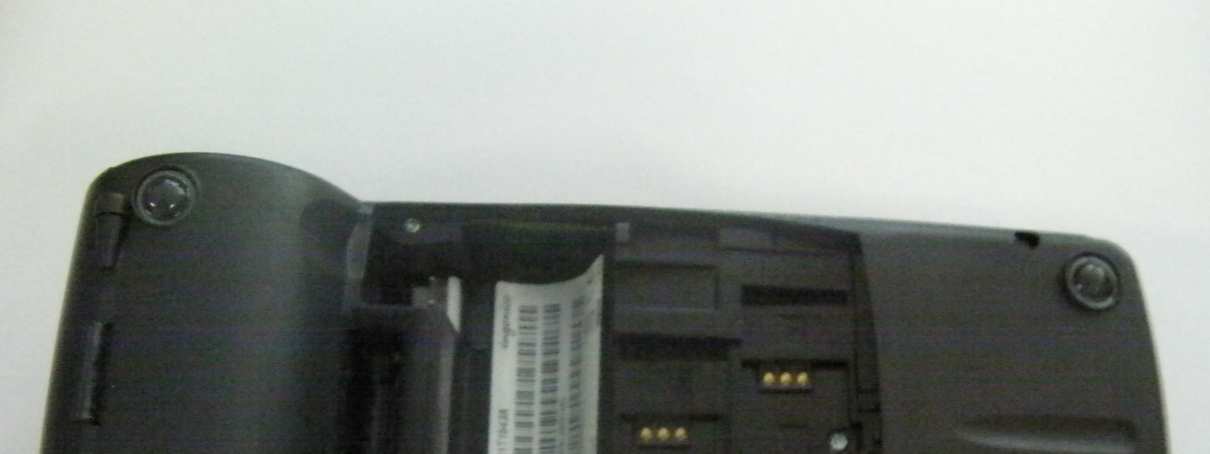

IWL255

LAB EL INFO IWL 3G + Cless Handheld

IWL255 3G + Cless

Page 1 of 2 Marc DELORME INGENICO 1, rue Claude CHAPPE 07503 GUILHERAND GRANGES BP346 - FRANCE Ph. : 33 4 75 60 22 85 e-mail: [email protected] FRN : 0018912279 September 28 th 2011 RF Exposure Considerations for FCC ID: XKB-IWL2XX3GCL FCC ID: XKB-IWL2XX3GCL contains a GSM GPRS/ EDGE/ UMTS HSDPA data only transmitter module (FCC ID: VW3HILO3G) used within a Point of Sales Terminal which is a handheld device. This transmitter operates in the GSM850, PCS1900 and UMTS II operating bands and has GPRS/ EDGE Class 12 operation. Considerations for proximity of equipment user’s hand to the equipment KDB447498 D01 v04 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies. 4) SAR test positions and requirements for specific host platforms and exposure conditions c) Extremity and body SAR evaluation considerations iii) Contact the FCC Laboratory to determine whether: (1) Hand SAR is required for hand-held and hand-operated devices with output power > 1000·[f (GHz) ] - 0.5 mW that are designed with the hand operating closer than 5 cm from the antenna during normal use. For FCC ID: XKB-IWL2XX3GCL Specified maximum output power = 33 dBm @ 850 MHz = 30 dBm @ 1900 MHz = 24 dBm @ UMTS Frequency (GHz) IWL255- 01T1543A Max. output power mW (conducted) 1000 * [f GHz] ^-0.5 mW SAR Testing Required 0.85 UMTS 250 1,085 No 1.9 UMTS 250 726 No 0.85 GPRS 2000/2= 1,000* 1085 No 1.9 GPRS 1000/2= 500* 726 No Page 2 of 2 * Per KDB 447498 D01 Mobile Portable RF Exposure v04, ".... Unless otherwise specified, the power thresholds in this document are applied for conduced output power with respect to the source-based time-averaged output power defined in §§ 2.1091(d)(2) and 2.1093(d)(5) of the rules.” GPRS Class 12 used in FCC ID: XKB-IWL2XX3GCL which qualifies for a source-based time- averaged factor of 4/8. (2) Extremity SAR is required for wrist, feet or ankle worn devices. Not Applicable for FCC ID: XKB-IWL2XX3GCL as the device is not wrist, foot or ankle worn. (3) Body SAR is required for hand-held and hand-operated or wrist, feet and ankle worn devices that operate closer than 5 cm to the body and the output power is > 300⋅[f(GHz)]-0.5 mW. Not Applicable for FCC ID: XKB-IWL2XX3GCL as the device is greater than 5cm away from the body in normal operation i.e. during transmission. Conclusion The considerations for FCC ID: XKB-IWL2XX3GCL in accordance with FCC KDB 447498 D01 v04, Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies confirms that RF exposure SAR testing is not required for normal handheld operation of the equipment.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Ingenico France, IWL255XXX To: 47CFR15.107, 47CFR15.109 and RSS-GEN Issue 3 December 2010 Test Report Serial No: RFI-EMC-RP83069JD01A This test report is issued under the authority of Chris Guy, Head of Global Approvals: Checked By: Andy Graham Signature: Date of Issue: 30 August 2011 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-EMC-RP83069JD01A VERSION: 1.0 ISSUE DATE: 30 AUGUST 2011 Page 2 of 38 RFI Global Services Ltd. This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-EMC-RP83069JD01A VERSION: 1.0 ISSUE DATE: 30 AUGUST 2011 RFI Global Services Ltd. Page 3 of 38 TABLE OF CONTENTS 1. Customer Details .............................................................................................................. 5 2. Summary of Testing ......................................................................................................... 6 3. Equipment under Test (EUT) ........................................................................................... 7 4. Support Equipment ........................................................................................................... 9 5. Monitoring Performance ................................................................................................ 10 6. Measurement Uncertainty .............................................................................................. 11 7. Measurements, Examinations and Derived Results .................................................... 12 8. Photographs of EUT ....................................................................................................... 21 9. Graphical Test Results ................................................................................................... 26 10. Test Configuration Drawing ......................................................................................... 37 TEST REPORT SERIAL NO: RFI-EMC-RP83069JD01A VERSION: 1.0 ISSUE DATE: 30 AUGUST 2011 Page 4 of 38 RFI Global Services Ltd. This page has been intentionally left blank. TEST REPORT SERIAL NO: RFI-EMC-RP83069JD01A VERSION: 1.0 ISSUE DATE: 30 AUGUST 2011 RFI Global Services Ltd. Page 5 of 38 1. CUSTOMER DETAILS Company Name: Ingenico France Address: 1, rue Claude Chappe - BP 346 Guilherand-Granges 7503 France TEST REPORT SERIAL NO: RFI-EMC-RP83069JD01A VERSION: 1.0 ISSUE DATE: 30 AUGUST 2011 Page 6 of 38 RFI Global Services Ltd. 2. SUMMARY OF TESTING 2.1. Test Specification Reference: 47CFR15.107 and 47CFR15.109 Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart B (Radio Frequency Devices) – Sections 15.107 and 15.109. Reference: RSS-GEN Issue 3 December 2010 Title: General Requirements and Information for the Certification of Radio Apparatus Site Registration: FCC: 209735 Industry Canada: 3245B-2 2.2. Summary of Test Results FCC Reference IC Reference Measurement Type Applicability Result EMISSIONS 15.109 RSS-Gen 4.10 RSS-Gen 6.1 Radiated Emissions (Enclosure) Y 15.107 RSS-GEN 7.2.4 Conducted Emissions (AC Mains Input / Output Ports) Y KEY: = Complied = Did not comply 2.3. Location of Testing All the measurements described in this report were performed at the premises of RFI Global Services Ltd, Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire RG24 8AH. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above, nor from the requirements defined in the basic standards called up within it. TEST REPORT SERIAL NO: RFI-EMC-RP83069JD01A VERSION: 1.0 ISSUE DATE: 30 AUGUST 2011 RFI Global Services Ltd. Page 7 of 38 3. EQUIPMENT UNDER TEST (EUT) 3.1. Description of EUT The EUT was a GSM / GPRS enabled Point of Sales (POS) terminal with RFID-based contactless payment technology. 3.2. Identification of Equipment under Test (EUT) ID# Description Brand Name Model No Serial No IMEI E1 Point Of Sales Terminal Ingenico France IWL255-01T1443A 11192WL60057381 357524040000604 3.3. Port Identification Port Description Type P1 Enclosure - P2 Charger USB 3.4. Operating Modes Mode Reference Definition Idle The EUT was left on and charging via its USB port. Printing The EUT was left on and charging via USB. Additionally, the yellow button on the keypad was depressed throughout the test to force the EUT to continuously print. Radio characteristics GSM Bands Supported: Rated Output Power (dBm) Transmit Frequency range (MHz) ARFCN Transmit Frequency (MHz) Receive Frequency range (MHz) ARFCN Receive Frequency (MHz) GSM 850 33 824 – 849 190 836.6 869 – 894 190 881.6 GSM 900 33 880 -915 63 902.6 925 - 960 63 947.6 DCS 1800 30 1710 – 1785 700 1747.8 1805 – 1880 700 1842.8 PCS 1900 30 1850 – 1910 660 1879.8 1930 – 1990 660 1959.8 Supported Technologies e.g. Circuit Switched Voice/Data, Packet Switched Data GPRS/ EDGE Packet Switched Data GPRS/ EDGE 3.5. Configuration and Peripherals Description: Please refer to the Test Configuration and Photograph section for schematic drawing(s) and/or photograph(s) of the test configuration(s) employed in the course of testing 3.6. Modifications NOTE: No modifications were made to the EUT during the course of testing TEST REPORT SERIAL NO: RFI-EMC-RP83069JD01A VERSION: 1.0 ISSUE DATE: 30 AUGUST 2011 Page 8 of 38 RFI Global Services Ltd. 3.7. Additional Information Related to Testing Equipment Category: Point of Sales Terminal / GSM, GPRS Intended Operating Environment:…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: IWL252-01T1535A FCC ID: XKB-IWL2XXBCL IC Certification Number: 2586D-IWL2BCL To: FCC Part 15.225: 2010 Subpart C, RSS-210 Issue 8 December 2010 & RSS-Gen Issue 3 December 2010 Test Report Serial No: RFI-RPT-RP82173JD01A V3.0 Version 3.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 20 September 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP82173JD01A V3.0 VERSION 2.0 ISSUE DATE: 20 SEPTEMBER 2011 Page 2 of 23 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP82173JD01A V3.0 VERSION 2.0 ISSUE DATE: 20 SEPTEMBER 2011 RFI Global Services Ltd Page 3 of 23 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Receiver/Idle Mode Radiated Spurious Emissions 11 5.2.2. Transmitter AC Conducted Spurious Emissions 13 5.2.3. Transmitter Fundamental Field Strength 16 5.2.4. Transmitter Radiated Spurious Emissions 17 5.2.5. Transmitter Band Edge Radiated Emissions 19 5.2.6. Transmitter 20 dB Bandwidth 20 5.2.7. Transmitter Frequency Stability (Temperature & Voltage Variation) 21 6. Measurement Uncertainty ........................................................................................................22 Appendix 1. Test Equipment Used ..............................................................................................23 TEST REPORT SERIAL NO: RFI-RPT-RP82173JD01A V3.0 VERSION 2.0 ISSUE DATE: 20 SEPTEMBER 2011 Page 4 of 23 RFI Global Services Ltd 1. Customer Information Company Name: Ingenico SA Address: 1, rue Claude Chappe – BP 346 Guilherand-Granges 7503 France TEST REPORT SERIAL NO: RFI-RPT-RP82173JD01A V3.0 VERSION 2.0 ISSUE DATE: 20 SEPTEMBER 2011 RFI Global Services Ltd Page 5 of 23 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.225 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Radio Frequency Devices) - Section 15.225 Specification Reference: 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart B (Radio Frequency Devices) – Section 15.109 Specification Reference: 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Intentional Radiators) - Section 15.209 Specification Reference: RSS-Gen Issue 3 December 2010 Specification Title: General Requirements and Information for the Certification of Radio Apparatus Specification Reference: RSS-210 Issue 8 December 2010 Specification Title: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment. Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 05 August 2011 to 18 September 2011 2.2. Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Result Part 15.109 - Receiver/Idle Mode Radiated Spurious Emissions Part 15.207 RSS-Gen 7.2.2 Transmitter AC Conducted Emissions Part 15.225(a)(b)(c)(d) RSS-Gen 4.8 RSS-210 A2.6 Transmitter Fundamental Field Strength Part 15.209(a)/ 15.225(d) RSS-Gen 4.9 RSS-210 A2.6 Transmitter Radiated Emissions Part 15.209(a)/ 15.225(c)(d) RSS-Gen 4.9 RSS-210 A2.6 Transmitter Band Edge Radiated Emissions Part 2.1049 RSS-Gen 4.6.1/4.6.3 Transmitter 20 dB Bandwidth Part 15.225(e) RSS-Gen 4.7 RSS-210 A2.6 Transmitter Frequency Stability (Temperature & Voltage Variation) Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP82173JD01A V3.0 VERSION 2.0 ISSUE DATE: 20 SEPTEMBER 2011 Page 6 of 23 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP82173JD01A V3.0 VERSION 2.0 ISSUE DATE: 20 SEPTEMBER 2011 RFI Global Services Ltd Page 7 of 23 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under…
