XKC-RFIDOCKRFIDock

Selesta Ingegneria S.p.A. RFIDat ‐ RFIDock/M ‐ RFIDock/S ‐ RFIDock/L ‐ RFIDock/SA ‐ USB/AL are products made in Italy by . Selesta Ingegneria S.p.A. – Via di Francia 28 – 16149 Genoa – Italy Tel: +39.010.60291 – Fax: +39.010.645454 8 – www.seling.it – www.rfidat.it SELESTA INGEGNERIA S.p.A. & INSTRUCTION MANUAL The RFIDat e RFIDock products are distribuited by: Instruction Manual – Ver. 1.4 ‐ 16/10/2009 Instruction Manual – Ver. 1.4 ‐ 16/10/2009 – pag. 12 of 12 FCC ID: XKC ‐ RFIDAT, XKC ‐ RFIDOCK For transmitters under FCC Part 15 Subpart C, clas s A or B classification is not applicable. The transmitter radiated emissions mu st meet the general limits of Part 15.209, and transmitter AC line ‐ conducted emissions must meet the requirements of Part 15.207. Both limits are identical to the class B limits, but there is no provision for meeting a more relaxed limit like class A as would be allowed under Part 15 Subpart B for unintentional radiators. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interf erence that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Th ese limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. Selesta Ingegneria S.p.A. System components A. RFIDat: hand held terminal able to read in RF (radiofrequency mode) TAGs B. TAG: 125 Khz passive trasponder C. RFIDock/M: RFIDat modular docking station unit (up to 8 slots with 7 additional RFIDock/S ) for: • data transfer from RFIDat memory to RFIDock/M temporary memory (more then 8.000 readings) • transfer data to Personal Computer • RFIDat internal batteries charging and recharging D. RFIDock /L: RFIDat docking station unit (1 slot) for: • data transfer from RFIDat to RFIDock/L temporary memory (more then 8.000 readings) • transfer data to Personal Computer • RFIDat internal batteries charging and recharging in RF mode D. RFIDock /SA: unit to be used for: • RFIDat internal batteries charging External power unit RFIDock/AL (220 V ac / 12 V cc) is required E. USB/AL: adapter to connect and power RFIDock/M or RFIDock/L to/from a PC USB port F. RFIDock/AL: power supply unit 220 V ac / 12 V cc for RFIDock/M and RFIDock/SA units G. RFID USB Reader : pen for ID TAG code readi ng, connected to a PC USB port in keyboard emulation mode H. Ethernet ‐ 232 : RS232 / Ethernet converter Instruction Manual – Ver. 1.4 ‐ 16/10/2009 – pag. 2 of 12 Selesta Ingegneria S.p.A. Technical assistance To get further information and assistance , please contact the authorized local Reseller. Equipment and battery disposal End ‐ of ‐ life treatment of electric and electronic equipment (applicable in all the Countries of the European Union and in other European Countries with diversified collection systems). The products comply with the Directive 2002/96CE, related to disposal recycling of electric and electronic devices (RAAE): • This symbol applied on the product or on the wrapping indicates that it doesn't have to be considered as a normal domestic refusal, but that it must be delivered to collection point suitable for the recycling of electric and electronic devices. For more detailed information on the recycling of this product, please contact the City office, the local service of refusal disposal or the seller. Not respecting these dispositions can involve administrative sanctions and penalties. Product components are conform to th e Directive 2002/95/CE, related to the restrictions of use of certain dangero us substances in the electric and electronic equipments (RoHS), therefor e they don't contain any harmful or dangerous substances in percentages higher than the tolerated limits. Instruction Manual – Ver. 1.4 ‐ 16/10/2009 – pag. 11 of 12 Selesta Ingegneria S.p.A. Attention : don't expose the RFIDat and RFIDock/M/S/AL products to heat sources, direct solar light, humidity or rain. Avoid immersion in water or other liquids. Don't tamper with pierce or burn the system components. Don't leave the system components unguarded and to the reach of children or animals. Attention : in case of possible operational anomalies or accidental damages to the system components, immediately interrupt its use and turn to the local authorized Retailer to ask for assistance. Warranty The products are warranted against any defect in material and workmanship, under normal use, for the designed warranty period. The warranty becomes effective from the date of shipment. In the event these products are found to be defectives within the warranty period, its will be repaired or replaced. The warranty non cover wear and tear on covers or housing and batteries. The warranty is void if the products : • have been opened • have been repaired, modified or altered or had work performed by not authorized service centre. • was subjected to abuse, neglect, electrical fault, improper packaging, accident or acts of nature • were…

Text truncated - open the document above for the full version.

Micro Controller Micro Controller Buffer Rectfier Amplifier 16.0Mhz 16.0Mhz 125 Khz 125 Khz Amplifier Modulator 1.953 Khz Link RF -+ -+

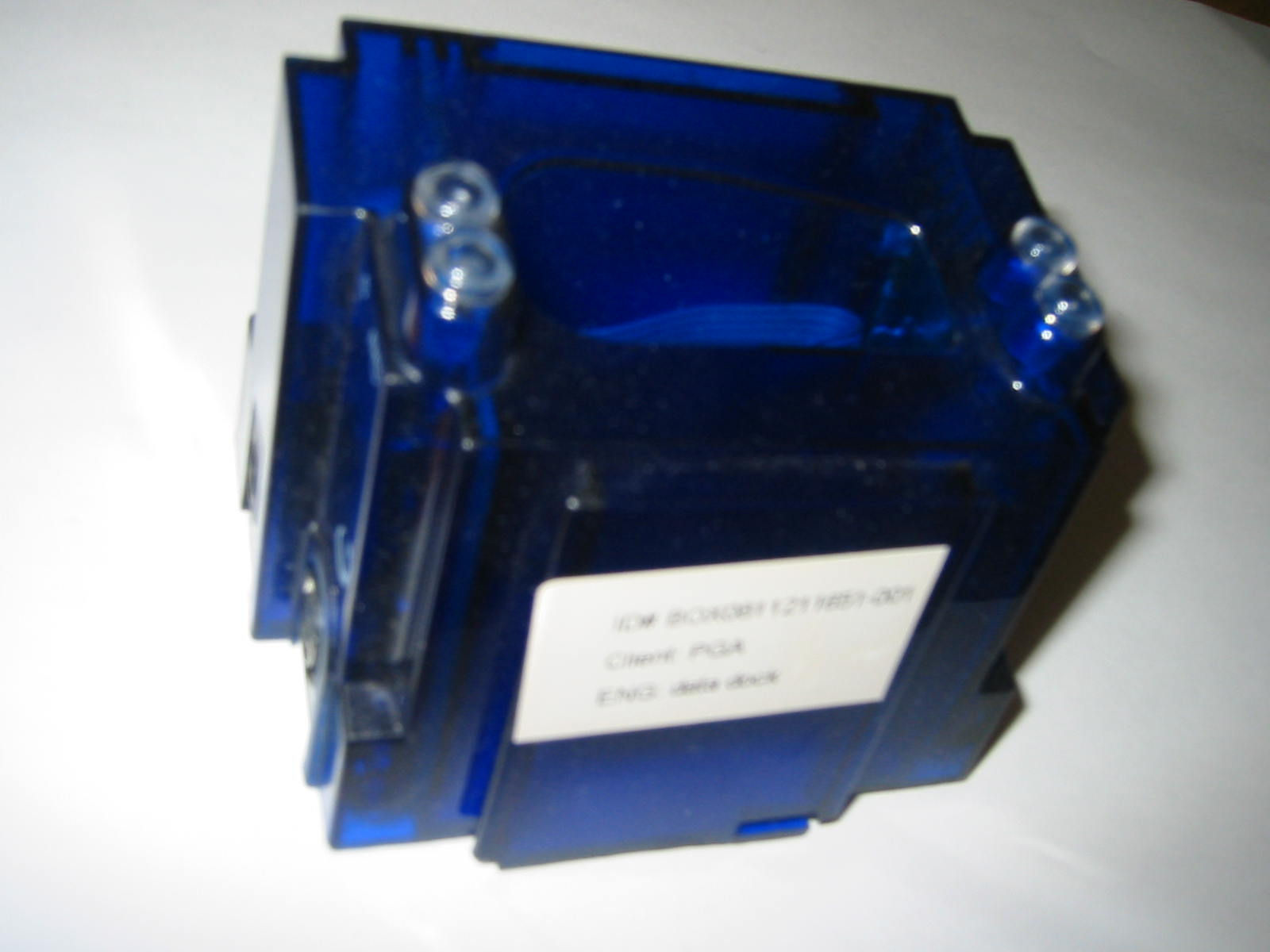

FCC ID: XKC-RFIDOCK Made in Italy S/N 1234567c RoHS Ni-Mh

ST_RFIDat_ENG _V11A 02/10/08 . Selesta Ingegneria S.p.A. • Via di Francia 28 • 16149 Genova • Tel: +39.010.60291 • Fax: +39.010.6454548 • www.seling.it Genova • Milano • Roma • Torino – Vicenza – Bologna - Potenza pag. 1 di 3 Description RFIDat is a small self‐powered portable reader that can intentionally read, via RF (Radio Frequency) mode, passive "TAGs", also of very reduced dimensions and low cost. RFIDat, is convenient, reliable, easy and comfortable to use. RFIDat provides many possibilities of use in the world of data collection and time management. RFIDat is the ideal and competitive tool when it is necessary to attribute working time to Job Orders or Cost Centers when people mobility is very frequent and it is not possible to use other equipments such as Time&Attendance terminals or plant terminals. The TAG (transponders), as small as a coin, can be placed, according to needs, in specific work places or on specific objects. Possibile uses As an example, RFIDat can be used by Enterprises / Public Utilities for: ‐ attribution of performances /services to Cost Centers; ‐ performance accounting on Job Orders (manufacturing enterprises, building yards, shipyards, auto body shops, workshops, etc.); ‐ accounting of the performance of temporary employment Companies; Proxi “tag” portable reader and data unloading station TAG ST_RFIDat_ENG _V11A 02/10/08 . Selesta Ingegneria S.p.A. • Via di Francia 28 • 16149 Genova • Tel: +39.010.60291 • Fax: +39.010.6454548 • www.seling.it Genova • Milano • Roma • Torino – Vicenza – Bologna - Potenza pag. 2 di 3 ‐ accounting of the performance of Service Enterprises / Corporate Bodies (maintenance, assistance centers, social cooperatives, cleaning, etc.); ‐ attribution of performances /consulting services to professional Offices (lawyers, advisors, etc.); ‐ accounting of services provided by Vigilance Companies. Operations One RFIDat unit is given to each person and configured with his name and personal code. Whenever the person approaches the RFIDat to a TAG and press the specific key, the TAG univocal code is read; instantly, inside the memory of RFIDat, a transaction that contains the person's code, day, month, year, time, minutes and code of the TAG just read is generated. The RFIDock unit is the holding station that has the double function of managing the communications and of recharging the batteries of the RFIDat units. Also the batteries are recharged in radio frequency. Example of configuration The software product RFICom is also supplied with RFIDat and RFIDock. It allows to manage the communications and the configuration of the RFIDat, to query the transactions and to export data towards other management system. The description of the functional characteristics of RFICom is shown in the specific technical sheet. RFIDat technical characteristics ‐ RFID TAG: 125Khz, em4102 compatible ‐ Storage capacity: 8.000 transactions: ID reader, ID tag, date, time and minutes ‐ Automatic Daylight Savings Time ‐ Data transmission: wireless (by induction), two‐way ‐ Duration of batteries: 60 days minimum, or 3.000 readings ‐ Batteries recharge: contactless (by induction) ‐ Clock precision: max. 10 sec/month (from 20° to 30°C); typical 1 min/year (at 25°C) ‐ Display: graphic 128 x 64 with visualization: time and date ‐ assigned name ‐ number of read tags ‐ battery status ‐ Key: tactile backlighted for power on and reading TAG ‐ Dimensions: 60 x 45 x 15 mm. ‐ Reading signal: buzzer and blue led in the key ‐ Operations environment: 0° ‐ 50°C without condensation ‐ Mechanical resistance: 50 cm fall on concrete ST_RFIDat_ENG _V11A 02/10/08 . Selesta Ingegneria S.p.A. • Via di Francia 28 • 16149 Genova • Tel: +39.010.60291 • Fax: +39.010.6454548 • www.seling.it Genova • Milano • Roma • Torino – Vicenza – Bologna - Potenza pag. 3 di 3 RFIDock technical characteristics ‐ Connections: serial Rs232 / USB, 200 cm cable ‐ Power supply: external, 12Vdc ‐ Base: with 1 ‐ 2 ‐ 4 ‐ 8 compartments modularity ‐ Signalling leds n.4: • power supply • presence of RFIDat reader • batteries under recharge • data transmission in progress ‐ Options: ‐ Ethernet interface ‐ GSM module (available: 4 th Q 2008) RFIDat - RFIDock - RFICom are products of Selesta Ingegneria Selesta Ingegneria reserves the right of modifying the content of this document

VCC 6020-A Opt_A RS232 D1BD1B C21C21 D3D3 CN5ACN5A 123456 D4D4 C20C20 U5U5 VIN 1 VOUT 3 GND 2 R26R26 U6U6 VSS 16 VCC 1 PA3 8 PA2 9 PB0 15 PB1 14 PB2 11 PB3 10 PB4 7 PB5 6 PB6 3 PB7 2 PA5 4 PA4 5 PA1 12 PA0 13 D1AD1A Q11Q11 C19C19 Y2Y2 R34R34 C26C26 R31R31 C23C23 R25R25 R27R27 CN3CN3 1 2 C18C18R32R32 R36R36 Q8Q8 R30R30 Q9Q9 C22C22 R28R28 R37R37 C24C24 R35R35 Q10Q10 CN4CN4 123456 C25C25R33R33 C17C17 R29R29 6010 C27 D3 R21 C7 R7 C9 C15 Q7 R11 -+ U2B 56 7 R9 Q4 Q2 R5 CN1 123456 R13 Y1 R12 R3 C14 R8 R17 C3 U1 1 3 2 VIN VOUT GND -+ U2A 32 1 84 R6 L1 Q5 C8 U3 4 5 1213 321514111076 89 16 1 VSS VCC PA3PA2 PB0PB1PB2PB3PB4PB5PB6PB7 PA5PA4PA1PA0 R18 C13 R15 R19 R1 R16 CN2 123456 D1A R22 C1 R4 C11 R2Q6 C5 D4 D2A C4 R14 R24 C12 R20 R10 C2 R23 Q3 D2B Q1 C16 C10 C6 Lista Componenti RfiDock Ver 1.0 22/03/2007: Configurazione Standard 4 Posti Interfaccia RS232. Qt Descizione Codice,Alternativa _______________________________________________________________________ 1 Circuito Interfaccia RS232. 6020/A 4 Circuito Interfaccia Lettore. 6010 1 Cavo RS232 MiniDin_6/DB9F -- 1 Alimentratore 12V 500mA -- Pag. 1/3 Lista Componenti Codice 6020/A RS232 Vers. 1.0 22/03/2007: Qt Ref Descizione Codice,Alternativa ------------------------------------------------------------------ 1 CN3 Connettore Power 2mm A-DC-435-CCS 1 CN4 Connettore CS 6 Poli AMP 1-215079-6 1 CN5 Connettore CS MiniDin 6 Poli SCN-570-6 1 C17 Cond. Elettrolitico E55 10uF 35V CE10-35 3 C18,C20,C21 Condensatore Y5V 100nF C0805-104 1 C19 Condensatore Y5V 1uF C0805-105 2 C23,C22 Condensatore X7R 1nF C0805-102 1 C24 Condensatore Y5V 2.2uF -- 2 C26,C25 Condensatore NP0 22pF C0805-220 4 R25,R26, R27,R29 Resistenza 1/8W 5% 4K7 R0805-472 3 R28,R30,R31 Resistenza 1/8W 5% 330R R0805-331 3 R32,R33,R34 Resistenza 1/8W 5% 47K R0805-473 1 R35 Resistenza 1/8W 5% 10K R0805-103 1 R36 Resistenza 1/8W 5% 10M R0805-106 1 R37 Resistenza 1/8W 5% 47K R0808-473 1 D1B,D1A Diodo Dual SOT143 BAV23 1 D3 LED 0805 Rosso Led0805R 1 D4 LED 0805 Verde Led0805V 1 Q8 Transistor PNP SOT23 BC807-25 3 Q9,Q10,Q11 Transistor NPN SOT23 BC847 1 U5 Regolatore 5V 100mA SO8 78L05 1 U6 Microcontrollore MC68HC908QB8/4 68HC908QB8DTE 1 Y2 Quarzo SMD lp 16 MHz HC49S-16M 1 6020 Circuito Stampato FR4B-1.6-35,35 Pag. 2/3 Lista Componenti Codice 6010 Vers. 1.0 22/03/2007: Qt Ref Descizione Codice,Alternativa ------------------------------------------------------------------ 2 CN1,CN2 Connettore CS 6 Poli AMP 1-215079-6 1 C1 Cond. Elettrolitico E55 10uF 35V 10uF 35V 3 C2,C4,C6 Condensatore Y5V 100nF C0805-104 2 C3,C9 Condensatore Y5V 1uF C0805-105 1 C5 Condensatore Y5V 10nF C0805-103 1 C7 Condensatore X7R 10% 1nF C0805-102 4 C8,C11, C14,C27 Condensatore X7R 10% 100pF C0805-101 3 C10,C12,C13 Condensatore X7R 5% 2.2 nF 100V C0805-222 2 C15,C16 Condensatore NP0 5% 22pF C0805-220 9 R1,R3,R4,R7, R10,R12,R13, R15,R23 Resistenza 1/8W 5% 47K R0805-473 1 R2 Resistenza 1/8W 5% 10K R0805-103 3 R5,R6,R19 Resistenza 1/8W 5% 100K R0805-104 3 R8,R9,R14 Resistenza 1/8W 5% 2K2 R0805-222 1 R11 Resistenza 1/8W 5% 4K7 R0805-472 4 R16,R17, R20,R21 Resistenza 1/8W 5% 22R R0805-220 2 R18,R22 Resistenza 1/8W 5% 330R R0805-331 1 R24 Resistenza 1/8W 5% 10M R0805-106 2 D1A,D2B,D2A Diodo Dual SOT143 BAV23 1 D3 LED 0805 Rosso Led0805R 1 D4 LED 0805 Verde Led0805V 1 L1 Induttore 8x8 680 uH TLS0808-681 2 Q2,Q1 Transistor NPN SOT23 BC847 2 Q4,Q3 Transistor NPN SOT23 BC817-25 2 Q5,Q6 Transistor PNP SOT23 BC807-25 1 Q7 Power Mosfet ChN SOT23 BSS123LT1 1 U1 Regolatore 5V 100mA SO8 78L05 1 U2 OpAmp Dual SO8 LPV358,TLC272 1 U3 Microcontrollore MC68HC908QB8/4 68HC908QB8DTE 1 Y1 Quarzo SMD lp 16 MHz HC49S-16M 1 6010 Circuito Stampato FR4B-1.6-35,35 Pag. 3/3

Report Number 3176546BOX-001 Page 1 of 18 EMISSIONS TEST REPORT Report Number: 3176546BOX-001 Project Number: 3176546 Testing performed on the RFIDat Handheld RFID Reader & RFIDock Modular Docking Station Models: RFIDat & RFIDock FCC IDs: XKC-RFIDAT & XKC-RFIDOCK To CFR47 “Telecommunications” FCC Part 15 Subpart C “Intentional Radiators” 15.209 For PGA Test Performed by: Test Authorized by: Intertek – ETL SEMKO 70 Codman Hill Road Boxborough, MA 01719 Intertek Italy SRL Via Principe di Udine 33030 Campoformido Italy Prepared by: Date: 12/02/2009 Nicholas Abbondante Reviewed by: Date: 12/11/09 Jeff Goulet This report is for the exclusive use of Intertek’s Client and is provided pursuant to the agreement between Intertek and its Client. Intertek’s responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. Report Number 3176546BOX-001 Page 2 of 18 1.0 Job Description 1.1 Client Information This EUT has been tested at the request of: Company: Intertek Italy SRL Via Principe di Udine 33030 Campoformido Italy Contact: Arianna Fogar Telephone: Fax: Email: 39 432 653-411 39 432 653-499 [email protected] 1.2 Equipment Under Test Equipment Type: RFIDat Handheld RFID Reader & RFIDock Modular Docking Station Model Number(s): RFIDat & RFIDock Serial number(s): 10240803111 (RFIDat) BOX0811211651-001 (RFIDock, Intertek Assigned) FCC IDs: XKC-RFIDAT (model: RFIDat) & XKC-RFIDOCK (model: RFIDock) Manufacturer: PGA EUT receive date: 11/21/2008 & 03/20/2009 EUT received condition: Prototype in Good Condition Test dates: 12/23/2009 to 12/24/2009, 03/23/2009 1.3 Test Plan Reference: Tested according to the standards listed and using the guidance of ANSI C63.4:2003. 1.4 Test Configuration 1.4.1 Block Diagram RFIDat RFIDock (data dock) DC Power AC/DC Power Supply AC Power Report Number 3176546BOX-001 Page 3 of 18 1.4.2. Cables: Cable Shielding Connector Length (m) Qty. DC Power None Metal/360 Jack 1.8 1 1.4.3. Support Equipment: Name: Model No.: Serial No.: 12V AC/DC Power Supply 0299-120133 BOX0903101127-001 1.5 Mode(s) of Operation: The RFIDat is battery powered. During testing, the RFIDat was placed in the RFIDock (data dock). While the RFIDat was placed in the RFIDock, the pair was transmitting nearly continuously. 1.6 Floor Standing Equipment: Applicable: Not Applicable: X Report Number 3176546BOX-001 Page 4 of 18 2.0 Test Summary TEST STANDARD RESULTS FCC Part 15 Subpart C 15.209 SUB-TEST TEST PARAMETER COMMENT Radiated Spurious Emissions & Fundamental Field Strength FCC 15.209 The fundamental field strength at 125 kHz must not exceed 105.7 dBuV/m at a distance of 3 meters. Spurious emissions must not exceed the field strength limits of 15.209 at a distance of 3 meters. Pass Occupied Bandwidth FCC 15.215 There is no limit on occupied bandwidth. Pass Duty Cycle FCC 15.35 There is no limit on duty cycle. Pass Conducted Emissions FCC 15.207 AC Line-Conducted Emissions must not exceed limits for Part 15 Subpart C 15.207. Pass Notes: The EUT is a transmitter which transmits at 125 kHz. REVISION SUMMARY – The following changes have been made to this Report: Date Project No. Project Handler Page(s) Item Description of Change 12/02/2009 3176546 Nicholas Abbondante 2-4, 8, 12- 15 Report Merge Added results for Occupied Bandwidth and Duty Cycle tests from report 3169546BOX-001. 12/02/2009 3176546 Nicholas Abbondante 1-3, 8-9, 12, 14, 16- 17 Model and Serial Numbers Updated Model and Serial numbers to reference both items tested, the RFIDat and RFIDock 12/02/2009 3176546 Nicholas Abbondante 1-2, 5-7 Report update Added FCCIDs, updated sample calculation, measurement uncertainty and site description Report Number 3176546BOX-001 Page 5 of 18 3.0 Sample Calculations The field strength is calculated by adding the Antenna Factor and Cable Factor, and subtracting the Amplifier Gain (if any) from the measured reading. The basic equation with a sample calculation is as follows: FS = RA + AF + CF - AG Where FS = Field Strength in dBμV/m RA = Receiver Amplitude (including preamplifier) in dBμV CF = Cable Attenuation Factor in dB AF = Antenna Factor in dB AG = Amplifier Gain in dB In the following table(s), the reading shown on the data table reflects the preamplifier gain. An example for the calculations in the following table is as follows. Assume a receiver reading of 52.0 dBμV is obtained. The antenna factor of 7.4 dB and cable factor of 1.6 dB is added. The amplifier gain of 29 dB is subtracted, giving a field strength of 32 dBμV/m. This value in dBμV/m was converted to its corresponding level in μV/m. RA = 52.0 dBμV AF = 7.4 dB/m CF = 1.6 dB AG = 29.0 dB FS = 32 dBμV/m Level in μV/m = [10( 32 dBμV/m)/20] = 39.8 μV/m The following is how net line-conducted readings were determined: NF = RF + LF + CF + AF Where NF = Net Reading in dBμV RF = Reading from receiver in dBμV LF = LISN Correction Factor in dB CF = Cable Correction Factor in dB AF = Attenuator Loss Factor in dB To convert from dBμV to μV or mV the following was used: UF = 10 (NF / 20) where UF = Net Reading in μV NF = Net Reading in dBμV Example: NF = RF + LF + CF + AF = 28.5 + 0.2 + 0.4 + 20.0 = 49.1 dBμV UF = 10 (49.1 dBμV / 20) = 285.1 μV/m Report Number 317…
