XKM-WASP03Wireless sensor

Libelium Comunicaciones Distribuidas S.L. María de Luna 11, Instalaciones CEEIARAGON, Nave 5 C.P: 50018, Zaragoza Tel: +34 976 54 74 92 FAX: +34 976 73 37 19 [email protected] http://www.libelium.com Waspmote Product information Waspmote product information - Confidential Document - CONTROL DE VERSIONES DEL DOCUMENTO FechaAutorModificaciones 04/09/21Marcos Yarza 22/04/2009 David Gascón 23/04/2009Marcos Yarza María de Luna 11, nave 5 instalaciones CEEI. 50018 Zaragoza. Tel 976547492. http://www.libelium.com 2 of 20 Waspmote product information - Confidential Document - Documento Confidencial DOCUMENTACIÓN CONFIDENCIAL Este documento contiene documentación confidencial y queda expresamente prohibida su divulgación, copia o distribución a terceros sin la autorización expresa de Libelium. Si ha recibido este mensaje por error, se ruega lo notifique a Libelium enviando un mensaje al remitente o al correo electrónico [email protected] y proceda inmediatamente al borrado del mensaje original y de todas sus copias. Gracias por su colaboración. CONFIDENTIAL DOCUMENT This document contains confidential information and is only intended for the eyes of the addressee. Reception by any other than the intended recipient does not waive Libelium's legal protection rights, and it is forbidden to report on, copy or deliver the information to third parties without Libelium's prior consent. Should you receive this communication by mistake, please immediately delete the original message and all the existing copies from your system and report to [email protected] or reply to sender. Thank you for your cooperation. María de Luna 11, nave 5 instalaciones CEEI. 50018 Zaragoza. Tel 976547492. http://www.libelium.com 3 of 20 Waspmote product information - Confidential Document - ÍNDICE DE CONTENIDO 1 Product information......................................................................................................................5 1.1 General project information.......................................................................................................5 1.2 WASPMOTE MODELS.............................................................................................................7 1.3 WASPMOTE antennas..............................................................................................................7 1.4 How to set the MODULES.........................................................................................................7 1.5 Simplified operating instructions TO TEST THE BOARD..........................................................9 1.6 Electrical rating of the product.................................................................................................12 1.7 System configuration...............................................................................................................13 1.8 WORST CASE CONSUPTION................................................................................................14 1.9 Schematics..............................................................................................................................15 2 Additional requirements necessary for all emc evaluations........................................................16 2.1 List of clock frequencies..........................................................................................................16 3 Additional requirements necessary for all product safety evaluations.........................................16 3.1 Manufacturing locations...........................................................................................................16 3.2 Product markings....................................................................................................................17 3.3 Internal batteries......................................................................................................................17 4 Certifications...............................................................................................................................18 4.1 FCC.........................................................................................................................................18 4.2 IC.............................................................................................................................................19 María de Luna 11, nave 5 instalaciones CEEI. 50018 Zaragoza. Tel 976547492. http://www.libelium.com 4 of 20 Waspmote product information - Confidential Document - 1 PRODUCT INFORMATION 1.1 GENERAL PROJECT INFORMATION Waspmote is a wireless sensor mote developed by Libelium. Waspmote is a board with radio modules and others componentes such as GPS integrated. Waspmote works this way: 1º- Read the data from the sensors attached (if any) 2º- Send the information using the 2.4GHz or 900MHz radio and/or the GSM/GPRS module 3º- Sleep until the alarm wakes it up again Energy efficient architecture: Waspmote can control separately the different modules and components which takes the most part of the power. It lets sleep the microprocessor, the sensors, the communication modules choosing in each case which via we want to set on or off. Short, Medium and Long Range Communications Radios: (ZigBee/802.15.4 and GSM/GPRS protocols) - 2.4GHz (1mW) is used to perform short range (300m) and low power communications. - 2.4GHz (100mW) is used to perform medium range (1300m) communications. - 900MHz (50mW and 100mW models) are used to perform medium range (up to several km) communications. - GSM/GPRS is used to connect to the mobile cells and to set communications up to Km's, when alarm messages are generated. It works in the GSM bands: 850 - 900 - 1800 - 1900MHz. IMPORTANT: all the radio modules have both the FCC tests passed. María de Luna 11, nave 5 instalaciones CEEI. 50018 Zaragoza. Tel 976547492. http://www.libelium.com 5 of 20 Waspmote product information - Confidential Document - Large Data Storage: Each mote can store…

Text truncated - open the document above for the full version.

Libelium Comunicaciones Distribuidas S.L María de Luna 11 CEEIARAGON (nave 5) C.P: 50018, Zaragoza, Spain Tel: +34 976547492 FAX: +34 976733719 Attention: Application Examiner Re: Request for confidentiality Applicant: LIBELIUM COMUNICACIONES DISTRIBUIDAS S.L. FCC ID: XKM-WASP03 To whom it may concern, Permanent Confidentiality Request is hereby submitted by LIBELIUM COMUNICACIONES DISTRIBUIDAS S.L. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: •Schematics •Detailed Block diagrams •Detailed Operational/Functional Description •Tune up procedure •Parts list Rationale for request for confidentiality: LIBELIUM COMUNICACIONES DISTRIBUIDAS S.L. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, David Gascón Cabrejas Chief Technology Officer LIBELIUM COMUNICACIONES DISTRIBUIDAS S.L. 1(1)

t e l e m a t i c a n t e n n a | 2 J 0 1 0 http://www.2j-antennae.com reference 2J010 frequency AMPS / GSM900 / GSM1800 UMTS2100 / Bluetooth2400 connector SMA Male working temperature -40°C to +85°C size 53mm x 9.65mm vswr <2:1 impedance 50 Ohms polarisation vertical gain 2.2 dBi

Waspmote Assembly

Libelium PCB

MPE Calculations FCC ID: XKM-WASP03 and IC: 8472A-WASP03 page 1 RF Exposure Requirements: FCC Industry Canada §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. Health Canada Safety Code 6 clause 2: In the following sections, the maximum exposure levels for both RF and microwave exposed workers (including occupationally exposed persons) and other individuals (including the general public) are specified. These levels shall not be exceeded. RF Radiation Exposure Limit, mobile devices: FCC Industry Canada §1.1310 As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. KDB447498 clause 7. Health Canada Safety Code 6 clause 2.2(b) and Table 5. (b) Where the electromagnetic radiation consists of a number of frequencies in the same or different frequency bands, shown in Column 1 of Table 5, then the ratio of the measured value at each frequency to the limit at that given frequency shown in Column 2, 3, or 4 shall be determined, and the sum of all ratios thus obtained for all frequencies shall not exceed unity when averaged spatially and over time. RSS-102 Issue 3 clauses 3.2 and 4.4 FCC 1.1310 Table 1(b) and RSS-102 clause 4.2 RF Field Strength Limits for General Population Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (mW/m 2 ) Averaging Time (minutes) FCC IC FCC IC FCC IC FCC IC 30-300 27.5 28 0.073 0.073 0.2 0.2 30 6 300-1500 ------ 1.585 ƒ 0.5 ------- 0.0042 ƒ 0.5 ƒ/1500 f/1500 30 6 1500-10000 ------ 61.4 ------- 0.163 1 1 30 6 Note: ƒ is frequency in MHz MPE Limit Calculations: 1) EUT operating frequency band 824.2 – 848.8 MHz. Highest conducted power is 32.2 dBm (1.66 W). Maximum 0 dBi antenna gain; 25% GPRS source-based, time-averaged maximum duty cycle. Power Density Determination: S = PG / 4πR 2 or R = √(PG / 4πS) where, S = Power Density (mW/cm 2 ) P = Linear Power Input to antenna in mW (1660 mW peak, 415 mW average) G = Numerical Antenna Gain (1.0) R = Radius (20 cm, as noted in installation instructions) S = (415*1.0/4π20 2 ) = (415/5027) = 0.0826 mW/cm 2 @ 20 cm MPE Calculations FCC ID: XKM-WASP03 and IC: 8472A-WASP03 page 2 2) EUT operating frequency band 1850.2 – 1909.8 MHz. Highest conducted power is 29.2 dBm (0.832 W). Maximum 0 dBi antenna gain; 25% GPRS source-based, time-averaged maximum duty cycle. Power Density Determination: S = PG / 4πR 2 or R = √(PG / 4πS) where, S = Power Density (mW/cm 2 ) P = Linear Power Input to antenna in mW (832 mW peak, 208 mW average) G = Numerical Antenna Gain (1.0) R = Radius (20 cm, as noted in installation instructions) S = (208*1.0/4π20 2 ) = (208/5027) = 0.0414 mW/cm 2 @ 20 cm 3) EUT operating frequency band 904 – 926 MHz; highest conducted power = 17.2 dBm (peak) Maximum antenna gain = 2.2 dBi. Power Density Determination: S = PG / 4πR 2 or R = √(PG / 4πS) where, S = Power Density (mW/cm 2 ) P = Linear Power Input to antenna (52 mW) G = Numerical Antenna Gain (1.66) R = Radius (20 cm, as noted in installation instructions) S = (52*1.66/4π20 2 ) = (86.3/5027) = 0.0172 mW/cm 2 @ 20 cm 4) Worst-case MPE is simultaneous exposure from both antennas @ 20 cm to the respective limits in their bands; i) 824.2 – 848.8 MHz band: MPE limit = f/1500 or 0.557 mW/cm 2 General Population Exposure limit; Calculated MPE/MPE limit = 0.0826/0.557 = 0.148. ii) 1850.2 – 1909.8 MHz band: MPE limit = 1 mW/cm 2 General Population Exposure limit; Calculated MPE/MPE limit = 0.0414/1 = 0.0414. iii) 904 – 926 MHz band: MPE limit = f/1500 mW/cm 2 or 0.61 mW/cm 2 ; General Population Exposure limit; Calculated MPE/MPE limit = 0.0172/0.61 = 0.0282. Worst-case (larger of (i) or (ii) since transmission does not simultaneously in 800 and 1900 MHz bands) and (iii) sum of ratios is 0.148 + 0.0282 = 0.176, which is below the relative MPE limit of 1.0 for co- transmitting sources.

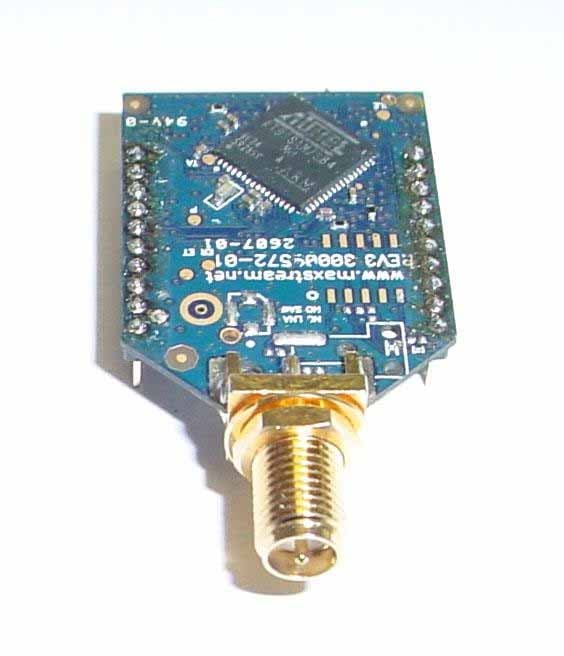

XBee-PRO 900 Model No.: XBEE09P FCC ID: MCQ-XBEE09P Applicant: Digi International Inc. 11001 Bren Road East Minnetonka, MN 55343 USA In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.247 Digital Modulation Systems (DTS) Operating in 902–928 MHz Band UltraTech's File No.: MXS-068F15C247 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: February 7, 2008 Report Prepared by: Dan Huynh Issued Date: February 7, 2008 Tested by: Mr. Hung Trinh, EMI/RFI Technician Test Dates: August 23 - 29, 2007 September 19-21, 2007 October 19, 2007 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R FCC Part 15, Subpart C, Section 15.247 – DTS Contents i XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P ULTRATECH GROUP OF LABS File #: MXS-068F15C247 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 February 7, 2008 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST ..........................................................................................................................................1 EXHIBIT 2. INTRODUCTION ............................................................................................................................................................2 2.1. SCOPE ............................................................................................................................................................................................2 2.2. RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................................2 2.3. NORMATIVE REFERENCES .......................................................................................................................................................2 EXHIBIT 3. PERFORMANCE ASSESSMENT .................................................................................................................................3 3.1. CLIENT INFORMATION ..............................................................................................................................................................3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................................3 3.3. EUT’S TECHNICAL SPECIFICATIONS......................................................................................................................................4 3.4. ASSOCIATED ANTENNA DESCRIPTION .................................................................................................................................4 3.5. LIST OF EUT’S PORTS.................................................................................................................................................................4 3.6. ANCILLARY EQUIPMENT ..........................................................................................................................................................5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS...................................................6 4.1. CLIMATE TEST CONDITIONS ...................................................................................................................................................6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS.................................................................................6 EXHIBIT 5. SUMMARY OF TEST RESULTS..................................................................................................................................7 5.1. LOCATION OF TESTS..................................................................................................................................................................7 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ..................................................................................7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ..................................................8 6.1. TEST PROCEDURES ....................................................................................................................................................................8 6.2. MEASUREMENT UNCERTAINTIES ..........................................................................................................................................8 6.3. MEASUREMENT EQUIPMENT USED .......................................................................................................................................8 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUACTURER...............................................................8 6.5. POWER LINE CONDUCTED EMISSIONS [§15.207(a)]............................................................................... ..............................9 6.6. OCCUPIED BANDWIDTH [§ 15.247(a)(2)] ............................................................................................................................... 13 6.7. PEAK CONDUCTED OUTPUT POWER - DTS [§ 15.247(b)(3)] ..................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 1 Power Line Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 2 Power Line Conducted Emissions ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 3 Radiated Emissions @ 3 m EUT tested with 9.2dBi Maxrad Omni-directional Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 1 ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 4 Radiated Emissions @ 3 m EUT tested with 9.2dBi Maxrad Omni-directional Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 2 ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 5 Radiated Emissions @ 3 m EUT tested with 9.2dBi Maxrad Omni-directional Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 3 ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 6 Radiated Emissions @ 3 m EUT tested with 9.2dBi Maxrad Omni-directional Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 3 ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 7 Radiated Emissions @ 3 m EUT tested with 15.1 dBi Cushcraft Yagi Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 1 ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 8 Radiated Emissions @ 3 m EUT tested with 15.1 dBi Cushcraft Yagi Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 1 ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 9 Radiated Emissions @ 3 m EUT tested with 15.1 dBi Cushcraft Yagi Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 2 ANNEX 1 - TEST SETUP PHOTOS Digi International XBee-PRO 900, Model XBEE09P FCC ID: MCQ-XBEE09P A1 - 10 Radiated Emissions @ 3 m EUT tested with 15.1 dBi Cushcraft Yagi Antenna and 3.35 dB Assembly Cable Loss EUT Orientation: Orthogonal Position 3
