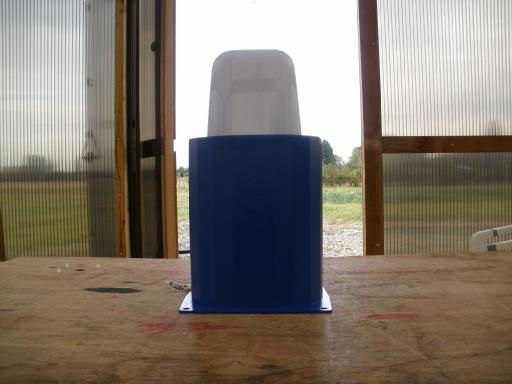

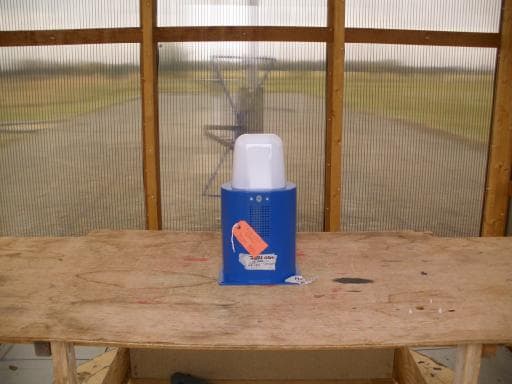

Photograph 1 EUT - Front Photograph 2 EUT - Back 1 of 1 Page: Photos T3331 Test No: FCC ID: XL8PAU4000 R2690 1 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd.
DJS ISSUE A 20 TH OCTOBER 2009 FCC ID LABEL FORMAT AND LOCATION Quatro Electronics Ltd FCC ID : XL8PAU4000 Label Information : FCC ID : XL8PAU4000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Contains FCC ID : QIPTC63 FCC ID LABEL AREA
|---------- ( Cambridge Ltd. ) ----------| Testing EMCEMC Consultancy EMC Training or : 01223 241140 (accounts) 23, Headington Drive, Cambridge. CB1 9HE Tel : 01954 251974 (test site) Fax : 01954 251907 email: [email protected] web : www.dbtechnology.co.uk REPORT ON ELECTROMAGNETIC COMPATIBILITY TESTS Performed at: TWENTY PENCE TEST SITE Twenty Pence Road, Cottenham, Cambridge U.K. CB24 8PS on Quatro Electronics Ltd Sensor Monitor dated 20th October 2009 Document History DBDSAdd periodic transmission results, clarified orientation, add sample calculation 3,9,10,1104/11/092 Initial release20/10/091 Approved by Revised by Description of modifications Affected page(s) DateIssue Based on report template: v090319 1 of 27 Page: Test Report T3331 Test No: FCC ID: XL8PAU4000 R2690 2 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd. Equipment Under Test (EUT):Sensor Monitor Test Commissioned by:Quatro Electronics Ltd Quatro House School Lane Lytham FY8 5NL Representative:Dave Smith Test Started:14th October 2009 Test Completed:4th November 2009 Test Engineer:Dave Smith Date of Report:20th October 2009 Written by:Dave SmithChecked by:Claire Arber Signature:Signature: Date:20th October 2009Date:23rd October 2009 dB Technology can only report on the specific unit(s) tested at its site. The responsibility for extrapolating this data to a product line lies solely with the manufacturer. Test Standards Applied CFR 47 : 2008Code of Federal Regulations: Pt 15 Subpart C - Radio Frequency Devices - Intentional Radiators In particular, the rules of CFR 47 part 15.231 were applied. CFR 47 : 2008Code of Federal Regulations: Pt 15 Subpart B- Radio Frequency Devices - Class BUnintentional Radiators 2 of 27 Page: Test Report T3331 Test No: FCC ID: XL8PAU4000 R2690 2 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd. Emissions Test Results Summary CFR 47 : 2008PASS TestPortMethodLimitPASS/FAILNotes Conductedac powerANSI C63.4:2003 15.207N/A#1FCC_B Emissions conducted Periodic 15.231(a)PASS Operation Radiated ANSI C63.4:2003 15.231(b)PASSFCC_B Emissions radiated Bandwidth ANSI C63.4:2003 15.231(c)PASSFCC_B radiated specs_fccv090511 CFR 47 : 2008PASS TestPortMethodLimitPASS/FAILNotes Conductedac powerANSI C63.4:2003FCC_BN/A#1FCC_B Emissions conducted Radiated ANSI C63.4:2003FCC_BPASS FCC_B Emissions radiated specs_fccv090511 #1Test not required because EUT is battery operated and does not have any connection to the mains. 3 of 27 Page: Test Report T3331 Test No: FCC ID: XL8PAU4000 R2690 2 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd. Contents 27 PLOT 12 Radiated Emissions - 250MHz to 1GHz - Siren On ................................... 26 PLOT 11 Radiated Emissions - 25MHz to 275MHz - Siren On .................................. 25 PLOT 10 Radiated Emissions - 250MHz to 1GHz - GSM Control Circuit Active .................... 24 PLOT 9 Radiated Emissions - 25MHz to 275MHz - GSM Control Circuit Active .................... 23 PLOT 8 Radiated Emissions - 250MHz to 1GHz - 434.475MHz Receiver Active .................... 22 PLOT 7 Radiated Emissions - 25MHz to 275MHz - 434.475MHz Receiver Active ................... 21 PLOT 6 Bandwidth Plot ................................................................ 20 PLOT 5 Radiated Emissions at Band Edges ................................................ 19 PLOT 4 Radiated Emissions - 2GHz to 4.5GHz - Transmitting .................................. 18 PLOT 3 Radiated Emissions - 1GHz to 2GHz - Transmitting ................................... 17 PLOT 2 Radiated Emissions - 250MHz to 1GHz - Transmitting ................................. 16 PLOT 1 Radiated Emissions - 25MHz to 275MHz - Transmitting ................................ 15 4.6 Unintentional Radiator Emissions (15.109) ............................................... 14 4.5 Bandwidth - 15.231(c) ................................................................ 13 4.4 Radiated Emissions Results - At Band Edges - 15.231(b) .................................. 12 4.3 Radiated Emissions Results - Above 1GHz - 15.231(b) .................................... 11 4.2 Radiated Emissions Results - Below 1GHz - 15.231(b) ..................................... 10 4.1 Intermittent Operation Information - 15.231(a) ............................................ 9 4 Test Results ........................................................................... 9 3.1 Radiated Emissions .................................................................... 93 Test Methods.......................................................................... 8 2 Test Equipment ........................................................................ 7 Photograph 2 EUT - Back ................................................................ 7 Photograph 1 EUT - Front ............................................................... 6 Figure 1 General Arrangement of EUT and Peripherals ........................................ 6 1.3 EUT Operating Modes ................................................................. 5 1.2 Modifications to EUT and Peripherals ..................................................... 5 1.1 General .............................................................................. 51 EUT Details............................................................................ 4 of 27 Page: Test Report T3331 Test No: FCC ID: XL8PAU4000 R2690 2 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd. 1 EUT Details 1.1 General The EUT was a Sensor Monitor with a 434.475MHz intentional transmitter and receiver. The transmitter is intended for periodic operation and was therefore tested to FCC part 15.231 and requires "Certifica…
Text truncated - open the document above for the full version.
Photograph 1 EUT - Front Photograph 2 EUT - Back 1 of 1 Page: Photos T3331 Test No: FCC ID: XL8PAU4000 R2690 1 Report No: Issue No: This report shall not be reproduced except in full, without the written approval of: dB Technology (Cambridge) Ltd.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 434.475 MHz - 434.475 MHz | - |

Intruder alarm
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
EXTERNAL PIR SENSORS
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
EXTERNAL SIREN
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
WIRELESS KEYPAD
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
WIRELESS MULTI-FUNCTION SENSOR
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
